3-70 — BRAKE PIPING; AIR,AIR MASTER (#6538) — 94 parça

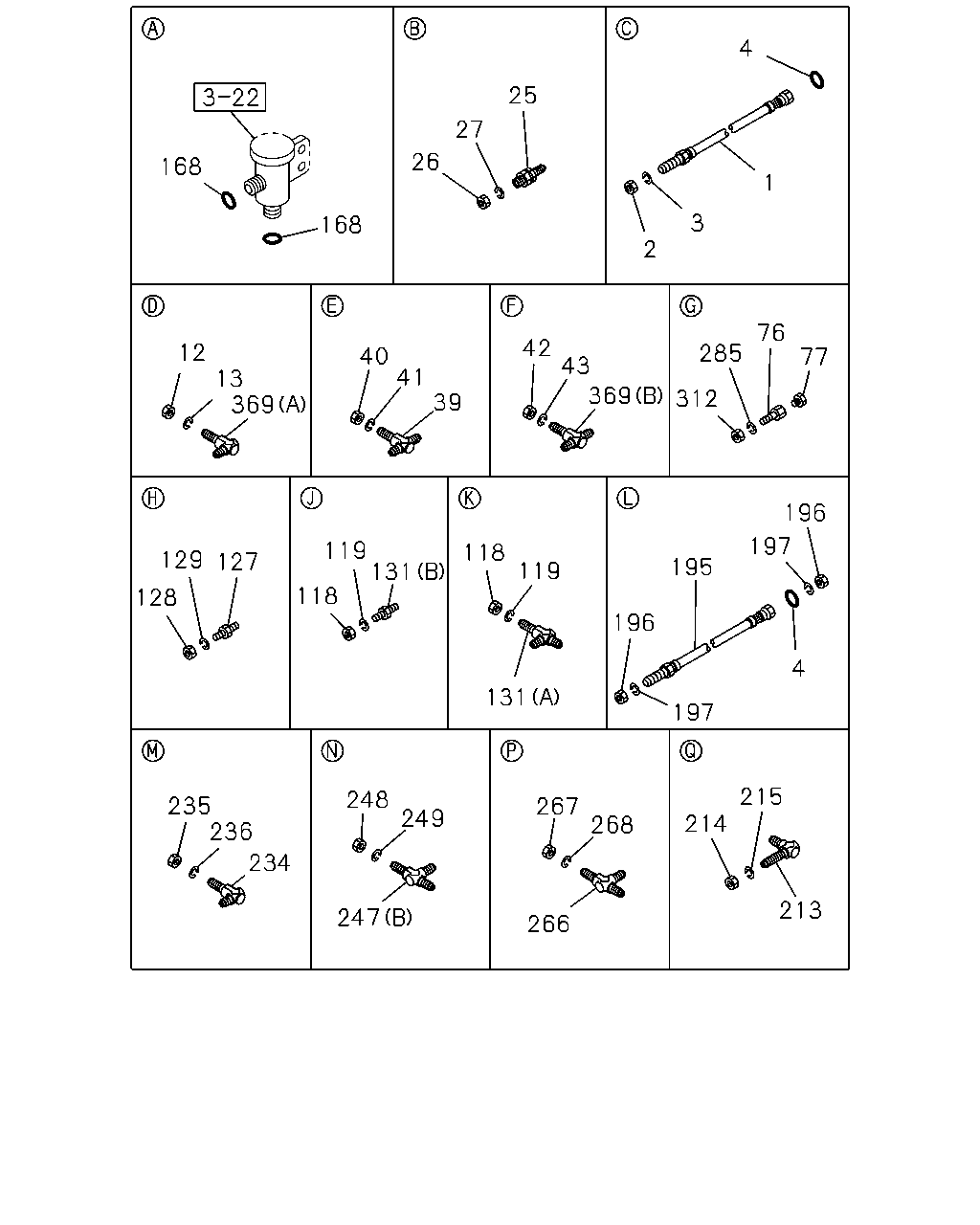

çizim 5929
4 25 27 26 168 1 3 168 2 76 42 43 12 285 40 41 77 13 369 369 312 39 196 197 119 131 118 129 127 195 119 118 128 196 4 131 197 215 248 235 236 267 249 214 268 234 213 247 266
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=380 		1-09363-566-0 01 1 9705-
2 NUT; FLEX HOSE,AIR TANK
M20 		9-99111-420-0 01 1 9705-
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=20.2 		9-09150-520-0 01 1 9705-
4 GASKET; FLEX HOSE
ID=12 		9-09572-512-0 01 1 9705-
12 NUT; UNION
M22 		9-09111-422-0 01 1 9705-
13 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 01 1 9705-
25 VALVE; CHECK 1-48410-217-2 01 1 9705-
26 NUT; CHECK VLV
M22 		9-09111-422-0 01 1 9705-
27 WASHER; LK,CHECK VLV
ID=22.5 		9-09150-522-0 01 1 9705-
39 UNION; AIR PIPE 1-09656-376-1 01 1 9705-
40 NUT; PIPE UNION
M20 		9-99111-420-0 01 1 9705-
41 WASHER; LK,PIPE UNION
ID=20.2 		9-09150-520-0 01 1 9705-
42 NUT; PIPE UNION
M20 		9-99111-420-0 01 1 9705-
43 WASHER; LK,UNION,PIPE
ID=20.2 		9-09150-520-0 01 1 9705-
76 UNION; PLUG,HOSE JOINT 1-09654-258-1 02 1 9705-
77 PLUG; HOSE JOINT
PT3/8 		9-09204-517-0 02 1 9705-
118 NUT; UNION
M16 		9-99111-416-0 02 1 9705-
119 WASHER; LK,UNION
ID=16.2 		9-09150-516-0 02 1 9705-
127 UNION; AIR PIPE
M16 L=74 		9-09233-310-1 01 1 9705-
128 NUT; PIPE UNION
M16 		9-99111-416-0 01 1 9705-9803
128 NUT; PIPE UNION
M16 		9-99111-416-0 02 1 9804-
129 WASHER; LK,PIPE UNION
ID=16.2 		9-09150-516-0 01 1 9705-9803
129 WASHER; LK,PIPE UNION
ID=16.2 		9-09150-516-0 02 1 9804-
131 UNION; AIR PIPE
(A) M16 L=94 		9-09228-810-1 01 1 9705-
131 UNION; AIR PIPE
(B) M16 L=70 STRAIGHT 		9-09233-210-1 01 1 9705-
168 GASKET; AIR PIPE,GOV
ID=11 OD=18 		9-09572-510-0 02 1 9705-
195 HOSE; FLEX,GOV TO COMP
L=360 		0-07030-360-0 01 1 9705-
196 NUT; FLEX HOSE
M12 		9-09840-280-0 02 1 9705-
197 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 02 1 9705-
213 UNION; AIR PIPE
M14X2 & M16 3WAY 		1-09656-569-1 01 1 9705-
214 NUT; UNION,AIR PIPE
M16 		9-99111-416-0 01 1 9705-
215 WASHER; LK,UNION,AIR PIPE
ID=16.2 		9-09150-516-0 01 1 9705-
234 UNION; AIR PIPE
M16 ELBOW 		9-09235-110-1 01 1 9705-
235 NUT; PIPE UNION
M16 		9-99111-416-0 01 1 9705-
236 WASHER; LK,UNION,PIPE
ID=16.2 		9-09150-516-0 01 1 9705-
247 UNION; AIR PIPE
(C) M16 3WAY 		1-09656-347-1 01 1 9705-
247 UNION; AIR PIPE
(A) M16 L=65 STRAIGHT 		9-09223-110-1 01 1 9705-
247 UNION; AIR PIPE
(B) M16 L=94 		9-09228-810-1 01 1 9705-
248 NUT; PIPE UNION
M16 		9-99111-416-0 01 1 9705-
249 WASHER; LK,PIPE UNION
ID=16.2 		9-09150-516-0 01 1 9705-
266 UNION; AIR PIPE
M12 3WAY 		9-09228-706-1 01 1 9705-
267 NUT; UNION
M12 		9-09840-280-0 01 1 9705-
268 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 01 1 9705-
285 WASHER; LK,UNION
ID=16.2 		9-09150-516-0 02 1 9705-
304 BRACKET; UNION 1-21439-108-0 01 1 9804-
312 NUT; UNION
M16 		9-99111-416-0 02 1 9705-
369 UNION; AIR PIPE
(A) M22 		9-09235-215-1 01 1 9705-
369 UNION; AIR PIPE
(B) M20 		9-09238-912-1 01 1 9705-
377 BOLT; BRKT FIX
M8X35 FLANGE 		0-28680-835-0 01 1 9804-
421 NUT; BRKT
M8 FLANGE 		0-91150-208-0 01 1 9804-

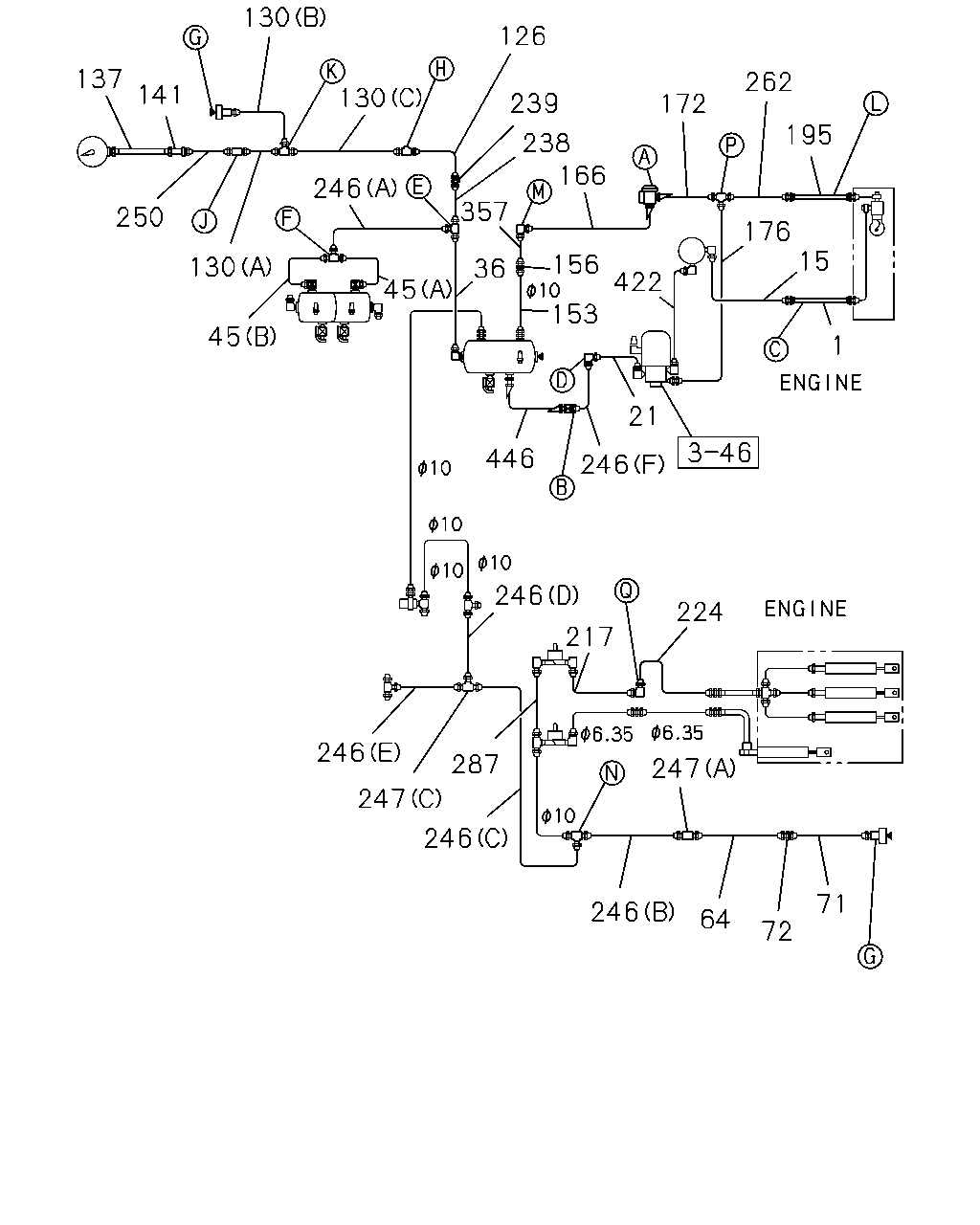

çizim 7885
130 126 130 137 262 141 239 172 195 238 166 246 357 250 176 15 156 153 130 36 422 45 45 1 21 446 246 246 224 217 246 287 247 247 246 71 246 64 72
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=380 		1-09363-566-0 01 1 9705-
15 PIPE; AIR,FLEX HOSE TO CONNECTOR 1-49117-227-0 01 1 9705-
21 PIPE; AIR,UNION TO AIR DRYER 1-49117-225-0 01 1 9705-
36 PIPE; AIR,AIR TANK TO UNION 1-49118-278-0 01 1 9705-
45 PIPE; AIR,UNION TO AIR TANK
(A) 		1-49117-201-0 01 1 9705-
45 PIPE; AIR,UNION TO AIR TANK
(B) 		1-49117-202-0 01 1 9705-
64 PIPE; AIR 1-49118-281-0 01 1 9705-
71 PIPE; AIR 1-49118-291-0 01 1 9705-
72 UNION; AIR PIPE
M16 L=65 STRAIGHT 		9-09223-110-1 01 1 9705-
126 PIPE; AIR,UNION TO UNION 1-49117-192-0 01 1 9705-
130 PIPE; AIR,UNION TO UNION
(A) 		1-49117-189-0 01 1 9705-
130 PIPE; AIR,UNION TO UNION
(B) 		1-49117-190-0 01 1 9705-9803
130 PIPE; AIR,UNION TO UNION 1-49119-453-0 01 1 9804-
130 PIPE; AIR,UNION TO UNION
(C) 		1-49117-191-0 01 1 9705-
137 HOSE; FLEX,AIR PRESSURE GAGE
L=700 		0-07210-700-0 01 1 9705-
141 UNION; FLEX HOSE 1-09654-259-1 01 1 9705-
153 PIPE; AIR,AIR TANK TO UNION 1-49117-746-0 01 1 9705-
156 UNION; AIR PIPE
M16 L=42 		9-09233-010-1 01 1 9705-
166 PIPE; AIR,UNION TO GOV 1-49117-230-0 01 1 9705-
172 PIPE; AIR,GOV TO UNION 1-49117-231-0 01 1 9705-
176 PIPE; AIR,AIR DRYER TO UNION 1-49117-242-0 01 1 9705-
195 HOSE; FLEX,GOV TO COMP
L=360 		0-07030-360-0 01 1 9705-
217 PIPE; VAC,UNION TO MAG VLV 1-49117-722-0 01 1 9705-
224 PIPE; AIR,UNION TO FLEX HOSE 1-49117-723-0 01 1 9705-
238 PIPE; AIR,UNION TO UNION 1-49118-277-0 01 1 9705-
239 UNION; AIR PIPE
M16 L=42 		9-09233-010-1 01 1 9705-
246 PIPE; AIR,UNION TO UNION
(A) 		1-49117-203-0 01 1 9705-
246 PIPE; AIR,UNION TO UNION
(B) 		1-49117-218-0 01 1 9705-
246 PIPE; AIR,UNION TO UNION
(C) 		1-49117-719-0 01 1 9705-
246 PIPE; AIR,UNION TO UNION
(D) 		1-49117-745-0 01 1 9705-
246 PIPE; AIR,UNION TO UNION
(E) 		1-49118-280-0 01 1 9705-
246 PIPE; AIR,UNION TO UNION
(F) 		1-49118-283-0 01 1 9705-
247 UNION; AIR PIPE
(C) M16 3WAY 		1-09656-347-1 01 1 9705-
247 UNION; AIR PIPE
(A) M16 L=65 STRAIGHT 		9-09223-110-1 01 1 9705-
247 UNION; AIR PIPE
(B) M16 L=94 		9-09228-810-1 01 1 9705-
250 PIPE; AIR,UNION TO FLEX HOSE 1-49118-279-0 01 1 9705-
262 PIPE; AIR,UNION TO FLEX 1-49117-241-0 01 1 9705-
287 PIPE; AIR,MAG VLV 1-49117-721-0 01 1 9705-
304 BRACKET; UNION 1-21439-108-0 01 1 9804-
357 PIPE; AIR,UNION TO UNION 1-49117-747-0 01 1 9705-
377 BOLT; BRKT FIX
M8X35 FLANGE 		0-28680-835-0 01 1 9804-
421 NUT; BRKT
M8 FLANGE 		0-91150-208-0 01 1 9804-
422 PIPE; AIR,AIR CHAMBER 1-49117-226-0 01 1 9705-
446 PIPE; AIR,NIPPLE TO AIR TANK 1-49118-282-0 01 1 9705-
