9-01 — TOOLS (#65373) — 135 parça
çizim 5425
70 57 61 85 82 89 84 93 118 92 91 297 296
BalonParca AdiParca NoAdetTipApplied Date A B C
57 TOOL; SETTING CRANK GEAR
ID=134.5 		8-94396-819-0 01 1 9806-0004 ● ● ●
61 PULLER ASM; PILOT BRG
(A) 		1-85210-050-0 01 1 9806- ● ● ●
61 PULLER ASM; PILOT BRG
(B) 		9-85210-157-0 01 1 9806-0004 ● ● ●
70 TOOL; SETTING,OIL SEAL 8-94396-856-0 01 1 9806-0004 ● ● ●
82 PULLER ASM; CR/SHF GEAR 8-94396-818-0 01 1 9806-0004 ● ● ●
84 REPLACER; VALVE SEAL 8-94396-815-0 01 1 9806- ● ● ●
85 REPLACER ASM; VALVE SPR 8-94396-861-0 01 1 9806-0004 ● ● ●
89 TOOL; PISTON RING 1-85221-029-0 01 1 9806-0004 ● ● ●
91 REPLACER ASM; CYL LINER 8-94396-849-0 01 1 9806- ● ● ●
92 ANKLE; REPLACER,CYL LINER 8-94396-821-0 01 1 9806- ● ● ●
93 SETTING KIT; VALVE GUIDE 1-85220-001-0 01 1 9806- ● ● ●
118 WRENCH; OIL FILTER
EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-85221-097-0 01 1 9806-0004 ● ● ●
296 REPLACER; SLINGER 8-94396-858-0 01 1 9806-0004 ● ● ●
297 CUTTER; SEAL,OIL PAN 8-94393-112-0 01 1 9806-0004 ● ● ●

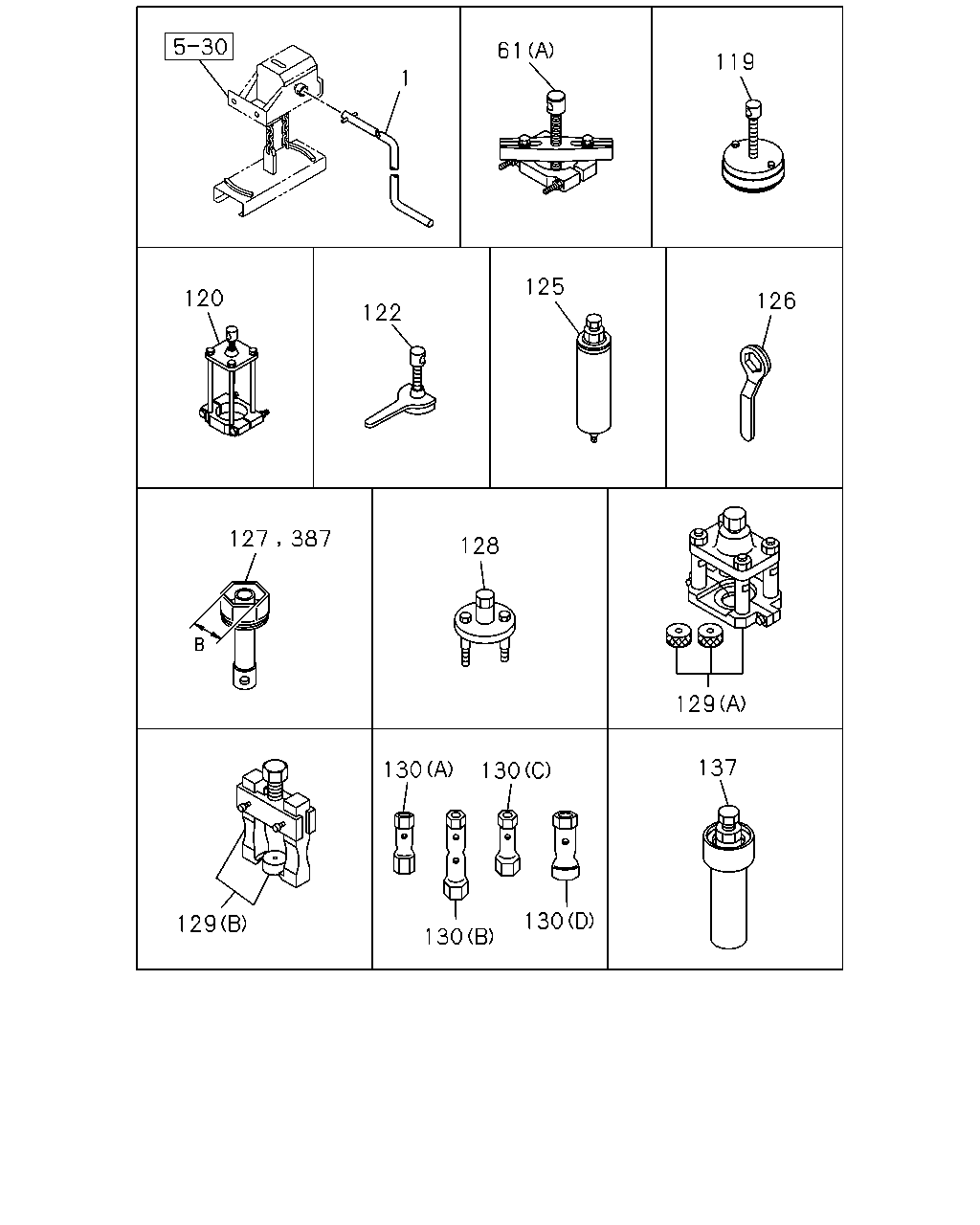

çizim 14348
61 119 1 125 120 126 122 128 129 137 130 130 130 129 130 127 387
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		9-23110-018-0 01 1 9806- ● ●
1 HANDLE; SPARE TIRE CARRIER
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		9-23110-018-0 01 1 9806- ●
61 PULLER ASM; PILOT BRG
(A) 		1-85210-050-0 01 1 9806- ● ● ●
61 PULLER ASM; PILOT BRG
(B) 		9-85210-157-0 01 1 9806-0004 ● ● ●
119 PULLER ASM; TOP GEAR BRG 9-85210-186-0 01 1 9806-0004 ● ● ●
120 PULLER ASM; MAIN REAR BRG 9-85210-169-0 01 1 9806- ● ● ●
122 PULLER ASM; COUNTER FRT 9-85210-168-0 01 1 9806- ● ● ●
125 PULLER ASM; KING PIN
L=360 		9-85210-151-0 01 1 9806-0004 ● ●
126 WRENCH; FRT HUB BRG NUT 9-85111-373-0 01 1 9806-9908 ● ●
126 WRENCH; FRT HUB BRG NUT
B=98 L=435 		1-85113-027-0 01 1 9909-0004 ● ●
126 WRENCH; FRT HUB BRG NUT
B=98 L=435 		1-85113-027-0 01 1 0005- ● ● ●
127 WRENCH ASM; HUB BRG NUT
B=98 L=305 		9-85113-533-0 01 1 9806-0004 ● ●
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 9806-0004 ● ●
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 0005- ● ● ●
129 PULLER ASM; PITMAN ARM
(A) 		9-85210-147-0 01 1 9806-0004 ● ●
129 PULLER ASM; PITMAN ARM
(B) 		1-85210-011-0 01 1 0005- ● ●
130 WRENCH; BOX
(D) B=46 & 54 L=165 		9-85112-320-0 01 1 9806-0004 ● ●
130 WRENCH; BOX
(A) B=32 & 41 L=150 		9-85112-322-0 01 1 9806-0004 ● ●
130 WRENCH; BOX
(B) B=36 & 41 L=200 		9-85112-330-0 01 1 9806-0004 ● ●
130 WRENCH; BOX
(C) B=41 & 46 L=165 		9-85113-401-0 01 1 9806-0004 ● ●
137 PLIER; SHOE,RETURN SPRING 1-85210-025-0 01 1 9806- ● ●
387 WRENCH; HUB BRG NUT
B=98 L=305 		9-85113-533-2 01 1 0005- ● ● ●
çizim 14378
172 174 177 178 179 180 182 186 186 189
BalonParca AdiParca NoAdetTipApplied Date A B C
172 PULLER ASM; BRG DIFF PILOT 9-85210-173-0 01 1 9806-0004 ● ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 9806- ● ● ●
177 SETTING TOOL KIT 9-85220-040-0 01 1 9806-0004 ● ● ●
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 9806- ● ● ●
179 PULLER; SPD METER GEAR 9-85210-181-0 01 1 9806-0004 ● ● ●
180 PULLER; FRT & RR HUB 1-85210-002-0 01 1 9806-0004 ● ●
182 REMOVER ASM 9-85210-095-0 01 1 9806-0004 ● ● ●
186 ADJUSTER; BRAKE
TOOL A KIT<SK9> (B) 		1-47165-066-0 01 1 0209- ● ● ●
186 ADJUSTER; BRAKE
(A) 		1-85261-001-0 01 1 9806-0208 ● ● ●
186 ADJUSTER; BRAKE
TOOL B KIT<SL1> (A) 		1-85261-001-0 01 1 0209- ● ● ●
189 TUBE; AIR BREATHER
L=460 		9-85291-414-0 01 1 9806-0208 ● ● ●
189 TUBE; AIR BREATHER
TOOL B KIT<SL1> L=460 		9-85291-414-0 01 1 0209- ● ● ●
çizim 14504
141 143 141 141 144 157 163 161 162 160 162 163 163 163 166 169 167 171 170
BalonParca AdiParca NoAdetTipApplied Date A B C
141 HANDLE; WRENCH
(C) OD=25 L=480 		1-85116-011-0 01 1 9806-0004 ●
141 HANDLE; WRENCH
(C) OD=25 L=480 		1-85116-011-0 01 1 0005-1501 ● ● ●
141 HANDLE; WRENCH
(C) OD=25 L=480 		8-98257-407-0 01 1 1502- ● ● ●
141 HANDLE; WRENCH
(B) OD=19 L=400 		9-85114-306-0 01 1 9806-0004 ● ●
141 HANDLE; WRENCH
(A) OD=16 L=300 		9-85114-307-0 01 1 9806-0004 ● ●
143 GUIDE; BOOT,TIE ROD END 1-85229-011-0 01 1 0005- ● ● ●
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-012-0 01 1 0005- ● ● ●
157 REPLACER KIT; RETURN SPR
ID=16 		1-85237-002-0 01 1 9806- ● ●
160 REMOVER; NEEDLE BRG
L=228 		1-85238-010-0 01 1 9806-0004 ● ●
161 REMOVER; TIE ROD ARM 9-85141-603-0 01 1 9806-0004 ● ●
162 SETTING TOOL; NEEDLE BRG
(B) L=181 		1-85238-008-0 01 1 9806-0004 ● ●
162 SETTING TOOL; NEEDLE BRG
(A) L=213 		1-85238-009-0 01 1 9806-0004 ● ●
163 TOOL; SETTING
(D) OD=120 		1-85221-164-0 01 1 9806-0004 ● ● ●
163 TOOL; SETTING
(B) L=150 		9-85221-248-0 01 1 9806-0004 ● ● ●
163 TOOL; SETTING
(C) L=350 		9-85221-310-0 01 1 9806-0004 ● ● ●
163 TOOL; SETTING
(A) L=220 		9-85221-323-0 01 1 9806-0004 ● ● ●
166 ALIGNER; CLU RELEASE LEVER
L=480 		1-85253-023-0 01 1 9806- ● ● ●
167 ALIGNER; CLU PILOT
L=185 		1-85253-008-0 01 1 9806- ● ● ●
169 BRACKET; SPLINE YOKE 9-85221-243-1 01 1 9806-0004 ● ●
170 HANDLE; TURNING,FINAL 9-85251-121-0 01 1 9806-0004 ● ●
171 PULLER ASM; PINION BRG 9-85210-172-0 01 1 9806-0004 ● ●
çizim 14567
9 17 13 12 23 29 22 29 21 20 19 29 193 208 115 230 232 237
BalonParca AdiParca NoAdetTipApplied Date A B C
9 WRENCH; WHEEL PIN
B=41X21 L=440 		1-85113-015-1 01 1 9806-0208 ● ● ●
9 WRENCH; WHEEL PIN
TOOL A KIT<SK9>,TOOL B KIT<SL1> B=41X21 L=440 		1-85113-015-1 01 1 0209- ● ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 0005-0208 ● ● ●
12 HANDLE; WRENCH,WHEEL PIN
TOOL A KIT<SK9>,TOOL B KIT<SL1> OD=25 L=480 		1-85116-011-0 01 1 0209-1501 ● ● ●
12 HANDLE; WRENCH,WHEEL PIN
TOOL A KIT<SK9>,TOOL B KIT<SL1> OD=25 L=480 		8-98257-407-0 01 1 1502- ● ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 9806-0004 ● ● ●
13 WRENCH; MONKEY
L=255 		1-85117-002-1 01 1 9806-0208 ● ● ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=255 		1-85117-002-1 01 1 0209-0211 ● ● ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=247 		1-85117-006-0 01 1 0212-1407 ● ● ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=255 		8-98270-303-0 01 1 1408- ● ● ●
17 HAMMER 9-85121-406-0 01 1 9806-0208 ● ● ●
17 HAMMER
TOOL B KIT<SL1> 		9-85121-406-0 01 1 0209- ● ● ●
19 WRENCH; 7X8
7X8 		9-09592-107-0 01 1 9806-0208 ● ● ●
19 WRENCH; 7X8
TOOL B KIT<SL1> 7X8 		9-09592-107-0 01 1 0209- ● ● ●
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 9806-0208 ● ● ●
20 WRENCH; 10X12
TOOL B KIT<SL1> 10X12 		9-09592-110-0 01 1 0209-0607 ● ● ●
20 WRENCH; 10X12
TOOL B KIT<SL1> 10X12 		0-95902-510-0 01 1 0608- ● ● ●
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 9806-0208 ● ● ●
21 WRENCH; 14X17
TOOL B KIT<SL1> 14X17 		9-09592-114-0 01 1 0209-0607 ● ● ●
21 WRENCH; 14X17
TOOL B KIT<SL1> 14X17 		0-95902-514-0 01 1 0608- ● ● ●
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 9806-0208 ● ● ●
22 WRENCH; 19X22
TOOL B KIT<SL1> 19X22 		9-99592-119-0 01 1 0209-0607 ● ● ●
22 WRENCH; 19X22
TOOL B KIT<SL1> 19X22 		0-95902-519-0 01 1 0608- ● ● ●
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 9806-0208 ● ● ●
23 WRENCH; 24X27
TOOL B KIT<SL1> 24X27 		9-09592-124-0 01 1 0209-0607 ● ● ●
23 WRENCH; 24X27
TOOL B KIT<SL1> 24X27 		0-95902-524-0 01 1 0608- ● ● ●
29 DRIVER; SCREW
TOOL A KIT<SK9> (C) <+>,<-> L=160 		8-94242-798-1 01 1 0209- ● ● ●
29 DRIVER; SCREW
(A) <+> L=205 		9-09595-022-0 01 1 9806-0208 ● ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (A) <+> L=205 		9-09595-022-0 01 1 0209- ● ● ●
29 DRIVER; SCREW
(A) <+> L=275 		9-09595-023-0 01 1 9806-0208 ● ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (A) <+> L=275 		9-09595-023-0 01 1 0209- ● ● ●
29 DRIVER; SCREW
(B) <-> L=205 		9-09595-126-0 01 1 9806-0208 ● ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (B) <-> L=205 		9-09595-126-0 01 1 0209- ● ● ●
29 DRIVER; SCREW
(B) <-> L=325 		9-09595-129-0 01 1 9806-0208 ● ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (B) <-> L=325 		9-09595-129-0 01 1 0209- ● ● ●
115 PLIER 5-85171-001-0 01 1 9806-0208 ● ● ●
115 PLIER
TOOL B KIT<SL1> 		5-85171-001-0 01 1 0209-0212 ● ● ●
115 PLIER
TOOL B KIT<SL1> 		5-85171-002-0 01 1 0301-1410 ● ● ●
115 PLIER
TOOL B KIT<SL1> 		8-98282-845-0 01 1 1411- ● ● ●
193 JACK ASM
10TON 		1-85510-013-1 01 1 9806-0208 ● ● ●
193 JACK ASM
TOOL A KIT<SK9>,TOOL B KIT<SL1> 10TON 		1-85510-013-1 01 1 0209-0504 ● ● ●
193 JACK ASM
TOOL A KIT<SK9>,TOOL B KIT<SL1> 10TON 		8-97607-599-0 01 1 0505- ● ● ●
208 HANDLE; JACK
L=600 		1-85515-008-0 01 1 9806-0105 ● ● ●
208 HANDLE; JACK
L=600 		1-85515-009-0 01 1 0106-1107 ● ● ●
208 HANDLE; JACK
L=600 		8-98181-437-0 01 1 1108- ● ● ●
230 PUMP; GREASE 1-85556-007-2 01 1 9806-0208 ● ● ●
230 PUMP; GREASE
TOOL B KIT<SL1> 		1-85556-007-5 01 1 0209- ● ● ●
232 HOSE; AIR,AIR CHARGE
TIRE INFLATOR DEVICE(SG4) 		1-09360-245-1 01 1 9806- ● ● ●
237 BAG; TOOL 8-97130-902-0 01 1 9806-0208 ● ● ●
237 BAG; TOOL
TOOL A KIT<SK9>,TOOL B KIT<SL1> 		8-97130-902-1 01 1 0209- ● ● ●
çizim 184808
274 271 268 209 285 281 280 282 284
BalonParca AdiParca NoAdetTipApplied Date A B C
209 CLIP; JACK HANDLE 1-73638-011-1 02 1 9806-0708 ● ● ●
209 CLIP; JACK HANDLE 8-98053-799-0 02 1 0709- ● ● ●
268 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 9806-0604 ● ● ●
268 SCREW; CLIP
M6X12 W/LK WASHER 		0-36220-612-0 02 1 0605- ● ● ●
271 CLIP; TIRE HANGER 1-73638-012-1 02 1 9806-0708 ● ● ●
271 CLIP; TIRE HANGER 8-98053-800-0 02 1 0709- ● ● ●
274 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 9806-0604 ● ● ●
274 SCREW; CLIP
M6X12 W/LK WASHER 		0-36220-612-0 02 1 0605- ● ● ●
280 BOX; TOOL
KEY LOCK TOOL BOX<RC5> 		1-85561-006-3 01 1 9806- ● ●
281 BRACKET; TOOL BOX
KEY LOCK TOOL BOX<RC5> 		1-53459-665-2 02 1 9806- ● ●
282 NUT; BRKT
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91150-210-0 04 1 9806-0602 ● ●
282 NUT; BRKT
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
284 BOLT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10X20 FLANGE 		0-28681-020-0 04 1 9806-0512 ● ●
284 BOLT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10X20 FLANGE 		0-28651-020-0 04 1 0601- ● ●
285 NUT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91150-210-0 04 1 9806-0602 ● ●
285 NUT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
