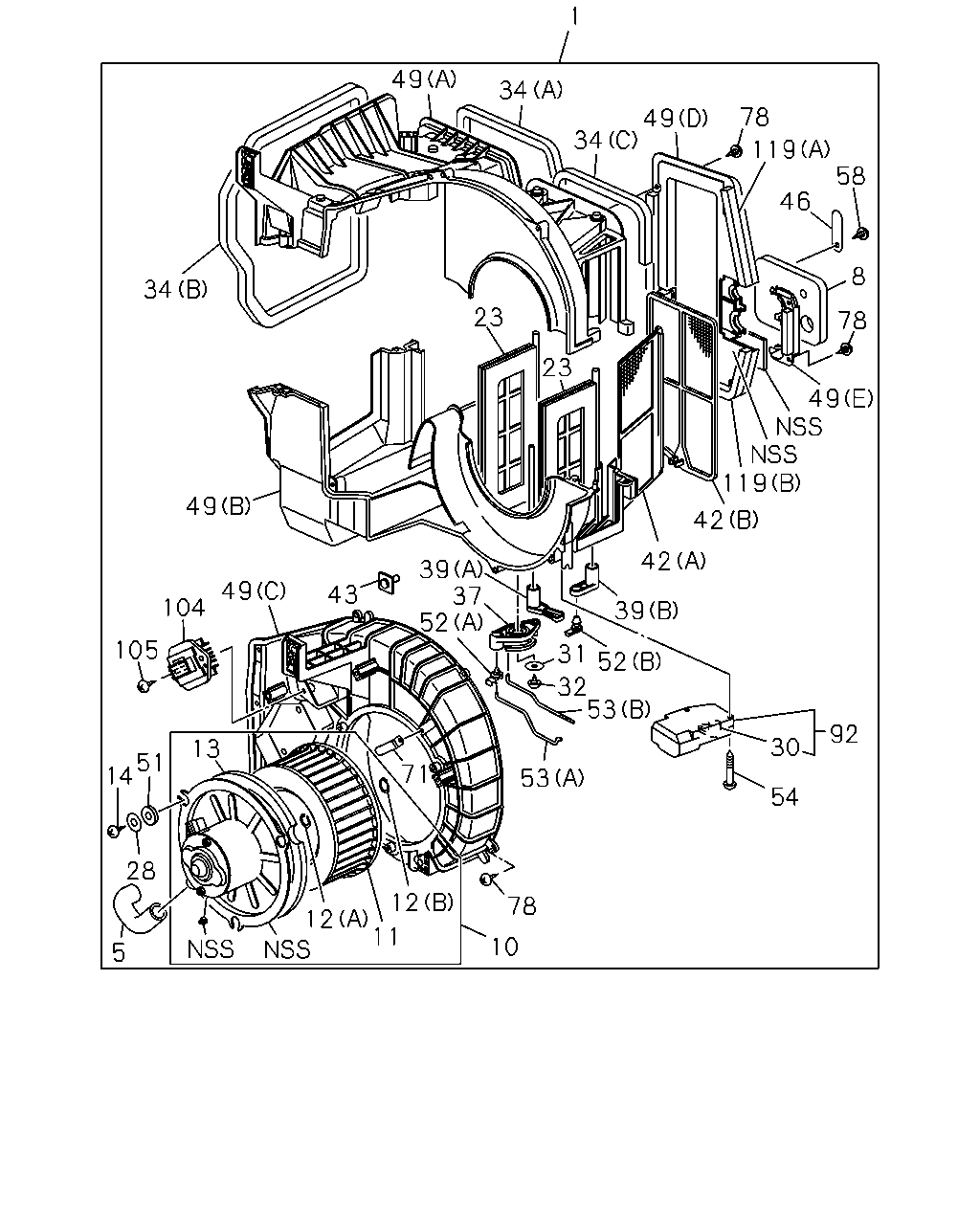

8-73 — BLOWER UNIT (#65370) — 47 parça

34 49 34 1 34 49 78 119 58 46 8 78 49 119 23 23 42 42 39 31 52 32 53 53 92 30 54 71 78 10 12 11 12 39 37 52 43 49 49 104 105 13 51 14 28 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOWER ASM HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-83561-110-6	01	1	9806-	●	●	●
5	HOSE; AIR HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-83563-147-0	01	1	9806-	●	●	●
8	SEAL; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-83579-801-1	01	1	9806-	●	●	●
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-83561-121-0	01	1	9806-0011	●	●	●
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-83561-164-0	01	1	0012-	●	●	●
11	IMPELLER; FAN MOTOR HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-83579-796-0	01	1	9806-	●	●	●
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	5-83569-088-0	01	1	9806-	●	●	●
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B)	8-94243-962-0	01	1	9806-	●	●	●
13	LINING; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-83579-636-0	01	1	9806-	●	●	●
14	SCREW; COVER TO CASE HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	8-97130-601-0	03	1	9806-0011	●	●	●
14	SCREW; COVER TO CASE HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X20	9-09829-324-1	03	1	0012-	●	●	●
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-83579-797-0	02	1	9806-	●	●	●
28	WASHER; PL,FAN MOTOR HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-83579-170-0	03	1	9806-	●	●	●
30	LEVER; ACTUATOR HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-83564-345-1	01	1	9806-	●	●	●
31	WASHER; LEVER HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-83579-095-0	01	1	9806-	●	●	●
32	SCREW; LEVER HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	8-97130-601-0	01	1	9806-0011	●	●	●
32	SCREW; LEVER HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X20	9-09829-324-1	01	1	0012-	●	●	●
34	LINING; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	1-83579-633-2	01	1	9806-	●	●	●
34	LINING; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (C)	1-83579-634-2	01	1	9806-	●	●	●
34	LINING; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B)	1-83579-644-0	01	1	9806-	●	●	●
37	LEVER; MODE LEVER HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-83564-375-0	01	1	9806-	●	●	●
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	1-83564-373-0	01	1	9806-	●	●	●
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B)	1-83564-374-0	01	1	9806-	●	●	●
42	FILTER; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B)	1-83579-800-1	01	1	9806-	●	●	●
42	FILTER; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	1-83579-933-0	02	1	9806-0011	●	●	●
42	FILTER; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	1-83579-993-0	02	1	0012-	●	●	●
43	BOLT; CASE HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-83579-657-2	04	1	9806-	●	●	●
46	PLATE; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-83571-870-1	01	1	9806-	●	●	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	1-83564-368-0	01	1	9806-	●	●	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B)	1-83564-369-0	01	1	9806-	●	●	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (C)	1-83564-370-0	01	1	9806-	●	●	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (D)	1-83564-371-0	01	1	9806-	●	●	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (E)	1-83564-372-0	01	1	9806-	●	●	●
51	ISOLATOR; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-83579-496-0	03	1	9806-	●	●	●
52	CLIP; LEVER TO CASE HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	1-83574-136-0	01	1	9806-	●	●	●
52	CLIP; LEVER TO CASE HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B)	8-94248-794-0	01	1	9806-	●	●	●
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B)	1-83579-639-0	01	1	9806-	●	●	●
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	1-83579-799-0	01	1	9806-	●	●	●
54	SCREW; ACTUATOR TO CASE HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	8-94348-809-0	02	1	9806-	●	●	●
58	SCREW; PLATE TO CASE HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16	8-94324-850-0	01	1	9806-	●	●	●
71	CLIP; HARNESS HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	8-97096-145-0	01	1	9806-	●	●	●
78	SCREW; CASE TO CASE HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16	8-94324-850-0	18	1	9806-	●	●	●
92	ACTUATOR; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-83579-798-1	01	1	9806-	●	●	●
104	RESISTOR; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-83519-073-1	01	1	9806-	●	●	●
105	SCREW; RESISTOR HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16	8-94324-850-0	02	1	9806-	●	●	●
119	LINING; CASE HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	1-83579-670-1	01	1	9806-	●	●	●
119	LINING; CASE HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B)	1-83579-671-1	01	1	9806-	●	●	●
