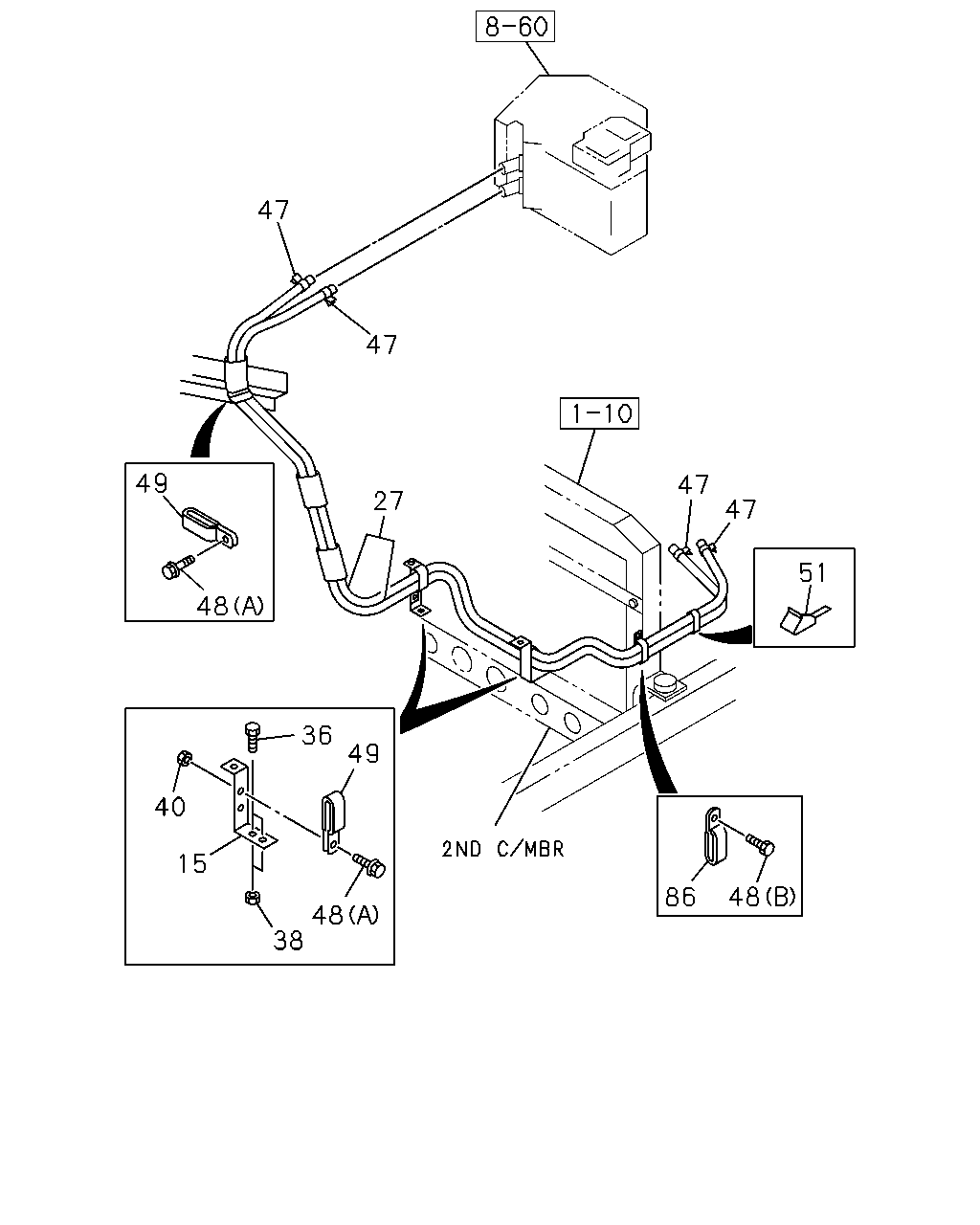

8-45 — HEATER PIPING
(#65367) — 28 parça
Tümü
A - FSS6MF
B - FTS6MC
C - FTS6MF
47
47
49
47
27
47
51
48
36
49
40
15
48
86
48
38
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
15
BRACKET; WATER HOSE
HEATER & DEFROSTER<C41>
1-83571-927-1
02
1
9806-9807
●
●
●
15
BRACKET; WATER HOSE
1-83571-927-1
02
1
9808-
●
●
●
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER<C41>
1-83565-630-2
01
1
9806-
●
●
●
36
BOLT; BRKT
HEATER & DEFROSTER<C41> M8X25 FLANGE
0-28680-825-0
04
1
9806-9807
●
●
●
36
BOLT; BRKT
M8X25 FLANGE
0-28680-825-0
04
1
9808-0008
●
●
●
36
BOLT; BRKT
M8X20 FLANGE
0-28680-820-0
04
1
0009-0512
●
●
●
36
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
04
1
0601-
●
●
●
38
NUT; BRKT
HEATER & DEFROSTER<C41> M8 FLANGE
0-91150-108-0
04
1
9806-9807
●
●
●
38
NUT; BRKT
M8 FLANGE
0-91150-108-0
04
1
9808-0602
●
●
●
38
NUT; BRKT
M8 FLANGE
0-91180-108-0
04
1
0603-
●
●
●
40
NUT; CLIP
HEATER & DEFROSTER<C41> M8 FLANGE
0-91150-108-0
02
1
9806-0602
●
●
●
40
NUT; CLIP
HEATER & DEFROSTER<C41> M8 FLANGE
0-91180-108-0
02
1
0603-
●
●
●
47
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER<C41> ID=22
8-94382-401-0
04
1
9806-0611
●
●
●
47
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER<C41> ID=22
8-97359-141-0
04
1
0612-
●
●
●
48
BOLT; CLIP FIX
HEATER & DEFROSTER<C41> (A) M8X20 FLANGE
0-28680-820-0
01
1
9806-9901
●
●
●
48
BOLT; CLIP FIX
HEATER & DEFROSTER<C41> (A) M8X20 FLANGE
0-28680-820-0
02
1
9902-0512
●
●
●
48
BOLT; CLIP FIX
HEATER & DEFROSTER<C41> (A) M8X20 FLANGE
0-28680-820-0
02
1
9902-0512
●
●
●
48
BOLT; CLIP FIX
HEATER & DEFROSTER<C41> (A) M8X20 FLANGE
0-28650-820-0
02
1
0601-
●
●
●
48
BOLT; CLIP FIX
HEATER & DEFROSTER<C41> (A) M8X20 FLANGE
0-28650-820-0
02
1
0601-
●
●
●
48
BOLT; CLIP FIX
HEATER & DEFROSTER<C41> (A) M8X20 FLANGE
0-28680-820-0
02
1
9806-9901
●
●
●
48
BOLT; CLIP FIX
HEATER & DEFROSTER<C41> (B) M8X16 W/LK&PL WASHER
1-09980-498-0
01
1
9806-
●
●
●
49
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER<C41> ID=24X2 L=25
1-09700-710-0
01
1
9806-9901
●
●
●
49
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER<C41> ID=24X2 L=25
1-09700-710-0
02
1
9902-
●
●
●
49
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER<C41> ID=24X2 L=25
1-09700-710-0
02
1
9902-
●
●
●
49
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER<C41> ID=24X2 L=25
1-09700-710-0
02
1
9806-9901
●
●
●
51
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER<C41> L=170
1-83574-139-0
01
1
9806-1205
●
●
●
51
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER<C41> L=170
8-98166-021-0
01
1
1206-
●
●
●
86
CLIP; HTR HOSE
HEATER & DEFROSTER<C41>
1-83571-049-1
01
1
9806-
●
●
●
