8-40 — HEATER SYSTEM (#65366) — 45 parça

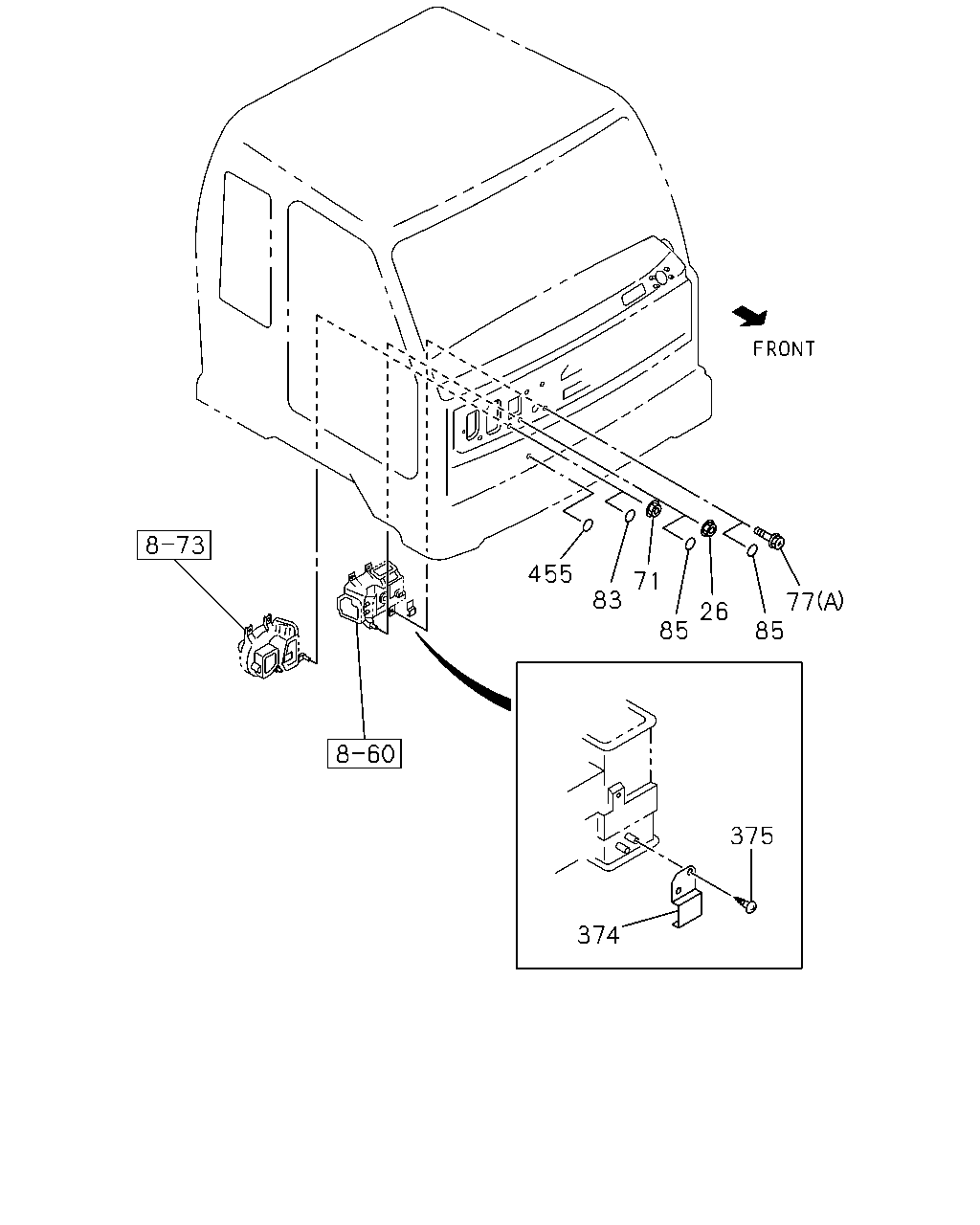

455 71 83 77 85 26 85 375 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
26	NUT; HTR HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9806-	●	●	●
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE W/RUBBER	1-09984-180-0	04	1	9806-	●	●	●
77	BOLT; HTR UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) M6X16	1-09980-598-1	02	1	9806-	●	●	●
77	BOLT; HTR UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9806-	●	●	●
83	SEAL; COVER,HTR HOLE EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> OD=25 BLACK	1-76798-019-0	04	1	9806-	●	●	●
85	SEAL; HTR UNIT EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> OD=25 BLACK	1-76798-019-0	04	1	9806-	●	●	●
374	HOLDER; DUCT HEATER & DEFROSTER<C41>	1-76398-012-1	01	1	9806-	●	●	●
375	SCREW; HOLDER HEATER & DEFROSTER<C41> M5X14	8-94279-325-0	02	1	9806-	●	●	●
455	SEAL; CLIP HOLE EXC. HEATER & DEFROSTER<C41> OD=25 BLACK	1-76798-019-0	01	1	9903-	●	●	●

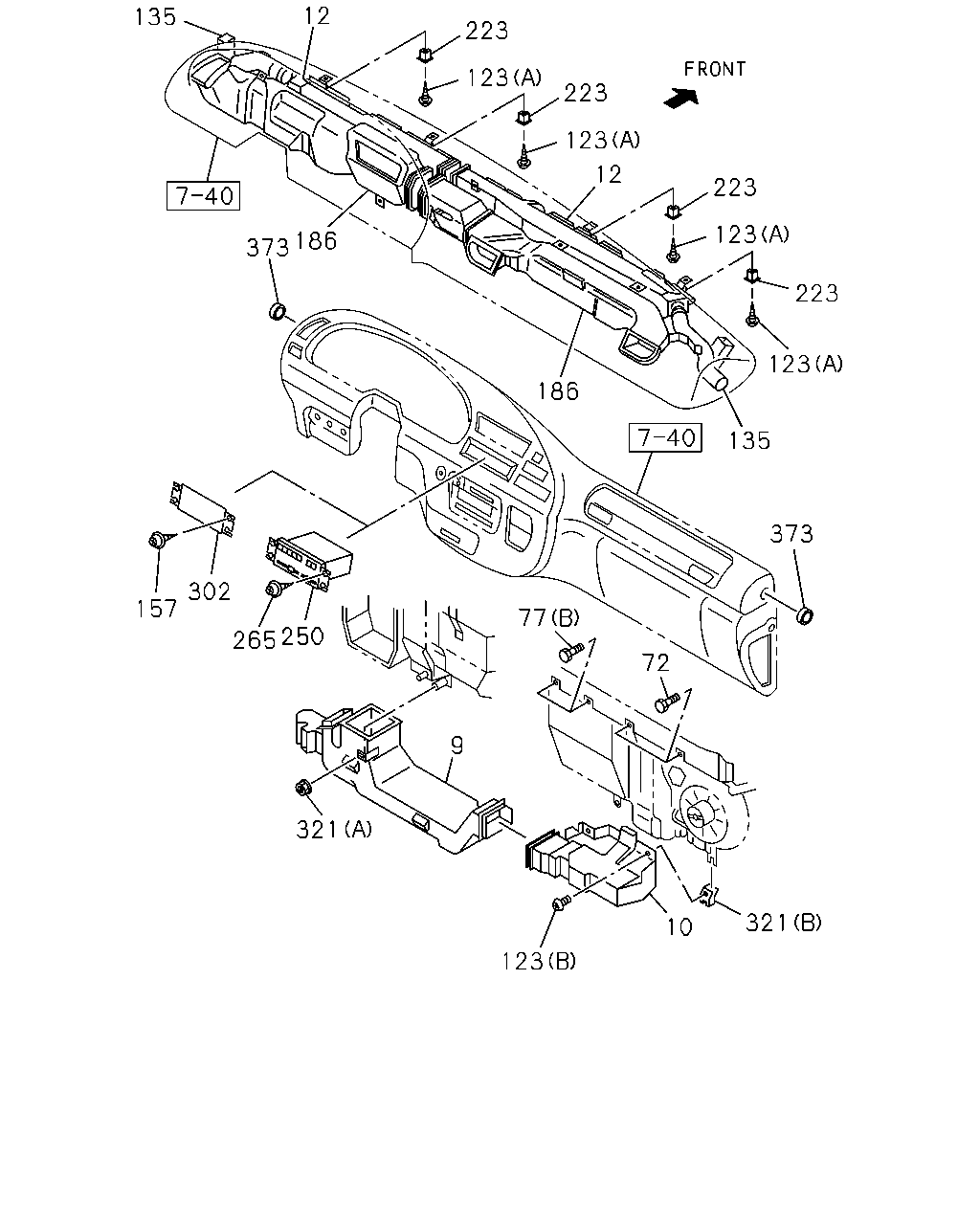

12 135 223 123 223 123 12 223 123 186 373 223 123 186 135 373 302 157 77 265 250 72 9 321 321 10 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER<C41>	1-76378-377-3	01	1	9806-0006	●	●	●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER<C41>	1-76378-431-2	01	1	0007-	●	●	●
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER<C41>	1-76378-368-2	01	1	9806-	●	●	●
12	NOZZLE; DEFROSTER HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-76378-360-2	01	1	9806-	●	●	●
12	NOZZLE; DEFROSTER HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-76378-359-2	01	1	9806-	●	●	●
72	BOLT; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9806-	●	●	●
77	BOLT; HTR UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) M6X16	1-09980-598-1	02	1	9806-	●	●	●
77	BOLT; HTR UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9806-	●	●	●
123	SCREW; DUCT HEATER & DEFROSTER<C41> (B) M5X14	8-94279-325-0	02	1	9806-	●	●	●
123	SCREW; DUCT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) M5X14	8-94279-325-0	08	1	9806-	●	●	●
135	HOSE; DEFROSTER HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-76378-364-3	01	1	9806-	●	●	●
135	HOSE; DEFROSTER HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-76378-363-2	01	1	9806-	●	●	●
157	SCREW EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X20 TAPPING W/PL WASHER	0-74110-620-0	02	1	9806-0604	●	●	●
157	SCREW EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X20 TAPPING W/PL WASHER	0-74160-620-0	02	1	0605-	●	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-76378-362-4	01	1	9806-	●	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-76378-361-3	01	1	9806-	●	●	●
223	GROMMET; SCREW HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	9806-	●	●	●
250	CONTROL ASM; A/C HEATER & DEFROSTER<C41>	1-83543-033-2	01	1	9806-9909	●	●	●
250	CONTROL ASM; A/C HEATER & DEFROSTER<C41>	1-83543-050-0	01	1	9910-	●	●	●
250	CONTROL ASM; A/C VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-83543-034-1	01	1	9806-	●	●	●
265	SCREW; A/C CONT UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X20 TAPPING W/PL WASHER	0-74110-620-0	02	1	9806-0604	●	●	●
265	SCREW; A/C CONT UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X20 TAPPING W/PL WASHER	0-74160-620-0	02	1	0605-	●	●	●
302	COVER; AIR HOLE EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-72438-140-1	01	1	9806-	●	●	●
321	NUT; DUCT FIX HEATER & DEFROSTER<C41> (A) M6 FLANGE	0-91150-106-0	01	1	9806-0602	●	●	●
321	NUT; DUCT FIX HEATER & DEFROSTER<C41> (A) M6 FLANGE	0-91180-106-0	01	1	0603-	●	●	●
321	NUT; DUCT FIX HEATER & DEFROSTER<C41> (B) M5	1-09984-150-0	01	1	9806-0409	●	●	●
321	NUT; DUCT FIX HEATER & DEFROSTER<C41> (B) M5	1-09984-196-0	01	1	0410-	●	●	●
373	RUBBER; JOINT	1-76378-291-0	02	1	9806-	●	●	●

250 459 460 461 461 250 459 459 460 461

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
250	CONTROL ASM; A/C HEATER & DEFROSTER<C41>	1-83543-033-2	01	1	9806-9909	●	●	●
250	CONTROL ASM; A/C HEATER & DEFROSTER<C41>	1-83543-050-0	01	1	9910-	●	●	●
250	CONTROL ASM; A/C VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-83543-034-1	01	1	9806-	●	●	●
459	PANEL; CONTROL ASM,A/C HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	1-83549-013-0	01	1	0005-	●	●	●
459	PANEL; CONTROL ASM,A/C VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B)	1-83549-017-0	01	1	0005-	●	●	●
460	SWITCH; CONTROL ASM,A/C HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-82489-006-0	01	1	0005-	●	●	●
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER<C41> (B)	1-83549-015-0	01	1	0005-	●	●	●
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	1-83549-016-0	01	1	0005-	●	●	●
