8-28 — CHASSIS ELECTRICAL (#65365) — 100 parça

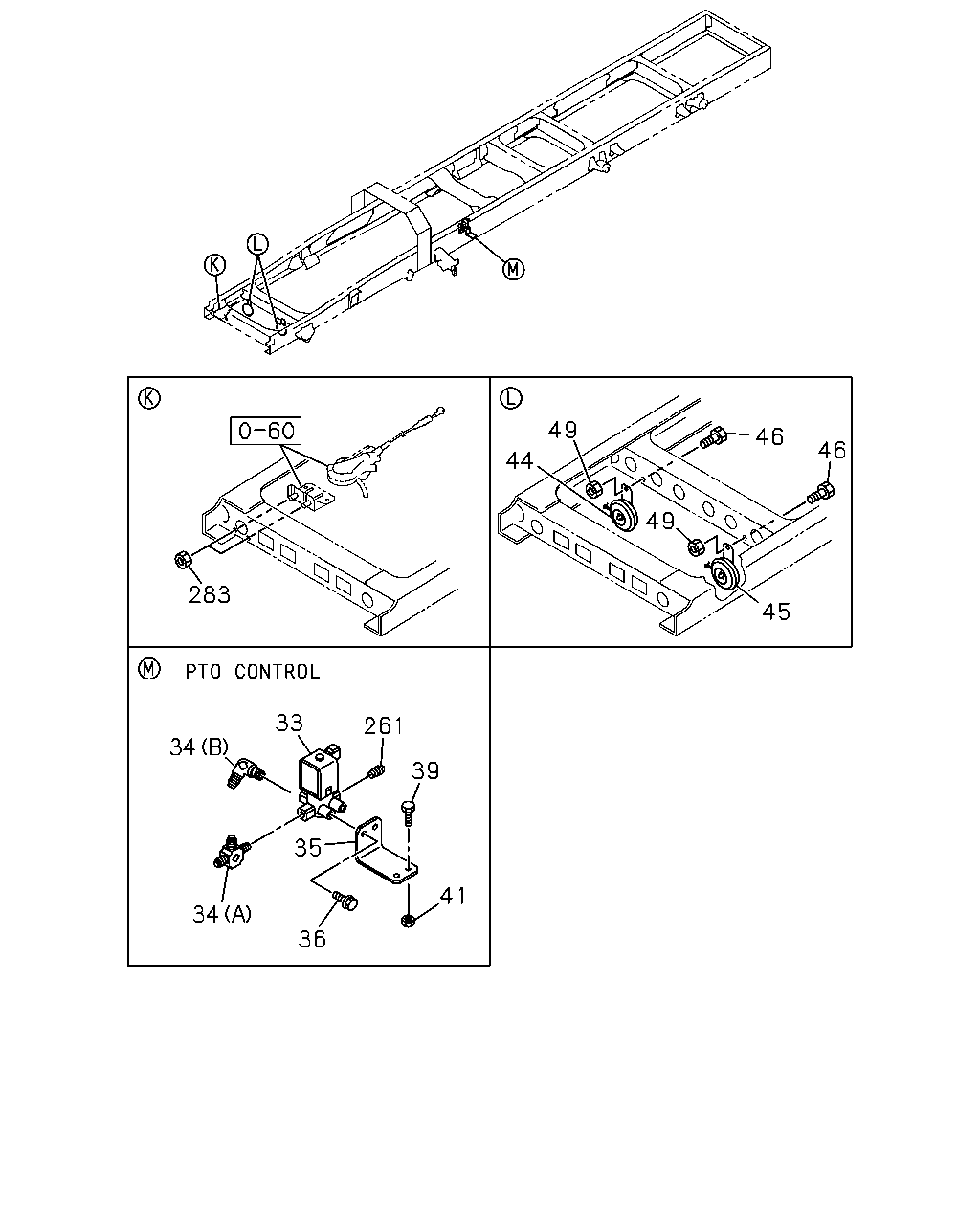

49 46 46 44 49 283 45 33 261 34 39 35 41 34 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6>	1-82563-600-5	01	1	9806-	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9806-0004	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	9806-	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9806-	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9806-	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9806-	●	●	●
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6>	1-47477-267-0	01	1	9806-	●	●	●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28080-820-0	02	1	9806-9810	●	●	●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28680-820-0	04	1	9811-0512	●	●	●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●	●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28080-820-0	04	1	9806-9810	●	●	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28680-820-0	02	1	9806-9810	●	●	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28680-820-0	02	1	9811-0004	●	●	●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28680-820-0	02	1	9811-0004	●	●	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●	●	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X30 FLANGE	0-28680-830-0	02	1	9806-0512	●	●	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●	●
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8 FLANGE	0-91150-108-0	02	1	9806-0602	●	●	●
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
44	HORN; HIGH NOTE	1-83410-057-1	01	1	9806-9904	●	●	●
44	HORN; HIGH NOTE	1-83410-057-1	01	1	9905-0210	●
44	HORN; HIGH NOTE EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-83410-057-1	01	1	9905-0210		●	●
44	HORN; HIGH NOTE	1-83410-065-1	01	1	0211-	●
44	HORN; HIGH NOTE EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-83410-065-1	01	1	0211-		●	●
44	HORN; HIGH NOTE SAUDI ARABIA EQUIPMENT(WH1)	1-83410-061-1	01	1	9905-		●	●
45	HORN; LOW NOTE	1-83410-058-1	01	1	9806-9904	●	●	●
45	HORN; LOW NOTE	1-83410-058-1	01	1	9905-0210	●
45	HORN; LOW NOTE EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-83410-058-1	01	1	9905-0210		●	●
45	HORN; LOW NOTE	1-83410-064-1	01	1	0211-	●
45	HORN; LOW NOTE EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-83410-064-1	01	1	0211-		●	●
45	HORN; LOW NOTE SAUDI ARABIA EQUIPMENT(WH1)	1-83410-062-1	01	1	9905-		●	●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28680-825-0	02	1	9806-0512	●	●	●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●
49	NUT; HORN TO BODY M8 FLANGE	0-91150-108-0	02	1	9806-0602	●	●	●
49	NUT; HORN TO BODY M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
261	PLUG; MAG VLV PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	9806-	●	●	●
283	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9806-0602	●	●	●
283	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●

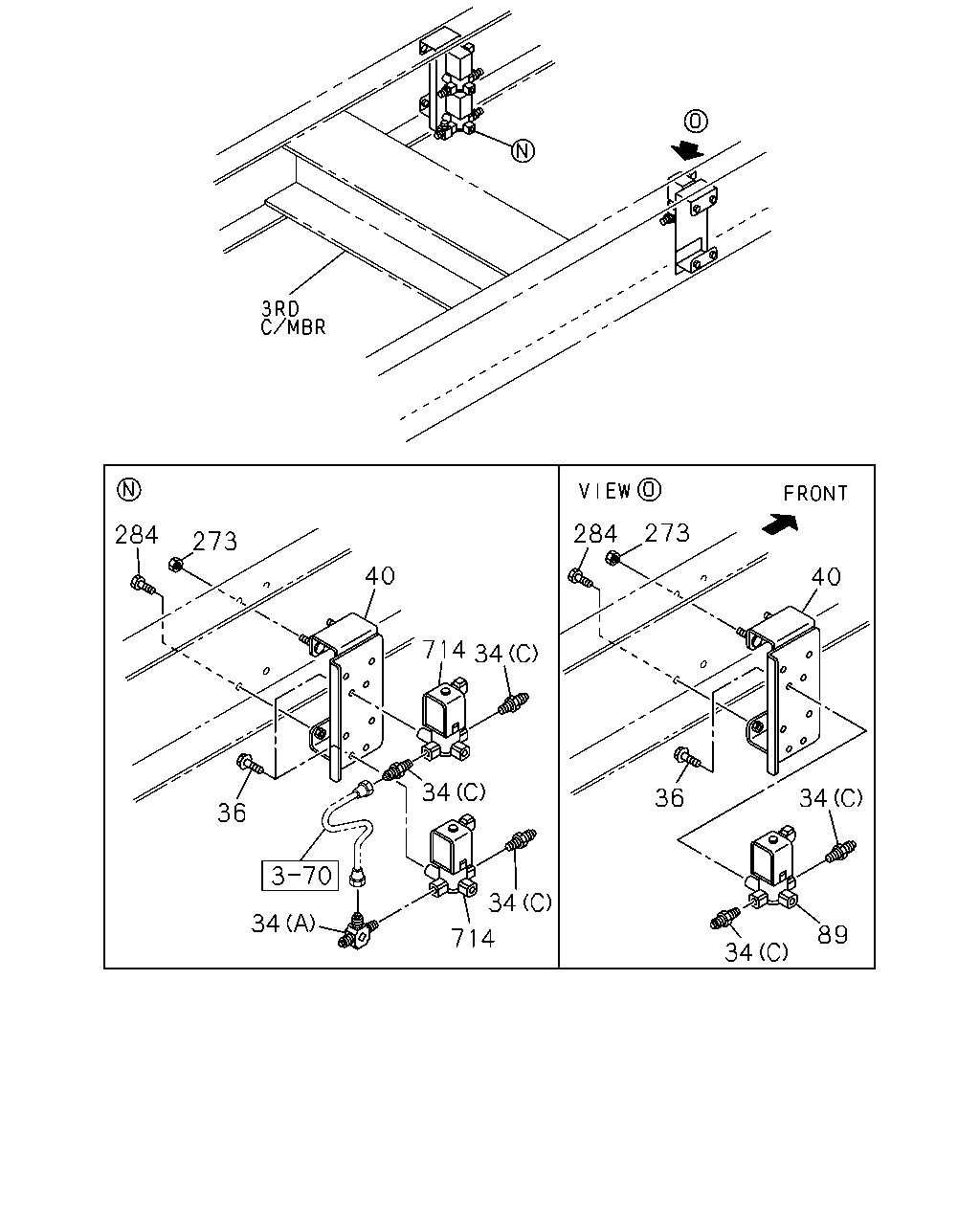

273 284 284 273 40 40 714 34 34 36 34 36 34 34 89 714 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9806-0004	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	9806-	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9806-	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9806-	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9806-	●	●	●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28080-820-0	02	1	9806-9810	●	●	●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28680-820-0	04	1	9811-0512	●	●	●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●	●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28080-820-0	04	1	9806-9810	●	●	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28680-820-0	02	1	9806-9810	●	●	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28680-820-0	02	1	9811-0004	●	●	●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28680-820-0	02	1	9811-0004	●	●	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●	●	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●
40	BRACKET; MAG VLV	1-47477-327-2	01	1	9806-0004	●	●	●
40	BRACKET; MAG VLV	1-47477-327-2	01	1	9806-0004	●	●	●
40	BRACKET; MAG VLV	1-47477-327-2	01	1	0005-	●	●	●
89	VALVE; MAG,DIFF LOCK	1-82563-598-4	01	1	9806-0004	●	●	●
273	NUT; MAG VLV M8 FLANGE	0-91150-108-0	06	1	9806-0602	●	●	●
273	NUT; MAG VLV M8 FLANGE	0-91180-108-0	06	1	0603-	●	●	●
284	BOLT; MAG VLV M8X25 FLANGE	0-28680-825-0	02	1	9806-0512	●	●	●
284	BOLT; MAG VLV M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●
714	VALVE; MAG,TRANS,LOW TO HIGH	1-82563-598-5	02	1	9806-	●	●	●

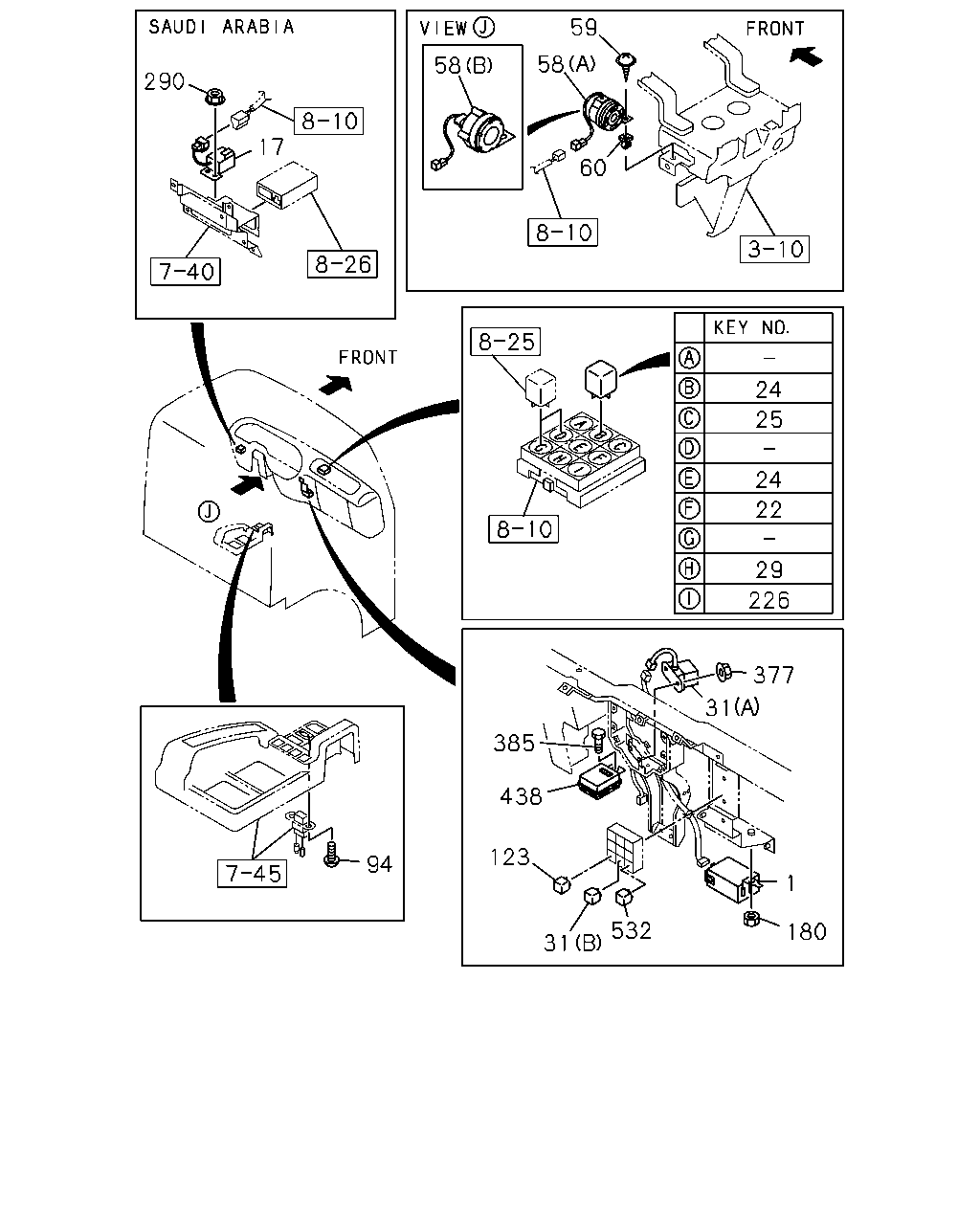

59 58 58 290 17 60 24 25 24 22 29 226 377 31 385 438 123 94 1 532 31 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	UNIT; FLASHER	1-83470-060-1	01	1	9806-	●	●	●
17	TIMER; SEAT BELT SAUDI ARABIA EQUIPMENT(WH1)	1-82550-183-1	01	1	9905-		●	●
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9806-0111	●	●	●
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●	●
24	RELAY; LIGHTING 24V 12.5A MITUBA	8-97062-815-1	02	1	9806-0111	●	●	●
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-	●	●	●
25	RELAY; TAIL LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9806-0111	●	●	●
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●	●
29	RELAY; HORN 24V 12.5A MITUBA	8-97062-815-1	01	1	9806-0111	●	●	●
29	RELAY; HORN 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (A) 24V	1-82550-187-1	01	1	9806-	●	●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (B) 24V 12.5A MITUBA	8-97062-815-1	01	1	9806-0111	●	●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●	●
58	BUZZER; AIR PRESSURE WARNING (A) NIKKO	1-83460-056-0	01	1	9806-0006	●	●	●
58	BUZZER; AIR PRESSURE WARNING (B) METRO DENSO	1-83460-074-1	01	1	0007-0612	●	●	●
58	BUZZER; AIR PRESSURE WARNING (B) METRO DENSO	8-98069-865-0	01	1	0701-	●	●	●
58	BUZZER; AIR PRESSURE WARNING (B) METRO DENSO	1-83460-074-0	01	1	9904-9907	●	●	●
58	BUZZER; AIR PRESSURE WARNING EXC. NIKKO<Y70> (B) METRO DENSO	1-83460-074-1	01	1	9908-0006	●	●	●
59	SCREW; BUZZER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9806-0604	●	●	●
59	SCREW; BUZZER M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0605-	●	●	●
60	GROMMET; SCREW,BUZZER D=8.6X7.7 L=7.5	8-94279-078-0	01	1	9806-	●	●	●
94	SCREW; CONSENT TO BLIND PNL M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9806-9810	●	●	●
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	9811-0604	●	●	●
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0605-	●	●	●
123	RELAY; HTR HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> 24V 12.5A MITUBA	8-97062-815-1	01	1	9806-0111	●	●	●
123	RELAY; HTR HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	9806-0602	●	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0603-	●	●	●
226	RELAY; EXH BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9806-0111	●	●	●
226	RELAY; EXH BRK 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●	●
290	NUT SAUDI ARABIA EQUIPMENT(WH1) M6 FLANGE	0-91150-106-0	02	1	9905-0602		●	●
290	NUT SAUDI ARABIA EQUIPMENT(WH1) M6 FLANGE	0-91180-106-0	02	1	0603-		●	●
377	NUT; RELAY PTO CONTROL<SV6> M6 FLANGE	0-91150-106-0	02	1	9806-0602	●	●	●
377	NUT; RELAY PTO CONTROL<SV6> M6 FLANGE	0-91180-106-0	02	1	0603-	●	●	●
385	BOLT; CONT UNIT M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9806-	●	●	●
438	UNIT; SPD CONTROL	1-82550-271-0	01	1	9806-	●	●	●
532	RELAY; SEAT BELT WARNING SAUDI ARABIA EQUIPMENT(WH1) 24V 12.5A MITUBA	8-97062-815-1	01	1	9905-0111		●	●
532	RELAY; SEAT BELT WARNING SAUDI ARABIA EQUIPMENT(WH1) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-		●	●
