8-21 — METER ASM (#65362) — 74 parça

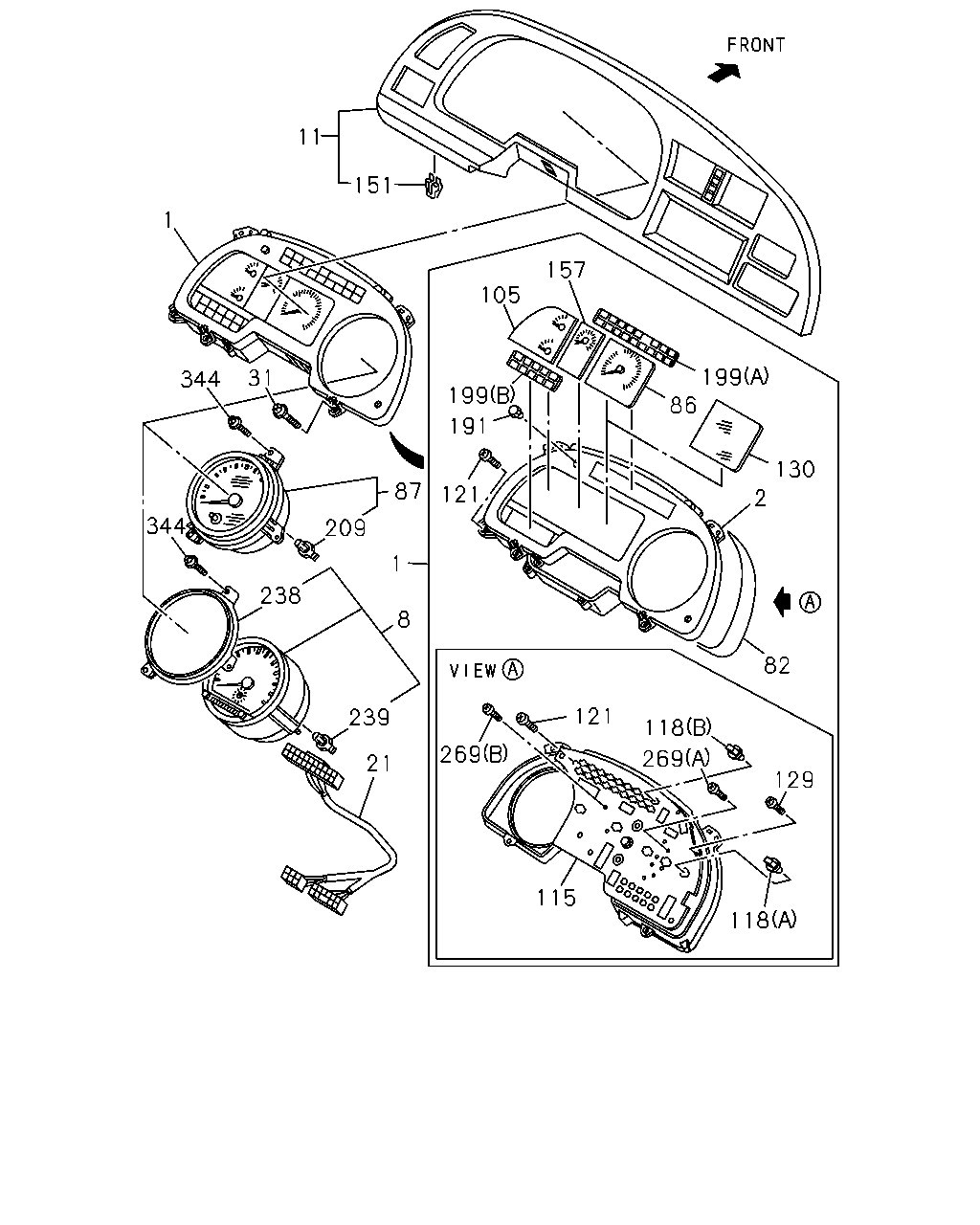

çizim 137367
11 151 1 157 105 31 199 344 199 86 191 130 87 121 2 344 209 1 238 8 82 121 239 118 269 269 21 129 115 118
BalonParca AdiParca NoAdetTipApplied Date A B C
1 METER COMPL; CLUSTER
TACHOMETER<UD7> 		1-83114-990-0 01 1 9806-9904 ● ● ●
1 METER COMPL; CLUSTER
TACHOMETER<UD7> 		1-83114-990-0 01 1 9905-0004 ●
1 METER COMPL; CLUSTER
TACHOMETER<UD7> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-83114-990-0 01 1 9905-0004 ● ●
1 METER COMPL; CLUSTER
EXC. TACHOMETER<UD7> 		1-83114-989-0 01 1 9806-9904 ● ● ●
1 METER COMPL; CLUSTER
EXC. TACHOMETER<UD7> 		1-83114-989-1 01 1 9905-0004 ●
1 METER COMPL; CLUSTER
EXC. TACHOMETER<UD7>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83114-989-1 01 1 9905-0004 ● ●
1 METER COMPL; CLUSTER
EXC. TACHOMETER<UD7> 		1-83114-989-1 01 1 0005- ● ● ●
1 METER COMPL; CLUSTER
TACHOMETER<UD7> SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-251-0 01 1 9905-0004 ● ●
1 METER COMPL; CLUSTER
TACHOMETER<UD7> 		1-83115-251-0 01 1 0005- ● ● ●
2 PANEL; CLUSTER 1-83119-499-0 01 1 9806- ● ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<RF7> 		1-83120-806-0 01 1 9806-0301 ● ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<RF7> 		1-83120-856-0 01 1 0302- ● ● ●
11 CLUSTER ASM; METER 1-72418-022-7 01 1 9806- ● ● ●
21 HARNESS; TACHOGRAPH
TACHOGRAPH 120KM/H<RF7> 		1-82624-665-1 01 1 9806- ● ● ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9806-0604 ● ● ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 0605- ● ● ●
82 CASE ASM; CLUSTER METER 1-83119-432-0 01 1 9806- ● ● ●
86 TACHOMETER; CLUSTER METER
TACHOMETER<UD7> 		1-83120-661-0 01 1 9806-9904 ● ● ●
86 TACHOMETER; CLUSTER METER
TACHOMETER<UD7> 		1-83120-661-0 01 1 9905-0004 ●
86 TACHOMETER; CLUSTER METER
TACHOMETER<UD7> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-83120-661-0 01 1 9905-0004 ● ●
86 TACHOMETER; CLUSTER METER
TACHOMETER<UD7> SAUDI ARABIA EQUIPMENT(WH1) 		1-83120-566-0 01 1 9905-0004 ● ●
86 TACHOMETER; CLUSTER METER
TACHOMETER<UD7> 		1-83120-566-0 01 1 0005- ● ● ●
87 SPEEDOMETER
EXC. TACHOGRAPH 120KM/H<RF7> 		1-83120-490-1 01 1 9806- ● ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-274-0 01 1 9806- ● ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<UD7> 		1-83189-345-0 01 1 9806-9904 ● ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<UD7> 		1-83189-345-0 01 1 9905-0004 ●
115 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<UD7> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-83189-345-0 01 1 9905-0004 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
EXC. TACHOMETER<UD7> 		1-83189-344-0 01 1 9806-9904 ● ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
EXC. TACHOMETER<UD7> 		1-83189-344-0 01 1 9905-9910 ●
115 CIRCUIT; PRINTED,CLUSTER METER
EXC. TACHOMETER<UD7>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83189-344-0 01 1 9905-9910 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
EXC. TACHOMETER<UD7> 		1-83189-301-0 01 1 9911-0004 ●
115 CIRCUIT; PRINTED,CLUSTER METER
EXC. TACHOMETER<UD7>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83189-301-0 01 1 9911-0004 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
EXC. TACHOMETER<UD7> 		1-83189-301-0 01 1 0005- ● ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<UD7> SAUDI ARABIA EQUIPMENT(WH1) 		1-83189-303-0 01 1 9905-0004 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<UD7> 		1-83189-303-0 01 1 0005- ● ● ●
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 16 1 9806-9904 ● ● ●
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 16 1 9905-9910 ●
118 BULB; CLUSTER METER
EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 16 1 9905-9910 ● ●
118 BULB; CLUSTER METER
TACHOMETER<UD7> (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 16 1 9911-0004 ●
118 BULB; CLUSTER METER
TACHOMETER<UD7> EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 16 1 9911-0004 ● ●
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 15 1 0005- ● ● ●
118 BULB; CLUSTER METER
TACHOMETER<UD7> (A) 24V 3W GREEN SOCKET 		1-82194-061-0 04 1 9806- ● ● ●
118 BULB; CLUSTER METER
EXC. TACHOMETER<UD7> (A) 24V 3W GREEN SOCKET 		1-82194-061-0 03 1 9806-9904 ● ● ●
118 BULB; CLUSTER METER
EXC. TACHOMETER<UD7> (A) 24V 3W GREEN SOCKET 		1-82194-061-0 03 1 9905-0004 ●
118 BULB; CLUSTER METER
EXC. TACHOMETER<UD7>,SAUDI ARABIA EQUIPMENT(WH1) (A) 24V 3W GREEN SOCKET 		1-82194-061-0 03 1 9905-0004 ● ●
118 BULB; CLUSTER METER
EXC. TACHOMETER<UD7> (A) 24V 3W GREEN SOCKET 		1-82194-061-0 03 1 0005- ● ● ●
118 BULB; CLUSTER METER
TACHOMETER<UD7> SAUDI ARABIA EQUIPMENT(WH1) (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 15 1 9905-9910 ● ●
118 BULB; CLUSTER METER
EXC. TACHOMETER<UD7> (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 15 1 9911-0004 ●
118 BULB; CLUSTER METER
EXC. TACHOMETER<UD7>,SAUDI ARABIA EQUIPMENT(WH1) (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 15 1 9911-0004 ● ●
118 BULB; CLUSTER METER
TACHOMETER<UD7> SAUDI ARABIA EQUIPMENT(WH1) (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 15 1 9911-0004 ● ●
121 SCREW; PANEL FIX,CLUSTER METER
M4 TAPPING 		1-83119-442-0 08 1 9806- ● ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
M3 TAPPING 		1-83119-052-0 10 1 9806- ● ● ●
130 COVER; METER HOLE,CLUSTER METER
EXC. TACHOMETER<UD7> 		1-83119-523-0 01 1 9806-9904 ● ● ●
130 COVER; METER HOLE,CLUSTER METER
EXC. TACHOMETER<UD7> 		1-83119-523-0 01 1 9905-0004 ●
130 COVER; METER HOLE,CLUSTER METER
EXC. TACHOMETER<UD7>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83119-523-0 01 1 9905-0004 ● ●
130 COVER; METER HOLE,CLUSTER METER
EXC. TACHOMETER<UD7> 		1-83119-523-0 01 1 0005- ● ● ●
151 CLIP; METER CLUSTER 8-97853-939-4 10 1 9806-9812 ● ● ●
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 9901- ● ● ●
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-178-0 01 1 9806- ● ● ●
191 KNOB; BULB CHECK 1-83119-500-0 01 1 9806- ● ● ●
199 LENS; WARNING LAMP
(B) 		1-83119-435-0 01 1 9806- ● ● ●
199 LENS; WARNING LAMP
(A) 		1-83119-551-0 01 1 9806- ● ● ●
209 BULB; SPEEDOMETER
EXC. TACHOGRAPH 120KM/H<RF7> 24V 3W GREEN SOCKET 		1-82194-061-0 02 1 9806- ● ● ●
238 PANEL; TACHOGRAPH
TACHOGRAPH 120KM/H<RF7> 		1-83129-311-0 01 1 9806- ● ● ●
239 BULB; TACHOGRAPH
TACHOGRAPH 120KM/H<RF7> 24V 1.8W 		1-82194-076-0 03 1 9806-0301 ● ● ●
239 BULB; TACHOGRAPH
TACHOGRAPH 120KM/H<RF7> 24V 1.4W 		5-82194-034-0 03 1 0302- ● ● ●
269 SCREW; METER CLUSTER
(A) M3 TAPPING 		1-83119-441-0 06 1 9806- ● ● ●
269 SCREW; METER CLUSTER
TACHOMETER<UD7> (B) M3 TAPPING 		1-83119-439-0 04 1 9806-9904 ● ● ●
269 SCREW; METER CLUSTER
TACHOMETER<UD7> (B) M3 TAPPING 		1-83119-439-0 04 1 9905-0004 ●
269 SCREW; METER CLUSTER
TACHOMETER<UD7> EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) M3 TAPPING 		1-83119-439-0 04 1 9905-0004 ● ●
269 SCREW; METER CLUSTER
TACHOMETER<UD7> (B) M3 TAPPING 		1-83119-439-0 03 1 0005- ● ● ●
269 SCREW; METER CLUSTER
TACHOMETER<UD7> SAUDI ARABIA EQUIPMENT(WH1) (B) M3 TAPPING 		1-83119-439-0 03 1 9905-0004 ● ●
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9806-0604 ● ● ●
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 0605- ● ● ●
