8-15 — FIXING PARTS; WIRING HARNESS (#65361) — 221 parça

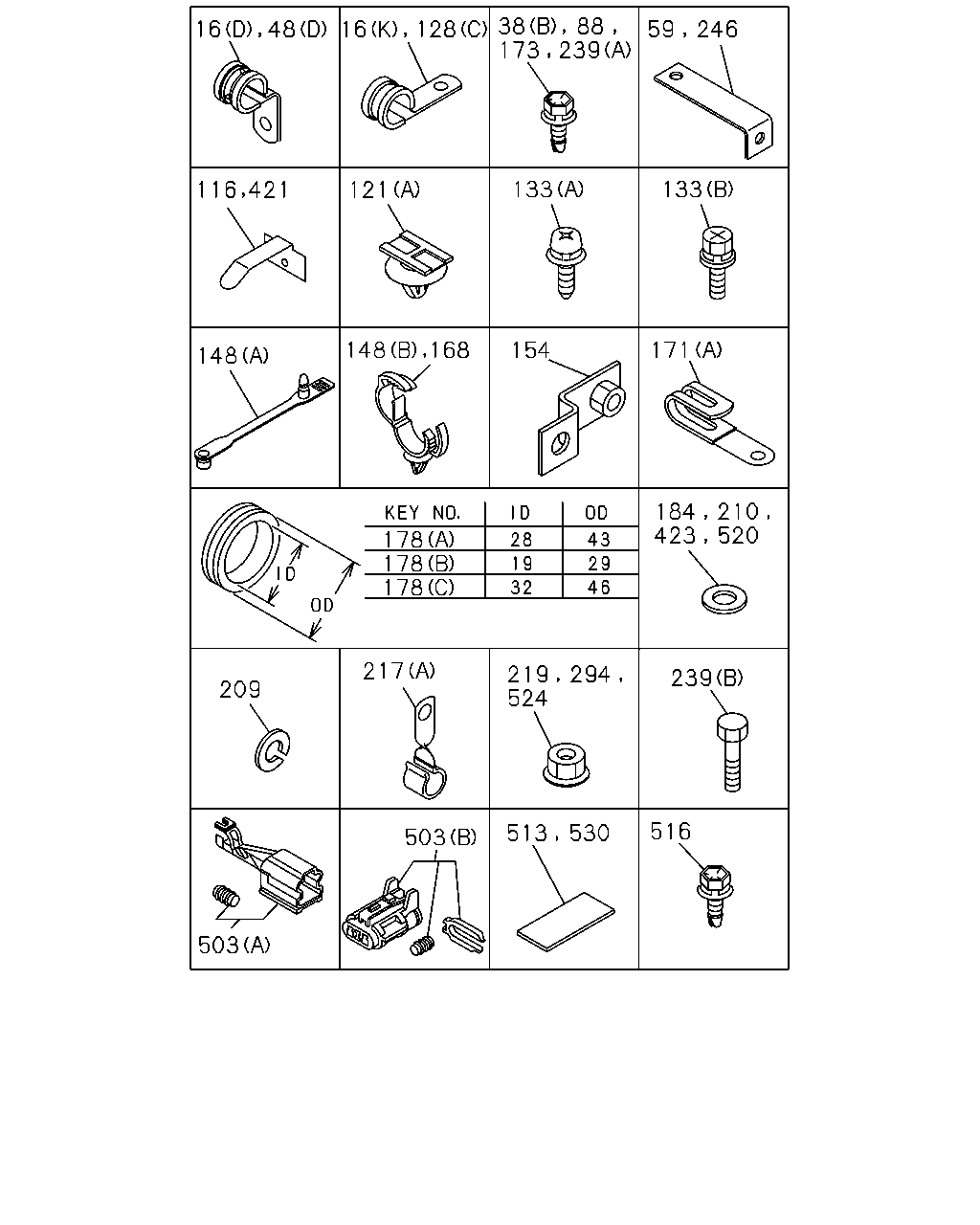

çizim 137100
16 128 133 133 121 148 168 154 171 148 178 178 178 217 524 239 209 516 513 530 503 503 16 48 38 88 59 246 173 239 184 210 423 520 219 294 116 421
BalonParca AdiParca NoAdetTipApplied Date A B C
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 06 1 0404- ● ● ●
16 CLIP; HARNESS
(G) L=175 		8-97110-167-0 02 1 9806- ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 9806-0110 ● ● ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 07 1 0111-0401 ● ● ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 08 1 0402-0403 ● ● ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 02 1 0404- ● ● ●
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 9806- ● ● ●
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 9806- ● ● ●
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9806-1001 ● ● ●
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9806-1001 ● ● ●
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1002- ● ● ●
16 CLIP; HARNESS
(D) ID=19 H=21 L=50 		1-09700-910-1 01 1 9806- ● ● ●
16 CLIP; HARNESS
(K) ID=25 L=50 		1-09701-019-0 01 1 9806- ● ● ●
16 CLIP; HARNESS
(H) L=300 		1-09707-001-1 01 1 9806- ● ● ●
16 CLIP; HARNESS
(J) OD=9 H=6 		1-09709-178-0 02 1 9806- ● ● ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 9806- ● ● ●
16 CLIP; HARNESS
(F) L=140 		5-09707-031-1 03 1 9806-0110 ● ● ●
16 CLIP; HARNESS
(F) L=140 		5-09707-031-1 01 1 0111- ● ● ●
16 CLIP; HARNESS
(I) ID=19 L=32 		9-09525-866-0 01 1 9806-0606 ● ● ●
16 CLIP; HARNESS
(I) ID=19 L=32 		0-95235-866-0 01 1 0607- ● ● ●
16 CLIP; HARNESS
(C) ID=20 L=50 		9-09917-430-0 01 1 9806-0301 ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 04 1 9806-0512 ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28050-816-0 04 1 0601- ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9806-0512 ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 01 1 9806-0512 ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9806-0512 ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9806-0512 ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601- ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9806-1201 ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1202- ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28680-830-0 02 1 9806-0512 ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9908-0001 ● ● ●
48 CLIP; FRAME HARNESS
(F) ID=15 L=65 		1-09700-466-0 02 1 9806- ●
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 05 1 9806- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 13 1 9806-0004 ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 13 1 0005- ●
48 CLIP; FRAME HARNESS
(H) ID=11 L=41 		1-09700-403-0 04 1 9806- ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9806- ● ● ●
48 CLIP; FRAME HARNESS
(E) L=140 		5-09707-031-1 01 1 9806-0006 ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 0007- ● ●
48 CLIP; FRAME HARNESS
(G) ID=19 L=28 		9-09525-856-0 01 1 9806-0606 ● ● ●
48 CLIP; FRAME HARNESS
(G) ID=19 L=28 		0-95235-856-0 01 1 0607- ● ● ●
48 CLIP; FRAME HARNESS
(B) ID=14 L=44 		9-09917-427-0 02 1 9806-0006 ● ● ●
48 CLIP; FRAME HARNESS
(B) ID=14 L=44 		9-09917-427-0 01 1 0007- ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 9806-0008 ● ● ●
48 CLIP; FRAME HARNESS
(I) ID=20 L=70 		1-09700-485-0 03 1 0009- ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 14 1 0005- ●
48 CLIP; FRAME HARNESS
(F) ID=15 L=65 		1-09700-466-0 01 1 9806- ● ●
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 04 1 9806- ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 15 1 9806-0004 ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 17 1 0005- ●
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 9806- ● ● ●
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 9807-9807 ● ● ●
116 CLIP; ROOF HARNESS
LOW ROOF<6XQ> L=20 SET=10 PIECE 		1-09987-246-2 05 1 9806-0009 ● ● ●
116 CLIP; ROOF HARNESS
LOW ROOF<6XQ> L=20 SET=10 PIECE 		1-09987-246-2 06 1 0010-0104 ● ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 0105-0112 ● ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0201-1409 ● ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410- ● ● ●
121 CLIP; FACIA HARNESS
(A) OD=7 H=1.2 		8-94364-750-0 02 1 9806-0404 ● ●
121 CLIP; FACIA HARNESS
(B) OD=6.8 H=5 		8-97082-051-0 02 1 0405- ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 9806-0606 ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607- ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=19 L=32 		9-09525-862-0 01 1 9806-0011 ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=14.5 L=30 		9-09916-893-1 01 1 0012- ● ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 9806-0110 ● ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111- ● ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210 ● ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 01 1 9806- ● ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 01 1 9806- ● ● ●
154 BRACKET; STARTER EARTH CABLE 1-47465-518-0 01 1 0301- ● ● ●
154 BRACKET; STARTER EARTH CABLE 1-47465-518-0 01 1 9806-0003 ● ● ●
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 05 1 9806- ● ● ●
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 9806- ● ● ●
171 CLIP; STARTER HARNESS
(A) ID=18 L=44 		8-94225-185-0 01 1 9806-0801 ● ● ●
171 CLIP; STARTER HARNESS
(A) ID=18 L=44 		8-97367-985-1 01 1 0802- ● ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 9806-0606 ● ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 04 1 0607- ● ● ●
171 CLIP; STARTER HARNESS
(D) L=300 		1-09707-001-1 01 1 0005- ● ● ●
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 9806- ● ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 9806-0812 ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0901- ● ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 9806- ● ● ●
178 GROMMET; HARNESS
LOW ROOF<6XQ> (C) ID=32 OD=48 T=5 		9-09575-232-0 01 1 9806-0104 ● ● ●
178 GROMMET; HARNESS
(C) ID=32 OD=48 T=5 		9-09575-232-0 01 1 0105- ● ● ●
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 9806-0812 ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 9806- ● ● ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 9806-0603 ● ● ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0604- ● ● ●
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 9806- ● ● ●
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 9806-0208 ● ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 9806- ● ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 9806-0602 ● ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 05 1 9806-0602 ● ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 05 1 0603- ● ● ●
239 BOLT; GRAND
(B) M5X8 		0-20800-508-0 01 1 9806- ● ● ●
239 BOLT; GRAND
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 9806-1007 ● ● ●
239 BOLT; GRAND
(A) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008- ● ● ●
239 BOLT; GRAND
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9806-9907 ● ● ●
239 BOLT; GRAND
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9908-1201 ● ● ●
239 BOLT; GRAND
(A) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202- ● ● ●
246 BRACKET; CLIP,SPD SENSOR
L=55 		1-47475-304-0 01 1 0005- ● ● ●
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 9806-0602 ● ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 9806-0101 ● ● ●
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 01 1 0102-0406 ● ● ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 01 1 9806-0001 ● ● ●
503 CONNECTOR
STARTER SWITCH DELETION<E5D> (B) 		1-82690-666-0 01 1 0212- ● ● ●
503 CONNECTOR
(A) 		1-82690-668-0 01 1 0102- ● ● ●
503 CONNECTOR
(A) 		1-82690-668-0 01 1 0102- ● ● ●
513 TAPE; SOFT,HARNESS
100X30 		1-72498-014-1 02 1 9806-9903 ● ● ●
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-0 02 1 9904-0101 ● ● ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9806- ● ● ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 9806- ● ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 02 1 9806-0602 ● ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 02 1 0603- ● ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 0407- ● ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0102- ● ● ●
çizim 184795
14 194 14 16 14 16 217 235 16 16 48 171 16 48 48 16 16 121 171 223 48 171 16 128 38 139 128 231 305 16 48 48 223 48 213 223 230 48 81 102 123 206 223 228 305 418 229 470
BalonParca AdiParca NoAdetTipApplied Date A B C
14 CLIP; BAND,HARNESS
(C) L=140 		5-09707-031-1 01 1 0203-0206 ● ● ●
14 CLIP; BAND,HARNESS
(A) L=180 		1-09707-162-1 01 1 9806- ● ● ●
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 01 1 0002-1205 ● ● ●
14 CLIP; BAND,HARNESS
(B) L=250 		8-98216-430-0 01 1 1206- ● ● ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 06 1 0404- ● ● ●
16 CLIP; HARNESS
(G) L=175 		8-97110-167-0 02 1 9806- ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 9806-0110 ● ● ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 07 1 0111-0401 ● ● ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 08 1 0402-0403 ● ● ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 02 1 0404- ● ● ●
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 9806- ● ● ●
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 9806- ● ● ●
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9806-1001 ● ● ●
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9806-1001 ● ● ●
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1002- ● ● ●
16 CLIP; HARNESS
(D) ID=19 H=21 L=50 		1-09700-910-1 01 1 9806- ● ● ●
16 CLIP; HARNESS
(K) ID=25 L=50 		1-09701-019-0 01 1 9806- ● ● ●
16 CLIP; HARNESS
(H) L=300 		1-09707-001-1 01 1 9806- ● ● ●
16 CLIP; HARNESS
(J) OD=9 H=6 		1-09709-178-0 02 1 9806- ● ● ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 9806- ● ● ●
16 CLIP; HARNESS
(F) L=140 		5-09707-031-1 03 1 9806-0110 ● ● ●
16 CLIP; HARNESS
(F) L=140 		5-09707-031-1 01 1 0111- ● ● ●
16 CLIP; HARNESS
(I) ID=19 L=32 		9-09525-866-0 01 1 9806-0606 ● ● ●
16 CLIP; HARNESS
(I) ID=19 L=32 		0-95235-866-0 01 1 0607- ● ● ●
16 CLIP; HARNESS
(C) ID=20 L=50 		9-09917-430-0 01 1 9806-0301 ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 04 1 9806-0512 ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28050-816-0 04 1 0601- ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9806-0512 ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 01 1 9806-0512 ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9806-0512 ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9806-0512 ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601- ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9806-1201 ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1202- ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28680-830-0 02 1 9806-0512 ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9908-0001 ● ● ●
48 CLIP; FRAME HARNESS
(F) ID=15 L=65 		1-09700-466-0 02 1 9806- ●
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 05 1 9806- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 13 1 9806-0004 ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 13 1 0005- ●
48 CLIP; FRAME HARNESS
(H) ID=11 L=41 		1-09700-403-0 04 1 9806- ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9806- ● ● ●
48 CLIP; FRAME HARNESS
(E) L=140 		5-09707-031-1 01 1 9806-0006 ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 0007- ● ●
48 CLIP; FRAME HARNESS
(G) ID=19 L=28 		9-09525-856-0 01 1 9806-0606 ● ● ●
48 CLIP; FRAME HARNESS
(G) ID=19 L=28 		0-95235-856-0 01 1 0607- ● ● ●
48 CLIP; FRAME HARNESS
(B) ID=14 L=44 		9-09917-427-0 02 1 9806-0006 ● ● ●
48 CLIP; FRAME HARNESS
(B) ID=14 L=44 		9-09917-427-0 01 1 0007- ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 9806-0008 ● ● ●
48 CLIP; FRAME HARNESS
(I) ID=20 L=70 		1-09700-485-0 03 1 0009- ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 14 1 0005- ●
48 CLIP; FRAME HARNESS
(F) ID=15 L=65 		1-09700-466-0 01 1 9806- ● ●
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 04 1 9806- ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 15 1 9806-0004 ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 17 1 0005- ●
81 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 9806- ● ● ●
102 CLIP; BAND
L=140 		5-09707-031-1 01 1 0112- ● ● ●
121 CLIP; FACIA HARNESS
(A) OD=7 H=1.2 		8-94364-750-0 02 1 9806-0404 ● ●
121 CLIP; FACIA HARNESS
(B) OD=6.8 H=5 		8-97082-051-0 02 1 0405- ●
123 CLIP; CONT UNIT HARNESS
L=140 		5-09707-031-1 01 1 9806- ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 9806-0606 ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607- ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=19 L=32 		9-09525-862-0 01 1 9806-0011 ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=14.5 L=30 		9-09916-893-1 01 1 0012- ● ● ●
139 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 9806-0512 ● ● ●
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ● ●
139 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0005-0512 ● ● ●
139 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ● ●
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 9806- ● ● ●
171 CLIP; STARTER HARNESS
(A) ID=18 L=44 		8-94225-185-0 01 1 9806-0801 ● ● ●
171 CLIP; STARTER HARNESS
(A) ID=18 L=44 		8-97367-985-1 01 1 0802- ● ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 9806-0606 ● ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 04 1 0607- ● ● ●
171 CLIP; STARTER HARNESS
(D) L=300 		1-09707-001-1 01 1 0005- ● ● ●
194 CLIP; BAND
L=180 		1-09707-162-1 04 1 9806- ● ● ●
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 9806- ● ● ●
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 9806- ● ● ●
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 9806-0208 ● ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 9806- ● ● ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 9806- ● ● ●
223 CLIP; AIR TANK HARNESS
(B) L=140 		5-09707-031-1 01 1 9806- ● ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=20 L=50 		9-09917-430-0 06 1 9806-9909 ● ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=20 L=50 		9-09917-430-0 06 1 9910-0004 ●
223 CLIP; AIR TANK HARNESS
(C) ID=20 L=50 		9-09917-430-0 06 1 0005- ● ● ●
223 CLIP; AIR TANK HARNESS
(D) ID=14 L=44 		9-09917-427-0 02 1 9910-0004 ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=20 L=50 		9-09917-430-0 04 1 9910-0004 ● ●
228 CLIP; COOLER HARNESS
L=140 		5-09707-031-1 01 1 9806- ● ● ●
229 CLIP; STARTER SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 9806- ● ● ●
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 9806- ● ● ●
231 CLIP; BAND,OIL PRESS
L=180 		1-09707-162-1 01 1 9806- ● ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
L=250 		5-09707-030-1 01 1 9806- ● ● ●
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 9806- ● ● ●
305 CLIP; ENG HARNESS
EXC. TACHOMETER<UD7> (B) L=140 		5-09707-031-1 01 1 9806- ● ● ●
418 CLIP; LAMP HARNESS
RADIO CLARION(SK2) L=140 		5-09707-031-1 01 1 0703- ● ● ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 9806- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
