◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10717 - FSS/FTS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#65360) — 143 parça
çizim 136026
41 5 4 467 5 4 62 467 467 10 27 27
BalonParca AdiParca NoAdetTipApplied Date A B C
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX15 		1-82510-391-0 01 1 9806- ● ● ●
4 BOX ASM; FUSE,HARNESS
(B) 15AX9 		1-82510-485-0 01 1 9806- ● ● ●
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 09 1 9806- ● ● ●
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 15 1 9806- ● ● ●
10 BOX; FUSE,HARNESS 1-82510-409-0 01 1 9806- ● ● ●
27 FUSE UNIT
(A) 40A GREEN 		8-94468-662-0 03 1 9806- ● ● ●
27 FUSE UNIT
(B) 60A YELLOW 		8-94468-669-0 01 1 9806- ● ● ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 9806- ● ● ●
62 DIODE; HARNESS
BLACK 10P 		1-82699-703-0 01 1 9806- ● ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		1-82626-561-4 01 1 9806-9904 ● ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		1-82626-561-4 01 1 9905-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) 		1-82626-561-4 01 1 9905-0004 ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82629-383-0 01 1 0005-0008 ● ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82629-892-4 01 1 0009- ● ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) 		1-82626-562-3 01 1 9806- ● ● ●
467 HARNESS; FACIA
HEADLAMPS RECTANGULAR<TR4> EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		1-82629-387-3 01 1 0005-0407 ● ● ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) 		1-82627-628-1 01 1 9806- ● ● ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		1-82627-629-2 01 1 9806-9904 ● ● ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		1-82627-629-2 01 1 9905-0004 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>,SAUDI ARABIA EQUIPMENT(WH1) (B) 		1-82627-629-2 01 1 9905-0004 ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> HEADLAMPS RECTANGULAR<TR4> (B) 		1-82629-388-3 01 1 0005-0407 ● ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> SAUDI ARABIA EQUIPMENT(WH1) (B) 		1-82628-835-0 01 1 9905-0004 ● ●
467 HARNESS; FACIA
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		1-82629-382-0 01 1 0005-0008 ● ● ●
467 HARNESS; FACIA
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		1-82629-891-4 01 1 0009- ● ● ●

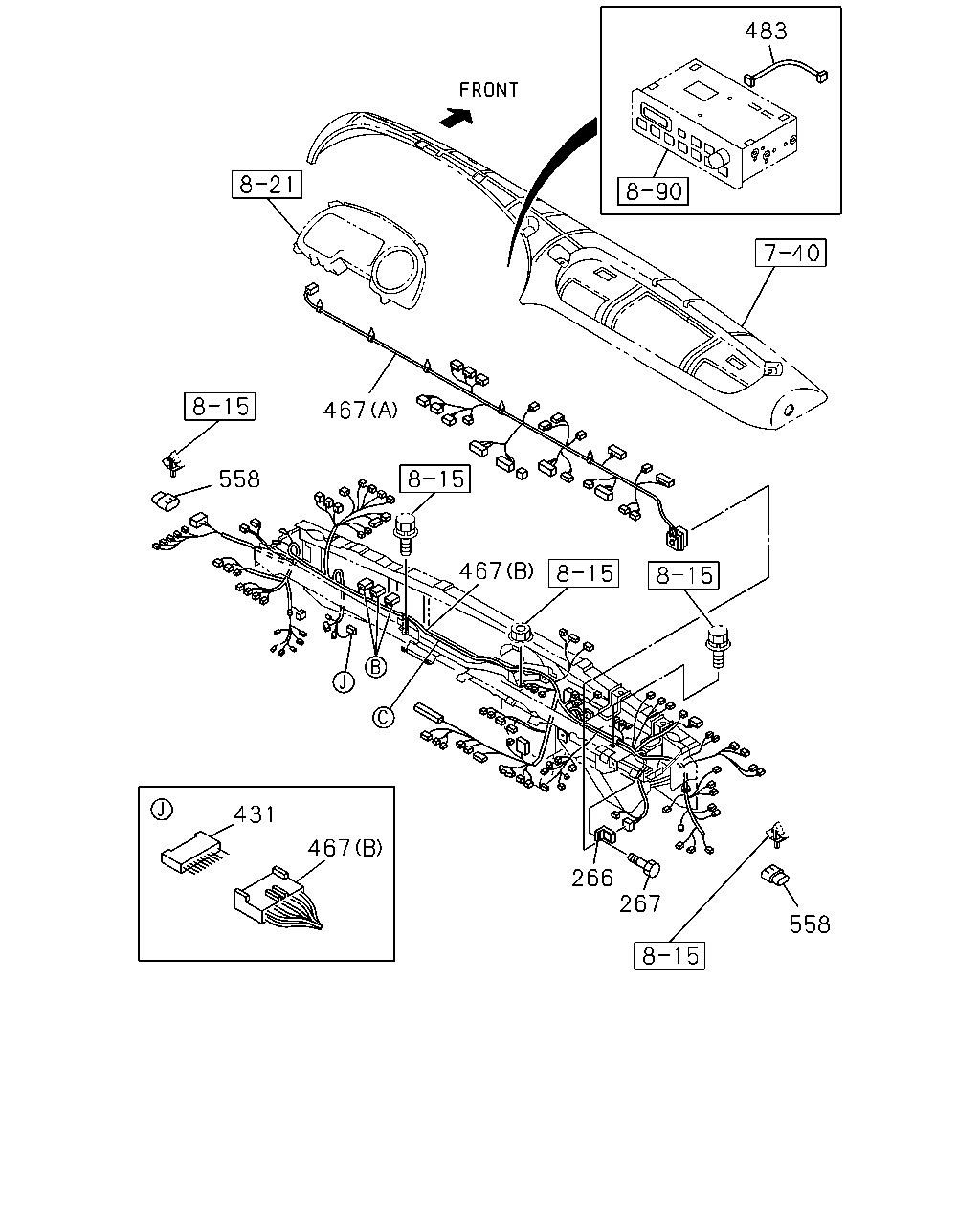

çizim 136056
483 467 558 467 431 467 266 267 558
BalonParca AdiParca NoAdetTipApplied Date A B C
266 BRACKET; CONN BOX 1-82699-580-0 01 1 9806- ● ● ●
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 9806-0004 ● ● ●
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 0005- ● ● ●
431 CONNECTOR; JOINT
10P BROWN 		1-82699-601-0 01 1 0408- ● ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		1-82626-561-4 01 1 9806-9904 ● ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		1-82626-561-4 01 1 9905-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) 		1-82626-561-4 01 1 9905-0004 ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82629-383-0 01 1 0005-0008 ● ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82629-892-4 01 1 0009- ● ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) 		1-82626-562-3 01 1 9806- ● ● ●
467 HARNESS; FACIA
HEADLAMPS RECTANGULAR<TR4> EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		1-82629-387-3 01 1 0005-0407 ● ● ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) 		1-82627-628-1 01 1 9806- ● ● ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		1-82627-629-2 01 1 9806-9904 ● ● ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		1-82627-629-2 01 1 9905-0004 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>,SAUDI ARABIA EQUIPMENT(WH1) (B) 		1-82627-629-2 01 1 9905-0004 ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> HEADLAMPS RECTANGULAR<TR4> (B) 		1-82629-388-3 01 1 0005-0407 ● ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> SAUDI ARABIA EQUIPMENT(WH1) (B) 		1-82628-835-0 01 1 9905-0004 ● ●
467 HARNESS; FACIA
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		1-82629-382-0 01 1 0005-0008 ● ● ●
467 HARNESS; FACIA
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		1-82629-891-4 01 1 0009- ● ● ●
483 HARNESS; EXT,RADIO
RADIO CLARION(SK2) 		8-98075-645-0 01 1 0703- ● ● ●
558 CONNECTOR; HARNESS 1-82690-666-0 02 1 9806-0404 ● ●
558 CONNECTOR; HARNESS 1-82690-666-0 02 1 0405- ● ● ●

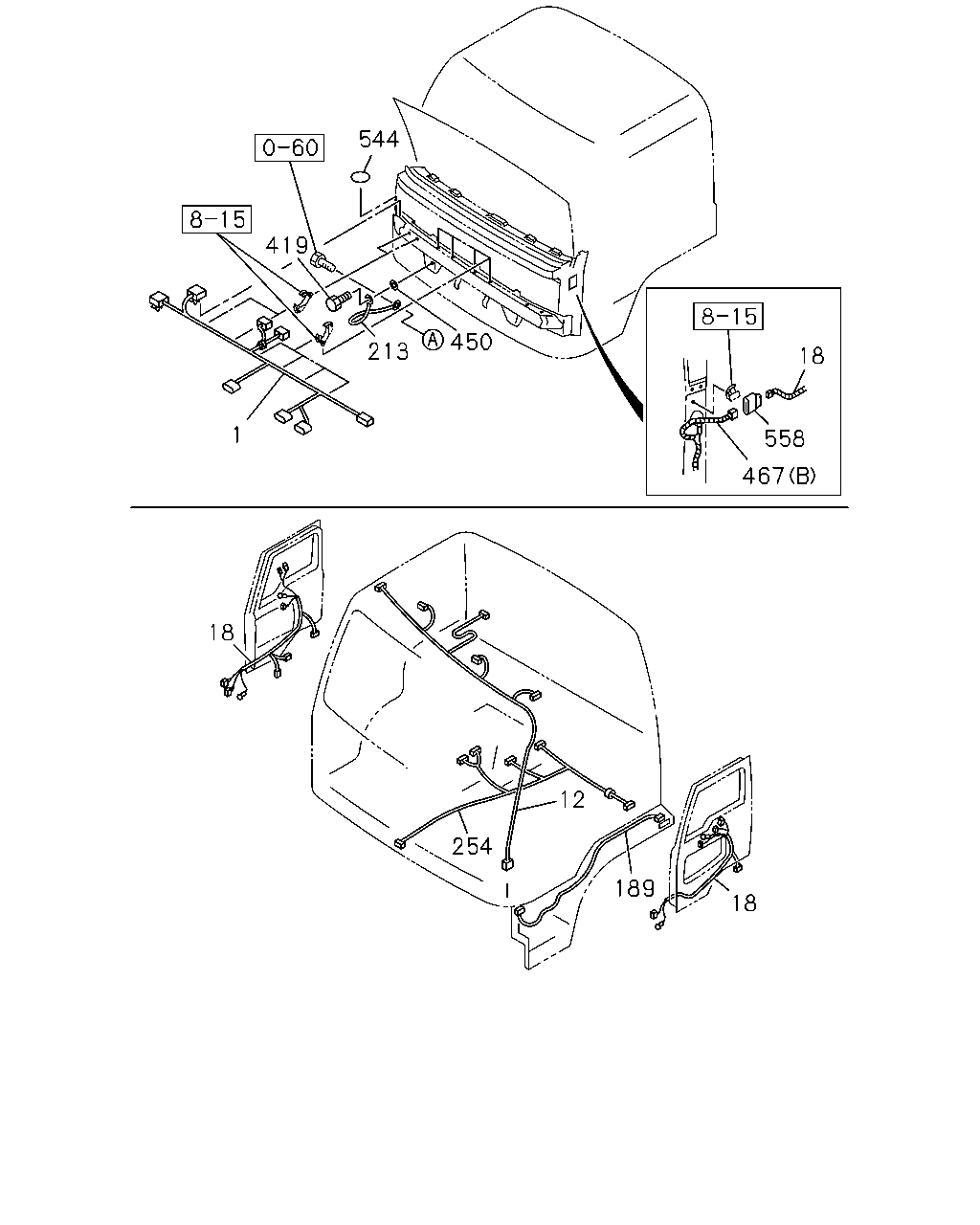

çizim 136453
544 419 450 213 18 1 558 467 18 12 254 189 18
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HARNESS; CAB 1-82625-725-3 01 1 9806- ● ● ●
12 HARNESS; ROOF
LOW ROOF<6XQ> 		1-82625-713-4 01 1 9806-0104 ● ● ●
12 HARNESS; ROOF 1-82625-713-4 01 1 0105- ● ● ●
18 HARNESS; DOOR 1-82626-785-0 02 1 9806-9904 ●
18 HARNESS; DOOR 1-82628-581-0 02 1 9905- ●
189 HARNESS; EXT 1-82625-673-2 02 1 9806- ● ●
213 CABLE; EARTH,CAB TO FRAME 1-82657-055-1 01 1 9806- ● ● ●
254 HARNESS; CAB FLOOR 1-82626-067-3 01 1 9806-9904 ● ● ●
254 HARNESS; CAB FLOOR 1-82626-067-3 01 1 9905-0004 ●
254 HARNESS; CAB FLOOR
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-82626-067-3 01 1 9905-0004 ● ●
254 HARNESS; CAB FLOOR 1-82629-307-3 01 1 0005- ● ● ●
254 HARNESS; CAB FLOOR
SAUDI ARABIA EQUIPMENT(WH1) 		1-82628-836-0 01 1 9905-0004 ● ●
419 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9806-9806 ● ● ●
419 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9806-0204 ●
419 BOLT; CAB EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9806-9907 ● ●
419 BOLT; CAB EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9908-0004 ● ● ●
419 BOLT; CAB EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0005-0204 ● ●
419 BOLT; CAB EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0205-1201 ● ● ●
419 BOLT; CAB EARTH
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1202- ● ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 OD=18 		9-09164-608-0 01 1 0205-0605 ● ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 OD=18 		0-91614-608-0 01 1 0606- ● ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		1-82626-561-4 01 1 9806-9904 ● ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		1-82626-561-4 01 1 9905-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) 		1-82626-561-4 01 1 9905-0004 ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82629-383-0 01 1 0005-0008 ● ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82629-892-4 01 1 0009- ● ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) 		1-82626-562-3 01 1 9806- ● ● ●
467 HARNESS; FACIA
HEADLAMPS RECTANGULAR<TR4> EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		1-82629-387-3 01 1 0005-0407 ● ● ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) 		1-82627-628-1 01 1 9806- ● ● ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		1-82627-629-2 01 1 9806-9904 ● ● ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		1-82627-629-2 01 1 9905-0004 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>,SAUDI ARABIA EQUIPMENT(WH1) (B) 		1-82627-629-2 01 1 9905-0004 ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> HEADLAMPS RECTANGULAR<TR4> (B) 		1-82629-388-3 01 1 0005-0407 ● ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> SAUDI ARABIA EQUIPMENT(WH1) (B) 		1-82628-835-0 01 1 9905-0004 ● ●
467 HARNESS; FACIA
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		1-82629-382-0 01 1 0005-0008 ● ● ●
467 HARNESS; FACIA
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		1-82629-891-4 01 1 0009- ● ● ●
544 SEAL; FRT MTG RAIL
OD=25 BLACK 		1-76798-019-0 01 1 9806- ● ● ●
558 CONNECTOR; HARNESS 1-82690-666-0 02 1 9806-0404 ● ●
558 CONNECTOR; HARNESS 1-82690-666-0 02 1 0405- ● ● ●
çizim 136945
276 277 265 262 6 264 201
BalonParca AdiParca NoAdetTipApplied Date A B C
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> 		1-82671-296-3 01 1 9806-0401 ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> 		1-82677-410-0 01 1 0402-0407 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82673-254-3 01 1 0005-0401 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82677-414-0 01 1 0402- ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> 		1-82671-294-1 01 1 9806-0004 ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> 		1-82673-582-2 01 1 0005-0401 ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> 		1-82677-427-0 01 1 0402-0407 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82673-261-3 01 1 0005-0401 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82677-422-1 01 1 0402- ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> 		1-82671-295-1 01 1 9806-0004 ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> 		1-82673-583-2 01 1 0005-0401 ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> 		1-82677-428-0 01 1 0402-0407 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82673-262-3 01 1 0005-0401 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82677-423-1 01 1 0402- ●
201 HARNESS; AIR TANK 1-82638-997-0 01 1 9806- ●
201 HARNESS; AIR TANK 1-82670-538-1 01 1 9806- ● ●
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-605-1 01 1 9806- ● ● ●
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 9806- ● ● ●
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 9806- ● ● ●
276 COVER; BOX,FRAME HARNESS 1-82699-558-3 01 1 9806- ● ● ●
277 BOLT; BOX ASM FIX
M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 9806-0512 ● ● ●
277 BOLT; BOX ASM FIX
M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 0601- ● ● ●

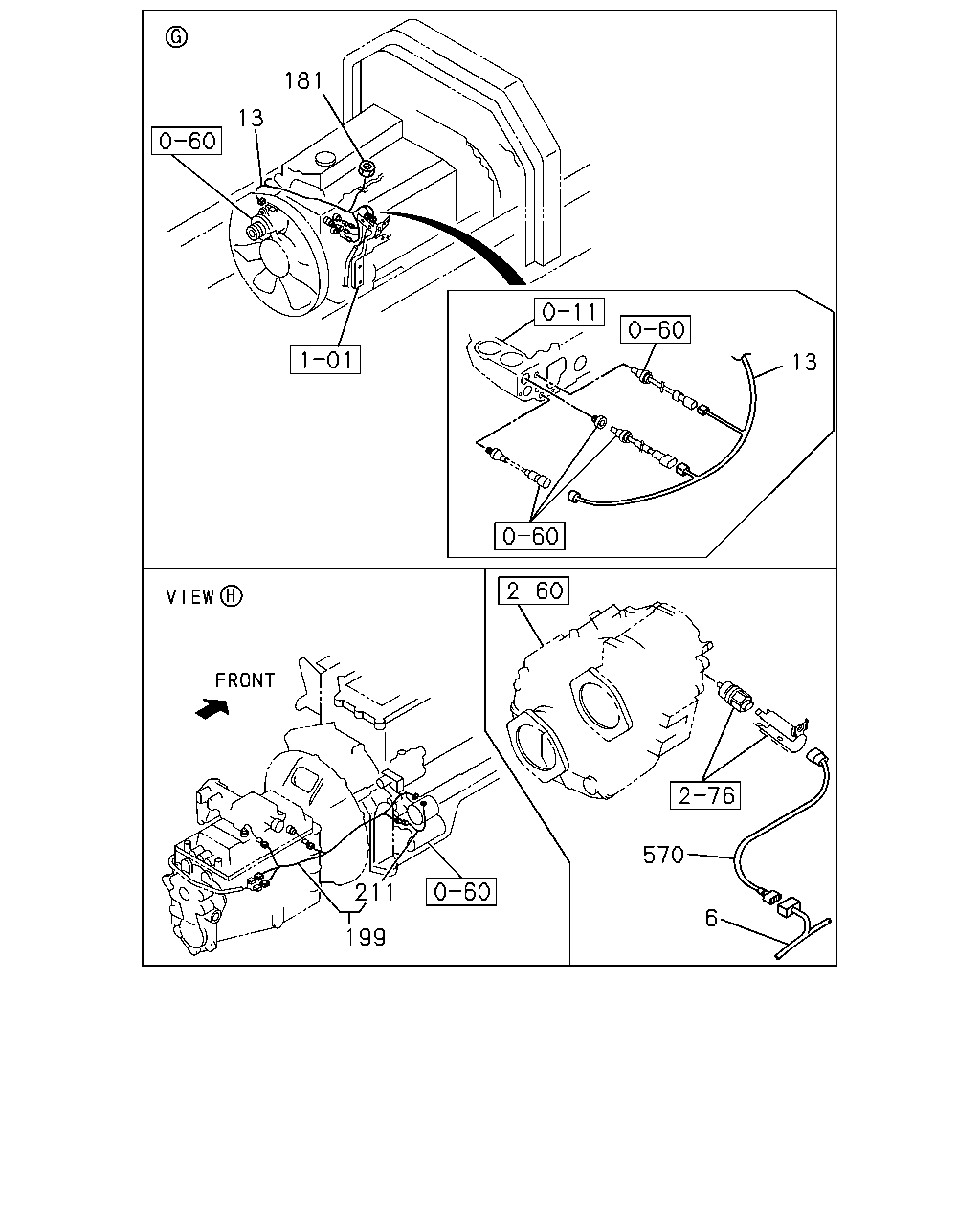

çizim 184799
181 13 13 570 211 6 199
BalonParca AdiParca NoAdetTipApplied Date A B C
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> 		1-82671-296-3 01 1 9806-0401 ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> 		1-82677-410-0 01 1 0402-0407 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82673-254-3 01 1 0005-0401 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82677-414-0 01 1 0402- ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> 		1-82671-294-1 01 1 9806-0004 ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> 		1-82673-582-2 01 1 0005-0401 ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> 		1-82677-427-0 01 1 0402-0407 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82673-261-3 01 1 0005-0401 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82677-422-1 01 1 0402- ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> 		1-82671-295-1 01 1 9806-0004 ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> 		1-82673-583-2 01 1 0005-0401 ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> 		1-82677-428-0 01 1 0402-0407 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82673-262-3 01 1 0005-0401 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82677-423-1 01 1 0402- ●
13 HARNESS; ENG 1-82640-714-0 01 1 9806- ● ● ●
181 NUT; GLOW PLUG HARNESS
M4 FLANGE 		5-09440-007-0 01 1 9806- ● ● ●
199 HARNESS; STARTER 1-82640-966-1 01 1 9806- ● ● ●
211 WIRE; FUSIBLE LINK,STARTER
WHITE 		1-82659-124-0 01 1 9806- ● ● ●
570 HARNESS; SPEED SENSOR 1-82670-078-0 01 1 0005-0206 ● ● ●
570 HARNESS; SPEED SENSOR 1-82676-547-0 01 1 0207-0401 ● ● ●

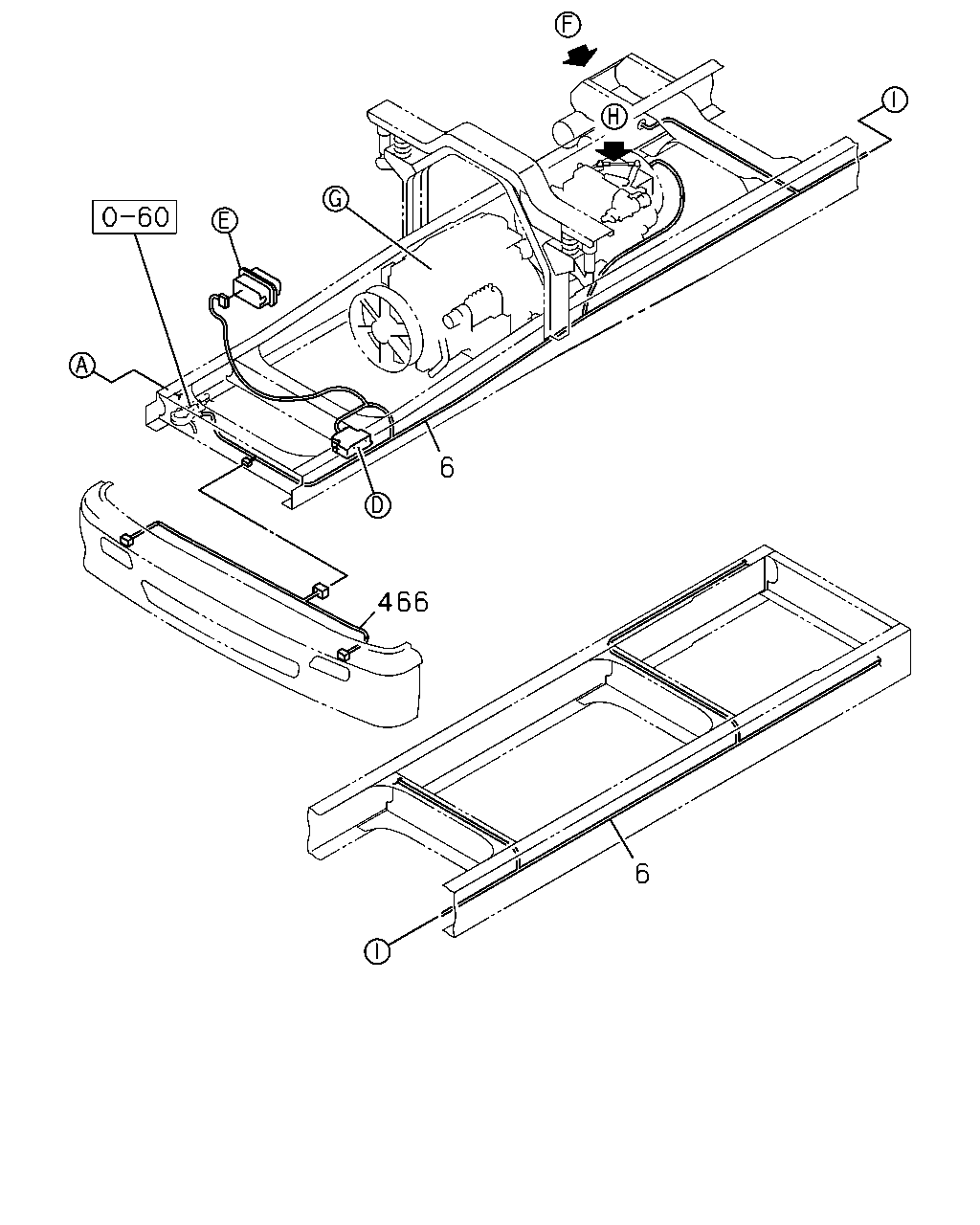

çizim 184801
6 466 6
BalonParca AdiParca NoAdetTipApplied Date A B C
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> 		1-82671-296-3 01 1 9806-0401 ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> 		1-82677-410-0 01 1 0402-0407 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82673-254-3 01 1 0005-0401 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82677-414-0 01 1 0402- ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> 		1-82671-294-1 01 1 9806-0004 ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> 		1-82673-582-2 01 1 0005-0401 ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> 		1-82677-427-0 01 1 0402-0407 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82673-261-3 01 1 0005-0401 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82677-422-1 01 1 0402- ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> 		1-82671-295-1 01 1 9806-0004 ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> 		1-82673-583-2 01 1 0005-0401 ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> 		1-82677-428-0 01 1 0402-0407 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82673-262-3 01 1 0005-0401 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82677-423-1 01 1 0402- ●
466 HARNESS; BUMPER
HEADLAMPS RECTANGULAR<TR4> 		1-82638-996-1 01 1 9806-0407 ● ● ●
466 HARNESS; BUMPER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82638-758-1 01 1 0005- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
