8-01 — LAMP; FRONT AND FRONT SIDE (#65357) — 141 parça

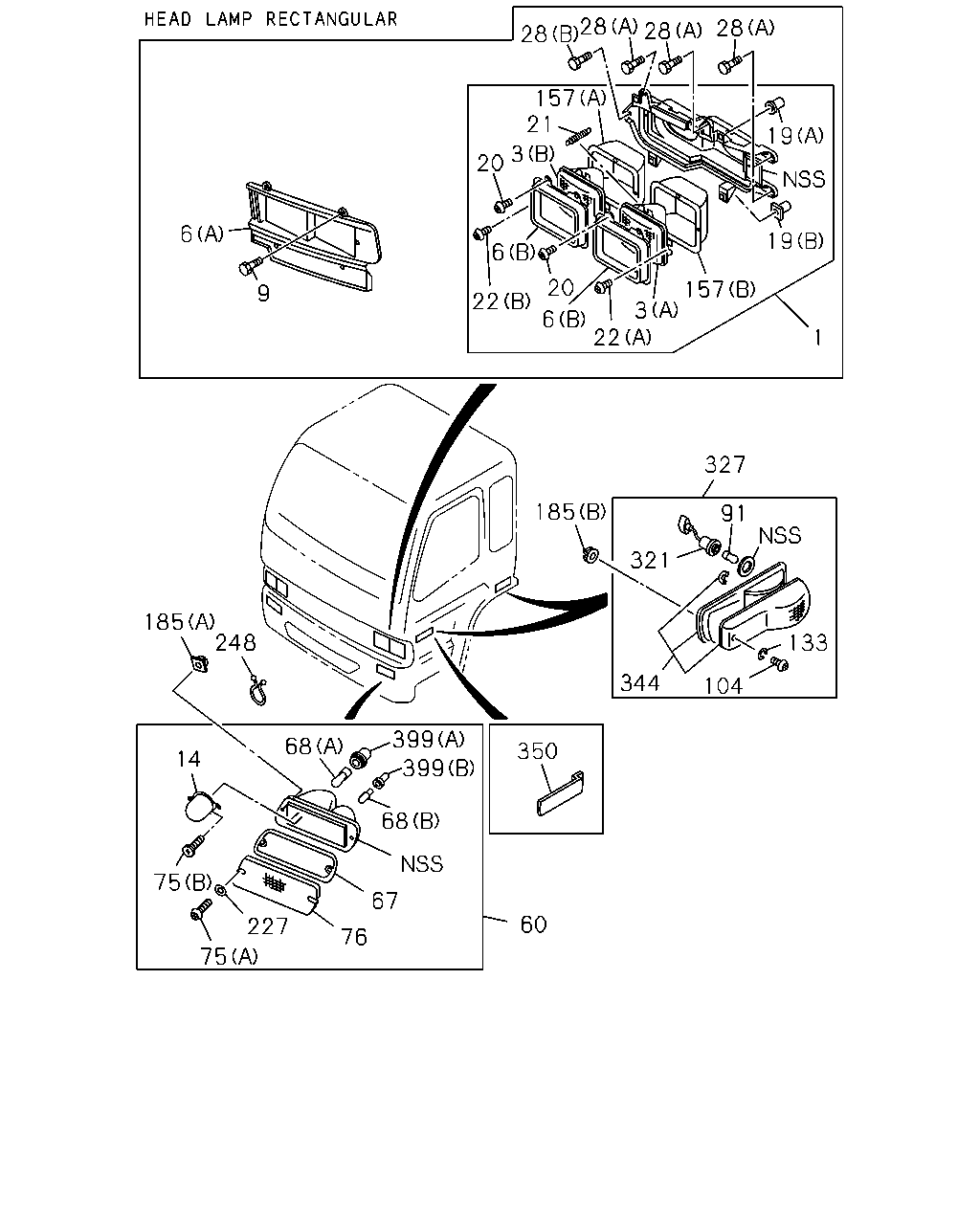

çizim 184798
28 28 28 28 157 21 19 3 20 6 19 6 20 157 9 22 3 6 22 1 327 185 91 321 185 248 133 344 104 399 68 350 14 399 68 75 67 60 227 76 75
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LAMP ASM; HEAD
HEADLAMPS RECTANGULAR<TR4> 		1-86830-174-1 01 1 9806-0407 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS RECTANGULAR<TR4> 		1-86830-173-1 01 1 9806-0407 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-176-4 01 1 0005-0210 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82110-440-0 01 1 0211- ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-175-4 01 1 0005-0210 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82110-439-0 01 1 0211- ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-124-4 01 1 0005- ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-123-4 01 1 0005- ● ● ●
3 SEALED BEAM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 24V 50/65W 		8-94111-275-0 02 1 9806-0407 ● ● ●
3 SEALED BEAM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (B) 24V 55W 		8-94111-276-0 02 1 9806-0407 ● ● ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (B) 		8-94165-573-0 04 1 9806-0407 ● ● ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-71118-746-1 01 1 9806-0407 ● ● ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-71118-745-1 01 1 9806-0407 ● ● ●
6 RIM; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C) 		1-86830-006-5 01 1 0005- ● ● ●
6 RIM; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C) 		1-86830-005-5 01 1 0005- ● ● ●
9 SCREW; HEADLAMP RIM
HEADLAMPS RECTANGULAR<TR4> M4X20 TAPPING W/PL WASHER 		0-74110-420-0 08 1 9806-0407 ● ● ●
14 CAP; BULB,LAMP
HEADLAMPS RECTANGULAR<TR4> 		1-82219-030-0 02 1 9806-0407 ● ● ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-148-0 02 1 0005- ● ● ●
19 NUT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82119-117-0 08 1 9806-0407 ● ● ●
19 NUT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (B) 		8-97044-618-0 08 1 9806-0407 ● ● ●
20 SCREW; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> M4X8 		8-94165-886-0 16 1 9806-0407 ● ● ●
21 SPRING; ADJ HEADLAMP
HEADLAMPS RECTANGULAR<TR4> 		1-82119-120-0 04 1 9806-0407 ● ● ●
22 SCREW; ADJ,HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82119-118-0 07 1 9806-0407 ● ● ●
22 SCREW; ADJ,HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (B) 		1-82119-119-0 01 1 9806-0407 ● ● ●
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C) M6X16 FLANGE 		0-28650-616-0 04 1 0709- ● ● ●
28 BOLT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9806-0407 ● ● ●
28 BOLT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9806-0407 ● ● ●
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0005-0708 ● ● ●
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0709- ● ● ●
60 LAMP ASM; FRT COMB
HEADLAMPS RECTANGULAR<TR4> 		1-82210-221-0 01 1 9806-0407 ● ● ●
60 LAMP ASM; FRT COMB
HEADLAMPS RECTANGULAR<TR4> 		1-82210-220-0 01 1 9806-0407 ● ● ●
67 GASKET; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> 		1-82216-033-0 02 1 9806-0407 ● ● ●
68 BULB; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> (A) 24V 21W 		1-82194-036-0 02 1 9806-0407 ● ● ●
68 BULB; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> (B) 24V 5W 		8-94135-397-0 02 1 9806-0407 ● ● ●
75 SCREW; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82219-026-0 04 1 9806-0407 ● ● ●
75 SCREW; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> (B) 		1-82219-031-0 04 1 9806-0407 ● ● ●
76 LENS; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> 		1-82215-071-0 01 1 9806-0407 ● ● ●
76 LENS; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> 		1-82215-070-0 01 1 9806-0407 ● ● ●
91 BULB; SIDE TURN SIGNAL
24V 10W 		1-82194-037-0 02 1 9806-9809 ● ● ●
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 9810- ● ● ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 9806- ● ● ●
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 9806-0206 ● ● ●
157 RING; MTG,HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (B) 		1-82119-032-0 01 1 9806-0407 ● ● ●
157 RING; MTG,HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82119-033-0 01 1 9806-0407 ● ● ●
157 RING; MTG,HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82119-031-0 01 1 9806-0407 ● ● ●
157 RING; MTG,HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (B) 		1-82119-034-0 01 1 9806-0407 ● ● ●
185 GROMMET; SCREW
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 9806- ● ● ●
185 GROMMET; SCREW
(B) D=8.6X7.7 L=7.5 		1-09983-177-0 02 1 9806-9807 ● ●
227 SEAT; SET SCREW,FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> 		1-82216-032-0 04 1 9806-0407 ● ● ●
248 CLIP; HARNESS
VENTILATOR & DEFROSTER WO/HEATER<SAZ> ID=11.5 		1-09709-083-0 01 1 9806- ● ● ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 9806- ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-263-0 01 1 9806-9809 ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 9810- ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-262-0 01 1 9806-9809 ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 9810- ● ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 9806- ● ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 9806- ● ● ●
350 COVER; SIDE TURN HOLE 1-79998-944-1 01 1 9806-0209 ● ● ●
350 COVER; SIDE TURN HOLE 1-79996-607-0 01 1 0210- ● ● ●
350 COVER; SIDE TURN HOLE 1-79998-943-1 01 1 9806-0209 ● ● ●
350 COVER; SIDE TURN HOLE 1-79996-606-0 01 1 0210- ● ● ●
399 SOCKET; TURN SIGNAL
HEADLAMPS RECTANGULAR<TR4> (B) 		1-82219-033-0 02 1 9806-0407 ● ● ●
399 SOCKET; TURN SIGNAL
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82219-034-0 02 1 9806-0004 ● ● ●
399 SOCKET; TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>,HEADLAMPS RECTANGULAR<TR4> (A) 		1-82219-034-0 02 1 0005-0407 ● ● ●
399 SOCKET; TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-82219-034-0 02 1 0408- ● ● ●

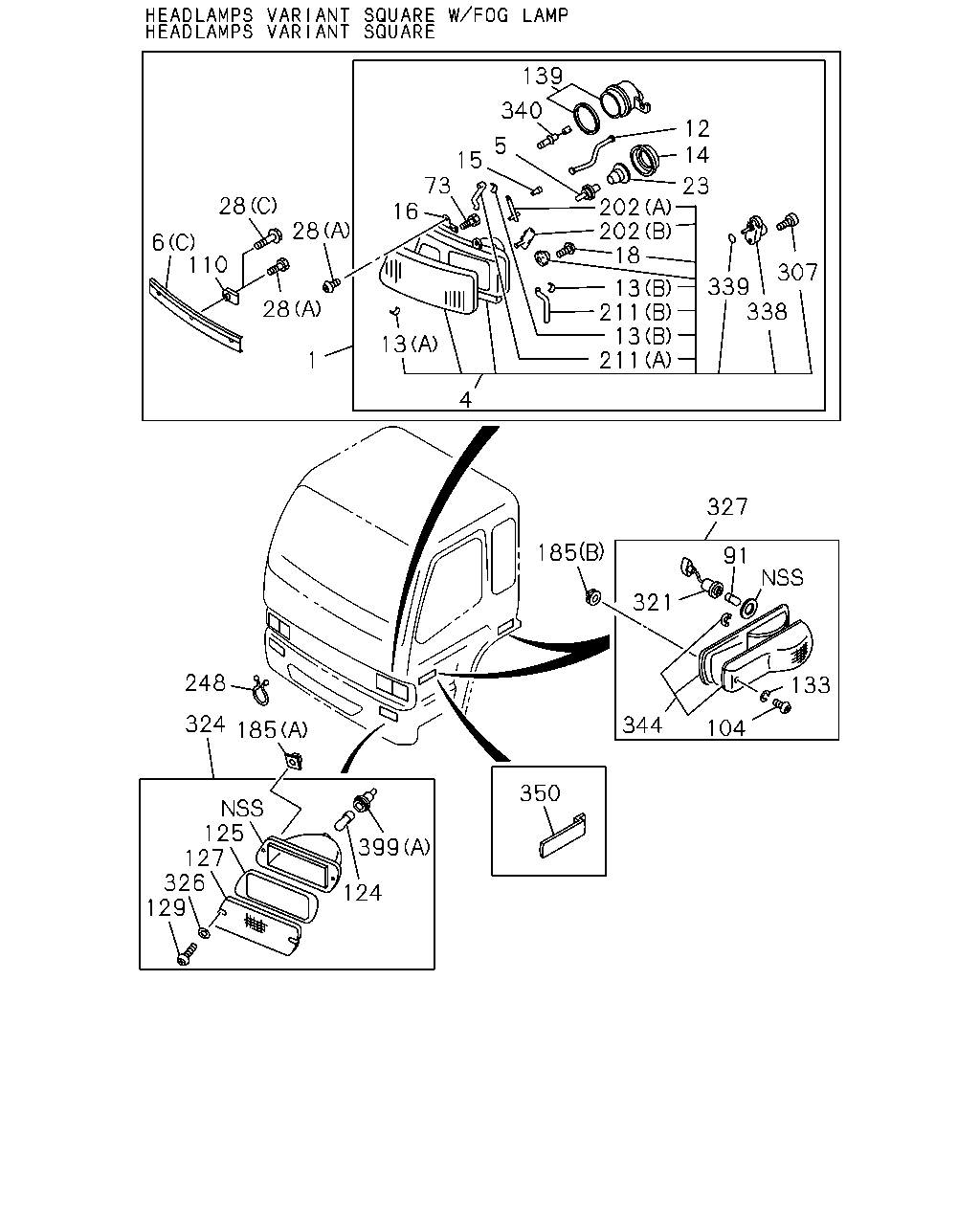

çizim 184803
28 139 340 12 14 23 307 339 338 202 5 15 73 16 13 1 28 110 28 9 211 13 211 13 18 202 327 185 91 133 344 104 321 350 124 129 399 326 185 324 127 248 125 4
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LAMP ASM; HEAD
HEADLAMPS RECTANGULAR<TR4> 		1-86830-174-1 01 1 9806-0407 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS RECTANGULAR<TR4> 		1-86830-173-1 01 1 9806-0407 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-176-4 01 1 0005-0210 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82110-440-0 01 1 0211- ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-175-4 01 1 0005-0210 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82110-439-0 01 1 0211- ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-124-4 01 1 0005- ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-123-4 01 1 0005- ● ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-198-1 01 1 0005-0210 ● ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82119-205-0 01 1 0211- ● ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-197-1 01 1 0005-0210 ● ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82119-204-0 01 1 0211- ● ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-196-1 01 1 0005- ● ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-195-1 01 1 0005- ● ● ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 75/70W 		1-82194-063-0 02 1 0005- ● ● ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> 24V 75/70W 		8-94405-657-0 02 1 0005- ● ● ●
9 SCREW; HEADLAMP RIM
HEADLAMPS RECTANGULAR<TR4> M4X20 TAPPING W/PL WASHER 		0-74110-420-0 08 1 9806-0407 ● ● ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-199-0 02 1 0005- ● ● ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-145-0 02 1 0005- ● ● ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82119-084-0 04 1 0005- ● ● ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		8-94381-588-0 14 1 0005- ● ● ●
14 CAP; BULB,LAMP
HEADLAMPS RECTANGULAR<TR4> 		1-82219-030-0 02 1 9806-0407 ● ● ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-148-0 02 1 0005- ● ● ●
15 BULB; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 55W 		1-82194-079-0 02 1 0005- ● ● ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-076-0 01 1 0005- ● ● ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-075-0 01 1 0005- ● ● ●
18 SCREW; GEAR CASE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M4X16 TAPPING 		1-82119-067-0 08 1 0005- ● ● ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-147-0 02 1 0005- ● ● ●
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C) M6X16 FLANGE 		0-28650-616-0 04 1 0709- ● ● ●
28 BOLT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9806-0407 ● ● ●
28 BOLT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9806-0407 ● ● ●
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0005-0708 ● ● ●
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0709- ● ● ●
73 BOLT; BRKT,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		8-94332-050-0 04 1 0005- ● ● ●
91 BULB; SIDE TURN SIGNAL
24V 10W 		1-82194-037-0 02 1 9806-9809 ● ● ●
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 9810- ● ● ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 9806- ● ● ●
110 CLIP; RIM,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-213-1 04 1 0005- ● ● ●
124 BULB; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 21W 		1-82194-036-0 02 1 0005- ● ● ●
125 GASKET; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82216-033-0 02 1 0005- ● ● ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-065-0 01 1 0005- ● ● ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-064-0 01 1 0005- ● ● ●
129 SCREW; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82219-026-0 04 1 0005- ● ● ●
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 9806-0206 ● ● ●
139 COVER; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-82119-224-0 02 1 0005- ● ● ●
185 GROMMET; SCREW
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 9806- ● ● ●
185 GROMMET; SCREW
(B) D=8.6X7.7 L=7.5 		1-09983-177-0 02 1 9806-9807 ● ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) OUTER 		1-86830-139-0 02 1 0005- ● ● ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) INNER 		1-86830-140-0 02 1 0005- ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-329-0 01 1 0005-0105 ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-86830-331-0 01 1 0005- ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-328-0 01 1 0005-0105 ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-86830-330-0 01 1 0005- ● ● ●
248 CLIP; HARNESS
VENTILATOR & DEFROSTER WO/HEATER<SAZ> ID=11.5 		1-09709-083-0 01 1 9806- ● ● ●
307 SCREW; TAPPING,HEAD LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M4X16 TAPPING 		1-82119-067-0 02 1 0211- ● ● ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 9806- ● ● ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82210-203-1 01 1 0005- ● ● ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82210-202-1 01 1 0005- ● ● ●
326 WASHER; PL,FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82216-032-0 04 1 0005- ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-263-0 01 1 9806-9809 ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 9810- ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-262-0 01 1 9806-9809 ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 9810- ● ● ●
338 LEVELING; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-138-0 02 1 0211- ● ● ●
339 GASKET; LEVELING
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-158-0 02 1 0211- ● ● ●
340 BULB; POSITION
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 5W 		1-82194-042-0 02 1 0005- ● ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 9806- ● ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 9806- ● ● ●
350 COVER; SIDE TURN HOLE 1-79998-944-1 01 1 9806-0209 ● ● ●
350 COVER; SIDE TURN HOLE 1-79996-607-0 01 1 0210- ● ● ●
350 COVER; SIDE TURN HOLE 1-79998-943-1 01 1 9806-0209 ● ● ●
350 COVER; SIDE TURN HOLE 1-79996-606-0 01 1 0210- ● ● ●
399 SOCKET; TURN SIGNAL
HEADLAMPS RECTANGULAR<TR4> (B) 		1-82219-033-0 02 1 9806-0407 ● ● ●
399 SOCKET; TURN SIGNAL
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82219-034-0 02 1 9806-0004 ● ● ●
399 SOCKET; TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>,HEADLAMPS RECTANGULAR<TR4> (A) 		1-82219-034-0 02 1 0005-0407 ● ● ●
399 SOCKET; TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-82219-034-0 02 1 0408- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
