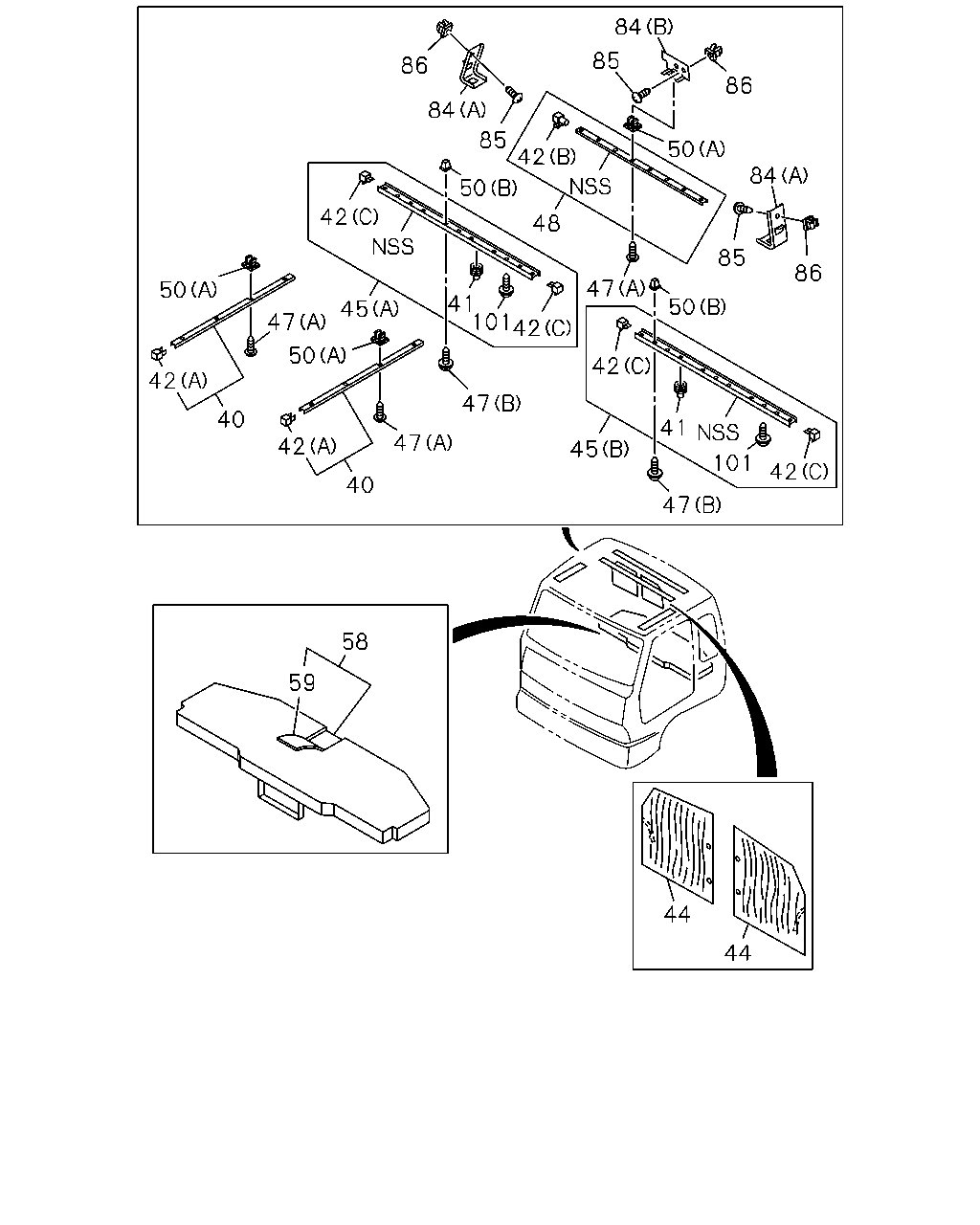

7-70 — SEPARATER AND BED (#65356) — 53 parça

84 85 86 86 84 85 50 42 84 50 42 48 85 86 47 50 50 41 101 42 45 47 50 42 42 47 40 41 47 42 45 101 42 40 47 58 59 44 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
40	RAIL; CURTAIN,SIDE LOW ROOF<6XQ>	1-73996-380-1	01	1	0005-0104	●	●	●
40	RAIL; CURTAIN,SIDE	1-73996-380-1	01	1	0105-	●	●	●
40	RAIL; CURTAIN,SIDE LOW ROOF<6XQ>	1-73908-220-0	01	1	9806-0004	●	●	●
40	RAIL; CURTAIN,SIDE LOW ROOF<6XQ>	1-73908-219-0	01	1	9806-0004	●	●	●
40	RAIL; CURTAIN,SIDE LOW ROOF<6XQ>	1-73996-379-0	01	1	0005-0104	●	●	●
40	RAIL; CURTAIN,SIDE	1-73996-379-0	01	1	0105-	●	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 DARK GRAY	1-73996-105-0	13	1	9806-0004	●	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 WHITE	1-73996-398-0	13	1	0005-0006	●	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 WHITE	1-73996-398-0	14	1	0007-0104	●	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	0105-	●	●	●
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (A)	1-73996-393-0	02	1	0005-0104	●	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0105-	●	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-146-2	01	1	9806-0004	●	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	01	1	0005-	●	●	●
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (C)	1-73907-403-1	02	1	9806-0004	●	●	●
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (C)	1-73907-657-0	02	1	0005-0104	●	●	●
42	STOPPER; CURTAIN RAIL (C)	1-73907-657-0	02	1	0105-	●	●	●
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (A)	1-73908-193-0	02	1	9806-0004	●	●	●
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25>	1-73908-208-1	01	1	9806-	●	●	●
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25>	1-73908-207-1	01	1	9806-	●	●	●
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (A)	1-73908-150-0	01	1	9806-0004	●	●	●
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (A)	1-73908-374-2	01	1	0005-0104	●	●	●
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25> (A)	1-73908-374-2	01	1	0105-	●	●	●
45	RAIL; CURTAIN,FRT LOW ROOF<6XQ> EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-148-0	01	1	9806-0004	●	●	●
45	RAIL; CURTAIN,FRT LOW ROOF<6XQ> EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-373-1	01	1	0005-0104	●	●	●
45	RAIL; CURTAIN,FRT EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-373-1	01	1	0105-	●	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	9806-0211	●	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	08	1	0212-0212	●	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0212-	●	●	●
47	SCREW; CURTAIN RAIL LOW ROOF<6XQ> (A) M5X20	5-09981-059-0	17	1	9806-0104	●	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	17	1	0105-	●	●	●
48	RAIL; CURTAIN,BACK	8-94265-811-0	01	1	9806-0004	●	●	●
48	RAIL; CURTAIN,BACK	1-73996-385-1	01	1	0005-	●	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	9806-0104	●	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0105-0211	●	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0212-0212	●	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0212-	●	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5	8-94279-078-0	17	1	9806-0104	●	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	17	1	0105-	●	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75116-226-1	01	1	9806-0003	●	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75116-521-0	01	1	0004-0004	●	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75116-522-1	01	1	0005-	●	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75116-231-0	01	1	9806-0003	●	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75116-668-0	01	1	0004-0004	●	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75116-669-1	01	1	0005-	●	●	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	9806-	●	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	9806-	●	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	02	1	9806-	●	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	9806-	●	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9806-	●	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	9806-	●	●	●
101	SCREW; STOPPER LOW ROOF<6XQ>	1-73907-400-0	02	1	0005-0104	●	●	●
101	SCREW; STOPPER	1-73907-400-0	02	1	0105-	●	●	●
