◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10717 - FSS/FTS-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#65351) — 108 parça

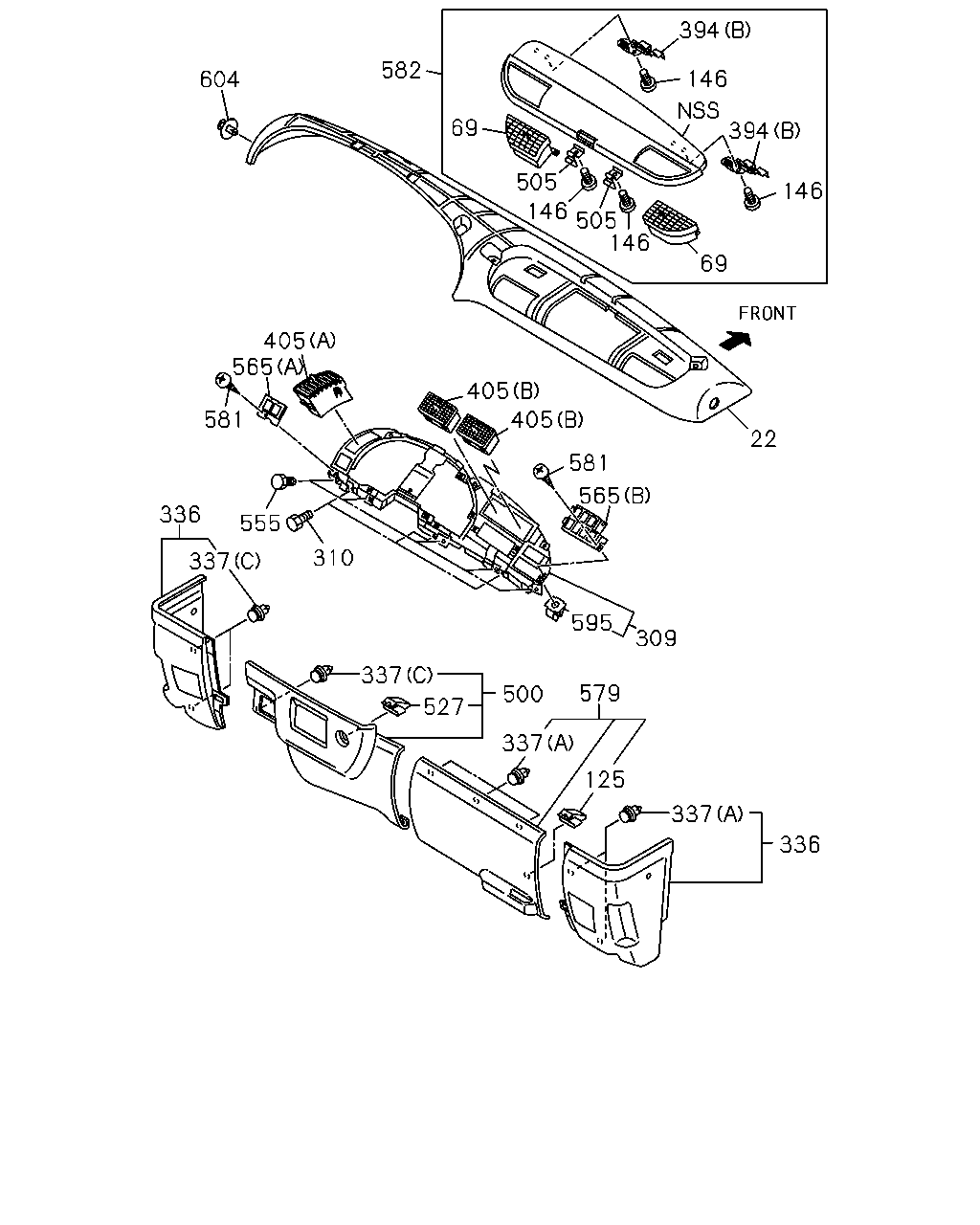

çizim 132845
394 582 146 604 394 69 505 146 146 505 146 69 405 565 405 581 405 22 581 565 336 555 310 337 595 309 337 579 500 527 337 125 337 336
BalonParca AdiParca NoAdetTipApplied Date A B C
22 PAD; INST 1-72318-415-2 01 1 9806-0004 ● ● ●
22 PAD; INST 1-72318-435-3 01 1 0005- ● ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 9806- ● ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 9806- ● ● ●
125 CLIP; INST PANEL 8-97853-939-4 01 1 9806-9812 ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 9901- ● ● ●
125 CLIP; INST PANEL 8-97853-939-4 08 1 9806-9812 ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 08 1 9901- ● ● ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 9806- ● ● ●
309 PANEL; SW,INST 1-72418-018-3 01 1 9806- ● ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9806- ● ● ●
336 COVER; INST PANEL SIDE 1-72438-132-0 01 1 9806-0004 ● ● ●
336 COVER; INST PANEL SIDE 1-72438-194-0 01 1 0005- ● ● ●
336 COVER; INST PANEL SIDE 1-72438-130-1 01 1 9806-0004 ● ● ●
336 COVER; INST PANEL SIDE 1-72438-193-0 01 1 0005- ● ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 9806- ● ● ●
337 FASTENER; COVER
(C) 		1-72438-137-0 06 1 9806- ● ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 9806- ● ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 9806- ● ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9806-0407 ● ● ●
394 HOLDER; PANEL
(B) 		1-72558-048-0 02 1 0408- ● ● ●
405 GRILLE ASM; METER VENT
(A) 		1-76368-062-0 01 1 9806- ● ● ●
405 GRILLE ASM; METER VENT
(B) BLACK 		8-94333-730-4 02 1 9806- ● ● ●
500 CLUSTER; INST CENTER 1-72438-126-3 01 1 9806-0004 ● ● ●
500 CLUSTER; INST CENTER 1-72438-192-1 01 1 0005- ● ● ●
505 LOCK; LID 1-72558-024-2 02 1 9806- ● ● ●
527 CLIP; INST CLUSTER 8-97853-939-4 04 1 9806-9812 ● ● ●
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 9901- ● ● ●
555 BOLT; PAD
M10X25 FLANGE 		0-28281-025-0 07 1 9806-0512 ● ● ●
555 BOLT; PAD
M10X25 FLANGE 		0-28251-025-0 07 1 0601-0604 ● ● ●
555 BOLT; PAD
M10X25 FLANGE 		8-98041-453-0 07 1 0605- ● ● ●
555 BOLT; PAD
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9806- ● ● ●
565 BEZEL; SW PANEL
(A) 		1-72418-021-1 01 1 9806- ● ● ●
565 BEZEL; SW PANEL
(B) 		1-72418-020-1 01 1 9806- ● ● ●
579 COVER; INST PNL 1-72438-128-1 01 1 9806-0004 ● ● ●
579 COVER; INST PNL 1-72438-195-1 01 1 0005- ● ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9806-0604 ● ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605- ● ● ●
582 LID; FUSE & RELAY 1-72548-140-1 01 1 9806-0004 ● ● ●
582 LID; FUSE & RELAY 1-72548-146-1 01 1 0005- ● ● ●
595 NUT; HOOK 1-72418-013-0 10 1 9806- ● ● ●
604 CLIP; INST PAD 1-09983-123-0 01 1 9806- ● ● ●

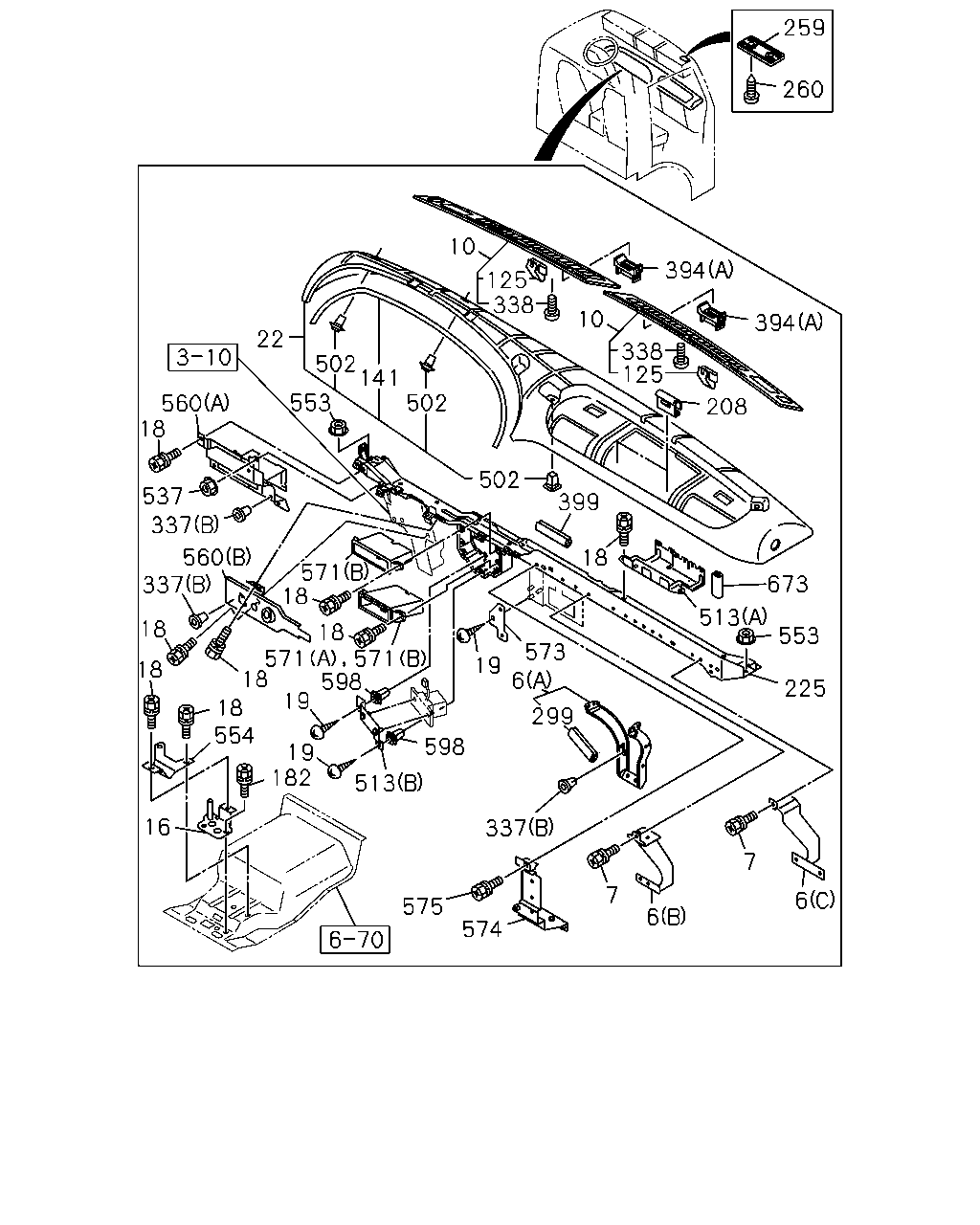

çizim 184797
259 260 10 394 125 338 10 394 22 338 125 502 141 553 502 560 18 208 502 399 537 337 560 337 18 571 18 673 18 18 598 513 18 553 573 18 19 6 225 19 18 554 299 598 19 182 513 16 337 7 7 6 6 574 575 571 571
BalonParca AdiParca NoAdetTipApplied Date A B C
6 SUPPORT; INST PANEL
(A) 		1-65681-035-6 01 1 9806- ● ● ●
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (C) 		1-65681-061-2 01 1 9806- ● ● ●
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		1-65681-062-2 01 1 9806- ● ● ●
7 BOLT; SUPPORT,INST PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9806- ● ● ●
7 BOLT; SUPPORT,INST PNL
EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9806- ● ● ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> W/SPEAKER NET 		1-72437-601-6 01 1 9806- ● ● ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> W/SPEAKER NET 		1-72437-600-7 01 1 9806- ● ● ●
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		1-72438-158-1 01 1 9806- ● ● ●
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		1-72438-157-1 01 1 9806- ● ● ●
16 BRACKET; INST PNL 1-79738-802-1 01 1 9806- ● ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 9806-0004 ● ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005- ● ● ●
18 BOLT; BRKT
M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9806- ● ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 0005- ● ● ●
18 BOLT; BRKT
EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9806- ● ● ●
19 SCREW; BRKT
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X14 		8-94279-325-0 02 1 9806- ● ● ●
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 9806- ● ● ●
22 PAD; INST 1-72318-415-2 01 1 9806-0004 ● ● ●
22 PAD; INST 1-72318-435-3 01 1 0005- ● ● ●
125 CLIP; INST PANEL 8-97853-939-4 01 1 9806-9812 ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 9901- ● ● ●
125 CLIP; INST PANEL 8-97853-939-4 08 1 9806-9812 ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 08 1 9901- ● ● ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 9806- ● ● ●
182 BOLT; BRKT,INST PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9806- ● ● ●
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 9806- ● ● ●
225 FRAME; FACIA 1-65681-028-8 01 1 9806-1002 ● ● ●
225 FRAME; FACIA 8-98142-104-0 01 1 1003- ● ● ●
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73318-551-0 01 1 9806-0004 ● ● ●
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 0005- ● ● ●
260 SCREW; STUFF PLATE
EXC. SUN VISOR PASSENGER<D20> M6X25 		1-09981-441-0 02 1 9806- ● ● ●
299 FINISHER; STAY,INST CENTER
L=150 SERVICED BY L=314 		8-94262-845-0 01 1 0006- ● ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 9806- ● ● ●
337 FASTENER; COVER
(C) 		1-72438-137-0 06 1 9806- ● ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 9806- ● ● ●
338 SCREW; COVER
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> TAPPING M5X14 		8-94279-325-0 10 1 9806-0208 ● ● ●
338 SCREW; COVER
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X14 		8-94148-576-1 10 1 0209-0309 ● ● ●
338 SCREW; COVER
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X14 		8-94279-325-0 20 1 0310-0405 ● ● ●
338 SCREW; COVER
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X14 		8-94279-325-0 10 1 0406-0801 ● ● ●
338 SCREW; COVER
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X14 		8-94279-325-0 15 1 0802- ● ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 9806- ● ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9806-0407 ● ● ●
394 HOLDER; PANEL
(B) 		1-72558-048-0 02 1 0408- ● ● ●
399 FINISHER; HARNESS
EXC. VENTILATOR & DEFROSTER WO/HEATER<SAZ> L=60 		8-97865-346-0 01 1 9806-9807 ● ● ●
399 FINISHER; HARNESS
EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> L=60 		8-97865-346-0 01 1 9808- ● ● ●
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 9806- ● ● ●
513 BRACKET; RELAY
(A) 		8-97865-168-3 01 1 9806- ● ● ●
513 BRACKET; RELAY
PTO CONTROL<SV6> (B) 		1-73908-043-1 01 1 9806- ● ● ●
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 9806-0602 ● ● ●
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ● ●
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 9806-0602 ● ● ●
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ●
554 BRACKET; CENTER BEZEL 1-65681-039-2 01 1 9806- ● ● ●
560 BRACKET
(A) 		1-65681-045-6 01 1 9806- ● ● ●
560 BRACKET
(B) 		1-65681-043-2 01 1 9806- ● ● ●
571 BEZEL; POCKET
(A) 		1-72438-060-1 01 1 9806-9812 ● ● ●
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPEPLAYER(UN3) (B) 		1-72438-151-0 01 1 9806-9812 ● ● ●
571 BEZEL; POCKET
(B) 		1-72438-151-3 01 1 9901- ● ● ●
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPEPLAYER(UN3) (B) 		1-72438-151-3 01 1 9901- ● ● ●
573 BRACKET; PANEL,RELAY BOX
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		1-73908-023-2 01 1 9806- ● ● ●
573 BRACKET; PANEL,RELAY BOX
EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		1-73908-200-0 01 1 9806- ● ● ●
574 PANEL; RELAY BOX 1-73908-058-7 01 1 9806- ● ● ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9806- ● ● ●
598 GROMMET; SCREW
PTO CONTROL<SV6> D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 02 1 9806- ● ● ●
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0006- ● ● ●
çizim 184806
597
BalonParca AdiParca NoAdetTipApplied Date A B C
597 SEAL; HOLE,DASH
OD=16 BLACK 		1-76798-037-0 02 1 0104- ● ● ●
