◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10717 - FSS/FTS-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#65348) — 31 parça

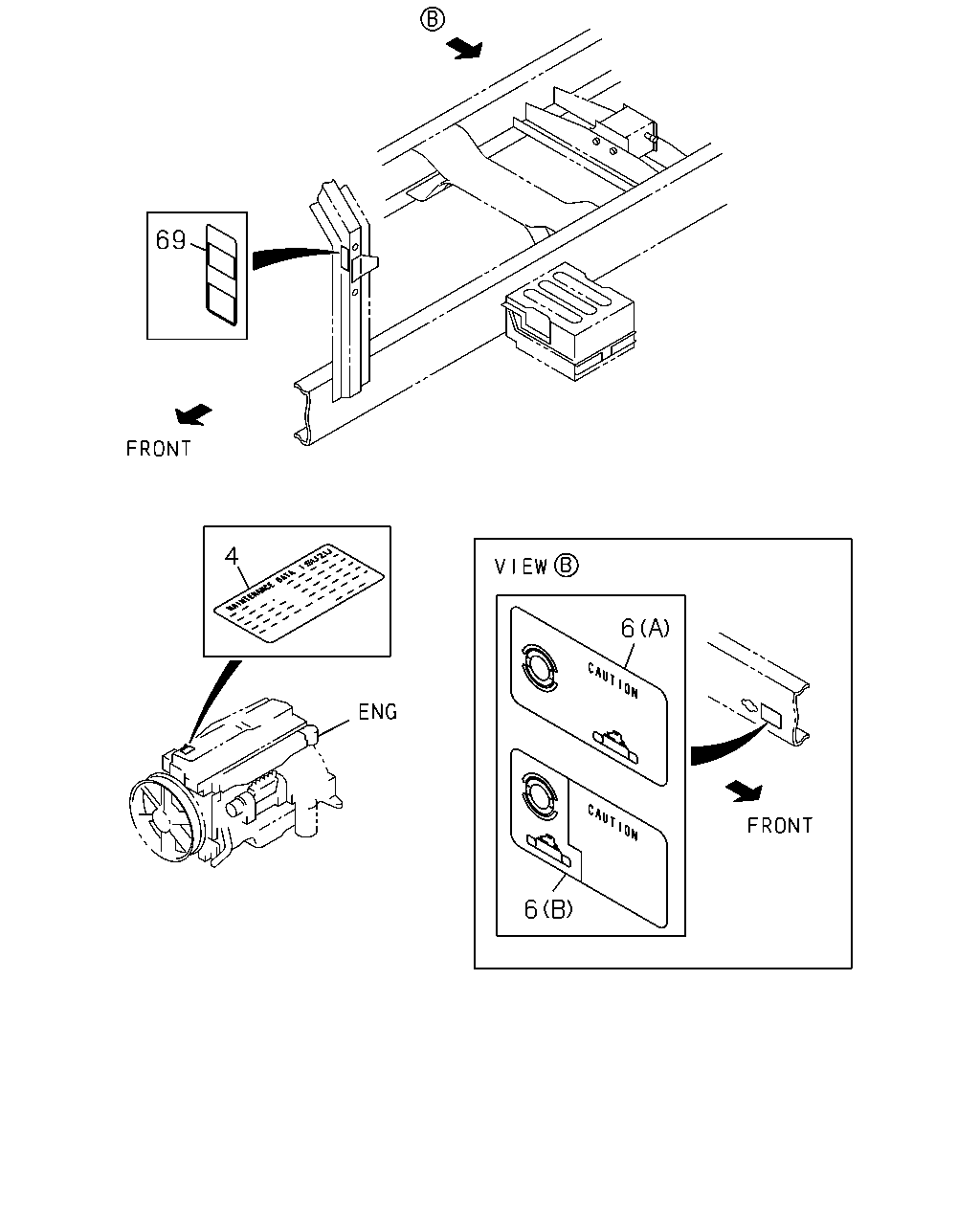

çizim 132862
69 4 6 6
BalonParca AdiParca NoAdetTipApplied Date A B C
4 LABEL; ENG MAINTENANCE 8-94395-931-0 01 1 9806- ● ● ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7> (A) 		1-85883-114-0 01 1 9905-0708 ● ●
6 PLATE; CAUTION,SPARE TIRE
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7> (A) 		1-85883-114-0 01 1 9905-0708 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7> (B) 		8-98082-441-0 01 1 0709- ● ●
6 PLATE; CAUTION,SPARE TIRE
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7> (B) 		8-98082-441-0 01 1 0709- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) 		1-53639-004-0 01 1 9806-9904 ● ●
6 PLATE; CAUTION,SPARE TIRE
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) 		1-53639-004-0 01 1 9806-9904 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS ARABIAN<WJ7> (A) 		1-53639-004-0 01 1 9905-0708 ● ●
6 PLATE; CAUTION,SPARE TIRE
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS ARABIAN<WJ7> (A) 		1-53639-004-0 01 1 9905-0708 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS ARABIAN<WJ7> (B) 		8-98082-437-0 01 1 0709- ● ●
6 PLATE; CAUTION,SPARE TIRE
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS ARABIAN<WJ7> (B) 		8-98082-437-0 01 1 0709- ●
69 PLATE; CAUTION,STARTER SW 1-85887-389-0 01 1 9808-9904 ● ● ●
69 PLATE; CAUTION,STARTER SW
EXC. CAUTIONS ARABIAN<WJ7> 		1-85887-389-0 01 1 9905-0302 ● ● ●
69 PLATE; CAUTION,STARTER SW
EXC. STARTER SWITCH DELETION<E5D>,CAUTIONS ARABIAN<WJ7> 		1-85887-389-0 01 1 0303- ● ● ●
69 PLATE; CAUTION,STARTER SW
CAUTIONS ARABIAN<WJ7> 		1-85887-537-0 01 1 9905-0302 ● ● ●
69 PLATE; CAUTION,STARTER SW
CAUTIONS ARABIAN<WJ7> EXC. STARTER SWITCH DELETION<E5D> 		1-85887-537-0 01 1 0303- ● ● ●
çizim 132951
51 49 51 60
BalonParca AdiParca NoAdetTipApplied Date A B C
49 PLATE; CAUTION,FUSE BOX 1-85877-635-0 01 1 9806-9806 ● ● ●
49 PLATE; CAUTION,FUSE BOX 1-85877-623-0 01 1 9807-9904 ● ● ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ARABIAN<WJ7> 		1-85878-224-0 01 1 9905- ● ● ●
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS ARABIAN<WJ7> 		1-85877-635-0 01 1 9905-0109 ● ● ●
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS ARABIAN<WJ7> 		1-85878-278-0 01 1 0110- ● ● ●
51 PLATE; CAUTION,WARNING
(A) 		1-85880-707-1 01 1 9806-9905 ● ● ●
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS ARABIAN<WJ7> (A) 		1-85880-707-1 01 1 9906- ● ● ●
51 PLATE; CAUTION,WARNING
(B) 		1-85888-938-0 01 1 9806-9904 ● ● ●
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS ARABIAN<WJ7> (B) 		1-85888-938-0 01 1 9905-0004 ● ● ●
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS ARABIAN<WJ7> (B) 		1-85878-221-0 01 1 0005- ● ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS ARABIAN<WJ7> (B) 		1-85878-225-0 01 1 9905- ● ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS ARABIAN<WJ7> (A) 		1-85880-709-1 01 1 9906- ● ● ●
60 PLATE; CAUTION,CAB TILT 1-85883-169-0 01 1 9806-9905 ● ● ●
60 PLATE; CAUTION,CAB TILT
EXC. CAUTIONS ARABIAN<WJ7> 		1-85883-169-0 01 1 9906- ● ● ●
60 PLATE; CAUTION,CAB TILT
CAUTIONS ARABIAN<WJ7> 		1-85883-172-0 01 1 9906- ● ● ●
