6-90 — REAR BUMPER (#65346) — 85 parça

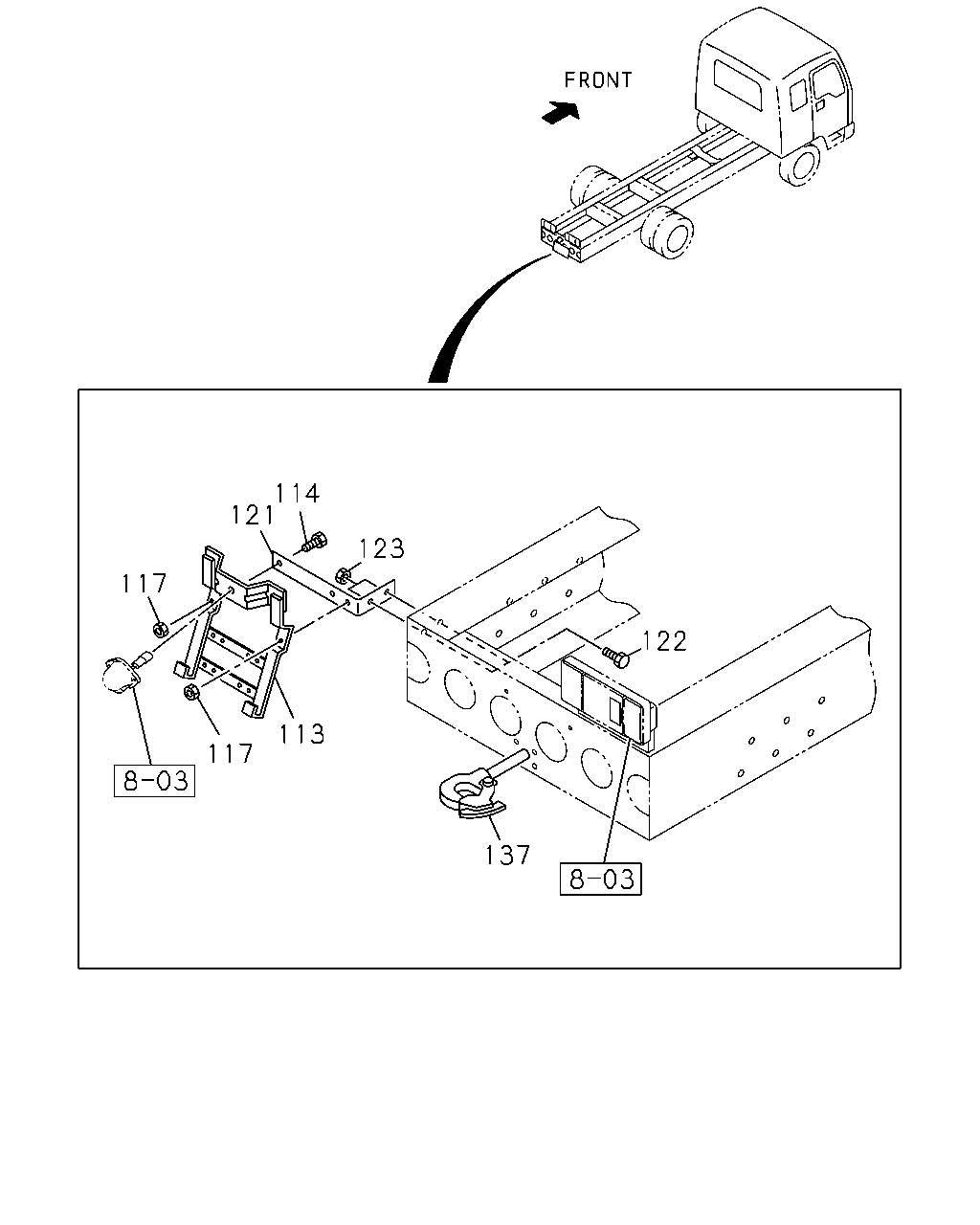

114 121 123 117 122 113 117 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
113	BRACKET; LICENSE PLATE	1-53485-065-0	01	1	9806-0302	●	●	●
113	BRACKET; LICENSE PLATE	1-53485-074-0	01	1	0303-	●	●	●
114	BOLT; BRKT,LICENSE PLATE M8X20 FLANGE	0-28680-820-0	02	1	9806-0004	●	●	●
114	BOLT; BRKT,LICENSE PLATE M8X25 FLANGE	0-28680-825-0	02	1	0005-0512	●	●	●
114	BOLT; BRKT,LICENSE PLATE M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●
117	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9806-0602	●	●	●
117	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
121	STAY; RR LICENSE PLATE BRKT PINTLE HOOK<PP7>	1-53485-002-1	01	1	9806-1111		●	●
121	STAY; RR LICENSE PLATE BRKT PINTLE HOOK<PP7>	8-98179-582-0	01	1	1112-		●	●
122	BOLT; STAY TO FRAME PINTLE HOOK<PP7> M12X30 FLANGE	0-28681-230-0	02	1	9806-0512		●	●
122	BOLT; STAY TO FRAME PINTLE HOOK<PP7> M12X30 FLANGE	0-28651-230-0	02	1	0601-		●	●
123	NUT; STAY PINTLE HOOK<PP7> M12 FLANGE	0-91150-212-0	02	1	9806-0602		●	●
123	NUT; STAY PINTLE HOOK<PP7> M12 FLANGE	0-91180-212-0	02	1	0603-		●	●
137	HOOK ASM; PINTLE PINTLE HOOK<PP7>	1-57180-053-2	01	1	9806-		●	●

134 135 134 135 117 136 133 113 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
113	BRACKET; LICENSE PLATE	1-53485-065-0	01	1	9806-0302	●	●	●
113	BRACKET; LICENSE PLATE	1-53485-074-0	01	1	0303-	●	●	●
114	BOLT; BRKT,LICENSE PLATE M8X20 FLANGE	0-28680-820-0	02	1	9806-0004	●	●	●
114	BOLT; BRKT,LICENSE PLATE M8X25 FLANGE	0-28680-825-0	02	1	0005-0512	●	●	●
114	BOLT; BRKT,LICENSE PLATE M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●
117	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9806-0602	●	●	●
117	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
133	HOOK	1-57181-003-5	01	1	9806-	●
133	HOOK REAR DOUBLE HOOK<PM1>	1-57181-003-5	01	1	9806-	●
133	HOOK EXC. PINTLE HOOK<PP7>	1-57181-027-1	01	1	9806-		●	●
133	HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7>	1-57181-027-1	01	1	9806-		●	●
134	BOLT; HOOK M14X50	0-10811-450-0	02	1	9806-0512	●
134	BOLT; HOOK REAR DOUBLE HOOK<PM1> M14X50	0-10811-450-0	02	1	9806-0512	●
134	BOLT; HOOK M14X50	0-10861-450-0	02	1	0601-	●
134	BOLT; HOOK REAR DOUBLE HOOK<PM1> M14X50	0-10861-450-0	02	1	0601-	●
134	BOLT; HOOK EXC. PINTLE HOOK<PP7> M16X65	0-10811-665-0	01	1	9806-0004		●	●
134	BOLT; HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> M16X65	0-10811-665-0	01	1	9806-0004		●	●
134	BOLT; HOOK EXC. PINTLE HOOK<PP7> M16X60	0-10811-660-0	01	1	0005-0512		●	●
134	BOLT; HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> M16X60	0-10811-660-0	01	1	0005-0512		●	●
134	BOLT; HOOK EXC. PINTLE HOOK<PP7> M16X60	0-10861-660-0	01	1	0601-		●	●
134	BOLT; HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> M16X60	0-10861-660-0	01	1	0601-		●	●
134	BOLT; HOOK EXC. PINTLE HOOK<PP7> M16X50	0-20801-650-0	01	1	9806-0512		●	●
134	BOLT; HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> M16X50	0-20801-650-0	01	1	9806-0512		●	●
134	BOLT; HOOK EXC. PINTLE HOOK<PP7> M16X50	0-20851-650-0	01	1	0601-		●	●
134	BOLT; HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> M16X50	0-20851-650-0	01	1	0601-		●	●
135	WASHER; LK,HOOK ID=14.2	9-09150-514-0	02	1	9806-0603	●
135	WASHER; LK,HOOK REAR DOUBLE HOOK<PM1> ID=14.2	9-09150-514-0	02	1	9806-0603	●
135	WASHER; LK,HOOK ID=14.2	0-91510-514-0	02	1	0604-	●
135	WASHER; LK,HOOK REAR DOUBLE HOOK<PM1> ID=14.2	0-91510-514-0	02	1	0604-	●
135	WASHER; LK,HOOK EXC. PINTLE HOOK<PP7> ID=16.2	9-09150-516-0	02	1	9806-0004		●	●
135	WASHER; LK,HOOK EXC. PINTLE HOOK<PP7> ID=16.2	9-09150-516-0	02	1	0005-0603		●	●
135	WASHER; LK,HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> ID=16.2	9-09150-516-0	02	1	0005-0603		●	●
135	WASHER; LK,HOOK EXC. PINTLE HOOK<PP7> ID=16.2	0-91510-516-0	02	1	0604-		●	●
135	WASHER; LK,HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> ID=16.2	0-91510-516-0	02	1	0604-		●	●
136	NUT; HOOK M14	9-99110-414-0	02	1	9806-0512	●
136	NUT; HOOK REAR DOUBLE HOOK<PM1> M14	9-99110-414-0	02	1	9806-0512	●
136	NUT; HOOK M14	0-91110-514-0	02	1	0601-	●
136	NUT; HOOK REAR DOUBLE HOOK<PM1> M14	0-91110-514-0	02	1	0601-	●
136	NUT; HOOK EXC. PINTLE HOOK<PP7> M16	9-99110-416-0	02	1	9806-0206		●	●
136	NUT; HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> M16	9-99110-416-0	02	1	9806-0206		●	●
136	NUT; HOOK EXC. PINTLE HOOK<PP7> M16	9-99110-516-0	02	1	0207-0512		●	●
136	NUT; HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> M16	9-99110-516-0	02	1	0207-0512		●	●
136	NUT; HOOK EXC. PINTLE HOOK<PP7> M16	0-91110-516-0	02	1	0601-		●	●
136	NUT; HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> M16	0-91110-516-0	02	1	0601-		●	●

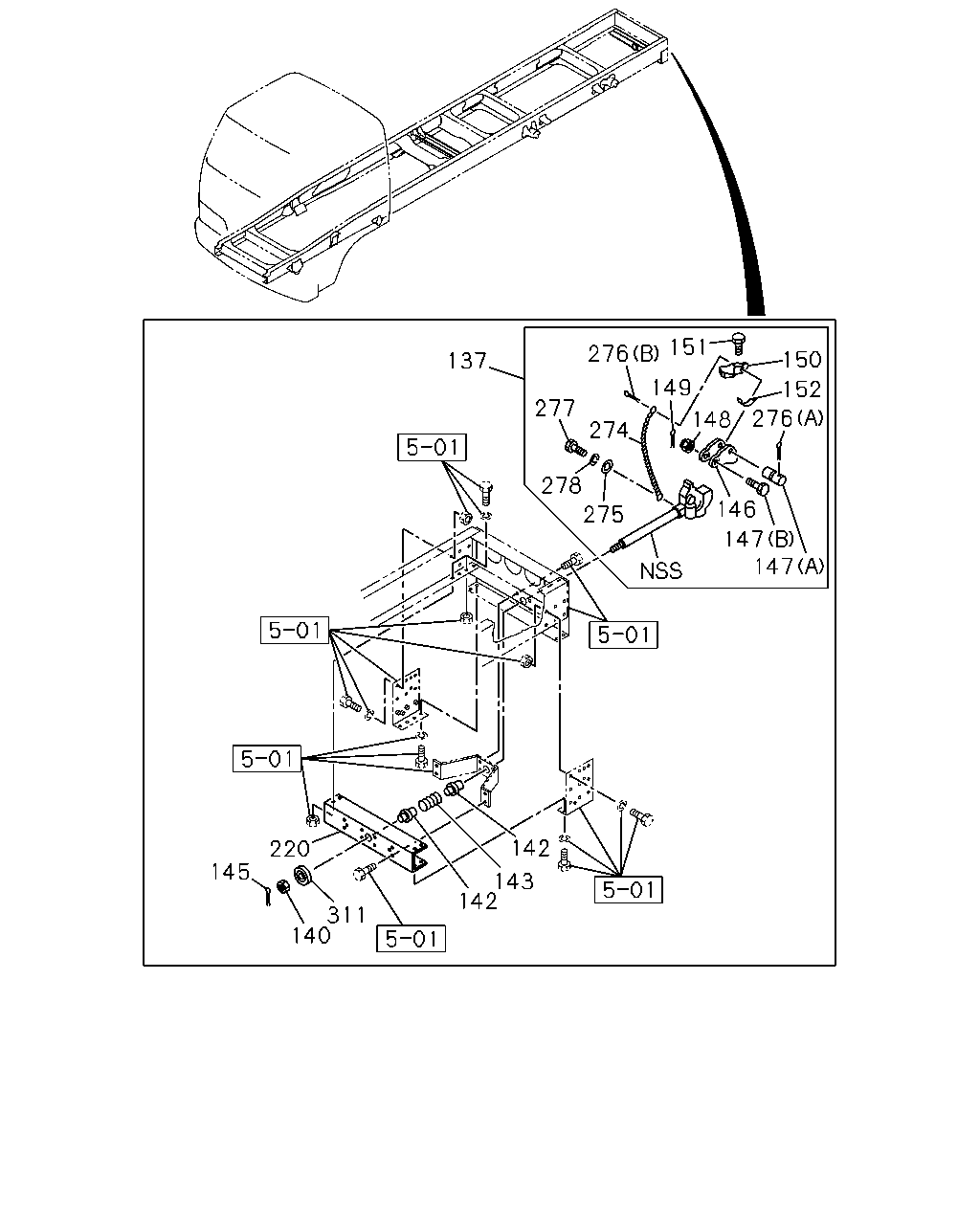

151 276 150 137 149 152 277 276 148 274 278 146 275 147 147 142 220 145 143 142 311 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
137	HOOK ASM; PINTLE PINTLE HOOK<PP7>	1-57180-053-2	01	1	9806-	●	●
140	NUT; PINTLE HOOK PINTLE HOOK<PP7>	1-09420-006-0	01	1	9806-	●	●
142	GUIDE; HOOK SPR PINTLE HOOK<PP7>	9-53522-001-0	02	1	9806-	●	●
143	SPRING; COIL,PINTLE HOOK PINTLE HOOK<PP7>	9-09940-078-0	01	1	9806-	●	●
145	PIN; SPLIT,PINTLE HOOK PINTLE HOOK<PP7> OD=5.7 L=65	9-08116-065-0	01	1	9806-0606	●	●
145	PIN; SPLIT,PINTLE HOOK PINTLE HOOK<PP7> OD=5.7 L=65	0-81126-065-0	01	1	0607-	●	●
146	LEVER; LK,PINTLE HOOK PINTLE HOOK<PP7>	9-53514-001-0	01	1	9806-	●	●
147	PIN; LK LEVER PINTLE HOOK<PP7> (A)	9-53516-002-0	01	1	9806-	●	●
147	PIN; LK LEVER PINTLE HOOK<PP7> (B)	9-53516-008-0	01	1	9806-	●	●
148	NUT; LK PIN PINTLE HOOK<PP7> M24 SLOTTED	1-09442-020-0	01	1	9806-0805	●	●
148	NUT; LK PIN PINTLE HOOK<PP7> M24	1-09442-032-0	01	1	0806-	●	●
149	PIN; SPLIT,PINTLE HOOK PINTLE HOOK<PP7> OD=2.8 L=45	9-08113-045-0	01	1	9806-0606	●	●
149	PIN; SPLIT,PINTLE HOOK PINTLE HOOK<PP7> OD=2.8 L=45	0-81123-045-0	01	1	0607-	●	●
150	RATCHET; LK LEVER,PINTLE HOOK PINTLE HOOK<PP7>	9-53515-001-0	01	1	9806-	●	●
151	BOLT; PINTLE HOOK PINTLE HOOK<PP7> M8X32 W/LK WASHER	0-50040-832-0	01	1	9806-0906	●	●
151	BOLT; PINTLE HOOK PINTLE HOOK<PP7> M8X32 W/LK WASHER	0-50540-832-0	01	1	0907-	●	●
152	SPRING; RATCHET,PINTLE HOOK PINTLE HOOK<PP7>	9-53515-002-0	01	1	9806-	●	●
220	MEMBER; PINTLE HOOK PINTLE HOOK<PP7>	1-57189-182-0	01	1	9806-	●	●
274	CHAIN; PINTLE HOOK PINTLE HOOK<PP7>	9-09954-001-0	01	1	9806-	●	●
275	WASHER; PL,CHAIN PINTLE HOOK<PP7> ID=6.4 OD=14	9-09160-606-0	01	1	9806-0605	●	●
275	WASHER; PL,CHAIN PINTLE HOOK<PP7> ID=6.4	0-91610-606-0	01	1	0606-	●	●
276	PIN; SPLIT,CHAIN PINTLE HOOK<PP7> (A)	1-57186-011-0	01	1	9806-	●	●
276	PIN; SPLIT,CHAIN PINTLE HOOK<PP7> (B)	9-08113-015-0	01	1	9806-	●	●
277	SCREW; CHAIN PINTLE HOOK<PP7> M6X12	9-03490-612-0	01	1	9806-	●	●
278	WASHER; LK,CHAIN PINTLE HOOK<PP7> ID=6.1	9-09150-506-0	01	1	9806-0603	●	●
278	WASHER; LK,CHAIN PINTLE HOOK<PP7> ID=6.1	0-91510-506-0	01	1	0604-	●	●
311	PLATE; ADJUSTING PINTLE HOOK<PP7>	1-57184-008-0	01	1	9806-	●	●
