Isuzu WW
▶
TRUCKS
▶
FSS
▶
10717 - FSS/FTS-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

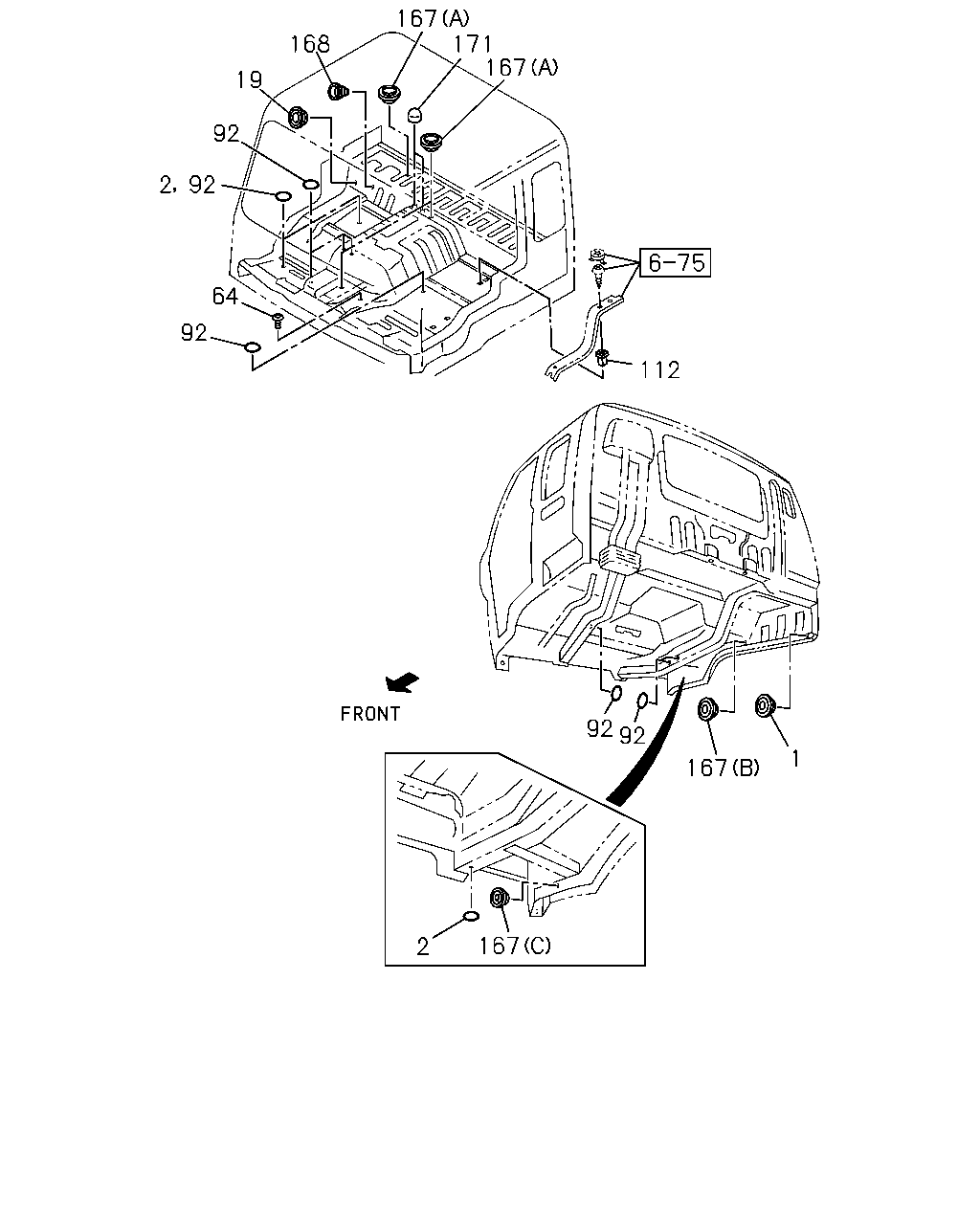

6-78 - FLOOR HOLE PLUG
▶
6-78 — FLOOR HOLE PLUG
(#65342) — 25 parça
Tümü
A - FSS6MF
B - FTS6MC
C - FTS6MF
167
171
167
168
19
92
92
2
64
92
112
92
92
1
167
167
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
GROMMET
OD=40
1-09600-083-0
02
1
9806-
●
●
●
2
GROMMET
OD=25 BLACK
1-76798-019-0
02
1
9806-
●
●
●
19
GROMMET; FLOOR FRT
OD=28
8-94279-720-0
02
1
9806-
●
●
●
64
PLUG; ENG HOOD
D7.8X20
8-94353-238-0
01
1
9806-
●
●
●
92
SEAL; LOCATION HOLE
OD=36 BLACK
1-76798-018-0
05
1
9806-9806
●
●
●
92
SEAL; LOCATION HOLE
OD=36 T=0.05 BLACK
5-76777-035-0
02
1
9807-0105
●
●
●
92
SEAL; LOCATION HOLE
OD=36 T=0.05 BLACK
5-76777-035-0
02
1
0106-0203
●
●
●
92
SEAL; LOCATION HOLE
OD=36 T=0.05 BLACK
5-76777-035-0
02
1
0106-0203
●
●
●
92
SEAL; LOCATION HOLE
OD=36 T=0.05 BLACK
5-76777-035-0
02
1
0204-
●
●
●
92
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
02
1
9806-
●
●
●
92
SEAL; LOCATION HOLE
CENTER SEAT DELETE 2 CREWS<SP9> OD=25 BLACK
1-76798-019-0
02
1
9806-
●
●
●
92
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
07
1
9806-0105
●
●
●
92
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
08
1
0106-
●
●
●
92
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
09
1
9806-
●
●
●
92
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
12
1
9806-
●
●
●
92
SEAL; LOCATION HOLE
OD=36 T=0.05 BLACK
5-76777-035-0
03
1
9807-0105
●
●
●
112
GROMMET; SCREW,TRIM COVER
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
08
1
9806-
●
●
●
167
GROMMET; LOCATION HOLE
(A) OD=23.5
1-09983-101-0
07
1
9806-0004
●
●
●
167
GROMMET; LOCATION HOLE
(A) OD=23.5
1-09983-101-0
03
1
0005-
●
●
●
167
GROMMET; LOCATION HOLE
(C) OD=35
8-94122-971-0
04
1
9806-
●
●
●
167
GROMMET; LOCATION HOLE
(B) OD=15.0
8-94279-040-0
02
1
9806-
●
●
●
167
GROMMET; LOCATION HOLE
(A) OD=23.5
1-09983-101-0
02
1
0005-
●
●
●
167
GROMMET; LOCATION HOLE
(A) OD=23.5
1-09983-101-0
02
1
0005-
●
●
●
168
COVER; HOLE,ANNTENA CABLE
1-79998-891-1
01
1
9806-
●
●
●
171
CAP; STUD
CENTER SEAT DELETE 2 CREWS<SP9>
1-71736-200-0
02
1
9806-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
