◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10717 - FSS/FTS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#65337) — 29 parça

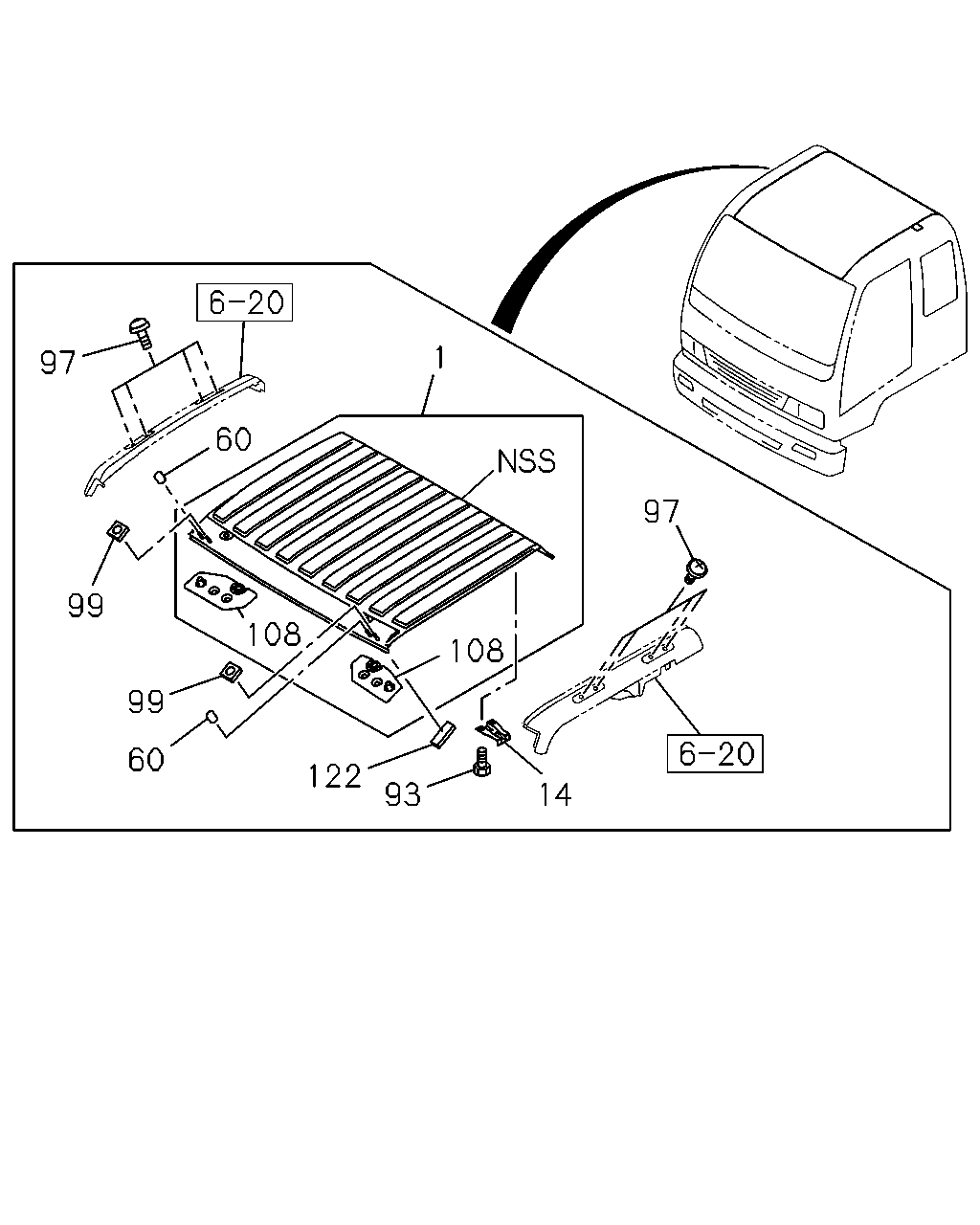

çizim 131418
1 97 60 97 99 108 108 99 60 122 93 14
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; ROOF
LOW ROOF<6XQ> 		1-61181-072-0 01 1 9806-0104 ● ● ●
1 PANEL; ROOF 1-61181-072-0 01 1 0105- ● ● ●
14 SUPPORT; ROOF
LOW ROOF<6XQ> 		1-73318-510-1 02 1 9806-0104 ● ● ●
14 SUPPORT; ROOF 1-73318-510-1 02 1 0105- ● ● ●
60 COVER; ROOF
LOW ROOF<6XQ> 		1-71736-200-0 03 1 9806-0004 ● ● ●
60 COVER; ROOF
LOW ROOF<6XQ> EXC. MIR O/S RR VIEW WIDE(WU4) 		1-71736-200-0 02 1 0005-0104 ● ● ●
60 COVER; ROOF
LOW ROOF<6XQ> 		1-71736-200-0 02 1 0005-0104 ● ● ●
60 COVER; ROOF
EXC. MIR O/S RR VIEW WIDE(WU4) 		1-71736-200-0 02 1 0105- ● ● ●
60 COVER; ROOF 1-71736-200-0 02 1 0105- ● ● ●
60 COVER; ROOF
LOW ROOF<6XQ> EXC. MIR O/S RR VIEW WIDE(WU4) 		1-71736-200-0 02 1 9806-0004 ● ● ●
93 BOLT; SUPPORT
M6X12 W/LK&PL WASHER 		8-94279-200-0 10 1 9806- ● ● ●
97 BOLT; AIR DEFLECTOR
M8X15 W/PL WASHER 		1-79198-003-2 08 1 9806- ● ● ●
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-1 25 1 9806-9806 ● ● ●
99 SEAL; BODY,METAL
14X14 ID=10 T=0.7 		1-61281-427-1 08 1 9806- ● ● ●
99 SEAL; BODY,METAL
30X30 ID=9 T=0.7 		1-61281-444-0 02 1 9806-9806 ● ● ●
99 SEAL; BODY,METAL
LOW ROOF<6XQ> 30X30 ID=9 T=0.7 		1-61281-444-0 02 1 9806-9806 ● ● ●
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-1 13 1 9807-0001 ● ● ●
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-2 17 1 0002- ● ● ●
99 SEAL; BODY,METAL
MIR O/S RR VIEW WIDE(WU4) 14X14 ID=10 T=0.7 		1-61281-427-0 02 1 9808-0403 ● ● ●
99 SEAL; BODY,METAL
EXC. MIR O/S RR VIEW WIDE(WU4) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9808-0403 ● ● ●
99 SEAL; BODY,METAL
14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9808-0403 ● ● ●
99 SEAL; BODY,METAL
EXC. MIR O/S RR VIEW WIDE(WU4) 14X14 ID=10 T=0.7 		1-61281-427-1 02 1 0404- ● ● ●
99 SEAL; BODY,METAL
14X14 ID=10 T=0.7 		1-61281-427-1 02 1 0404- ● ● ●
108 PATCH; MIRROR
LOW ROOF<6XQ> 		1-61281-241-5 01 1 9806-0104 ● ● ●
108 PATCH; MIRROR 1-61281-241-5 01 1 0105- ● ● ●
108 PATCH; MIRROR
LOW ROOF<6XQ> 		1-61181-029-4 01 1 9806-0104 ● ● ●
108 PATCH; MIRROR 1-61181-029-4 01 1 0105- ● ● ●
122 SEAL; FRT UPR 1-61270-919-0 02 1 9806-0809 ● ● ●
122 SEAL; FRT UPR 1-61270-973-0 02 1 0810- ● ● ●
