6-47 — MUD GUARD AND INSULATOR (#65336) — 67 parça
çizim 184891
140
BalonParca AdiParca NoAdetTipApplied Date A B C
140 BOLT; SIDE PANEL
M8X20 FLANGE 		0-28680-820-0 02 1 9806-0512 ● ● ●
140 BOLT; SIDE PANEL
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ●

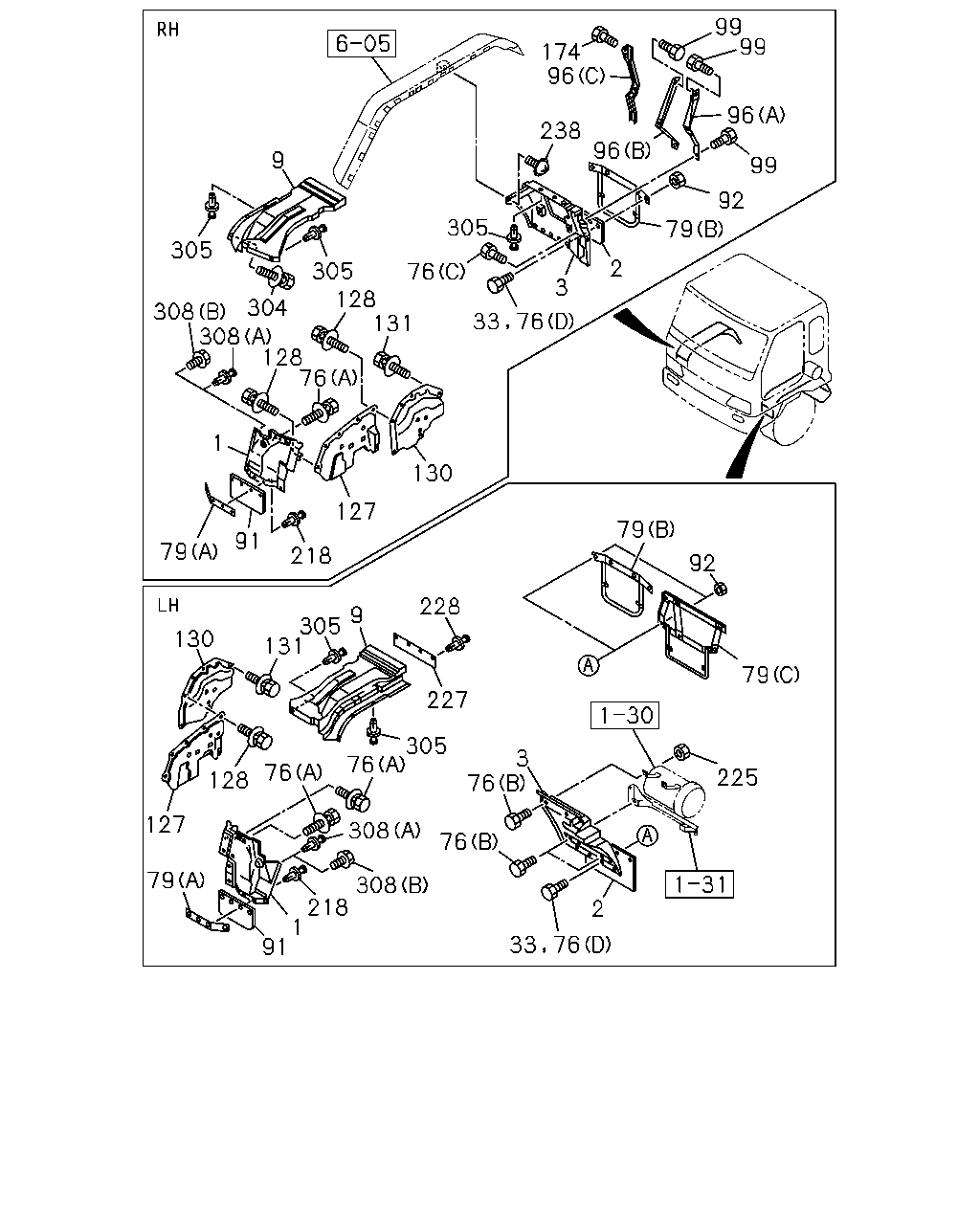

çizim 184895
99 99 174 96 96 238 96 9 99 92 305 79 305 2 305 128 131 76 3 304 308 308 33 76 128 76 1 130 127 79 91 79 218 92 228 9 305 131 130 79 227 305 3 76 76 76 225 128 127 308 76 79 308 218 1 91 2 33 76
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GUARD; MUD,FRT 1-79938-812-8 01 1 9806- ● ● ●
1 GUARD; MUD,FRT 1-79938-810-8 01 1 9806- ● ● ●
2 COVER; MUD,TIRE RR 1-79931-230-2 01 1 9806- ●
2 COVER; MUD,TIRE RR 1-79930-963-2 01 1 9806- ●
2 COVER; MUD,TIRE RR 1-79931-255-2 01 1 9806- ● ●
2 COVER; MUD,TIRE RR 1-79931-254-2 01 1 9806- ● ●
3 GUARD; MUD,RR 1-79938-961-2 01 1 9806- ●
3 GUARD; MUD,RR 1-79938-932-4 01 1 9806- ●
3 GUARD; MUD,RR 1-79938-998-0 01 1 9806- ● ●
3 GUARD; MUD,RR 1-79938-971-1 01 1 9806- ● ●
9 GUARD; SPLASH,WHEEL HOUSE 1-79936-041-1 01 1 0306- ●
9 GUARD; SPLASH,WHEEL HOUSE 1-79936-042-2 01 1 0306- ●
9 GUARD; SPLASH,WHEEL HOUSE 1-79938-919-6 01 1 9806-0305 ● ● ●
9 GUARD; SPLASH,WHEEL HOUSE 1-79938-919-8 01 1 0306- ● ●
9 GUARD; SPLASH,WHEEL HOUSE 1-79938-955-2 01 1 9806-0305 ● ● ●
9 GUARD; SPLASH,WHEEL HOUSE 1-79938-955-3 01 1 0306- ● ●
33 BOLT; MUD COVER
M6X20 W/LK&PL WASHER 		1-09980-495-0 09 1 9806- ●
33 BOLT; MUD COVER
M6X20 W/LK&PL WASHER 		1-09980-495-0 13 1 9806- ● ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		1-09030-074-0 04 1 9806-0805 ● ● ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 04 1 0806- ● ● ●
76 BOLT; MUD GUARD
(C) M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 9806- ● ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		8-94331-747-1 08 1 9806- ● ● ●
76 BOLT; MUD GUARD
(D) M6X20 W/LK&PL WASHER 		1-09980-495-0 01 1 9806- ● ●
79 RETAINER; MUD COVER
(B) 		1-79930-962-1 01 1 9806- ●
79 RETAINER; MUD COVER
(B) L=509 		1-79930-695-1 01 1 9806- ●
79 RETAINER; MUD COVER
(A) 		1-79931-044-0 02 1 9806- ● ● ●
79 RETAINER; MUD COVER
(C) 		1-79931-304-0 01 1 9806- ● ●
79 RETAINER; MUD COVER
(B) 		1-79931-252-0 01 1 9806- ● ●
91 COVER; MUD,FRT 1-79931-214-1 02 1 9806- ● ● ●
92 NUT; MUD COVER
M6 FLANGE 		0-91150-106-0 09 1 9806-0403 ● ● ●
92 NUT; MUD COVER
M6 FLANGE 		0-91150-106-0 08 1 0404-0602 ● ● ●
92 NUT; MUD COVER
M6 FLANGE 		0-91180-106-0 08 1 0603-0603 ● ● ●
92 NUT; MUD COVER
M6 FLANGE 		0-91180-106-0 09 1 0603- ● ● ●
96 STAY; MUD GUARD
(A) 		1-79938-737-0 01 1 9806- ●
96 STAY; MUD GUARD
(B) 		1-79938-925-1 01 1 9806- ●
96 STAY; MUD GUARD
(B) 		1-79938-968-2 01 1 9806- ● ●
96 STAY; MUD GUARD
(A) 		1-79938-969-1 01 1 9806- ● ●
96 STAY; MUD GUARD
(C) 		1-79938-996-0 01 1 9806- ● ●
99 BOLT; STAY TO MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 9806- ● ● ●
127 APRON; FRT 1-53193-223-1 01 1 9806- ●
127 APRON; FRT 1-53192-301-3 01 1 9806- ●
127 APRON; FRT 1-53193-153-1 01 1 9806- ● ●
127 APRON; FRT 1-53193-150-1 01 1 9806- ● ●
128 BOLT; APRON,FRT
M8X25 W/LK&PL WASHER 		8-94331-747-1 10 1 9806- ● ● ●
130 PANEL; SHUTTER NOISE 1-53192-308-3 01 1 9806- ● ● ●
130 PANEL; SHUTTER NOISE 1-53192-305-2 01 1 9806- ● ● ●
131 BOLT; PANEL
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 9806- ● ● ●
174 BOLT; STAY FIX
M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9806- ● ●
218 FASTENER; RUBBER 1-09470-001-0 08 1 9806- ● ● ●
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 03 1 9806-0004 ●
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 02 1 0005-0403 ● ● ●
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 02 1 9806-0004 ● ●
227 SEAL; MUD GUARD 1-79938-953-1 01 1 9806- ● ● ●
228 FASTENER; MUD GUARD SEAL
D8X13.5 		1-09987-248-1 04 1 9806- ● ● ●
238 SCREW; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 9806- ● ●
304 BOLT; SPLASH GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 9806- ● ● ●
305 FASTENER; SPLASH GUARD
D8X13.5 		1-09987-248-1 01 1 0405- ● ●
305 FASTENER; SPLASH GUARD
D8X13.5 		1-09987-248-1 10 1 9806- ●
305 FASTENER; SPLASH GUARD
D8X13.5 		1-09987-248-1 02 1 9806- ● ● ●
305 FASTENER; SPLASH GUARD
D8X13.5 		1-09987-248-1 03 1 9806- ● ● ●
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 04 1 9806- ●
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 02 1 9806-0404 ● ●
308 FASTENER; MUD GUARD
(B) M6X22 		1-65481-386-0 02 1 9806-0404 ● ●
308 FASTENER; MUD GUARD
(B) M6X22 		1-65481-386-0 04 1 0405- ● ●
