6-31 — FRONT DOOR GLASS AND REGULATOR (#65331) — 63 parça

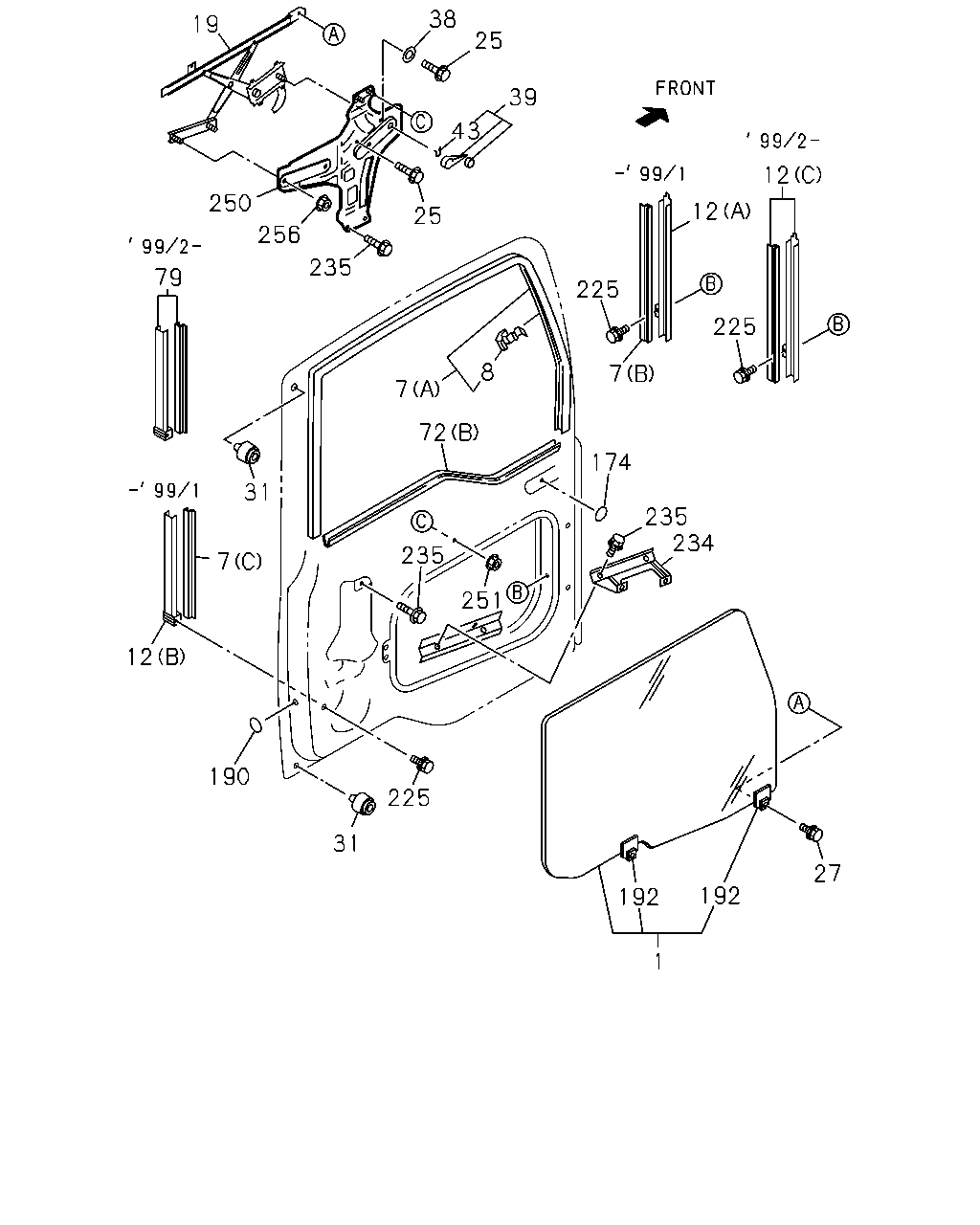

çizim 130666
38 19 25 39 43 12 250 12 25 256 235 79 225 225 8 7 7 72 174 31 235 234 235 7 251 12 190 225 31 27 192 192 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GLASS; FRT DOOR 1-76148-094-2 01 1 9806- ● ● ●
1 GLASS; FRT DOOR 1-76167-174-2 01 1 9806- ● ● ●
7 GLASS RUN; FRT DOOR
(B) 		1-74318-038-0 02 1 9806-9901 ● ● ●
7 GLASS RUN; FRT DOOR
(A) 		1-74318-022-8 01 1 9806- ● ● ●
7 GLASS RUN; FRT DOOR
(C) 		1-74318-041-0 01 1 9806-9901 ● ● ●
7 GLASS RUN; FRT DOOR
(A) 		1-74318-021-8 01 1 9806- ● ● ●
7 GLASS RUN; FRT DOOR
(C) 		1-74318-040-0 01 1 9806-9901 ● ● ●
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 9806- ● ● ●
12 CHANNEL; GLASS RUN,FRT
(A) 		1-74338-037-1 01 1 9806-9901 ● ● ●
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-049-1 01 1 9806-9901 ● ● ●
12 CHANNEL; GLASS RUN,FRT
(C) 		1-74338-071-3 01 1 9902- ● ● ●
12 CHANNEL; GLASS RUN,FRT
(A) 		1-74338-046-1 01 1 9806-9901 ● ● ●
12 CHANNEL; GLASS RUN,FRT
(C) 		1-74338-070-3 01 1 9902- ● ● ●
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-048-1 01 1 9806-9901 ● ● ●
19 REGULATOR; WINDOW,FRT DOOR 1-74418-134-5 01 1 9806- ● ● ●
19 REGULATOR; WINDOW,FRT DOOR 1-74418-144-5 01 1 9806- ● ● ●
25 BOLT; WINDOW REG
M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 9806- ● ● ●
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9806- ● ● ●
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 9806- ● ● ●
38 WASHER; PL,WINDOW REG
ID=6.4 OD=14 T=1 		1-09985-187-0 04 1 9806- ● ● ●
39 HANDLE; WINDOW REG,FRT DOOR
BLACK 		8-94371-427-0 02 1 9806- ● ● ●
43 CLIP; REG HANDLE,FRT DOOR 8-94220-591-0 02 1 9806- ● ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 9806-1207 ● ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-040-0 01 1 1208- ● ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 9806- ● ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 9806-1207 ● ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-039-0 01 1 1208- ● ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 9806- ● ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-3 01 1 9902- ● ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-3 01 1 9902- ● ● ●
174 SEAL; LOCATION HOLE
OD=52 BLACK 		1-76798-041-0 02 1 9806- ●
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 20 1 9806-0212 ● ● ●
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 22 1 0301- ● ● ●
174 SEAL; LOCATION HOLE
OD=52 BLACK 		1-76798-041-0 06 1 9806- ● ●
190 REFLECTOR; FRT DOOR INNER 5-76777-060-1 01 1 9806- ● ● ●
192 HOLDER; DOOR GLASS 1-74427-170-0 04 1 9806- ● ● ●
225 BOLT; FRT CHANNEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9806-0003 ● ● ●
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0004-0512 ● ● ●
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28050-610-0 04 1 0601- ● ● ●
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 9806- ● ● ●
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 9806- ● ● ●
235 BOLT; BRKT
M6X16 FLANGE 		0-28080-616-0 08 1 0406-0512 ● ● ●
235 BOLT; BRKT
M6X16 FLANGE 		0-28050-616-0 08 1 0601-0710 ● ● ●
235 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 08 1 0711- ● ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9806-0405 ● ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9806-0405 ● ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0406- ● ● ●
250 BRACKET; REGULATOR 1-74418-148-0 01 1 0005- ● ● ●
250 BRACKET; REGULATOR 1-74418-149-0 01 1 0005- ● ● ●
250 BRACKET; REGULATOR 1-74418-149-0 01 1 9806-0004 ● ● ●
250 BRACKET; REGULATOR 1-74418-148-0 01 1 9806-0004 ● ● ●
251 NUT; BRKT
M6 FLANGE 		1-09984-141-0 04 1 9806- ● ● ●
256 NUT
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 9806- ● ● ●

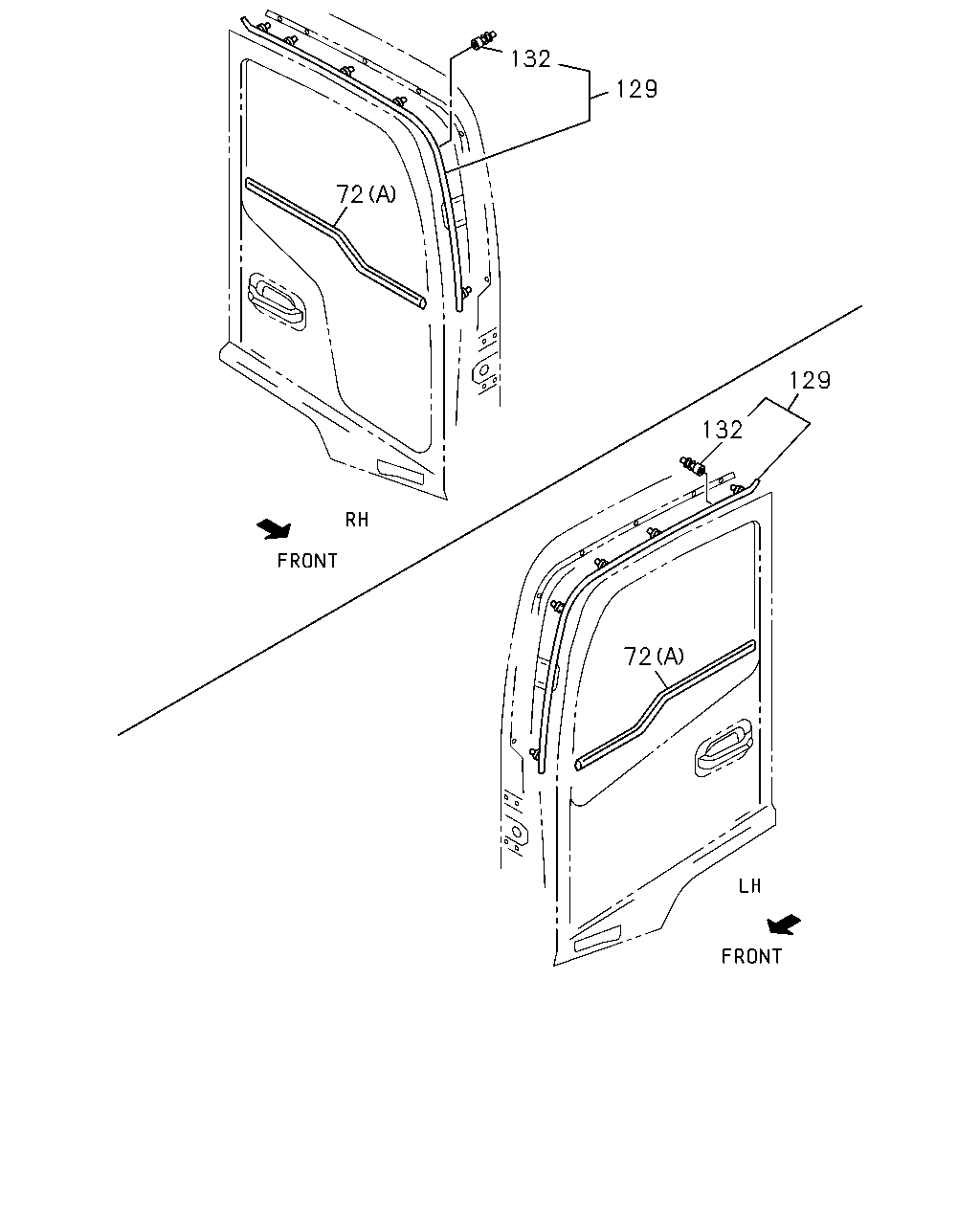

çizim 130672
132 129 72 129 132 72
BalonParca AdiParca NoAdetTipApplied Date A B C
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 9806-1207 ● ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-040-0 01 1 1208- ● ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 9806- ● ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 9806-1207 ● ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-039-0 01 1 1208- ● ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 9806- ● ● ●
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 9806- ● ● ●
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 9806- ● ● ●
132 CLIP; SEAL,DOOR
YELLOW 		1-09987-254-1 06 1 9806- ● ● ●
132 CLIP; SEAL,DOOR
NATURAL 		1-09987-253-1 06 1 9806- ● ● ●
