◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10717 - FSS/FTS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#65329) — 110 parça

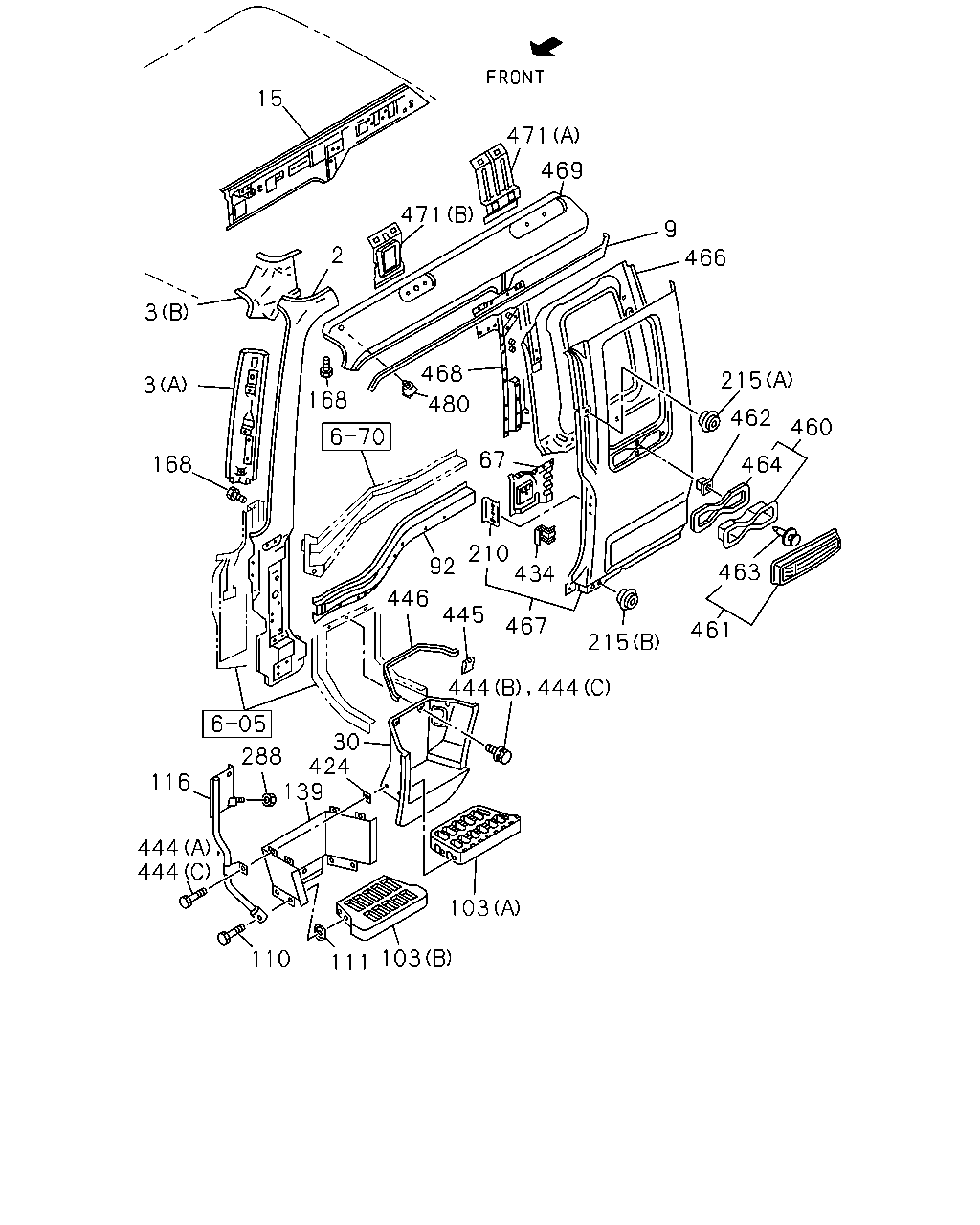

çizim 184894
15 471 469 471 9 2 466 3 468 215 3 168 480 462 460 67 168 464 210 434 92 463 446 445 467 461 215 30 424 139 288 116 444 444 103 103 110 111 444 444
BalonParca AdiParca NoAdetTipApplied Date A B C
2 PILLAR; FRT
LOW ROOF<6XQ> 		1-61281-410-2 01 1 9806-0104 ● ● ●
2 PILLAR; FRT 1-61281-410-2 01 1 0105- ● ● ●
2 PILLAR; FRT
LOW ROOF<6XQ> 		1-61281-409-2 01 1 9806-0104 ● ● ●
2 PILLAR; FRT 1-61281-409-2 01 1 0105- ● ● ●
3 PANEL; CLOSING,FRT PILLAR
LOW ROOF<6XQ> (B) 		1-61281-250-4 01 1 9806-0104 ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-250-4 01 1 0105- ● ● ●
3 PANEL; CLOSING,FRT PILLAR
LOW ROOF<6XQ> (A) 		1-61281-344-5 01 1 9806-0104 ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-344-5 01 1 0105- ● ● ●
3 PANEL; CLOSING,FRT PILLAR
LOW ROOF<6XQ> (B) 		1-61281-249-4 01 1 9806-0104 ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-249-4 01 1 0105- ● ● ●
3 PANEL; CLOSING,FRT PILLAR
LOW ROOF<6XQ> (A) 		1-61281-343-5 01 1 9806-0104 ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-343-5 01 1 0105- ● ● ●
9 MOLDING; DRIP,CAB SIDE
LOW ROOF<6XQ> 		1-61281-281-5 01 1 9806-0104 ● ● ●
9 MOLDING; DRIP,CAB SIDE 1-61281-281-5 01 1 0105- ● ● ●
9 MOLDING; DRIP,CAB SIDE
LOW ROOF<6XQ> 		1-61281-280-5 01 1 9806-0104 ● ● ●
9 MOLDING; DRIP,CAB SIDE 1-61281-280-5 01 1 0105- ● ● ●
15 PANEL; CANT RAIL SIDE
LOW ROOF<6XQ> 		1-61281-254-5 01 1 9806-0104 ● ● ●
15 PANEL; CANT RAIL SIDE 1-61281-254-5 01 1 0105- ● ● ●
15 PANEL; CANT RAIL SIDE
LOW ROOF<6XQ> 		1-61281-253-5 01 1 9806-0104 ● ● ●
15 PANEL; CANT RAIL SIDE 1-61281-253-5 01 1 0105- ● ● ●
30 CLOSING; SIDE STEP 1-71996-143-0 01 1 9806- ● ● ●
30 CLOSING; SIDE STEP 1-71996-142-0 01 1 9806- ● ● ●
67 PANEL; INNER,RR PILLAR LWR
LOW ROOF<6XQ> 		1-61281-195-5 01 1 9806-0104 ● ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 0105- ● ● ●
67 PANEL; INNER,RR PILLAR LWR
LOW ROOF<6XQ> 		1-61281-194-5 01 1 9806-0104 ● ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 0105- ● ● ●
92 PANEL; SIDE SILL,CAB
LOW ROOF<6XQ> 		1-61281-212-8 01 1 9806-0104 ● ● ●
92 PANEL; SIDE SILL,CAB 1-61281-212-8 01 1 0105- ● ● ●
92 PANEL; SIDE SILL,CAB
LOW ROOF<6XQ> 		1-61281-211-9 01 1 9806-0104 ● ● ●
92 PANEL; SIDE SILL,CAB 1-61281-211-9 01 1 0105- ● ● ●
103 PLATE; STEP
(B) 		1-71996-100-1 02 1 9806- ● ● ●
103 PLATE; STEP
(A) 		1-71996-176-0 01 1 9806- ● ● ●
103 PLATE; STEP
(A) 		1-71996-175-0 01 1 9806- ● ● ●
110 BOLT; 1ST STEP PLATE
M8X20 W/LK&PL WASHER 		1-09980-496-0 10 1 9806- ● ● ●
111 COVER; 1ST STEP 1-71998-153-0 10 1 9806- ● ● ●
116 STAY; 1ST STEP,FRT 1-71998-887-3 01 1 9806- ● ● ●
116 STAY; 1ST STEP,FRT 1-71998-886-3 01 1 9806- ● ● ●
139 CLOSING; 1ST STEP 1-71996-141-1 01 1 9806- ● ● ●
139 CLOSING; 1ST STEP 1-71996-140-0 01 1 9806- ● ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 9806-0104 ● ● ●
168 BOLT; BODY SIDE PANEL
LOW ROOF<6XQ> M6X10 FLANGE 		0-28080-610-0 04 1 9806-0104 ● ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 0105-0512 ● ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 0105-0512 ● ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28050-610-0 04 1 0601- ● ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28050-610-0 04 1 0601- ● ● ●
210 PANEL; DOOR STRIKER REINF
LOW ROOF<6XQ> 		8-97851-446-1 01 1 0005-0104 ● ● ●
210 PANEL; DOOR STRIKER REINF 8-97851-446-1 01 1 0105- ● ● ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 9806- ● ● ●
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 9806- ● ● ●
288 NUT; STEP
M8 FLANGE 		0-91150-108-0 02 1 9806-0602 ● ● ●
288 NUT; STEP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
424 SEAL; CLOSING
25X25 		8-94272-533-0 08 1 9806- ● ● ●
434 PATCH; ASSIST GRIP
LOW ROOF<6XQ> 		1-61270-763-1 01 1 9806-0104 ● ● ●
434 PATCH; ASSIST GRIP
LOW ROOF<6XQ> 		1-61270-763-1 01 1 9806-0104 ● ● ●
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 0105- ● ● ●
444 BOLT; CLOSING
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9806-0004 ● ● ●
444 BOLT; CLOSING
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 14 1 0005-0009 ● ● ●
444 BOLT; CLOSING
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0010-0904 ● ● ●
444 BOLT; CLOSING
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905- ● ● ●
444 BOLT; CLOSING
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 08 1 9806-0004 ● ● ●
444 BOLT; CLOSING
(A) M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0010- ● ● ●
445 NUT; CLOSING 8-94279-723-0 04 1 0405-0405 ● ●
445 NUT; CLOSING 8-94279-723-0 02 1 0405-0609 ● ●
445 NUT; CLOSING 8-94279-723-0 02 1 0610- ● ● ●
445 NUT; CLOSING 8-94279-723-0 02 1 9806-0404 ● ● ●
445 NUT; CLOSING 8-94279-723-0 02 1 0405-0405 ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 9806- ● ● ●
460 VENTILATOR; BODY SIDE 1-76378-292-4 02 1 9806- ● ● ●
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 9806- ● ● ●
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 9806- ● ● ●
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 9806- ● ● ●
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 9806- ● ● ●
464 SEAL; VENTILATOR 1-76378-299-0 02 1 9806- ● ● ●
466 PANEL; INNER,BACK CORNER
LOW ROOF<6XQ> 		1-61281-416-1 01 1 9806-0104 ● ● ●
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 0105- ● ● ●
466 PANEL; INNER,BACK CORNER
LOW ROOF<6XQ> 		1-61281-415-1 01 1 9806-0104 ● ● ●
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 0105- ● ● ●
467 PANEL; OUTER,BACK CORNER
ENGINE NO PLATE<E6D> LOW ROOF<6XQ> 		1-61281-478-5 01 1 0005-0104 ● ● ●
467 PANEL; OUTER,BACK CORNER
SAUDI ARABIA EQUIPMENT(WH1) LOW ROOF<6XQ> EXC. ENGINE NO PLATE<E6D> 		1-61281-478-5 01 1 0005-0104 ● ●
467 PANEL; OUTER,BACK CORNER
ENGINE NO PLATE<E6D> 		1-61281-478-5 01 1 0105- ● ● ●
467 PANEL; OUTER,BACK CORNER
SAUDI ARABIA EQUIPMENT(WH1) EXC. ENGINE NO PLATE<E6D> 		1-61281-478-5 01 1 0105- ● ●
467 PANEL; OUTER,BACK CORNER
ENGINE NO PLATE<E6D> LOW ROOF<6XQ> 		1-61281-476-1 01 1 9806-9904 ● ● ●
467 PANEL; OUTER,BACK CORNER
ENGINE NO PLATE<E6D> LOW ROOF<6XQ> 		1-61281-476-1 01 1 9905-0004 ● ● ●
467 PANEL; OUTER,BACK CORNER
SAUDI ARABIA EQUIPMENT(WH1) LOW ROOF<6XQ> EXC. ENGINE NO PLATE<E6D> 		1-61281-476-1 01 1 9905-0004 ● ●
467 PANEL; OUTER,BACK CORNER
LOW ROOF<6XQ> 		1-61281-203-4 01 1 9806-0104 ● ● ●
467 PANEL; OUTER,BACK CORNER 1-61281-203-4 01 1 0105- ● ● ●
467 PANEL; OUTER,BACK CORNER
LOW ROOF<6XQ> EXC. ENGINE NO PLATE<E6D> 		1-61281-204-2 01 1 9806-9904 ● ● ●
467 PANEL; OUTER,BACK CORNER
LOW ROOF<6XQ> EXC. ENGINE NO PLATE<E6D> 		1-61281-204-4 01 1 9905-0104 ●
467 PANEL; OUTER,BACK CORNER
LOW ROOF<6XQ> EXC. ENGINE NO PLATE<E6D>,SAUDI ARABIA EQUIPMENT(WH1) 		1-61281-204-4 01 1 9905-0104 ● ●
467 PANEL; OUTER,BACK CORNER
EXC. ENGINE NO PLATE<E6D> 		1-61281-204-4 01 1 0105- ●
467 PANEL; OUTER,BACK CORNER
EXC. ENGINE NO PLATE<E6D>,SAUDI ARABIA EQUIPMENT(WH1) 		1-61281-204-4 01 1 0105- ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR
LOW ROOF<6XQ> 		1-61281-435-2 01 1 9806-0104 ● ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-435-2 01 1 0105- ● ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR
LOW ROOF<6XQ> 		1-61281-434-2 01 1 9806-0104 ● ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-434-2 01 1 0105- ● ● ●
469 ROOF; SIDE
LOW ROOF<6XQ> 		1-61281-268-6 01 1 9806-0104 ● ● ●
469 ROOF; SIDE 1-61281-268-6 01 1 0105- ● ● ●
469 ROOF; SIDE
LOW ROOF<6XQ> 		1-61281-267-6 01 1 9806-0104 ● ● ●
469 ROOF; SIDE 1-61281-267-6 01 1 0105- ● ● ●
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (A) 		1-61281-273-3 01 1 9806-0104 ● ● ●
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (A) 		1-61281-273-3 01 1 9806-0104 ● ● ●
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-273-3 01 1 0105- ● ● ●
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (B) 		1-61281-270-3 01 1 9806-0104 ● ● ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-270-3 01 1 0105- ● ● ●
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (B) 		1-61281-269-3 01 1 9806-0104 ● ● ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-269-3 01 1 0105- ● ● ●
480 REINFORCEMENT ASM; STAY ROOF
LOW ROOF<6XQ> 		1-61180-997-3 01 1 9806-0104 ● ● ●
480 REINFORCEMENT ASM; STAY ROOF 1-61180-997-3 01 1 0105- ● ● ●
480 REINFORCEMENT ASM; STAY ROOF
LOW ROOF<6XQ> 		1-61180-996-3 01 1 9806-0104 ● ● ●
480 REINFORCEMENT ASM; STAY ROOF 1-61180-996-3 01 1 0105- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
