Isuzu WW
▶
TRUCKS
▶
FSS
▶
10717 - FSS/FTS-LHD
▶
5 - Frame, Cab Mounting
▶

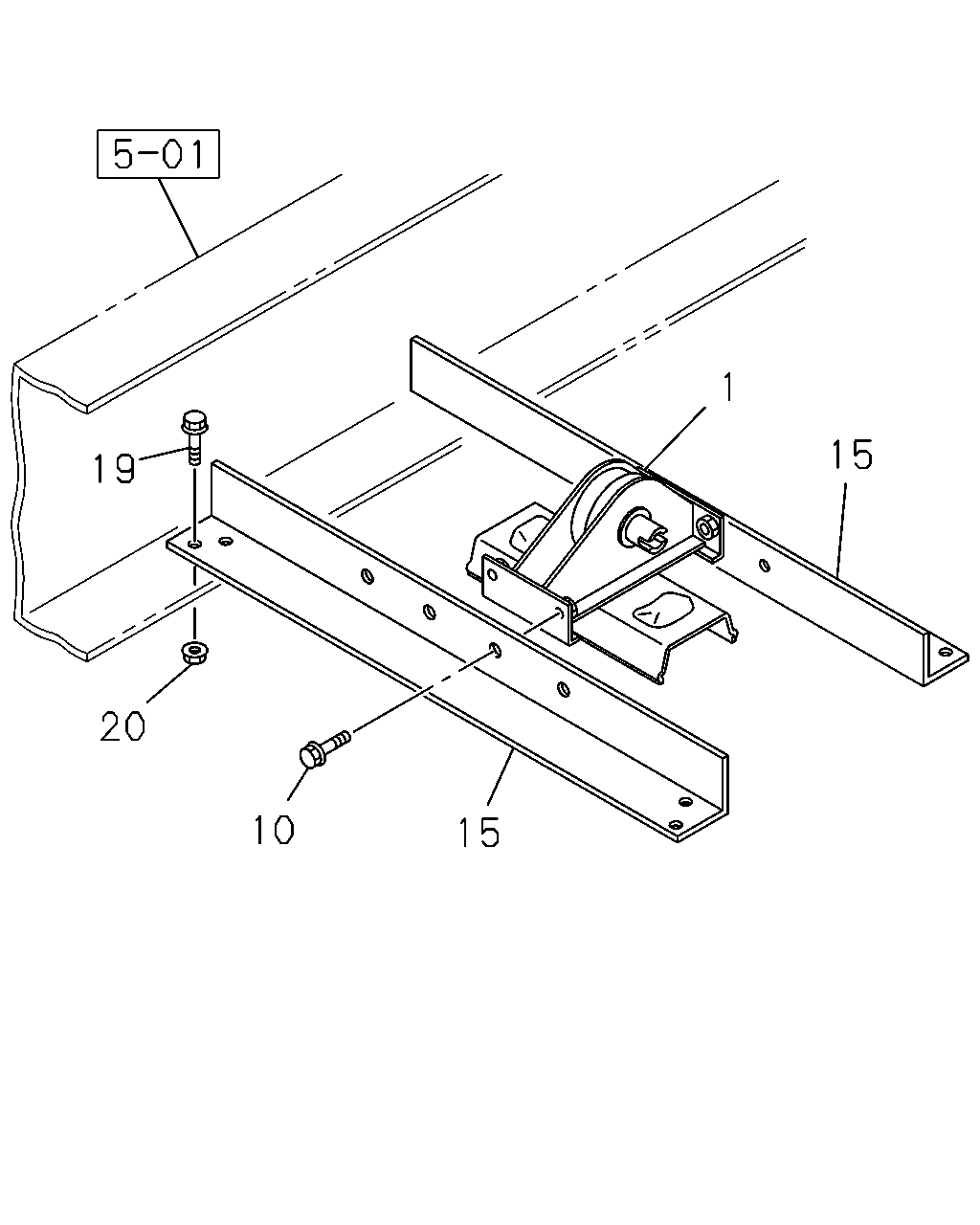

5-30 - SPARE TIRE CARRIER AND COVER
▶
5-30 — SPARE TIRE CARRIER AND COVER
(#65323) — 14 parça
Tümü
A - FSS6MF
B - FTS6MF
C - FTS6MC
1
15
19
20
10
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>
1-53630-208-1
01
1
9806-9809
●
●
1
HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>
1-53630-208-3
01
1
9810-
●
●
1
HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>
1-53630-208-3
01
1
9810-
●
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE
0-28681-230-0
04
1
9806-9809
●
●
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE
0-28681-230-0
04
1
9810-0512
●
●
10
BOLT; TIRE HANGER
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE
0-28681-230-0
04
1
9810-0512
●
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE
0-28651-230-0
04
1
0601-
●
●
10
BOLT; TIRE HANGER
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE
0-28651-230-0
04
1
0601-
●
15
MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>
1-53631-394-0
02
1
9806-
●
15
MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>
1-53631-373-0
02
1
9806-
●
19
BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE
0-28081-025-0
08
1
9806-0512
●
●
19
BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE
0-28051-025-0
08
1
0601-
●
●
20
NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE
0-91150-210-0
08
1
9806-0602
●
●
20
NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE
0-91180-210-0
08
1
0603-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
