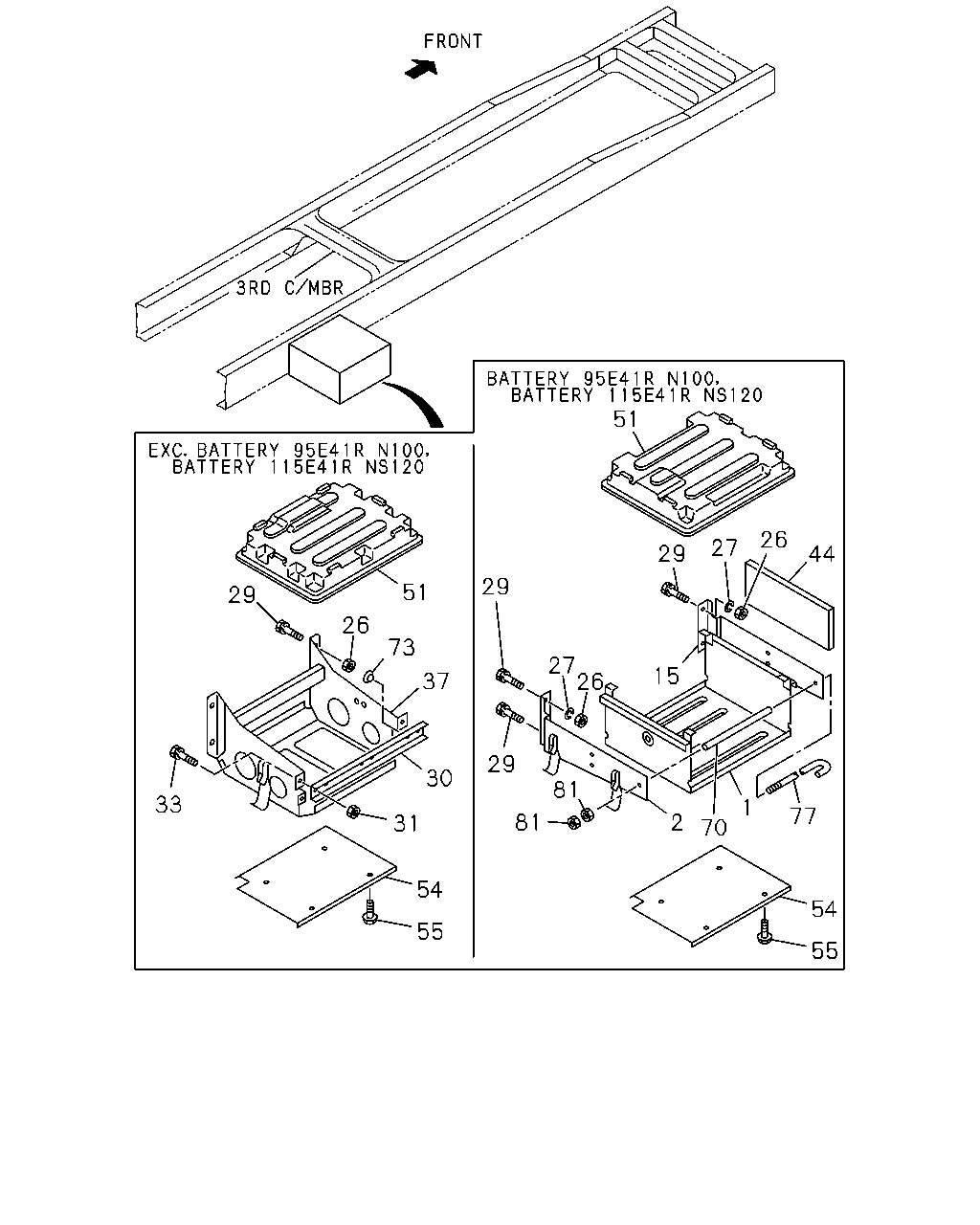

5-20 — BATTERY CARRIER (#65322) — 34 parça

30 51 26 27 29 44 29 51 29 26 73 27 26 15 37 29 30 81 33 1 77 81 2 31 70 54 54 55 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CARRIER; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53613-398-1	01	1	9806-	●	●	●
2	BRACKET; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53613-339-3	01	1	9806-	●	●	●
15	BRACKET; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53613-340-3	01	1	9806-	●	●	●
26	NUT; BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14	9-99110-414-0	04	1	9806-0512	●	●	●
26	NUT; BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14	0-91110-514-0	04	1	0601-	●	●	●
26	NUT; BRKT EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10	9-09110-510-0	04	1	9806-0512	●	●	●
26	NUT; BRKT EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10	0-91110-510-0	04	1	0601-	●	●	●
27	WASHER; LK,BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=14.2	9-09150-514-0	04	1	9806-0603	●	●	●
27	WASHER; LK,BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=14.2	0-91510-514-0	04	1	0604-	●	●	●
29	BOLT; BRKT TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14X35	0-20801-435-0	04	1	9806-0512	●
29	BOLT; BRKT TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14X35	0-20851-435-0	04	1	0601-	●
29	BOLT; BRKT TO FRAME EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10X35 FLANGE	0-28681-035-0	04	1	9806-0512	●	●	●
29	BOLT; BRKT TO FRAME EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10X35 FLANGE	0-28651-035-0	04	1	0601-	●	●	●
29	BOLT; BRKT TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14X40	0-20801-440-0	04	1	9806-0512		●	●
29	BOLT; BRKT TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14X40	0-20851-440-0	04	1	0601-		●	●
30	PLATE; BATTERY EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53616-046-3	01	1	9806-	●	●	●
31	NUT; PLATE EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8	9-09110-408-0	02	1	9806-0512	●	●	●
31	NUT; PLATE EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8	0-91110-508-0	02	1	0601-	●	●	●
33	BOLT; PLATE TO BRKT EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X20 FLANGE	0-28680-820-0	02	1	9806-0512	●	●	●
33	BOLT; PLATE TO BRKT EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●
37	BRACKET; BATTERY EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53613-405-0	01	1	9806-	●	●	●
44	SPACER; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53619-006-0	02	1	9806-	●	●	●
51	COVER; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53612-029-1	01	1	9806-	●	●	●
51	COVER; BATTERY EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53612-019-1	01	1	9806-	●	●	●
54	PROTECTOR; HEAT,BATTERY	1-53619-083-3	01	1	9806-	●
54	PROTECTOR; HEAT,BATTERY	1-53619-095-3	01	1	9806-		●	●
55	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28280-816-0	04	1	9806-0004	●	●	●
55	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28680-820-0	04	1	0005-0512	●	●	●
55	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●	●
70	SPACER; BATTERY CARRIER BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53619-023-0	01	1	9806-	●	●	●
73	RUBBER; CUSHION,PLATE EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-09337-002-0	04	1	9806-	●	●	●
77	BOLT; BATTERY BRKT,FRT TO RR BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53616-101-0	02	1	9806-	●	●	●
81	NUT; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8	9-09110-408-0	04	1	9806-0512	●	●	●
81	NUT; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8	0-91110-508-0	04	1	0601-	●	●	●
