5-10 — CAB MOUNTING; FRAME SIDE (#65320) — 145 parça

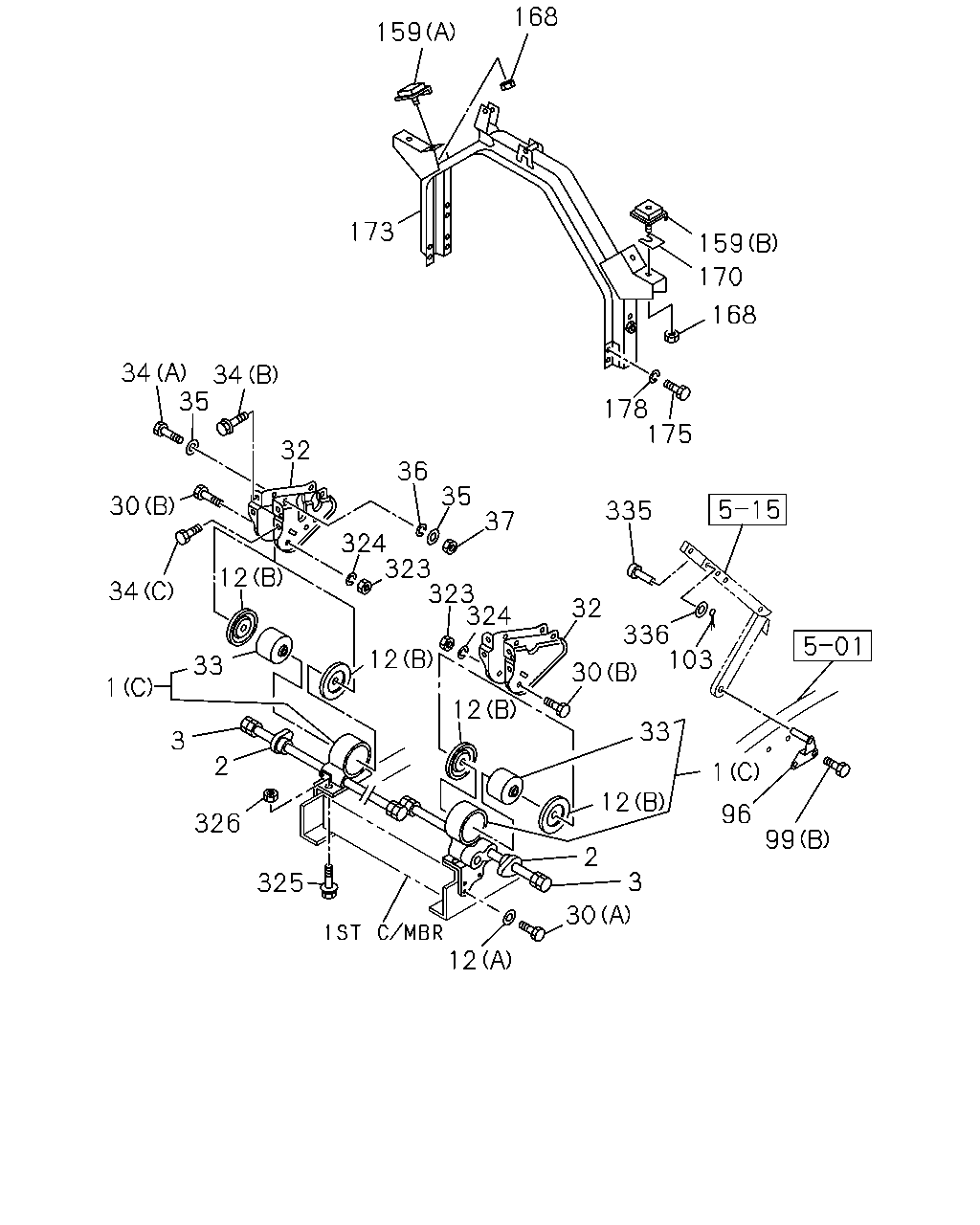

168 159 173 159 170 168 34 35 178 175 32 36 35 30 335 37 324 323 323 324 12 12 34 32 336 103 12 33 30 1 33 3 1 2 12 96 326 99 2 325 3 30 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BRACKET; CAB MTG (C)	1-53453-247-0	01	1	9806-	●
1	BRACKET; CAB MTG (C)	1-53453-248-0	01	1	9806-	●
1	BRACKET; CAB MTG (B)	1-53454-648-1	02	1	9806-		●	●
1	BRACKET; CAB MTG (A)	1-53453-291-0	01	1	9806-		●	●
1	BRACKET; CAB MTG (A)	1-53453-290-0	01	1	9806-		●	●
2	BUSHING; TORSION BAR	1-53458-282-0	02	1	9806-	●	●	●
3	TORSION BAR	1-09585-130-0	01	1	9806-	●	●	●
3	TORSION BAR	1-09585-129-0	01	1	9806-	●	●	●
12	WASHER; LK,BRKT (B) ID=34.5	1-53458-281-1	04	1	9806-	●
12	WASHER; LK,BRKT (A) ID=15	9-09651-069-0	10	1	9806-1201	●	●	●
12	WASHER; LK,BRKT (A) ID=15	8-98010-627-1	10	1	1202-	●	●	●
12	WASHER; LK,BRKT (B) ID=23	1-53458-693-1	04	1	9806-0306		●	●
12	WASHER; LK,BRKT (B) ID=23	1-53457-076-1	04	1	0307-		●	●
30	BOLT; CAB FRT FOOT (B) M16X115	5-51361-002-1	02	1	9806-	●	●	●
30	BOLT; CAB FRT FOOT (A) M14X40	9-92061-440-0	10	1	9806-0512	●	●	●
30	BOLT; CAB FRT FOOT (A) M14X40	0-20951-440-0	10	1	0601-	●	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-233-4	01	1	9806-	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-232-4	01	1	9806-	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-231-4	01	1	9806-		●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-230-4	01	1	9806-		●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53458-636-1	02	1	9806-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53458-681-0	02	1	9806-		●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (A) M10X105	1-79198-008-1	04	1	9806-	●	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9806-0310	●	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0311-0602	●	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0311-0602		●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0603-0904	●	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-	●	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (B) M10X20 W/LK&PL WASHER	8-94279-219-0	08	1	9806-	●	●	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	9806-	●	●	●
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	9806-	●	●	●
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	9806-	●	●	●
96	BRACKET; CAB STAY	1-62500-628-0	01	1	9806-	●	●	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28091-030-0	02	1	9806-0004	●	●	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28691-030-0	02	1	0005-0512	●	●	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28661-030-0	02	1	0601-	●	●	●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28680-820-0	08	1	9806-0512		●	●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	08	1	0601-		●	●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28681-230-0	04	1	9806-0512		●	●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28651-230-0	04	1	0601-0612		●	●
99	BOLT; BRKT (A) M12X25 FLANGE	0-28651-225-0	04	1	0701-		●	●
103	PIN; SPLIT,CAB STAY	1-09746-021-0	01	1	9806-	●	●	●
159	RUBBER; CUSHION,CAB MTG (A)	1-53459-619-3	02	1	9806-	●
159	RUBBER; CUSHION,CAB MTG (B)	1-53459-620-3	02	1	9806-	●
159	RUBBER; CUSHION,CAB MTG (C)	1-53458-285-0	02	1	9806-		●	●
168	NUT; CUSHION RUBBER,BODY MTG M12 FLANGE	0-91150-212-0	04	1	9806-0602	●
168	NUT; CUSHION RUBBER,BODY MTG M12 FLANGE	0-91180-212-0	04	1	0603-	●
170	SHIM; CUSHION RUBBER T=1.6	1-53459-621-0	AR	1	9806-	●
173	MEMBER; CAB MTG RR	1-53454-674-0	01	1	9806-	●
173	MEMBER; CAB MTG RR	1-53454-705-3	01	1	9806-		●	●
175	BOLT; MEMBER TO FRAME M12X35	9-92061-235-0	08	1	9806-0512	●	●	●
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0601-	●	●	●
178	WASHER; LK,MEMBER ID=12.2	9-09150-612-0	08	1	9806-0603	●	●	●
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0604-	●	●	●
323	NUT; CAB FRT FOOT M16	9-99110-516-0	02	1	9806-0512	●	●	●
323	NUT; CAB FRT FOOT M16	0-91110-516-0	02	1	0601-	●	●	●
324	WASHER; LK ID=16.2	9-09150-816-0	02	1	9806-0603	●	●	●
324	WASHER; LK ID=16.2	0-91510-816-0	02	1	0604-	●	●	●
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28681-240-0	02	1	9806-0512	●	●	●
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28651-240-0	02	1	0601-	●	●	●
326	NUT; GUIDE NUT M12	9-99110-512-0	02	1	9806-0512	●	●	●
326	NUT; GUIDE NUT M12	0-91110-512-0	02	1	0601-	●	●	●
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	9806-	●	●	●
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	9806-	●	●	●

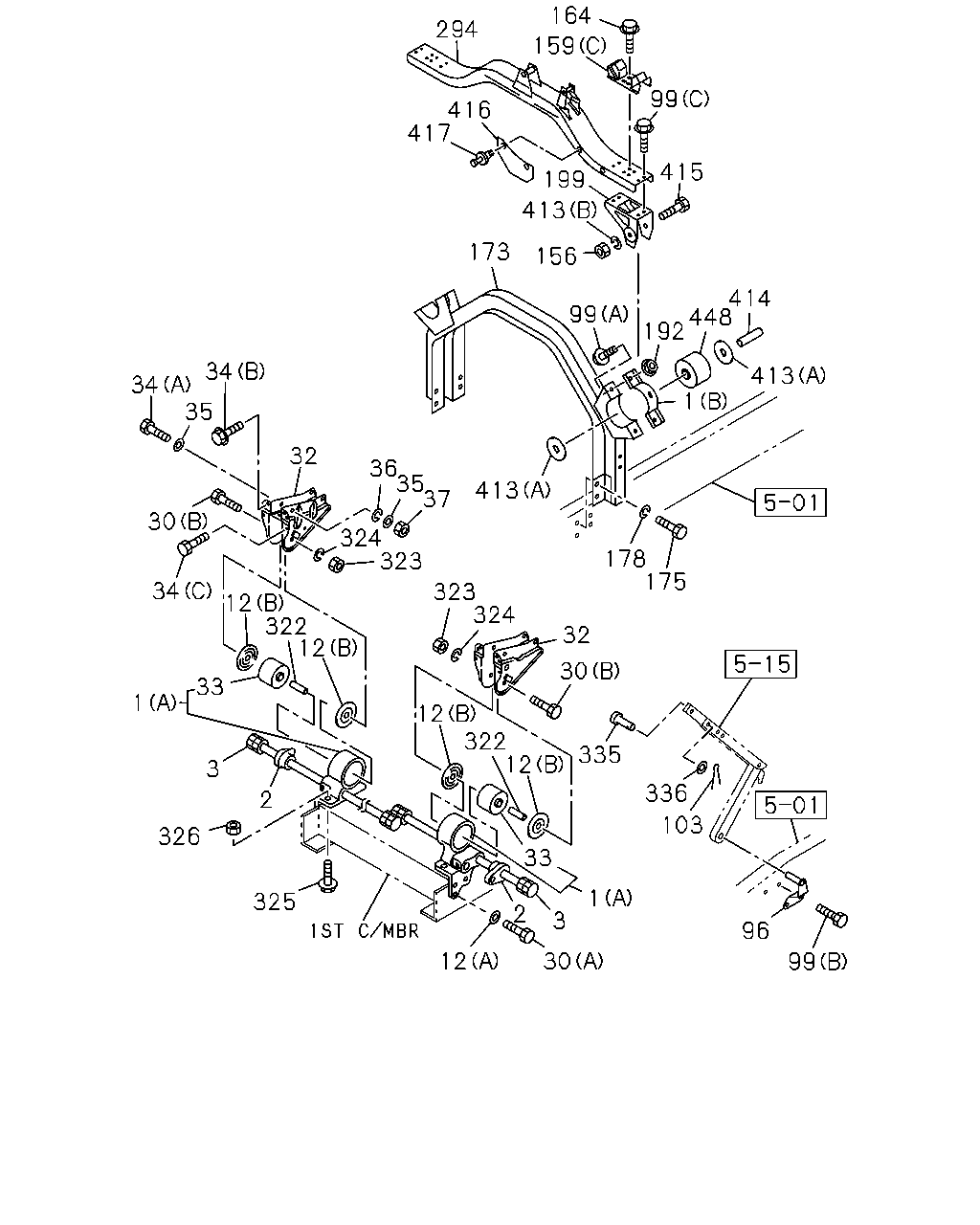

164 294 159 99 416 417 415 199 413 173 156 414 448 192 99 34 413 34 35 1 32 36 35 37 413 30 324 323 178 175 34 323 324 12 322 12 32 30 33 1 12 322 12 335 3 336 2 103 326 33 1 325 2 3 96 12 30 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BRACKET; CAB MTG (C)	1-53453-247-0	01	1	9806-	●
1	BRACKET; CAB MTG (C)	1-53453-248-0	01	1	9806-	●
1	BRACKET; CAB MTG (B)	1-53454-648-1	02	1	9806-		●	●
1	BRACKET; CAB MTG (A)	1-53453-291-0	01	1	9806-		●	●
1	BRACKET; CAB MTG (A)	1-53453-290-0	01	1	9806-		●	●
2	BUSHING; TORSION BAR	1-53458-282-0	02	1	9806-	●	●	●
3	TORSION BAR	1-09585-130-0	01	1	9806-	●	●	●
3	TORSION BAR	1-09585-129-0	01	1	9806-	●	●	●
12	WASHER; LK,BRKT (B) ID=34.5	1-53458-281-1	04	1	9806-	●
12	WASHER; LK,BRKT (A) ID=15	9-09651-069-0	10	1	9806-1201	●	●	●
12	WASHER; LK,BRKT (A) ID=15	8-98010-627-1	10	1	1202-	●	●	●
12	WASHER; LK,BRKT (B) ID=23	1-53458-693-1	04	1	9806-0306		●	●
12	WASHER; LK,BRKT (B) ID=23	1-53457-076-1	04	1	0307-		●	●
30	BOLT; CAB FRT FOOT (B) M16X115	5-51361-002-1	02	1	9806-	●	●	●
30	BOLT; CAB FRT FOOT (A) M14X40	9-92061-440-0	10	1	9806-0512	●	●	●
30	BOLT; CAB FRT FOOT (A) M14X40	0-20951-440-0	10	1	0601-	●	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-233-4	01	1	9806-	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-232-4	01	1	9806-	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-231-4	01	1	9806-		●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-230-4	01	1	9806-		●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53458-636-1	02	1	9806-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53458-681-0	02	1	9806-		●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (A) M10X105	1-79198-008-1	04	1	9806-	●	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9806-0310	●	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0311-0602	●	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0311-0602		●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0603-0904	●	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-	●	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (B) M10X20 W/LK&PL WASHER	8-94279-219-0	08	1	9806-	●	●	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	9806-	●	●	●
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	9806-	●	●	●
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	9806-	●	●	●
96	BRACKET; CAB STAY	1-62500-628-0	01	1	9806-	●	●	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28091-030-0	02	1	9806-0004	●	●	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28691-030-0	02	1	0005-0512	●	●	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28661-030-0	02	1	0601-	●	●	●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28680-820-0	08	1	9806-0512		●	●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	08	1	0601-		●	●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28681-230-0	04	1	9806-0512		●	●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28651-230-0	04	1	0601-0612		●	●
99	BOLT; BRKT (A) M12X25 FLANGE	0-28651-225-0	04	1	0701-		●	●
103	PIN; SPLIT,CAB STAY	1-09746-021-0	01	1	9806-	●	●	●
156	NUT; CAB MTG RR M16	9-99110-516-0	02	1	9806-0512		●	●
156	NUT; CAB MTG RR M16	0-91110-516-0	02	1	0601-		●	●
159	RUBBER; CUSHION,CAB MTG (A)	1-53459-619-3	02	1	9806-	●
159	RUBBER; CUSHION,CAB MTG (B)	1-53459-620-3	02	1	9806-	●
159	RUBBER; CUSHION,CAB MTG (C)	1-53458-285-0	02	1	9806-		●	●
164	BOLT; CUSHION RUBBER,CAB MTG M8X20 FLANGE	0-28680-820-0	04	1	9806-0512		●	●
164	BOLT; CUSHION RUBBER,CAB MTG M8X20 FLANGE	0-28650-820-0	04	1	0601-		●	●
173	MEMBER; CAB MTG RR	1-53454-674-0	01	1	9806-	●
173	MEMBER; CAB MTG RR	1-53454-705-3	01	1	9806-		●	●
175	BOLT; MEMBER TO FRAME M12X35	9-92061-235-0	08	1	9806-0512	●	●	●
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0601-	●	●	●
178	WASHER; LK,MEMBER ID=12.2	9-09150-612-0	08	1	9806-0603	●	●	●
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0604-	●	●	●
192	NUT; BRKT FIX M12 FLANGE	0-91150-212-0	04	1	9806-0602		●	●
192	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	04	1	0603-		●	●
199	BRACKET; CAB RR MTG	1-53454-644-2	02	1	9806-0207		●	●
199	BRACKET; CAB RR MTG	1-53454-911-0	02	1	0208-1403		●	●
199	BRACKET; CAB RR MTG	8-98269-637-0	02	1	1404-		●	●
294	MEMBER; FLOATING	1-53454-530-1	01	1	9806-		●	●
322	COLLAR; CAB FRT FOOT	1-53459-941-1	02	1	9806-		●	●
323	NUT; CAB FRT FOOT M16	9-99110-516-0	02	1	9806-0512	●	●	●
323	NUT; CAB FRT FOOT M16	0-91110-516-0	02	1	0601-	●	●	●
324	WASHER; LK ID=16.2	9-09150-816-0	02	1	9806-0603	●	●	●
324	WASHER; LK ID=16.2	0-91510-816-0	02	1	0604-	●	●	●
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28681-240-0	02	1	9806-0512	●	●	●
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28651-240-0	02	1	0601-	●	●	●
326	NUT; GUIDE NUT M12	9-99110-512-0	02	1	9806-0512	●	●	●
326	NUT; GUIDE NUT M12	0-91110-512-0	02	1	0601-	●	●	●
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	9806-	●	●	●
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	9806-	●	●	●
413	WASHER; LK,CAB MTG RR (A) ID=23	1-53458-693-1	04	1	9806-0306		●	●
413	WASHER; LK,CAB MTG RR (A) ID=23	1-53457-076-1	04	1	0307-		●	●
413	WASHER; LK,CAB MTG RR (B) ID=16.2	9-09150-816-0	02	1	9806-0603		●	●
413	WASHER; LK,CAB MTG RR (B) ID=16.2	0-91510-816-0	02	1	0604-		●	●
414	COLLAR; CAB MTG RR	1-53459-941-1	02	1	9806-		●	●
415	PIN; CAB MTG RR M16X115	5-51361-002-1	02	1	9806-		●	●
416	RUBBER; SHUTTER	1-53446-730-0	02	1	9806-9807		●	●
417	RIVET	1-09470-001-0	04	1	9806-9807		●	●
448	BUSHING; CAB MTG	1-53458-635-0	02	1	9806-		●	●
