5-01 — FRAME AND OTHER PARTS (#65319) — 190 parça

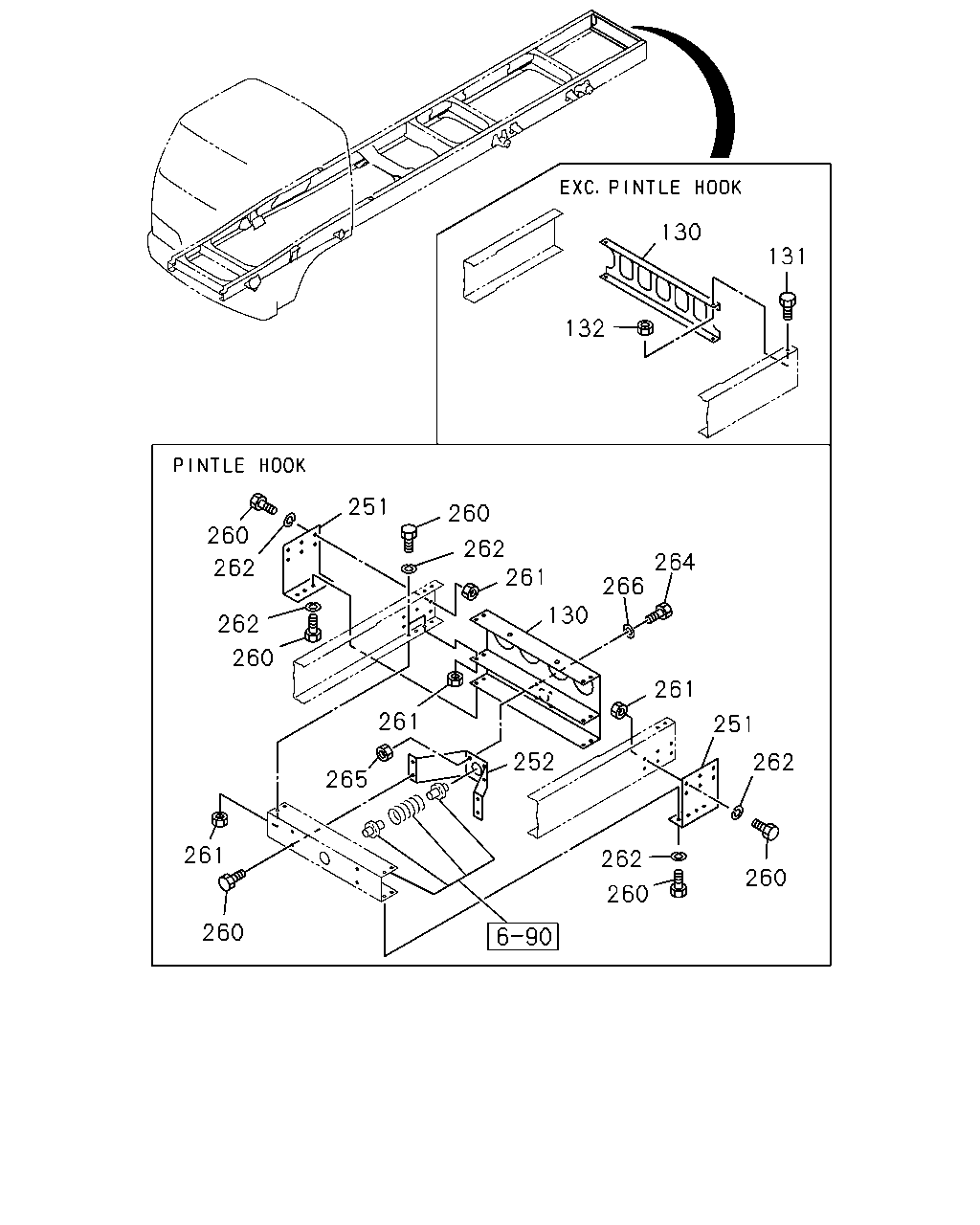

130 131 132 251 260 260 262 261 264 262 266 130 262 260 261 261 251 252 262 265 261 262 260 260 260

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
130	MEMBER; CROSS,END PINTLE HOOK<PP7>	1-53181-586-0	01	1	9806-	●	●
130	MEMBER; CROSS,END EXC. PINTLE HOOK<PP7>	1-53181-151-2	01	1	9806-	●	●
130	MEMBER; CROSS,END	1-53181-516-2	01	1	9806-			●
131	BOLT; END C/MBR EXC. PINTLE HOOK<PP7> M12X30 W/LK WASHER	0-50041-230-0	04	1	9806-0512	●	●
131	BOLT; END C/MBR EXC. PINTLE HOOK<PP7> M12X30 W/LK WASHER	0-50541-230-0	04	1	0601-	●	●
131	BOLT; END C/MBR M10X25 W/LK WASHER	0-50041-025-0	04	1	9806-0512			●
131	BOLT; END C/MBR M10X25 W/LK WASHER	0-50541-025-0	04	1	0601-			●
132	NUT; END C/MBR EXC. PINTLE HOOK<PP7> M12	9-99110-412-0	04	1	9806-0512	●	●
132	NUT; END C/MBR EXC. PINTLE HOOK<PP7> M12	0-91110-512-0	04	1	0601-	●	●
132	NUT; END C/MBR M10	9-09110-410-0	04	1	9806-0512			●
132	NUT; END C/MBR M10	0-91110-510-0	04	1	0601-			●
251	SUPPORT; PINTLE HOOK PINTLE HOOK<PP7>	1-57189-183-1	01	1	9806-	●	●
251	SUPPORT; PINTLE HOOK PINTLE HOOK<PP7>	1-57189-184-1	01	1	9806-	●	●
252	STIFFENER; PINTLE HOOK PINTLE HOOK<PP7>	1-57189-187-0	01	1	9806-	●	●
260	BOLT; SUB FRAME PINTLE HOOK<PP7> M12X40 W/LK WASHER	0-50041-240-0	08	1	9806-0906	●	●
260	BOLT; SUB FRAME PINTLE HOOK<PP7> M12X40 W/LK WASHER	0-50541-240-0	08	1	0907-	●	●
260	BOLT; SUB FRAME PINTLE HOOK<PP7> M14X35	9-92061-435-0	24	1	9806-0512	●	●
260	BOLT; SUB FRAME PINTLE HOOK<PP7> M14X35	0-20951-435-0	24	1	0601-	●	●
261	NUT; SUB FRAME PINTLE HOOK<PP7> M14	9-99110-514-0	16	1	9806-0512	●	●
261	NUT; SUB FRAME PINTLE HOOK<PP7> M14	0-91110-514-0	16	1	0601-	●	●
262	WASHER; LK,SUB FRAME PINTLE HOOK<PP7> ID=14.2	9-09150-614-0	24	1	9806-0603	●	●
262	WASHER; LK,SUB FRAME PINTLE HOOK<PP7> ID=14.2	0-91510-614-0	24	1	0604-	●	●
264	BOLT; FRT C/MBR PINTLE HOOK<PP7> M14X35	9-92061-435-0	04	1	9806-0512	●	●
264	BOLT; FRT C/MBR PINTLE HOOK<PP7> M14X35	0-20951-435-0	04	1	0601-	●	●
265	NUT; FRT C/MBR PINTLE HOOK<PP7> M14	9-99110-514-0	04	1	9806-0512	●	●
265	NUT; FRT C/MBR PINTLE HOOK<PP7> M14	0-91110-514-0	04	1	0601-	●	●
266	WASHER; LK,C/MBR PINTLE HOOK<PP7> ID=14.2	9-09150-614-0	04	1	9806-0202	●	●
266	WASHER; LK,C/MBR PINTLE HOOK<PP7> ID=14.2	9-09150-814-0	04	1	0203-0603	●	●
266	WASHER; LK,C/MBR PINTLE HOOK<PP7> ID=14.2	0-91510-814-0	04	1	0604-	●	●

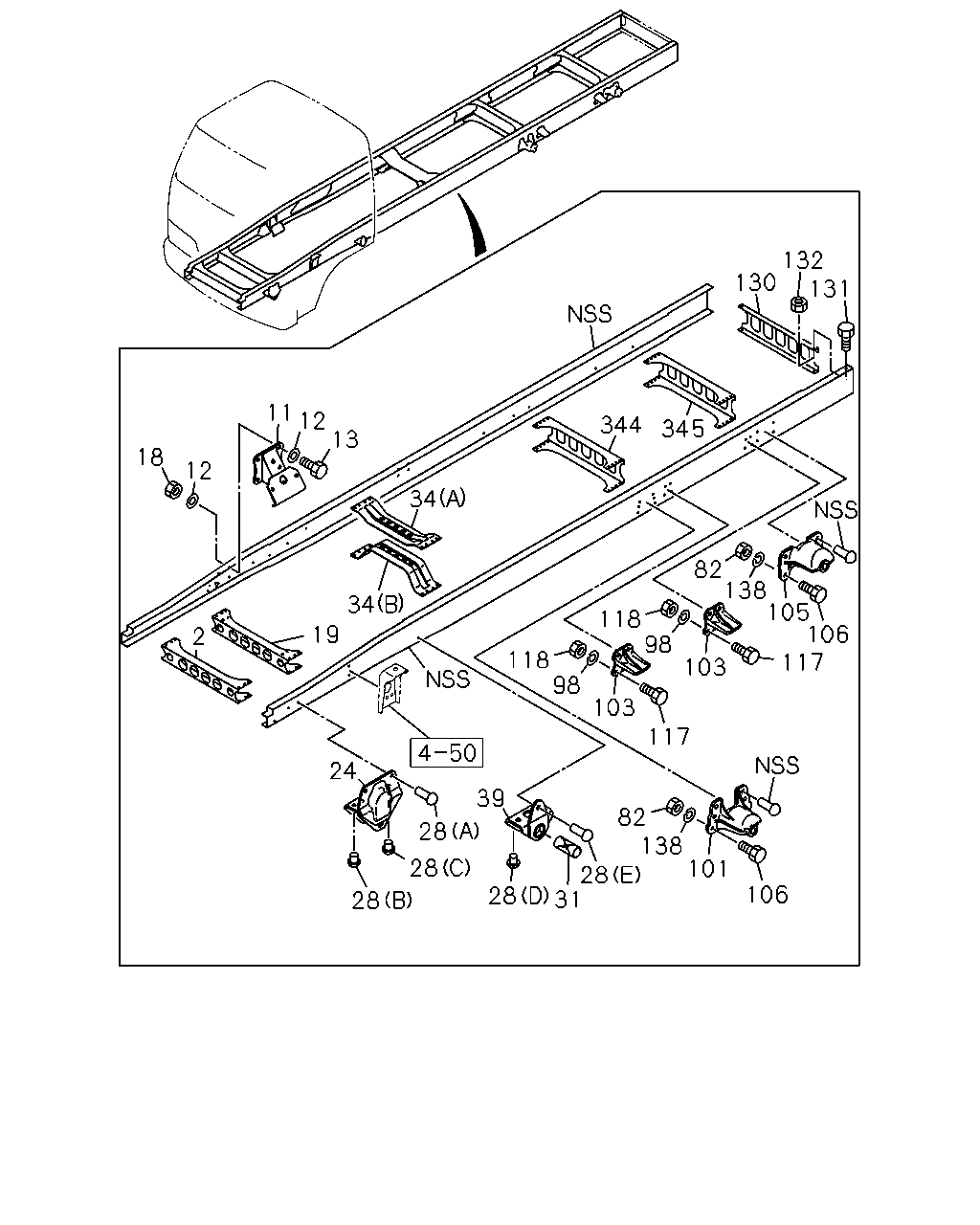

132 130 131 11 12 13 344 345 18 12 34 82 18 105 106 117 34 118 98 2 19 118 98 103 103 117 24 39 82 138 101 28 28 31 28 28 106 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	1-53181-670-9	01	1	9806-0706	●	●
2	MEMBER; CROSS,1ST	1-53181-939-2	01	1	0707-	●	●
2	MEMBER; CROSS,1ST	1-53181-460-9	01	1	9806-0407			●
2	MEMBER; CROSS,1ST	1-53181-892-4	01	1	0408-			●
11	BRACKET; ENG MTG	1-53211-218-0	02	1	9806-	●	●
11	BRACKET; ENG MTG	1-53211-197-0	02	1	9806-			●
12	WASHER; PL,BRKT,ENG MTG ID=12.5	1-09503-171-0	16	1	9806-	●	●	●
13	BOLT; BRKT,ENG MTG M12X35	9-92061-235-0	08	1	9806-0512	●	●
13	BOLT; BRKT,ENG MTG M12X35	0-20951-235-0	08	1	0601-	●	●
13	BOLT; BRKT,ENG MTG M12X40	9-92061-240-0	08	1	9806-0512			●
13	BOLT; BRKT,ENG MTG M12X40	0-20951-240-0	08	1	0601-			●
18	NUT; BRKT,ENG MTG M12	9-99110-512-0	08	1	9806-0512	●	●	●
18	NUT; BRKT,ENG MTG M12	0-91110-512-0	08	1	0601-	●	●	●
19	MEMBER; CROSS,2ND	1-53181-671-9	01	1	9806-0410	●	●
19	MEMBER; CROSS,2ND	8-97606-306-0	01	1	0411-	●	●
19	MEMBER; CROSS,2ND	1-53181-766-2	01	1	9806-			●
24	BRACKET; FRT SPR,FRT	1-53351-149-3	01	1	9806-	●	●
24	BRACKET; FRT SPR,FRT	1-53351-148-3	01	1	9806-	●	●
24	BRACKET; FRT SPR,FRT	1-53351-141-0	02	1	9806-			●
28	RIVET; BRKT,FRT SPR (A) D11X32 PLATED TAPER END	9-06761-132-0	04	1	9806-0607			●
28	RIVET; BRKT,FRT SPR (A) D11X32 PLATED TAPER END	0-67801-132-0	04	1	0608-			●
28	RIVET; BRKT,FRT SPR (D) D11X36 PLATED TAPER END	9-06761-136-0	04	1	9806-0607			●
28	RIVET; BRKT,FRT SPR (D) D11X36 PLATED TAPER END	0-67801-136-0	04	1	0608-			●
28	RIVET; BRKT,FRT SPR (B) D12X36 PLATED TAPER END	9-06761-236-0	02	1	9806-0607			●
28	RIVET; BRKT,FRT SPR (B) D12X36 PLATED TAPER END	0-67801-236-0	02	1	0608-			●
28	RIVET; BRKT,FRT SPR (C) D12X38 PLATED TAPER END	9-06761-238-0	02	1	9806-			●
28	RIVET; BRKT,FRT SPR (E) D12X40 PLATED TAPER END	9-06761-240-0	02	1	9806-			●
31	BUSHING; FRT SPR,RR ID=25	9-51151-032-0	02	1	9806-0811			●
31	BUSHING; FRT SPR,RR ID=25	8-98082-176-0	02	1	0812-			●
34	MEMBER; CROSS,3RD (C)	1-53174-231-2	01	1	9806-	●	●
34	MEMBER; CROSS,3RD (A)	1-53175-358-1	01	1	9806-			●
34	MEMBER; CROSS,3RD (B)	1-53175-359-1	01	1	9806-			●
39	BRACKET; FRT SPR,RR	1-53352-125-2	01	1	9806-	●	●
39	BRACKET; FRT SPR,RR	1-53352-124-2	01	1	9806-	●	●
39	BRACKET; FRT SPR,RR	1-53352-061-1	02	1	9806-			●
82	NUT; BRKT M14	9-99110-414-0	20	1	9806-0512	●	●
82	NUT; BRKT M14	0-91110-514-0	20	1	0601-	●	●
82	NUT; BRKT M14	9-99110-414-0	22	1	9806-0512			●
82	NUT; BRKT M14	0-91110-514-0	22	1	0601-			●
98	WASHER; LK,STOPPER ID=14.2	9-09150-614-0	16	1	9806-0603	●	●	●
98	WASHER; LK,STOPPER ID=14.2	0-91510-614-0	16	1	0604-	●	●	●
101	BRACKET; RR SPR,FRT	1-53353-072-1	02	1	9806-	●	●
101	BRACKET; RR SPR,FRT	1-53353-090-4	02	1	9806-			●
103	STOPPER; SUB SPR (A)	1-53356-038-1	02	1	9806-	●	●
103	STOPPER; SUB SPR (B)	1-53357-029-1	02	1	9806-	●	●
103	STOPPER; SUB SPR	1-53356-059-1	04	1	9806-			●
105	BRACKET; RR SPR,RR	1-53353-072-1	02	1	9806-	●	●
105	BRACKET; RR SPR,RR	1-53354-074-0	02	1	9806-			●
106	BOLT; BRKT M14X45	0-20801-445-0	20	1	9806-	●	●
106	BOLT; BRKT M14X45	0-20801-445-0	22	1	9806-			●
117	BOLT; STOPPER M14X45	0-20801-445-0	16	1	9806-	●	●	●
118	NUT; STOPPER M14	9-99110-414-0	16	1	9806-0512	●	●	●
118	NUT; STOPPER M14	0-91110-514-0	16	1	0601-	●	●	●
130	MEMBER; CROSS,END PINTLE HOOK<PP7>	1-53181-586-0	01	1	9806-	●	●
130	MEMBER; CROSS,END EXC. PINTLE HOOK<PP7>	1-53181-151-2	01	1	9806-	●	●
130	MEMBER; CROSS,END	1-53181-516-2	01	1	9806-			●
131	BOLT; END C/MBR EXC. PINTLE HOOK<PP7> M12X30 W/LK WASHER	0-50041-230-0	04	1	9806-0512	●	●
131	BOLT; END C/MBR EXC. PINTLE HOOK<PP7> M12X30 W/LK WASHER	0-50541-230-0	04	1	0601-	●	●
131	BOLT; END C/MBR M10X25 W/LK WASHER	0-50041-025-0	04	1	9806-0512			●
131	BOLT; END C/MBR M10X25 W/LK WASHER	0-50541-025-0	04	1	0601-			●
132	NUT; END C/MBR EXC. PINTLE HOOK<PP7> M12	9-99110-412-0	04	1	9806-0512	●	●
132	NUT; END C/MBR EXC. PINTLE HOOK<PP7> M12	0-91110-512-0	04	1	0601-	●	●
132	NUT; END C/MBR M10	9-09110-410-0	04	1	9806-0512			●
132	NUT; END C/MBR M10	0-91110-510-0	04	1	0601-			●
138	WASHER; LK,BRKT ID=14.2	9-09150-614-0	20	1	9806-0603	●	●
138	WASHER; LK,BRKT ID=14.2	0-91510-614-0	20	1	0604-	●	●
138	WASHER; LK,BRKT ID=14.2	9-09150-614-0	22	1	9806-0603			●
138	WASHER; LK,BRKT ID=14.2	0-91510-614-0	22	1	0604-			●
344	MEMBER; CROSS,4TH	1-53181-465-9	01	1	9806-			●
344	MEMBER; CROSS,4TH	1-53181-095-2	01	1	9806-		●
345	MEMBER; CROSS,5TH	1-53181-465-9	01	1	9806-			●

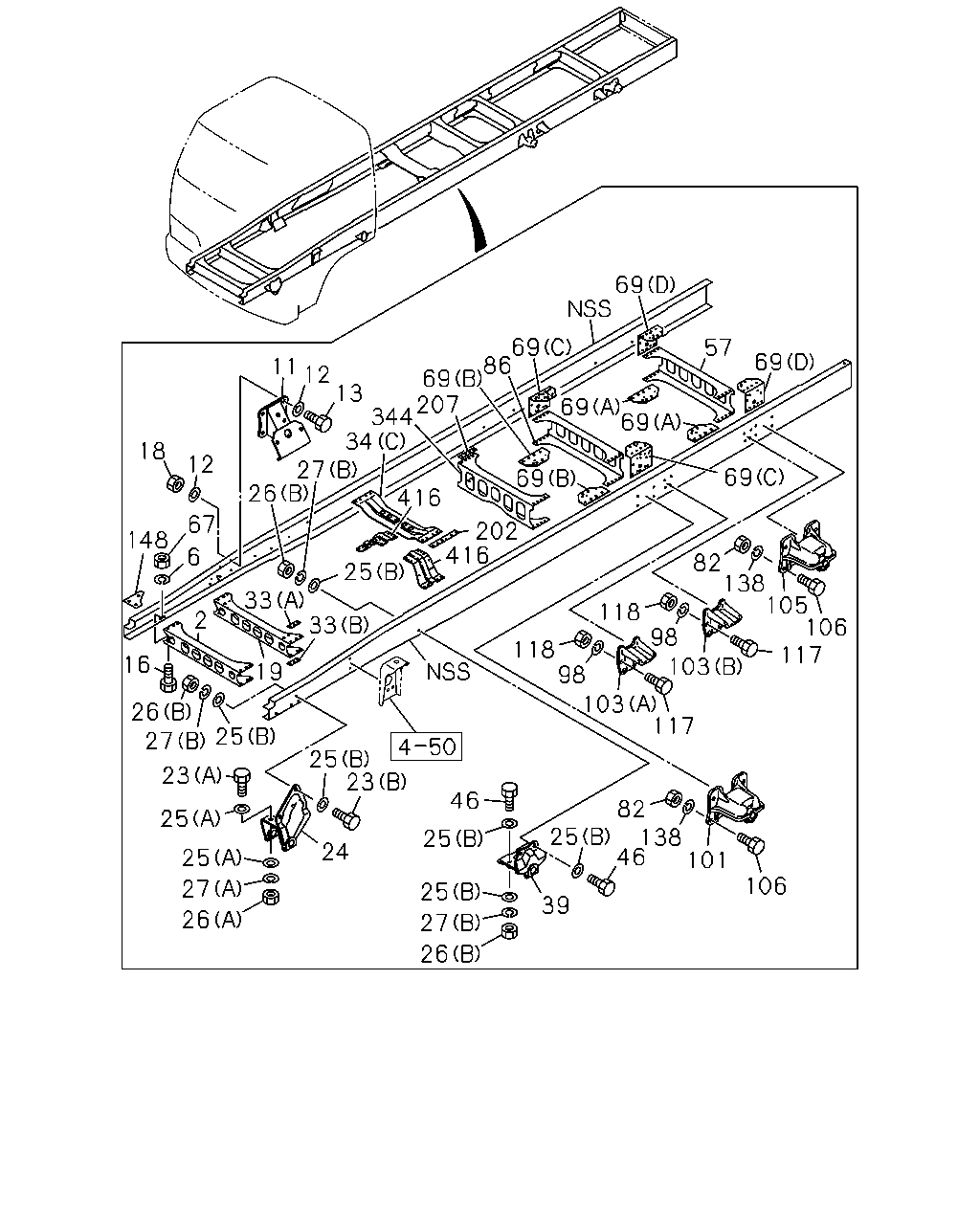

69 69 86 12 69 13 207 344 34 27 26 57 69 11 69 69 18 69 12 69 416 67 202 416 25 82 138 105 106 117 148 6 33 2 33 19 118 16 98 118 98 103 103 117 26 27 25 25 23 23 46 82 25 138 46 101 25 25 24 2 106 27 25 39 26 27 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	1-53181-670-9	01	1	9806-0706	●	●
2	MEMBER; CROSS,1ST	1-53181-939-2	01	1	0707-	●	●
2	MEMBER; CROSS,1ST	1-53181-460-9	01	1	9806-0407			●
2	MEMBER; CROSS,1ST	1-53181-892-4	01	1	0408-			●
6	WASHER; LK,1ST C/MBR ID=16.2	9-09150-616-0	01	1	9806-0603	●	●
6	WASHER; LK,1ST C/MBR ID=16.2	0-91510-616-0	01	1	0604-	●	●
11	BRACKET; ENG MTG	1-53211-218-0	02	1	9806-	●	●
11	BRACKET; ENG MTG	1-53211-197-0	02	1	9806-			●
12	WASHER; PL,BRKT,ENG MTG ID=12.5	1-09503-171-0	16	1	9806-	●	●	●
13	BOLT; BRKT,ENG MTG M12X35	9-92061-235-0	08	1	9806-0512	●	●
13	BOLT; BRKT,ENG MTG M12X35	0-20951-235-0	08	1	0601-	●	●
13	BOLT; BRKT,ENG MTG M12X40	9-92061-240-0	08	1	9806-0512			●
13	BOLT; BRKT,ENG MTG M12X40	0-20951-240-0	08	1	0601-			●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20801-640-0	01	1	9806-0512	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20851-640-0	01	1	0601-	●	●
18	NUT; BRKT,ENG MTG M12	9-99110-512-0	08	1	9806-0512	●	●	●
18	NUT; BRKT,ENG MTG M12	0-91110-512-0	08	1	0601-	●	●	●
19	MEMBER; CROSS,2ND	1-53181-671-9	01	1	9806-0410	●	●
19	MEMBER; CROSS,2ND	8-97606-306-0	01	1	0411-	●	●
19	MEMBER; CROSS,2ND	1-53181-766-2	01	1	9806-			●
23	BOLT; BRKT,SPR (B) M14X45	9-92061-445-0	06	1	9806-	●	●
23	BOLT; BRKT,SPR (A) M16X50	9-92061-650-0	04	1	9806-0512	●	●
23	BOLT; BRKT,SPR (A) M16X50	0-20951-650-0	04	1	0601-	●	●
24	BRACKET; FRT SPR,FRT	1-53351-149-3	01	1	9806-	●	●
24	BRACKET; FRT SPR,FRT	1-53351-148-3	01	1	9806-	●	●
24	BRACKET; FRT SPR,FRT	1-53351-141-0	02	1	9806-			●
25	WASHER; PL,BRKT (A) ID=16.2	1-09503-223-0	08	1	9806-	●	●
25	WASHER; PL,BRKT (B) ID=15	9-09651-069-0	28	1	9806-1201	●	●
25	WASHER; PL,BRKT (B) ID=15	8-98010-627-1	28	1	1202-	●	●
26	NUT; BRKT,SPR (B) M14	9-99110-514-0	14	1	9806-0512	●	●
26	NUT; BRKT,SPR (B) M14	0-91110-514-0	14	1	0601-	●	●
26	NUT; BRKT,SPR (A) M16	9-99110-516-0	04	1	9806-0512	●	●
26	NUT; BRKT,SPR (A) M16	0-91110-516-0	04	1	0601-	●	●
27	WASHER; LK,BRKT,FRT SPR (B) ID=14.2	9-09150-614-0	14	1	9806-0603	●	●
27	WASHER; LK,BRKT,FRT SPR (B) ID=14.2	0-91510-614-0	14	1	0604-	●	●
27	WASHER; LK,BRKT,FRT SPR (A) ID=16.2	9-09150-616-0	04	1	9806-0603	●	●
27	WASHER; LK,BRKT,FRT SPR (A) ID=16.2	0-91510-616-0	04	1	0604-	●	●
33	SPACER; 2ND C/MBR,UPR (A)	1-53168-276-0	02	1	9806-	●	●
33	SPACER; 2ND C/MBR,UPR (B)	1-53168-287-0	02	1	9806-	●	●
34	MEMBER; CROSS,3RD (C)	1-53174-231-2	01	1	9806-	●	●
34	MEMBER; CROSS,3RD (A)	1-53175-358-1	01	1	9806-			●
34	MEMBER; CROSS,3RD (B)	1-53175-359-1	01	1	9806-			●
39	BRACKET; FRT SPR,RR	1-53352-125-2	01	1	9806-	●	●
39	BRACKET; FRT SPR,RR	1-53352-124-2	01	1	9806-	●	●
39	BRACKET; FRT SPR,RR	1-53352-061-1	02	1	9806-			●
46	BOLT; BRKT FIX M14X45	9-92061-445-0	08	1	9806-	●	●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-691-4	01	1	9806-	●	●
67	NUT; C/MBR M16	9-99110-516-0	01	1	9806-0512	●	●
67	NUT; C/MBR M16	0-91110-516-0	01	1	0601-	●	●
69	GUSSET; RR SUSP,UPR (A)	1-53167-099-4	02	1	9806-	●	●
69	GUSSET; RR SUSP,UPR (B)	1-53167-100-3	02	1	9806-	●	●
69	GUSSET; RR SUSP,UPR (C)	1-53167-300-0	01	1	9806-0004	●	●
69	GUSSET; RR SUSP,UPR (C)	1-53167-629-0	01	1	0005-	●	●
69	GUSSET; RR SUSP,UPR (D)	1-53167-302-0	01	1	9806-0004	●	●
69	GUSSET; RR SUSP,UPR (D)	1-53167-631-0	01	1	0005-	●	●
69	GUSSET; RR SUSP,UPR (C)	1-53167-299-0	01	1	9806-0004	●	●
69	GUSSET; RR SUSP,UPR (C)	1-53167-630-0	01	1	0005-	●	●
69	GUSSET; RR SUSP,UPR (D)	1-53167-301-0	01	1	9806-0004	●	●
69	GUSSET; RR SUSP,UPR (D)	1-53167-628-0	01	1	0005-	●	●
82	NUT; BRKT M14	9-99110-414-0	20	1	9806-0512	●	●
82	NUT; BRKT M14	0-91110-514-0	20	1	0601-	●	●
82	NUT; BRKT M14	9-99110-414-0	22	1	9806-0512			●
82	NUT; BRKT M14	0-91110-514-0	22	1	0601-			●
86	MEMBER; CROSS,RR SUSP RR	1-53181-691-4	01	1	9806-	●	●
98	WASHER; LK,STOPPER ID=14.2	9-09150-614-0	16	1	9806-0603	●	●	●
98	WASHER; LK,STOPPER ID=14.2	0-91510-614-0	16	1	0604-	●	●	●
101	BRACKET; RR SPR,FRT	1-53353-072-1	02	1	9806-	●	●
101	BRACKET; RR SPR,FRT	1-53353-090-4	02	1	9806-			●
103	STOPPER; SUB SPR (A)	1-53356-038-1	02	1	9806-	●	●
103	STOPPER; SUB SPR (B)	1-53357-029-1	02	1	9806-	●	●
103	STOPPER; SUB SPR	1-53356-059-1	04	1	9806-			●
105	BRACKET; RR SPR,RR	1-53353-072-1	02	1	9806-	●	●
105	BRACKET; RR SPR,RR	1-53354-074-0	02	1	9806-			●
106	BOLT; BRKT M14X45	0-20801-445-0	20	1	9806-	●	●
106	BOLT; BRKT M14X45	0-20801-445-0	22	1	9806-			●
117	BOLT; STOPPER M14X45	0-20801-445-0	16	1	9806-	●	●	●
118	NUT; STOPPER M14	9-99110-414-0	16	1	9806-0512	●	●	●
118	NUT; STOPPER M14	0-91110-514-0	16	1	0601-	●	●	●
138	WASHER; LK,BRKT ID=14.2	9-09150-614-0	20	1	9806-0603	●	●
138	WASHER; LK,BRKT ID=14.2	0-91510-614-0	20	1	0604-	●	●
138	WASHER; LK,BRKT ID=14.2	9-09150-614-0	22	1	9806-0603			●
138	WASHER; LK,BRKT ID=14.2	0-91510-614-0	22	1	0604-			●
148	SPACER; C/MBR	1-53168-341-0	02	1	9806-	●	●
202	SPACER; 3RD C/MBR	1-53168-351-1	02	1	9806-	●	●
207	SPACER; 4TH C/MBR PINTLE HOOK<PP7>	1-53168-163-1	01	1	9806-		●
207	SPACER; 4TH C/MBR EXC. PINTLE HOOK<PP7>	1-53168-163-1	02	1	9806-		●
344	MEMBER; CROSS,4TH	1-53181-465-9	01	1	9806-			●
344	MEMBER; CROSS,4TH	1-53181-095-2	01	1	9806-		●
416	GUSSET; 3RD C/MBR	1-53164-214-0	01	1	9806-	●	●
416	GUSSET; 3RD C/MBR	1-53164-213-0	01	1	9806-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
