4-80 — ROAD WHEEL (#65318) — 76 parça

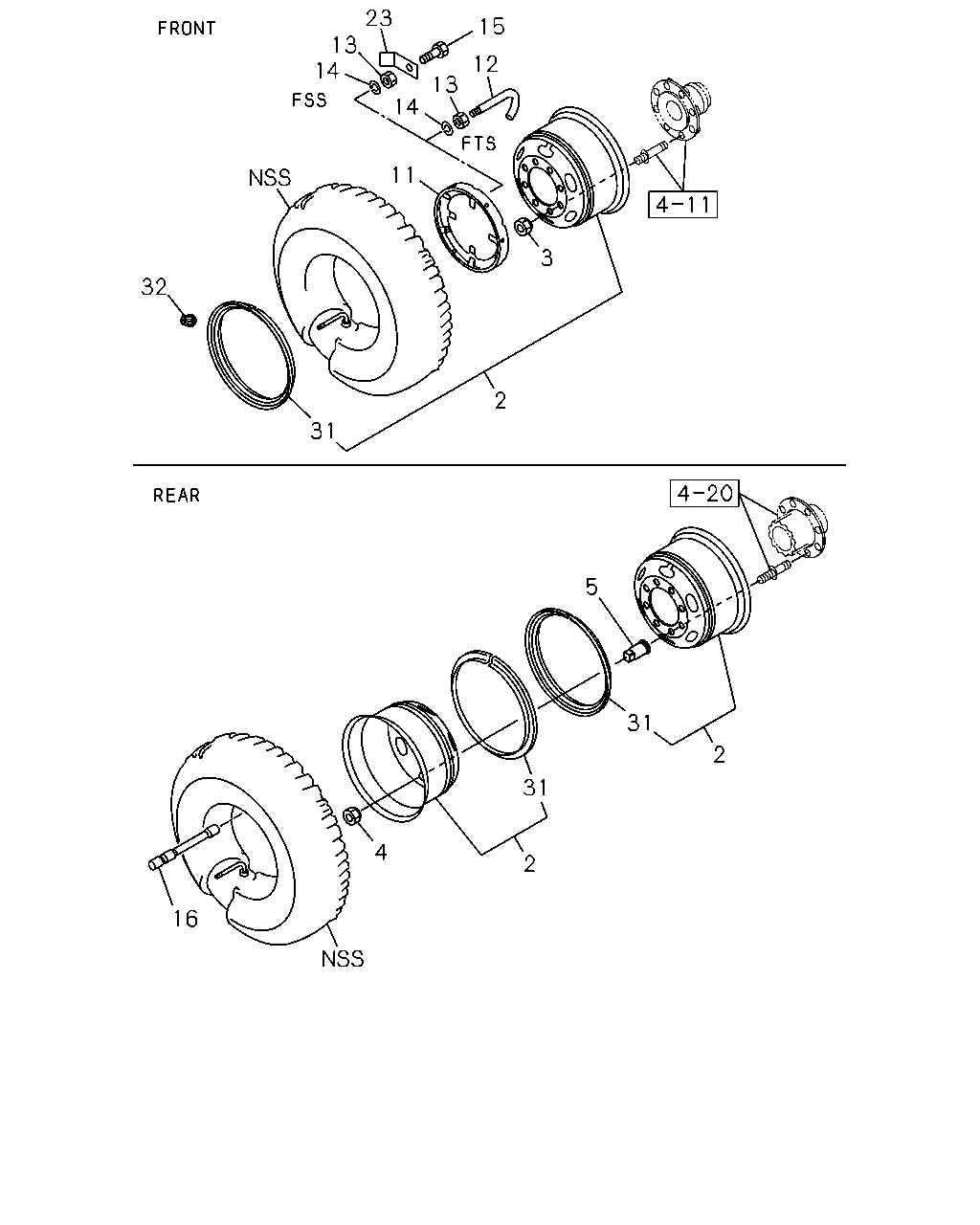

çizim 125238
23 13 14 15 12 13 14 11 3 32 2 31 5 31 2 31 4 2 16
BalonParca AdiParca NoAdetTipApplied Date A B C
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.00S 135-10(SBB) 		1-42350-197-0 01 1 9806- ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL 8STUD 20X6.00S 135-10(SBB) 		1-42350-197-0 01 1 9806- ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) 8-STUD 		1-42350-302-2 01 1 9806-0203 ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL RR<R46> 8-STUD 		1-42350-302-2 01 1 9806-0203 ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) 		1-42350-641-0 01 1 0204- ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL RR<R46> 		1-42350-641-0 01 1 0204- ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X6.00S 135-10(SBB) 		1-42350-197-0 06 1 9806- ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X6.50T 145-10(Q47) 8-STUD 		1-42350-302-2 06 1 9806-0203 ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X6.50T 145-10(Q47) 		1-42350-641-0 06 1 0204- ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42350-478-0 01 1 9806- ● ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE & DISC WHEEL RR<R46> 		1-42350-478-0 01 1 9806- ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42350-268-2 01 1 9806-0403 ● ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42350-268-2 01 1 9806-0403 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42350-268-2 01 1 0404- ● ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42350-268-2 01 1 0404- ● ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42350-478-0 06 1 9806- ● ●
2 WHEEL; DISC
EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42350-268-2 06 1 9806- ● ●
3 NUT; WHEEL,FRT AXLE
M24 LH THREAD 		1-42334-022-3 08 1 9806- ● ● ●
3 NUT; WHEEL,FRT AXLE
M24 		1-42333-022-3 08 1 9806- ● ● ●
4 NUT; WHEEL,RR AXLE
M30 LH THREAD 		1-42334-023-0 08 1 9806-0610 ● ● ●
4 NUT; WHEEL,RR AXLE
M30 LH THREAD 		8-97359-810-0 08 1 0611- ● ● ●
4 NUT; WHEEL,RR AXLE
M30 		1-42333-023-0 08 1 9806-0610 ● ● ●
4 NUT; WHEEL,RR AXLE
M30 RH THREAD 		8-97359-809-0 08 1 0611- ● ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		1-42336-005-1 08 1 9806-0610 ● ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 08 1 0611- ● ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		1-42335-005-1 08 1 9806-0610 ● ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 08 1 0611- ● ● ●
11 STEP; DISC WHEEL SIDE 1-43139-002-2 02 1 9806- ● ● ●
12 U-BOLT; STEP DISC
L=44 		9-43139-023-1 06 1 9806- ● ●
13 NUT; STEP DISC
M10 		9-09110-510-0 06 1 9806-0512 ● ● ●
13 NUT; STEP DISC
M10 		0-91110-510-0 06 1 0601- ● ● ●
14 WASHER; LK,STEP DISC
ID=10.2 		9-09150-510-0 06 1 9806-0603 ● ● ●
14 WASHER; LK,STEP DISC
ID=10.2 		0-91510-510-0 06 1 0604- ● ● ●
15 BOLT; STEP DISC
DISC WHEEL 8STUD 20X6.50T 145-10(Q47),DISC WHEEL 8STUD 20X6.00S 135-10(SBB) M10X45 		0-10806-045-0 06 1 9806- ●
16 HOLDER; TIRE VALVE,DISC WHEEL
L=115 		1-42370-015-2 02 1 9806-0210 ●
16 HOLDER; TIRE VALVE,DISC WHEEL
DISC WHEEL 8STUD 20X6.00S 135-10(SBB) L=115 		1-42370-015-2 02 1 0211-1003 ●
16 HOLDER; TIRE VALVE,DISC WHEEL
DISC WHEEL 8STUD 20X6.00S 135-10(SBB) L=115 		8-98167-051-0 02 1 1004- ●
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		1-42370-024-0 02 1 9806-0210 ● ●
23 PLATE; CLAMP,STEP DISC
DISC WHEEL 8STUD 20X6.00S 135-10(SBB) 		1-43139-020-0 06 1 9806- ●
23 PLATE; CLAMP,STEP DISC
DISC WHEEL 8STUD 20X6.50T 145-10(Q47) 		1-43139-013-0 06 1 9806- ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42355-003-1 01 1 0005- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE & DISC WHEEL RR<R46> 		1-42355-003-1 01 1 0005- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42355-003-1 06 1 0005- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.00S 135-10(SBB) 		1-42355-002-0 01 1 9806- ●
31 RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL 8STUD 20X6.00S 135-10(SBB) 		1-42355-002-0 01 1 9806- ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) 		1-42355-012-1 01 1 9806-0203 ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL RR<R46> 		1-42355-012-1 01 1 9806-0203 ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42355-012-1 01 1 9806-0203 ● ●
31 RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42355-012-1 01 1 9806-0203 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42355-012-1 01 1 0204-0204 ● ●
31 RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42355-012-1 01 1 0204-0204 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) 		1-42355-012-1 01 1 0205-0403 ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL RR<R46> 		1-42355-012-1 01 1 0205-0403 ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42355-012-1 01 1 0205-0403 ● ●
31 RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42355-012-1 01 1 0205-0403 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) 		1-42355-012-1 01 1 0404- ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL RR<R46> 		1-42355-012-1 01 1 0404- ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42355-012-1 01 1 0404- ● ●
31 RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42355-012-1 01 1 0404- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X6.00S 135-10(SBB) 		1-42355-002-0 06 1 9806- ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X6.50T 145-10(Q47) 		1-42355-012-1 06 1 9806-0203 ●
31 RING; SIDE,DISC WHEEL
EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42355-012-1 06 1 9806-0203 ● ●
31 RING; SIDE,DISC WHEEL
EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42355-012-1 06 1 0204-0204 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X6.50T 145-10(Q47) 		1-42355-012-1 06 1 0205- ●
31 RING; SIDE,DISC WHEEL
EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42355-012-1 06 1 0205- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42355-003-1 01 1 9806-0004 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE & DISC WHEEL RR<R46> 		1-42355-003-1 01 1 9806-0004 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42355-003-1 06 1 9806-0004 ● ●
32 CAP; VALVE
DISC WHEEL 8STUD 20X6.00S 135-10(SBB) EXC. SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 04 1 0211- ●
32 CAP; VALVE
EXC. SPARE TIRE & DISC WHEEL RR<R46>,DISC WHEEL 8STUD 20X6.00S 135-10(SBB) 		1-42374-001-0 06 1 0211- ●
32 CAP; VALVE
EXC. SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 06 1 0211- ● ●
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 07 1 9811-0210 ● ● ●
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL 8STUD 20X6.00S 135-10(SBB) 		1-42374-001-0 05 1 0211- ●
32 CAP; VALVE
EXC. SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 06 1 9811-0210 ● ● ●
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL 8STUD 20X6.00S 135-10(SBB) 		1-42374-001-0 07 1 0211- ●
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 07 1 0211- ● ●
