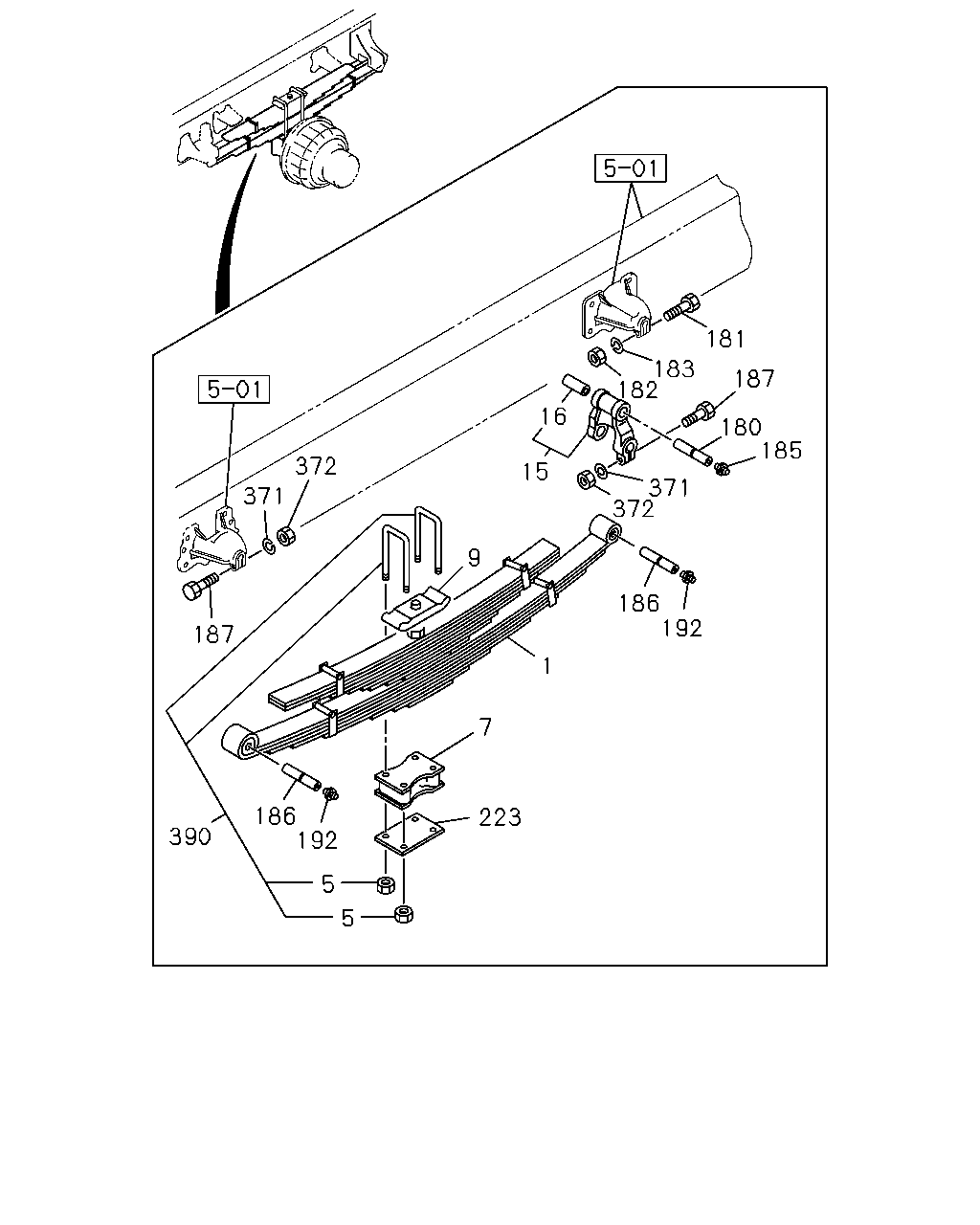

4-60 — REAR SUSPENSION (#65316) — 98 parça

181 183 182 15 16 187 371 372 180 185 372 371 9 186 192 187 1 223 186 192 7 5 390 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT.	1-51300-366-0	02	1	9806-	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT.	1-51300-358-2	02	1	9806-		●	●
5	NUT; U-BOLT,RR SPR M18 FLANGE	1-09440-039-1	08	1	9806-	●
5	NUT; U-BOLT,RR SPR M24	9-99112-824-0	08	1	9806-0512		●	●
5	NUT; U-BOLT,RR SPR M24	0-91112-824-0	08	1	0601-		●	●
7	SEAT; SPR,LWR	1-51385-086-1	02	1	9806-	●
7	SEAT; SPR,LWR	1-51385-062-2	02	1	9806-		●	●
9	PAD; U BOLT,RR SPR	1-51372-066-0	02	1	9806-	●
9	PAD; U BOLT,RR SPR	1-51372-048-1	02	1	9806-		●	●
15	SHACKLE; RR SPR	1-51362-038-2	02	1	9806-	●
15	SHACKLE; RR SPR	1-51362-049-2	02	1	9806-		●	●
16	BUSHING; SHACKLE,RR SPR ID=25	9-51151-032-0	02	1	9806-0902	●
16	BUSHING; SHACKLE,RR SPR ID=25	8-98082-176-0	02	1	0903-	●
16	BUSHING; SHACKLE,RR SPR	9-51351-019-2	02	1	9806-0902		●	●
16	BUSHING; SHACKLE,RR SPR	8-98081-830-0	02	1	0903-		●	●
16	BUSHING; SHACKLE,RR SPR BEST VALUE PARTS	1-87610-163-0	02	1	0903-		●	●
180	PIN; RR SPR DO=25 L=115 PT1/8	1-51361-016-0	02	1	9806-	●
180	PIN; RR SPR DO=28 L=131 PT1/8	1-51361-015-0	02	1	9806-		●	●
181	BOLT; SPR & SHACKLE M12X55	0-10811-255-0	02	1	9806-	●
181	BOLT; SPR & SHACKLE M14X65	0-10811-465-0	02	1	9806-		●	●
182	NUT; PIN,RR SPR M12	9-99110-512-0	02	1	9806-0512	●
182	NUT; PIN,RR SPR M12	0-91110-512-0	02	1	0601-	●
182	NUT; PIN,RR SPR M14	9-99110-414-0	02	1	9806-0512		●	●
182	NUT; PIN,RR SPR M14	0-91110-514-0	02	1	0601-		●	●
183	WASHER; LK,PIN,RR SPR ID=12.2	9-09150-612-0	02	1	9806-0603	●
183	WASHER; LK,PIN,RR SPR ID=12.2	0-91510-612-0	02	1	0604-	●
183	WASHER; LK,PIN,RR SPR ID=14.2	9-09150-514-0	02	1	9806-0603		●	●
183	WASHER; LK,PIN,RR SPR ID=14.2	0-91510-514-0	02	1	0604-		●	●
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT	9-09031-010-0	02	1	9806-0512	●	●	●
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-	●	●	●
186	PIN; SHACKLE,RR SPR DO=25 L=115 PT1/8	1-51361-016-0	04	1	9806-	●
186	PIN; SHACKLE,RR SPR DO=28 L=131 PT1/8	1-51361-015-0	04	1	9806-		●	●
187	BOLT; SPR & SHACKLE (A) M12X55	0-10811-255-0	02	1	9806-	●
187	BOLT; SPR & SHACKLE (B) M12X65	0-10811-265-0	02	1	9806-	●
187	BOLT; SPR & SHACKLE M14X65	0-10811-465-0	04	1	9806-		●	●
192	NIPPLE; GREASE,SHACKLE PIN PT1/8 STRAIGHT	9-09031-010-0	04	1	9806-0512	●	●	●
192	NIPPLE; GREASE,SHACKLE PIN PT1/8 STRAIGHT	0-90301-410-0	04	1	0601-	●	●	●
223	SPACER; U BOLT,RR SPR	1-51377-329-1	02	1	9806-	●
223	SPACER; U BOLT,RR SPR	1-51377-246-0	01	1	9806-		●	●
371	WASHER; LK,SHACKLE ID=12.2	9-09150-612-0	04	1	9806-0603	●
371	WASHER; LK,SHACKLE ID=12.2	0-91510-612-0	04	1	0604-	●
371	WASHER; LK,SHACKLE ID=14.2	9-09150-514-0	04	1	9806-0603		●	●
371	WASHER; LK,SHACKLE ID=14.2	0-91510-514-0	04	1	0604-		●	●
372	NUT; SHACKLE M12	9-99110-512-0	04	1	9806-0512	●
372	NUT; SHACKLE M12	0-91110-512-0	04	1	0601-	●
372	NUT; SHACKLE M14	9-99110-414-0	04	1	9806-0512		●	●
372	NUT; SHACKLE M14	0-91110-514-0	04	1	0601-		●	●
390	U-BOLT SET; RR SPRING L=510	1-87870-396-0	04	1	9806-	●
390	U-BOLT SET; RR SPRING L=570	1-87870-320-1	04	1	9806-		●	●

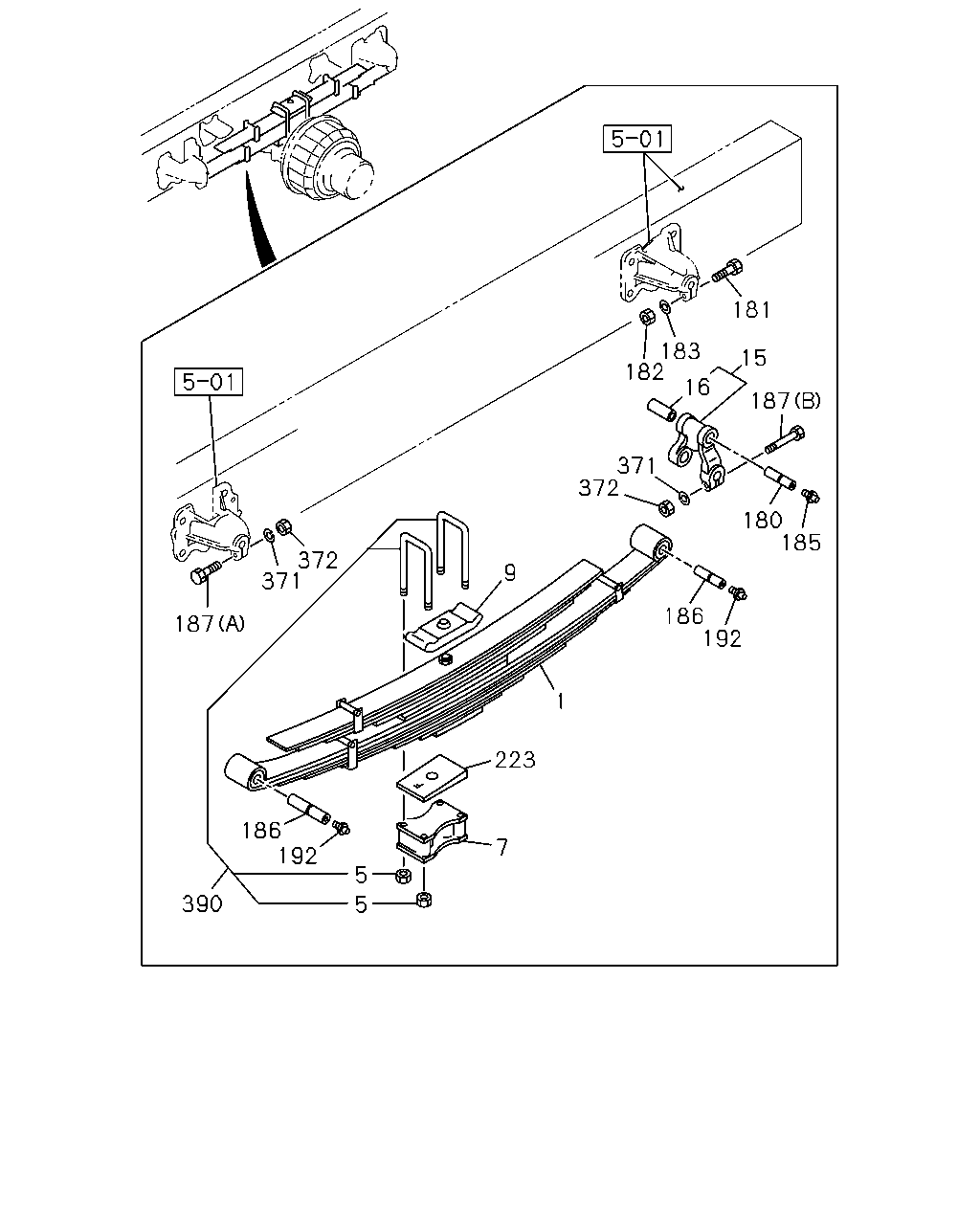

181 183 182 187 16 180 185 372 15 371 372 371 9 186 192 187 1 7 186 192 223 390 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT.	1-51300-366-0	02	1	9806-	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT.	1-51300-358-2	02	1	9806-		●	●
5	NUT; U-BOLT,RR SPR M18 FLANGE	1-09440-039-1	08	1	9806-	●
5	NUT; U-BOLT,RR SPR M24	9-99112-824-0	08	1	9806-0512		●	●
5	NUT; U-BOLT,RR SPR M24	0-91112-824-0	08	1	0601-		●	●
7	SEAT; SPR,LWR	1-51385-086-1	02	1	9806-	●
7	SEAT; SPR,LWR	1-51385-062-2	02	1	9806-		●	●
9	PAD; U BOLT,RR SPR	1-51372-066-0	02	1	9806-	●
9	PAD; U BOLT,RR SPR	1-51372-048-1	02	1	9806-		●	●
15	SHACKLE; RR SPR	1-51362-038-2	02	1	9806-	●
15	SHACKLE; RR SPR	1-51362-049-2	02	1	9806-		●	●
16	BUSHING; SHACKLE,RR SPR ID=25	9-51151-032-0	02	1	9806-0902	●
16	BUSHING; SHACKLE,RR SPR ID=25	8-98082-176-0	02	1	0903-	●
16	BUSHING; SHACKLE,RR SPR	9-51351-019-2	02	1	9806-0902		●	●
16	BUSHING; SHACKLE,RR SPR	8-98081-830-0	02	1	0903-		●	●
16	BUSHING; SHACKLE,RR SPR BEST VALUE PARTS	1-87610-163-0	02	1	0903-		●	●
180	PIN; RR SPR DO=25 L=115 PT1/8	1-51361-016-0	02	1	9806-	●
180	PIN; RR SPR DO=28 L=131 PT1/8	1-51361-015-0	02	1	9806-		●	●
181	BOLT; SPR & SHACKLE M12X55	0-10811-255-0	02	1	9806-	●
181	BOLT; SPR & SHACKLE M14X65	0-10811-465-0	02	1	9806-		●	●
182	NUT; PIN,RR SPR M12	9-99110-512-0	02	1	9806-0512	●
182	NUT; PIN,RR SPR M12	0-91110-512-0	02	1	0601-	●
182	NUT; PIN,RR SPR M14	9-99110-414-0	02	1	9806-0512		●	●
182	NUT; PIN,RR SPR M14	0-91110-514-0	02	1	0601-		●	●
183	WASHER; LK,PIN,RR SPR ID=12.2	9-09150-612-0	02	1	9806-0603	●
183	WASHER; LK,PIN,RR SPR ID=12.2	0-91510-612-0	02	1	0604-	●
183	WASHER; LK,PIN,RR SPR ID=14.2	9-09150-514-0	02	1	9806-0603		●	●
183	WASHER; LK,PIN,RR SPR ID=14.2	0-91510-514-0	02	1	0604-		●	●
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT	9-09031-010-0	02	1	9806-0512	●	●	●
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-	●	●	●
186	PIN; SHACKLE,RR SPR DO=25 L=115 PT1/8	1-51361-016-0	04	1	9806-	●
186	PIN; SHACKLE,RR SPR DO=28 L=131 PT1/8	1-51361-015-0	04	1	9806-		●	●
187	BOLT; SPR & SHACKLE (A) M12X55	0-10811-255-0	02	1	9806-	●
187	BOLT; SPR & SHACKLE (B) M12X65	0-10811-265-0	02	1	9806-	●
187	BOLT; SPR & SHACKLE M14X65	0-10811-465-0	04	1	9806-		●	●
192	NIPPLE; GREASE,SHACKLE PIN PT1/8 STRAIGHT	9-09031-010-0	04	1	9806-0512	●	●	●
192	NIPPLE; GREASE,SHACKLE PIN PT1/8 STRAIGHT	0-90301-410-0	04	1	0601-	●	●	●
223	SPACER; U BOLT,RR SPR	1-51377-329-1	02	1	9806-	●
223	SPACER; U BOLT,RR SPR	1-51377-246-0	01	1	9806-		●	●
371	WASHER; LK,SHACKLE ID=12.2	9-09150-612-0	04	1	9806-0603	●
371	WASHER; LK,SHACKLE ID=12.2	0-91510-612-0	04	1	0604-	●
371	WASHER; LK,SHACKLE ID=14.2	9-09150-514-0	04	1	9806-0603		●	●
371	WASHER; LK,SHACKLE ID=14.2	0-91510-514-0	04	1	0604-		●	●
372	NUT; SHACKLE M12	9-99110-512-0	04	1	9806-0512	●
372	NUT; SHACKLE M12	0-91110-512-0	04	1	0601-	●
372	NUT; SHACKLE M14	9-99110-414-0	04	1	9806-0512		●	●
372	NUT; SHACKLE M14	0-91110-514-0	04	1	0601-		●	●
390	U-BOLT SET; RR SPRING L=510	1-87870-396-0	04	1	9806-	●
390	U-BOLT SET; RR SPRING L=570	1-87870-320-1	04	1	9806-		●	●
