◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10717 - FSS/FTS-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#65314) — 164 parça

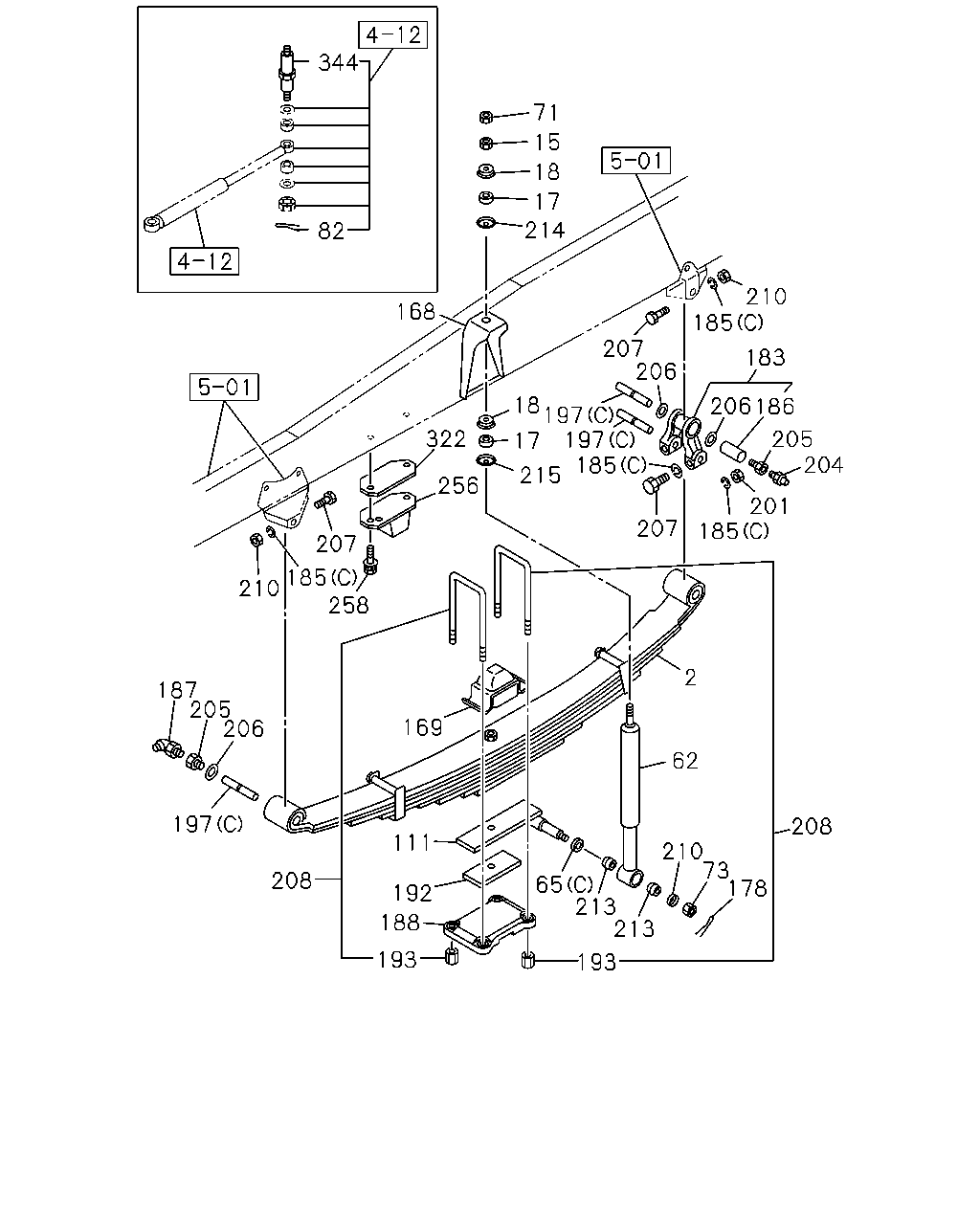

çizim 184869
344 71 15 18 17 214 82 210 185 168 207 206 183 18 197 17 197 185 322 205 204 215 256 201 185 207 207 185 210 258 2 187 205 206 169 62 197 208 111 210 73 178 208 65 213 213 192 188 193 193 206 186
BalonParca AdiParca NoAdetTipApplied Date A B C
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		1-51110-730-0 02 1 9806- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		1-51130-415-0 02 1 9806- ● ●
15 NUT; S/ABS,UPR
M12 		1-09400-006-0 02 1 9806-0910 ● ●
15 NUT; S/ABS,UPR
M12 		8-98010-412-0 02 1 0911- ● ●
17 BUSHING; RUBBER,S/ABS 9-51631-050-0 04 1 9806- ● ●
18 WASHER; CENTERING,S/ABS
ID=16.8 		1-51631-022-0 04 1 9806- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-039-2 02 1 9806- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-180-4 02 1 9806- ● ●
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		1-87610-153-0 02 1 9806-1412 ● ●
65 WASHER; S/ABS
(B) ID=12.5 		1-09503-171-0 02 1 9806- ●
65 WASHER; S/ABS
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 04 1 9806- ●
65 WASHER; S/ABS
(C) ID=23 		1-51631-019-0 02 1 9806- ● ●
71 NUT; LK,S/ABS,UPR
M12 		1-09400-006-0 02 1 9806-0910 ● ●
71 NUT; LK,S/ABS,UPR
M12 		8-98010-412-0 02 1 0911- ● ●
73 NUT; BRKT,SHOCK
M12 		9-99110-512-0 02 1 9806-0512 ●
73 NUT; BRKT,SHOCK
M12 		0-91110-512-0 02 1 0601- ●
73 NUT; BRKT,SHOCK
M16 SLOTTED 		9-99116-416-0 02 1 9806-0605 ● ●
73 NUT; BRKT,SHOCK
M16 SLOTTED 		0-91116-516-0 02 1 0606-1204 ● ●
73 NUT; BRKT,SHOCK
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ●
82 PIN; SPLIT,FRT S/ABS
OD=2.8 L=25 		9-08113-025-0 01 1 9806- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-671-1 01 1 9806- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-670-1 01 1 9806- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-743-0 01 1 9806- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-744-0 01 1 9806- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-307-1 02 1 9806- ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 9806- ● ●
169 PAD; U BOLT,FRT SPR 1-51172-106-0 02 1 9806- ● ●
178 PIN; SPLIT,S/ABS
OD=3.7 L=25 		9-08114-025-0 02 1 9806-0606 ● ●
178 PIN; SPLIT,S/ABS
OD=3.7 L=25 		0-81124-025-0 02 1 0607- ● ●
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 9806- ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 9806- ● ●
185 WASHER; LK,PIN
(A) ID=25.5 		1-09503-011-0 04 1 9806-0910 ●
185 WASHER; LK,PIN
(A) ID=25.5 		8-98010-404-0 04 1 0911- ●
185 WASHER; LK,PIN
(B) ID=23 		1-51169-003-0 02 1 9806-0910 ●
185 WASHER; LK,PIN
(B) ID=23 		8-98010-411-0 02 1 0911- ●
185 WASHER; LK,PIN
(C) ID=12.2 		9-09150-612-0 12 1 9806-0603 ● ●
185 WASHER; LK,PIN
(C) ID=12.2 		0-91510-612-0 12 1 0604- ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9806-0902 ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 0903- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9806-0512 ● ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51173-007-2 02 1 9806- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51173-038-0 02 1 9806- ● ●
192 PIECE; DIST 1-51177-218-1 01 1 9806- ●
192 PIECE; DIST 1-51177-219-0 01 1 9806- ●
192 PIECE; DIST 9-51377-038-0 01 1 9806- ● ●
193 NUT; U BOLT
M16 		1-09440-028-1 08 1 9806-0503 ●
193 NUT; U BOLT
M16 		8-94107-767-0 08 1 0504-0706 ●
193 NUT; U BOLT
M16 		8-97360-121-0 08 1 0707- ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9806-0512 ● ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0601-1206 ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207- ● ●
197 PIN; FRT SPR,FRT
(A) 		1-51161-004-3 02 1 9806-0911 ●
197 PIN; FRT SPR,FRT
(A) 		8-98060-335-0 02 1 0912- ●
197 PIN; FRT SPR,FRT
(B) 		1-51161-005-3 04 1 9806-0911 ●
197 PIN; FRT SPR,FRT
(B) 		8-98060-333-0 04 1 0912- ●
197 PIN; FRT SPR,FRT
(C) 		1-51161-031-0 06 1 9806- ● ●
201 NUT; PIN LK
M22 		9-09111-522-0 06 1 9806-0512 ●
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 0601- ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9806-0512 ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0601- ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 04 1 9806-0512 ● ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0601- ● ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 9806- ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9806- ● ●
206 WASHER; LK,SPRING PIN
PLAIN THRUST WASHER ID=32.4 		1-51169-018-0 12 1 9806- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9806-0512 ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 0601- ● ●
208 U-BOLT SET; FRT SPRING
L=273 		1-87870-295-0 04 1 9806-0004 ●
208 U-BOLT SET; FRT SPRING
L=273 		1-87870-295-0 02 1 0005-0503 ●
208 U-BOLT SET; FRT SPRING
L=273 		1-87870-450-1 02 1 0504- ●
208 U-BOLT SET; FRT SPRING
L=380 		1-87870-332-2 04 1 9806-0601 ● ●
208 U-BOLT SET; FRT SPRING
L=380 		1-87870-488-1 04 1 0602- ● ●
210 WASHER; S/ABS,OUTER
ID=17 		9-09164-516-0 02 1 9806- ●
210 WASHER; S/ABS,OUTER
ID=17 		1-51631-020-0 02 1 9806- ● ●
213 BUSHING; RUBBER,LWR 1-51631-009-1 04 1 9806- ● ●
214 WASHER; S/ABS,UPR,INNER
ID=14.5 		9-51631-051-0 02 1 9806- ● ●
215 WASHER; S/ABS,UPR,OUTER
ID=14.5 		9-51631-051-0 02 1 9806- ● ●
256 RUBBER; CUSHION,FRT SPR 1-51174-019-0 02 1 9806- ●
256 RUBBER; CUSHION,FRT SPR 1-51174-009-2 01 1 9806- ● ●
256 RUBBER; CUSHION,FRT SPR 1-51174-008-2 01 1 9806- ● ●
258 BOLT; CUSHION,WIND UP
M8X35 FLANGE 		0-28080-835-0 04 1 9806-0512 ● ●
258 BOLT; CUSHION,WIND UP
M8X35 FLANGE 		0-28050-835-0 04 1 0601- ● ●
322 PLUG; RUBBER 1-51174-017-1 02 1 9806- ● ●
344 PIN; FRT S/ABS 9-43219-034-0 01 1 9806- ● ●

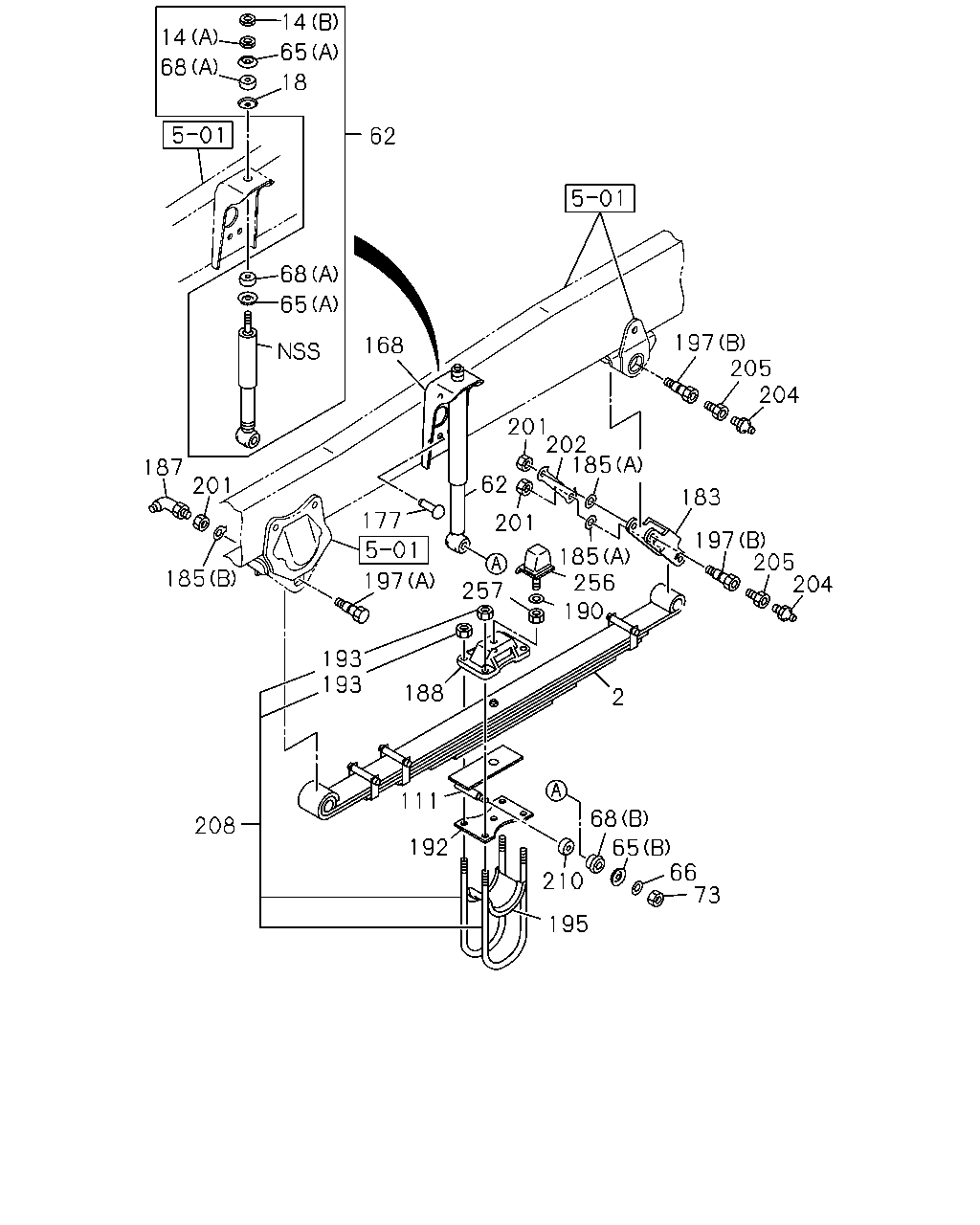

çizim 184881
14 14 65 68 18 62 68 65 197 205 204 168 201 202 185 187 201 62 183 177 201 197 205 204 185 256 190 185 197 257 193 193 188 2 111 68 208 192 65 66 73 210 195
BalonParca AdiParca NoAdetTipApplied Date A B C
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		1-51110-730-0 02 1 9806- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		1-51130-415-0 02 1 9806- ● ●
14 NUT; S/ABS,UPR
(A) M10 		9-09110-410-0 02 1 9806- ●
14 NUT; S/ABS,UPR
(B) M10 		9-09111-410-0 02 1 9806- ●
18 WASHER; CENTERING,S/ABS
ID=16.8 		1-51631-022-0 04 1 9806- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-039-2 02 1 9806- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-180-4 02 1 9806- ● ●
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		1-87610-153-0 02 1 9806-1412 ● ●
65 WASHER; S/ABS
(B) ID=12.5 		1-09503-171-0 02 1 9806- ●
65 WASHER; S/ABS
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 04 1 9806- ●
65 WASHER; S/ABS
(C) ID=23 		1-51631-019-0 02 1 9806- ● ●
66 WASHER; LK,S/ABS SETTING
ID=12.2 		9-09150-512-0 02 1 9806-0603 ●
66 WASHER; LK,S/ABS SETTING
ID=12.2 		0-91510-512-0 02 1 0604- ●
68 BUSHING; S/ABS
(A) 		1-51631-004-0 04 1 9806- ●
68 BUSHING; S/ABS
(B) 		1-51631-008-0 02 1 9806- ●
73 NUT; BRKT,SHOCK
M12 		9-99110-512-0 02 1 9806-0512 ●
73 NUT; BRKT,SHOCK
M12 		0-91110-512-0 02 1 0601- ●
73 NUT; BRKT,SHOCK
M16 SLOTTED 		9-99116-416-0 02 1 9806-0605 ● ●
73 NUT; BRKT,SHOCK
M16 SLOTTED 		0-91116-516-0 02 1 0606-1204 ● ●
73 NUT; BRKT,SHOCK
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-671-1 01 1 9806- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-670-1 01 1 9806- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-743-0 01 1 9806- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-744-0 01 1 9806- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-307-1 02 1 9806- ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 9806- ● ●
177 RIVET; BRKT,S/ABS
D11X28 PLATED TAPER END 		9-06761-128-0 04 1 9806-0607 ●
177 RIVET; BRKT,S/ABS
D11X28 PLATED TAPER END 		0-67801-128-0 04 1 0608- ●
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 9806- ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 9806- ● ●
185 WASHER; LK,PIN
(A) ID=25.5 		1-09503-011-0 04 1 9806-0910 ●
185 WASHER; LK,PIN
(A) ID=25.5 		8-98010-404-0 04 1 0911- ●
185 WASHER; LK,PIN
(B) ID=23 		1-51169-003-0 02 1 9806-0910 ●
185 WASHER; LK,PIN
(B) ID=23 		8-98010-411-0 02 1 0911- ●
185 WASHER; LK,PIN
(C) ID=12.2 		9-09150-612-0 12 1 9806-0603 ● ●
185 WASHER; LK,PIN
(C) ID=12.2 		0-91510-612-0 12 1 0604- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9806-0512 ● ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51173-007-2 02 1 9806- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51173-038-0 02 1 9806- ● ●
190 WASHER; LK,CUSHION RUBBER
ID=12.2 		9-09150-512-0 02 1 9806-0603 ●
190 WASHER; LK,CUSHION RUBBER
ID=12.2 		0-91510-512-0 02 1 0604- ●
192 PIECE; DIST 1-51177-218-1 01 1 9806- ●
192 PIECE; DIST 1-51177-219-0 01 1 9806- ●
192 PIECE; DIST 9-51377-038-0 01 1 9806- ● ●
193 NUT; U BOLT
M16 		1-09440-028-1 08 1 9806-0503 ●
193 NUT; U BOLT
M16 		8-94107-767-0 08 1 0504-0706 ●
193 NUT; U BOLT
M16 		8-97360-121-0 08 1 0707- ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9806-0512 ● ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0601-1206 ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207- ● ●
195 BRACKET; U BOLT,FRT SUSP 1-43219-020-1 01 1 9806- ●
197 PIN; FRT SPR,FRT
(A) 		1-51161-004-3 02 1 9806-0911 ●
197 PIN; FRT SPR,FRT
(A) 		8-98060-335-0 02 1 0912- ●
197 PIN; FRT SPR,FRT
(B) 		1-51161-005-3 04 1 9806-0911 ●
197 PIN; FRT SPR,FRT
(B) 		8-98060-333-0 04 1 0912- ●
197 PIN; FRT SPR,FRT
(C) 		1-51161-031-0 06 1 9806- ● ●
201 NUT; PIN LK
M22 		9-09111-522-0 06 1 9806-0512 ●
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 0601- ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9806-0512 ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0601- ● ●
202 PLATE; LK,SPR PIN 1-51169-016-0 02 1 9806-0910 ●
202 PLATE; LK,SPR PIN 8-98010-648-0 02 1 0911- ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 04 1 9806-0512 ● ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0601- ● ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 9806- ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9806- ● ●
208 U-BOLT SET; FRT SPRING
L=273 		1-87870-295-0 04 1 9806-0004 ●
208 U-BOLT SET; FRT SPRING
L=273 		1-87870-295-0 02 1 0005-0503 ●
208 U-BOLT SET; FRT SPRING
L=273 		1-87870-450-1 02 1 0504- ●
208 U-BOLT SET; FRT SPRING
L=380 		1-87870-332-2 04 1 9806-0601 ● ●
208 U-BOLT SET; FRT SPRING
L=380 		1-87870-488-1 04 1 0602- ● ●
210 WASHER; S/ABS,OUTER
ID=17 		9-09164-516-0 02 1 9806- ●
210 WASHER; S/ABS,OUTER
ID=17 		1-51631-020-0 02 1 9806- ● ●
256 RUBBER; CUSHION,FRT SPR 1-51174-019-0 02 1 9806- ●
256 RUBBER; CUSHION,FRT SPR 1-51174-009-2 01 1 9806- ● ●
256 RUBBER; CUSHION,FRT SPR 1-51174-008-2 01 1 9806- ● ●
257 NUT; CUSHION RUBBER
M12 		9-99110-512-0 02 1 9806-0512 ●
257 NUT; CUSHION RUBBER
M12 		0-91110-512-0 02 1 0601- ●
