4-40 — STEERING UNIT (#65312) — 333 parça

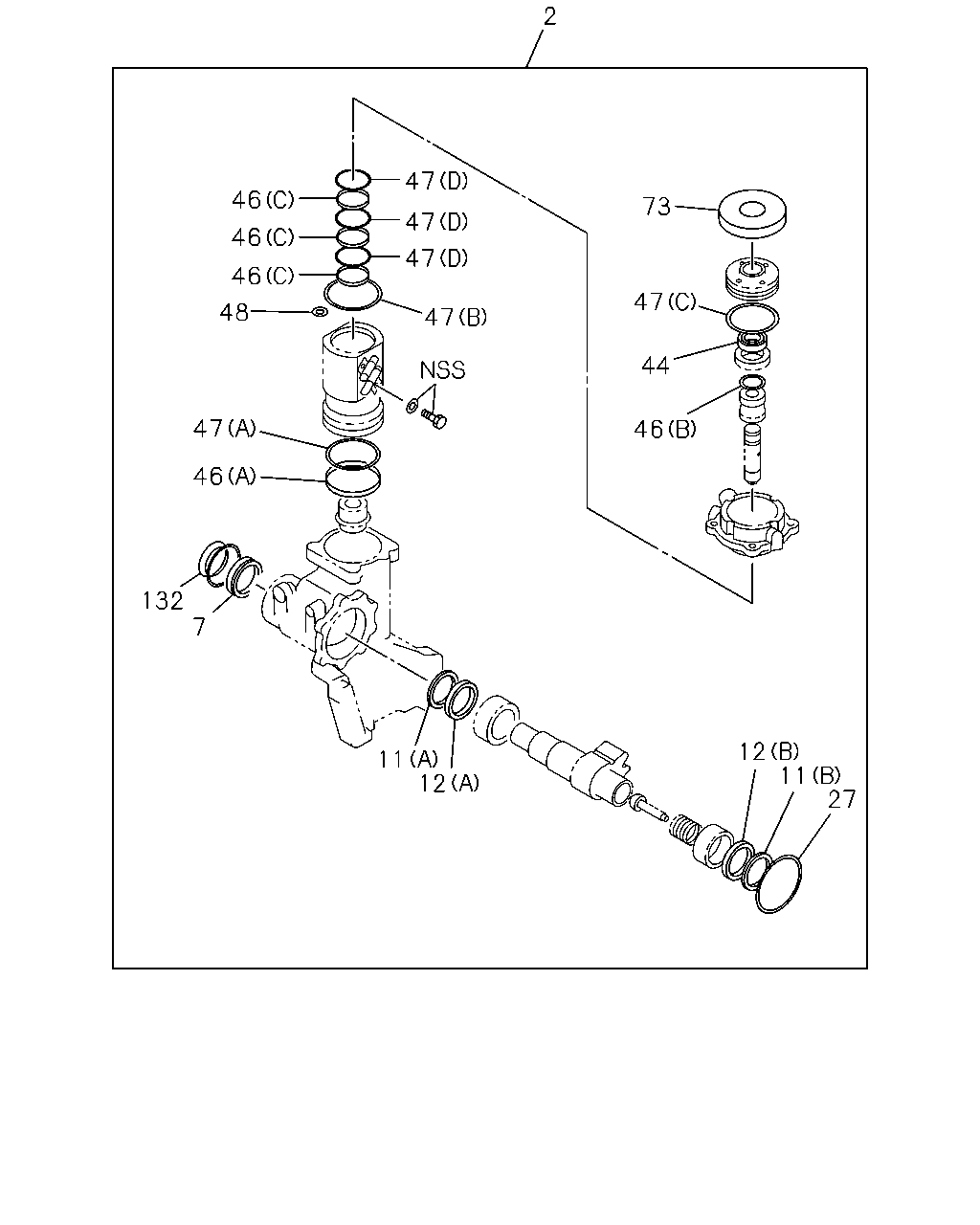

çizim 124021
2 47 46 73 47 46 47 46 47 48 47 44 47 46 46 132 7 12 11 27 11 12
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: B = 1-44000-843-5 		1-85574-030-0 01 1 -1003
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-85574-043-0 01 1 -
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: B = 1-44000-843-5 		8-98176-079-0 01 1 1004-
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44249-041-0 01 1 -1001
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-157-1 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-843-5 		8-98159-116-0 01 1 1002-
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44249-040-0 01 1 -0212
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44249-075-0 01 1 0301-
11 RING; BACKUP,STRG UNIT
(B) ASM PART: B = 1-44000-843-5 		1-44519-103-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44249-071-0 01 1 -0212
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44249-076-0 01 1 0301-
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-162-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-843-5 		1-44519-226-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44269-016-0 01 1 -0212
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44269-035-0 01 1 0301-
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-161-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-843-5 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-843-5 		1-44519-100-0 03 1 -0212
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-152-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-155-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-843-5 		1-44519-255-0 03 1 0301-
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-843-5 		1-44519-099-0 01 1 -0212
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-843-5 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-843-5 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-165-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-843-5 		1-44519-260-0 01 1 0301-
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44519-097-0 01 1 -0212
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-262-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44519-262-0 01 1 0301-
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44159-062-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44519-114-0 01 1 -1003
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-843-5 		8-98166-307-0 01 1 1004-
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44159-119-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44519-227-0 01 1 -

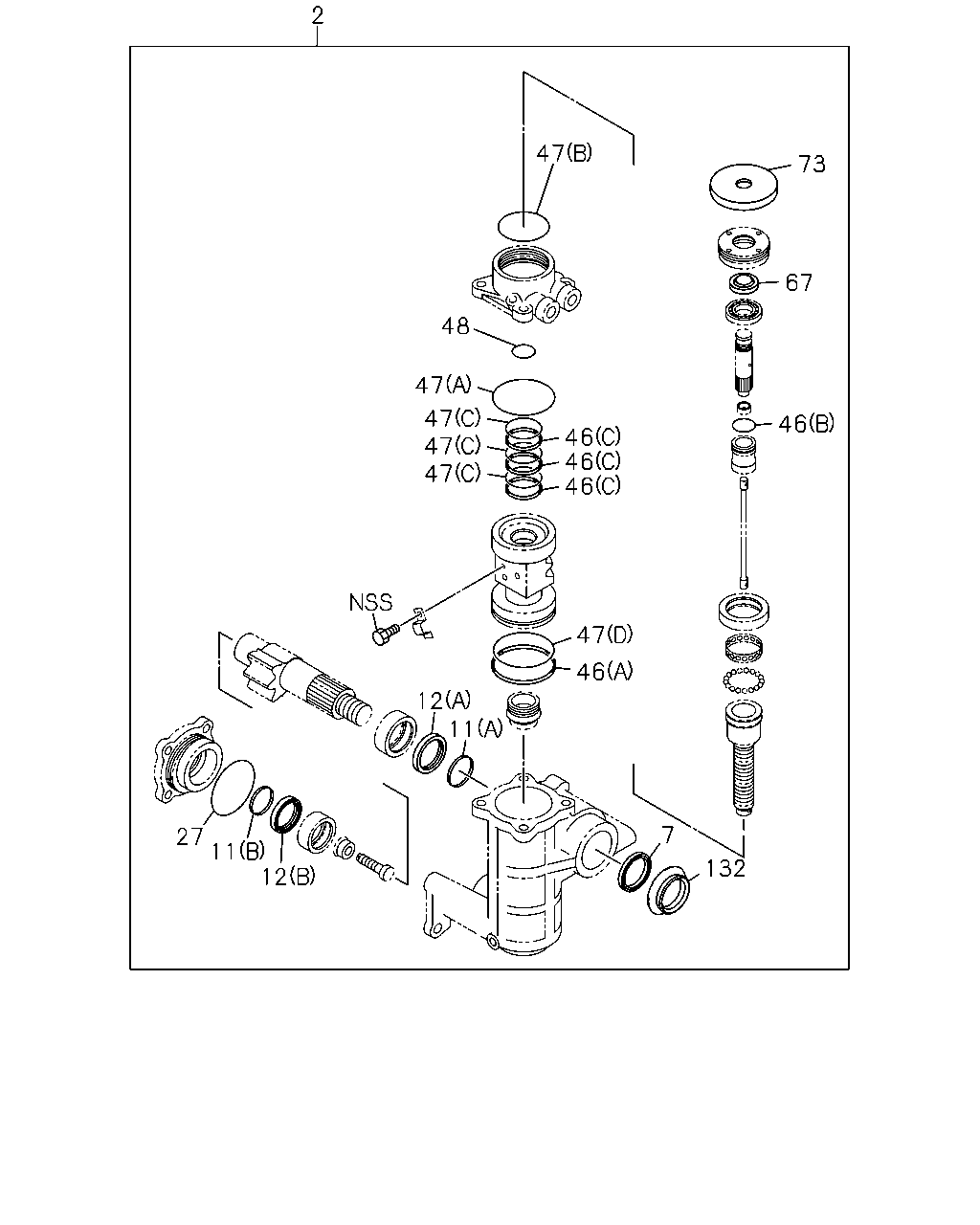

çizim 124269
2 47 73 67 48 47 47 47 47 46 46 46 46 47 46 12 11 7 27 11 12 132
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: B = 1-44000-843-5 		1-85574-030-0 01 1 -1003
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-85574-043-0 01 1 -
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: B = 1-44000-843-5 		8-98176-079-0 01 1 1004-
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44249-041-0 01 1 -1001
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-157-1 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-843-5 		8-98159-116-0 01 1 1002-
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44249-040-0 01 1 -0212
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44249-075-0 01 1 0301-
11 RING; BACKUP,STRG UNIT
(B) ASM PART: B = 1-44000-843-5 		1-44519-103-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44249-071-0 01 1 -0212
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44249-076-0 01 1 0301-
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-162-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-843-5 		1-44519-226-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44269-016-0 01 1 -0212
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44269-035-0 01 1 0301-
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-843-5 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-843-5 		1-44519-100-0 03 1 -0212
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-152-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-155-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-843-5 		1-44519-255-0 03 1 0301-
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-843-5 		1-44519-099-0 01 1 -0212
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-843-5 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-843-5 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-165-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-843-5 		1-44519-260-0 01 1 0301-
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44519-097-0 01 1 -0212
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-262-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44519-262-0 01 1 0301-
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44259-057-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44159-062-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44519-114-0 01 1 -1003
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-843-5 		8-98166-307-0 01 1 1004-
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44159-119-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44519-227-0 01 1 -
çizim 184867
73 72 58 47 67 56 52 77 75 50 48 46 47 77 35 75 42 47 46 46 46 47 47 54 14 47 46 8 13 30 11 27 12 11 12 9 32 7 132 22 24 19 23 9
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44249-041-0 01 1 -1001
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-157-1 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-843-5 		8-98159-116-0 01 1 1002-
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-842-2 		1-44240-108-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44240-112-0 01 1 -1001
8 BOX ASM; STRG UNIT
ASM PART: C = 1-44000-887-2 		1-44240-130-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-843-5 		8-98159-756-0 01 1 1002-
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-842-2, B = 1-44000-843-5, C = 1-44000-887-2 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44249-040-0 01 1 -0212
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44249-075-0 01 1 0301-
11 RING; BACKUP,STRG UNIT
(B) ASM PART: B = 1-44000-843-5 		1-44519-103-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44249-071-0 01 1 -0212
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44249-076-0 01 1 0301-
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-162-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-843-5 		1-44519-226-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44249-038-0 01 1 -1001
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-842-2 		1-44519-160-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44321-022-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44321-029-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44260-008-0 01 1 -0212
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-842-2 		1-44260-015-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44260-019-0 01 1 0301-1001
19 COVER; SIDE STRG UNIT
ASM PART: C = 1-44000-887-2 		1-44260-027-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-843-5 		8-98159-763-0 01 1 1002-
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44519-105-0 01 1 -1001
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-842-2 		1-44519-164-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44277-003-1 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44277-006-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44279-011-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44279-015-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44269-016-0 01 1 -0212
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44269-035-0 01 1 0301-
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-161-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44279-012-0 08 1 -
30 BOLT; COVER STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44569-103-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44269-007-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		9-99110-512-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44150-056-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44150-070-1 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44560-071-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44560-082-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-843-5 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-843-5 		1-44519-100-0 03 1 -0212
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-152-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-155-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-843-5 		1-44519-255-0 03 1 0301-
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-843-5 		1-44519-099-0 01 1 -0212
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-843-5 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-843-5 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-165-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-843-5 		1-44519-260-0 01 1 0301-
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44519-097-0 01 1 -0212
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-262-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44519-262-0 01 1 0301-
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44560-070-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44560-083-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-842-2, B = 1-44000-843-5, C = 1-44000-887-2 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44241-088-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44241-127-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44250-006-1 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44250-007-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44259-029-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44259-058-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44259-057-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44259-017-0 04 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-110-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44159-062-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44519-114-0 01 1 -1003
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-843-5 		8-98166-307-0 01 1 1004-
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-842-2, B = 1-44000-843-5, C = 1-44000-887-2 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-842-2, B = 1-44000-843-5, C = 1-44000-887-2 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-842-2, B = 1-44000-843-5, C = 1-44000-887-2 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44159-119-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44519-227-0 01 1 -

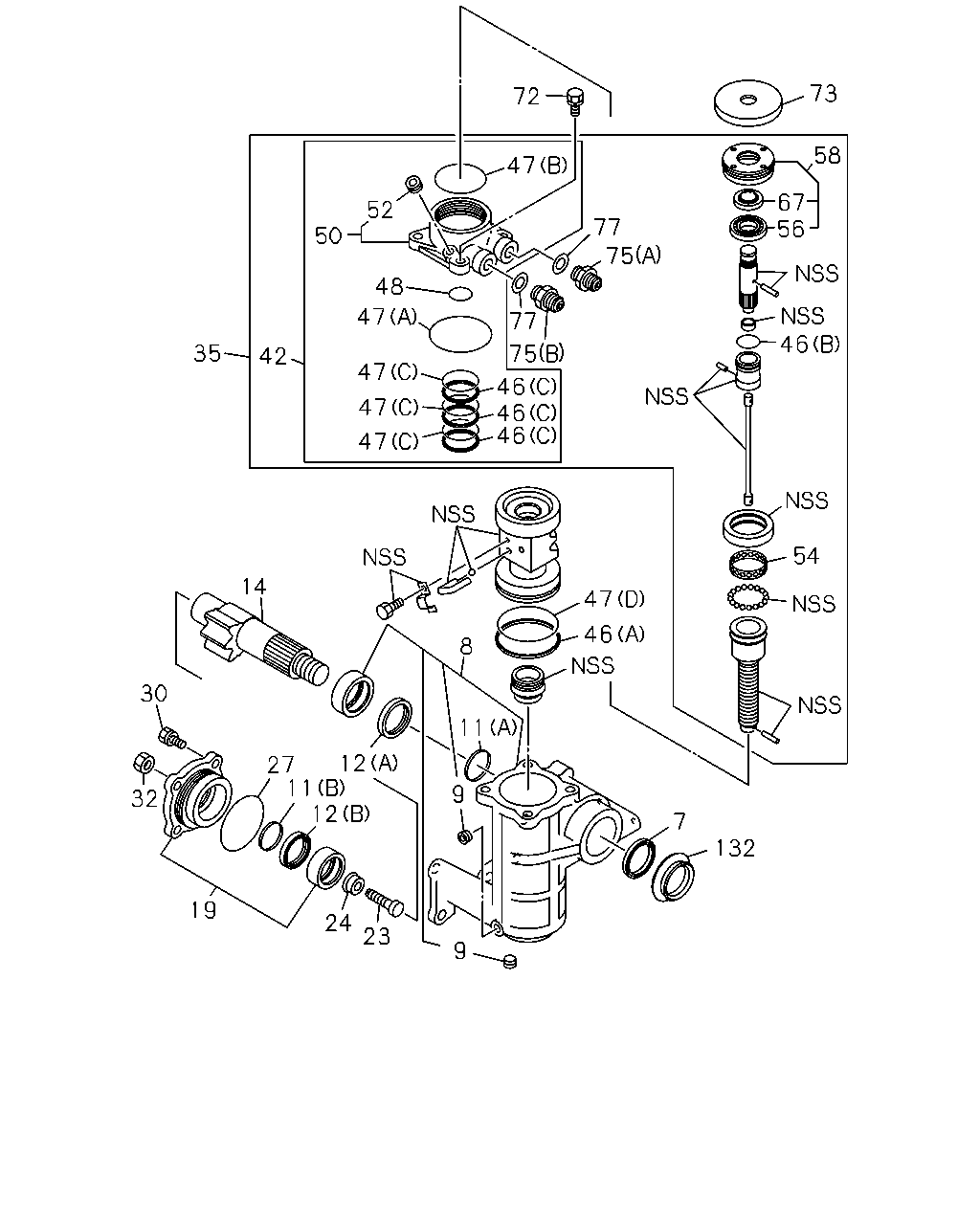

çizim 184876
73 72 58 47 67 56 52 77 75 50 48 46 47 77 35 75 42 47 46 46 46 47 47 54 14 47 46 8 30 11 27 12 11 12 9 32 7 132 19 24 23 9
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44249-041-0 01 1 -1001
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-157-1 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-843-5 		8-98159-116-0 01 1 1002-
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-842-2 		1-44240-108-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44240-112-0 01 1 -1001
8 BOX ASM; STRG UNIT
ASM PART: C = 1-44000-887-2 		1-44240-130-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-843-5 		8-98159-756-0 01 1 1002-
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-842-2, B = 1-44000-843-5, C = 1-44000-887-2 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44249-040-0 01 1 -0212
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44249-075-0 01 1 0301-
11 RING; BACKUP,STRG UNIT
(B) ASM PART: B = 1-44000-843-5 		1-44519-103-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44249-071-0 01 1 -0212
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44249-076-0 01 1 0301-
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-162-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-843-5 		1-44519-226-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44321-022-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44321-029-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44260-008-0 01 1 -0212
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-842-2 		1-44260-015-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44260-019-0 01 1 0301-1001
19 COVER; SIDE STRG UNIT
ASM PART: C = 1-44000-887-2 		1-44260-027-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-843-5 		8-98159-763-0 01 1 1002-
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44277-003-1 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44277-006-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44279-011-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44279-015-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44269-016-0 01 1 -0212
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44269-035-0 01 1 0301-
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-161-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44279-012-0 08 1 -
30 BOLT; COVER STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44569-103-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44269-007-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		9-99110-512-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44150-056-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44150-070-1 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44560-071-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44560-082-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-843-5 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-843-5 		1-44519-100-0 03 1 -0212
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-152-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-155-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-843-5 		1-44519-255-0 03 1 0301-
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-843-5 		1-44519-099-0 01 1 -0212
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-843-5 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-843-5 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-165-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-843-5 		1-44519-260-0 01 1 0301-
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44519-097-0 01 1 -0212
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-262-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44519-262-0 01 1 0301-
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44560-070-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44560-083-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-842-2, B = 1-44000-843-5, C = 1-44000-887-2 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44241-088-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44241-127-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44250-006-1 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44250-007-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44259-029-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44259-058-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44259-057-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44259-017-0 04 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-110-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44159-062-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44519-114-0 01 1 -1003
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-843-5 		8-98166-307-0 01 1 1004-
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-842-2, B = 1-44000-843-5, C = 1-44000-887-2 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-842-2, B = 1-44000-843-5, C = 1-44000-887-2 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-842-2, B = 1-44000-843-5, C = 1-44000-887-2 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44159-119-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44519-227-0 01 1 -

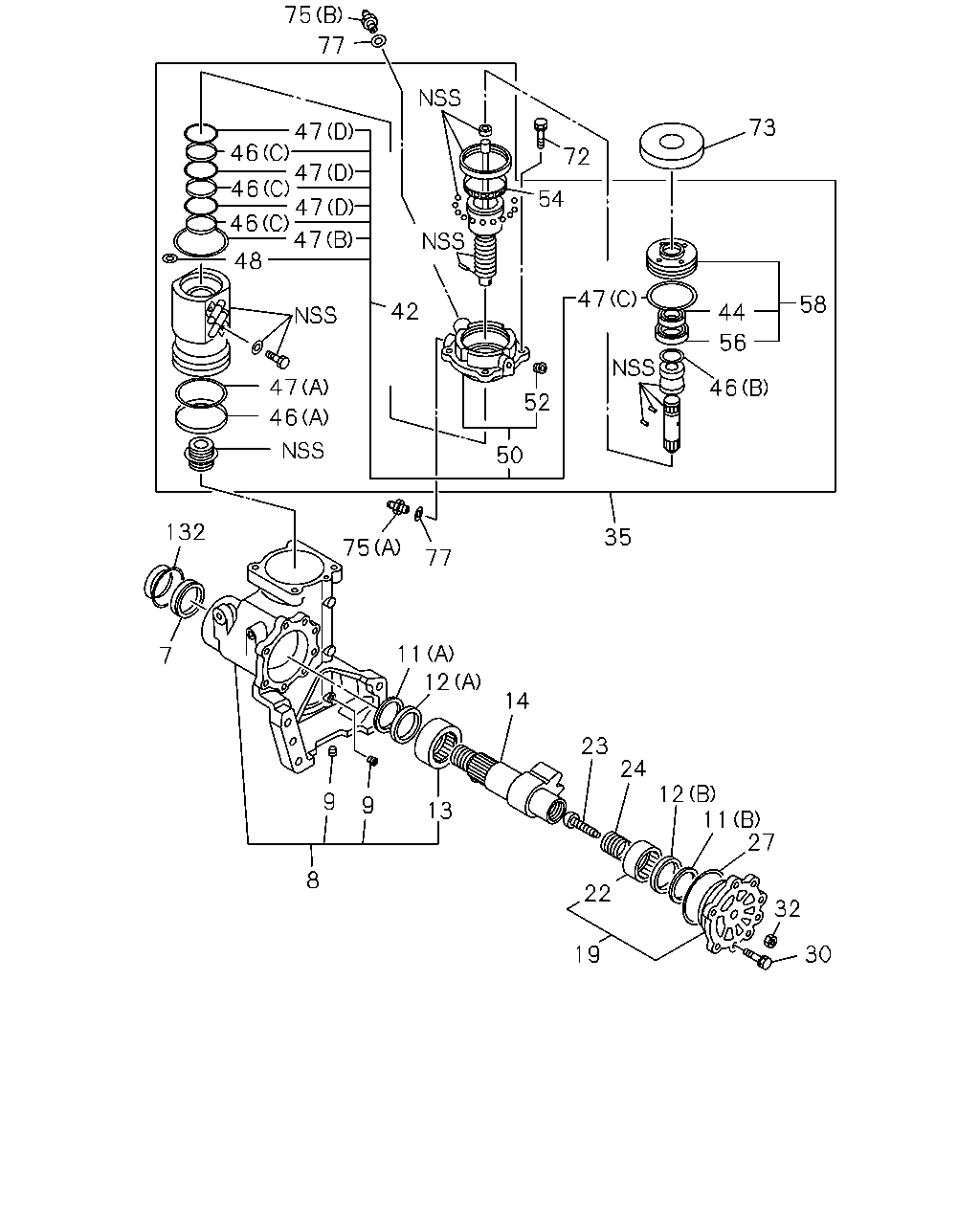

çizim 184878
75 77 73 47 46 47 46 47 46 47 72 54 48 47 58 42 44 56 47 46 52 46 50 132 35 75 77 11 12 7 14 23 24 12 11 27 9 9 13 8 32 22 30 19
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44249-041-0 01 1 -1001
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-157-1 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-843-5 		8-98159-116-0 01 1 1002-
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-842-2 		1-44240-108-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44240-112-0 01 1 -1001
8 BOX ASM; STRG UNIT
ASM PART: C = 1-44000-887-2 		1-44240-130-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-843-5 		8-98159-756-0 01 1 1002-
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-842-2, B = 1-44000-843-5, C = 1-44000-887-2 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44249-040-0 01 1 -0212
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44249-075-0 01 1 0301-
11 RING; BACKUP,STRG UNIT
(B) ASM PART: B = 1-44000-843-5 		1-44519-103-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44249-071-0 01 1 -0212
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44249-076-0 01 1 0301-
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-162-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-843-5 		1-44519-226-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44249-038-0 01 1 -1001
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-842-2 		1-44519-160-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44321-022-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44321-029-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44260-008-0 01 1 -0212
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-842-2 		1-44260-015-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44260-019-0 01 1 0301-1001
19 COVER; SIDE STRG UNIT
ASM PART: C = 1-44000-887-2 		1-44260-027-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-843-5 		8-98159-763-0 01 1 1002-
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44519-105-0 01 1 -1001
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-842-2 		1-44519-164-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44277-003-1 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44277-006-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44279-011-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44279-015-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44269-016-0 01 1 -0212
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44269-035-0 01 1 0301-
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-161-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44279-012-0 08 1 -
30 BOLT; COVER STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44569-103-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44269-007-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		9-99110-512-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44150-056-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44150-070-1 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44560-071-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44560-082-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-843-5 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-843-5 		1-44519-100-0 03 1 -0212
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-152-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-155-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-843-5 		1-44519-255-0 03 1 0301-
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-843-5 		1-44519-099-0 01 1 -0212
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-843-5 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-843-5 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-165-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-843-5 		1-44519-260-0 01 1 0301-
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44519-097-0 01 1 -0212
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-262-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44519-262-0 01 1 0301-
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44560-070-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44560-083-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-842-2, B = 1-44000-843-5, C = 1-44000-887-2 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44241-088-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44241-127-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44250-006-1 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44250-007-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44259-029-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44259-058-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44259-017-0 04 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-110-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44159-062-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44519-114-0 01 1 -1003
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-843-5 		8-98166-307-0 01 1 1004-
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-842-2, B = 1-44000-843-5, C = 1-44000-887-2 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-842-2, B = 1-44000-843-5, C = 1-44000-887-2 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-842-2, B = 1-44000-843-5, C = 1-44000-887-2 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44159-119-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44519-227-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
