◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10717 - FSS/FTS-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-33 - STEERING LINKAGE ▶
4-33 — STEERING LINKAGE (#65309) — 32 parça

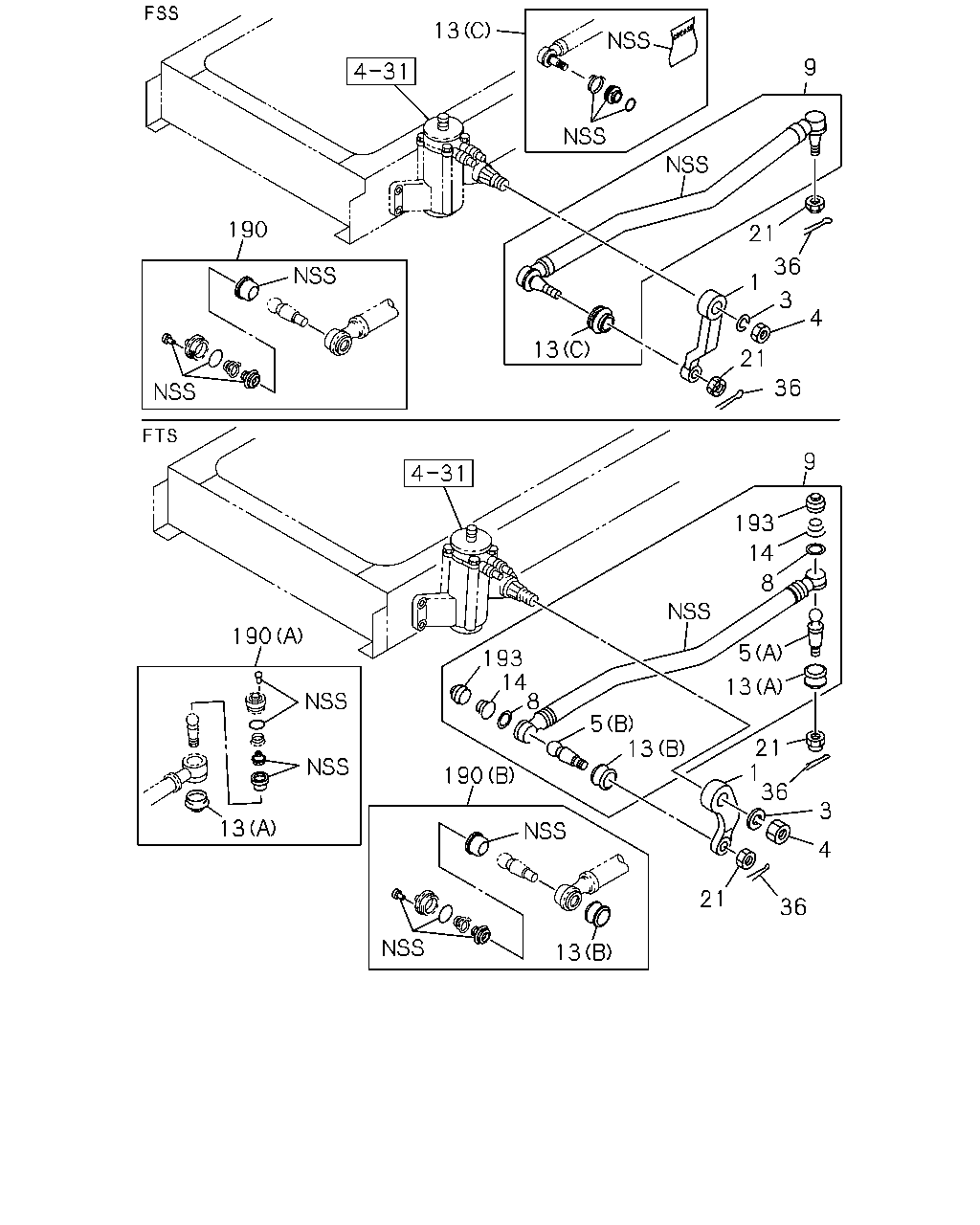

çizim 123778
13 9 190 21 36 1 3 4 13 21 36 9 193 14 8 5 13 190 193 14 8 5 13 21 1 36 3 4 36 21 190 13 13
BalonParca AdiParca NoAdetTipApplied Date A B C
1 ARM; PITMAN,STRG 1-44341-459-0 01 1 9806-0211 ●
1 ARM; PITMAN,STRG 1-44341-482-1 01 1 0212- ●
1 ARM; PITMAN,STRG 1-44341-460-1 01 1 9806- ● ●
3 WASHER; LK,PITMAN ARM
ID=30.5 		1-09500-026-0 01 1 9806-0805 ●
3 WASHER; LK,PITMAN ARM
ID=30.5 		1-09500-055-0 01 1 0806- ●
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-021-0 01 1 9806- ● ●
4 NUT; PITMAN ARM
M30 		1-09400-050-0 01 1 9806-0805 ●
4 NUT; PITMAN ARM
M30 		1-09400-166-0 01 1 0806- ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-013-0 01 1 9806-0805 ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-098-0 01 1 0806- ● ●
5 BALL; JOINT,DRAG LINK
(A) 		1-44361-098-0 01 1 9806- ● ●
5 BALL; JOINT,DRAG LINK
(B) 		1-44361-105-1 01 1 9806- ● ●
8 SEAT; SPR,ROD END 1-43159-075-0 02 1 9806- ● ●
9 LINK; DRAG 1-44380-195-0 01 1 9806-0109 ●
9 LINK; DRAG 1-44380-270-0 01 1 0110- ●
9 LINK; DRAG 1-44380-196-2 01 1 9806- ● ●
13 BOOT; DRAG LINK
(C) 		1-85574-063-0 02 1 9806- ●
13 BOOT; DRAG LINK
(A) 		1-43159-078-0 01 1 9806- ● ●
13 BOOT; DRAG LINK
(B) 		1-43159-081-0 01 1 9806- ● ●
14 SPRING; COIL,DRAG LINK 1-43159-074-0 02 1 9806- ● ●
21 NUT; LK,JOINT BALL
M16 SLOTTED 		1-09442-021-1 02 1 9806-0805 ●
21 NUT; LK,JOINT BALL
M16 SLOTTED 		1-09442-031-0 02 1 0806- ●
21 NUT; LK,JOINT BALL
M24 SLOTTED 		1-09442-020-0 02 1 9806-0805 ● ●
21 NUT; LK,JOINT BALL
M24 		1-09442-032-0 02 1 0806- ● ●
36 PIN; SPLIT,DRAG LINK
OD=3.7 L=25 		9-08114-025-0 02 1 9806-0606 ●
36 PIN; SPLIT,DRAG LINK
OD=3.7 L=25 		0-81124-025-0 02 1 0607- ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		9-08115-035-0 02 1 9806-0606 ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		0-81125-035-0 02 1 0607- ● ●
190 REPAIR KIT; DRAG LINK 1-85574-062-0 02 1 9806-0109 ●
190 REPAIR KIT; DRAG LINK
(B) 		1-85574-040-0 01 1 9806- ● ●
190 REPAIR KIT; DRAG LINK
(A) 		1-85574-041-0 01 1 9806- ● ●
193 PLUG; END,DRAG LINK 1-43159-093-0 02 1 9806- ● ●
