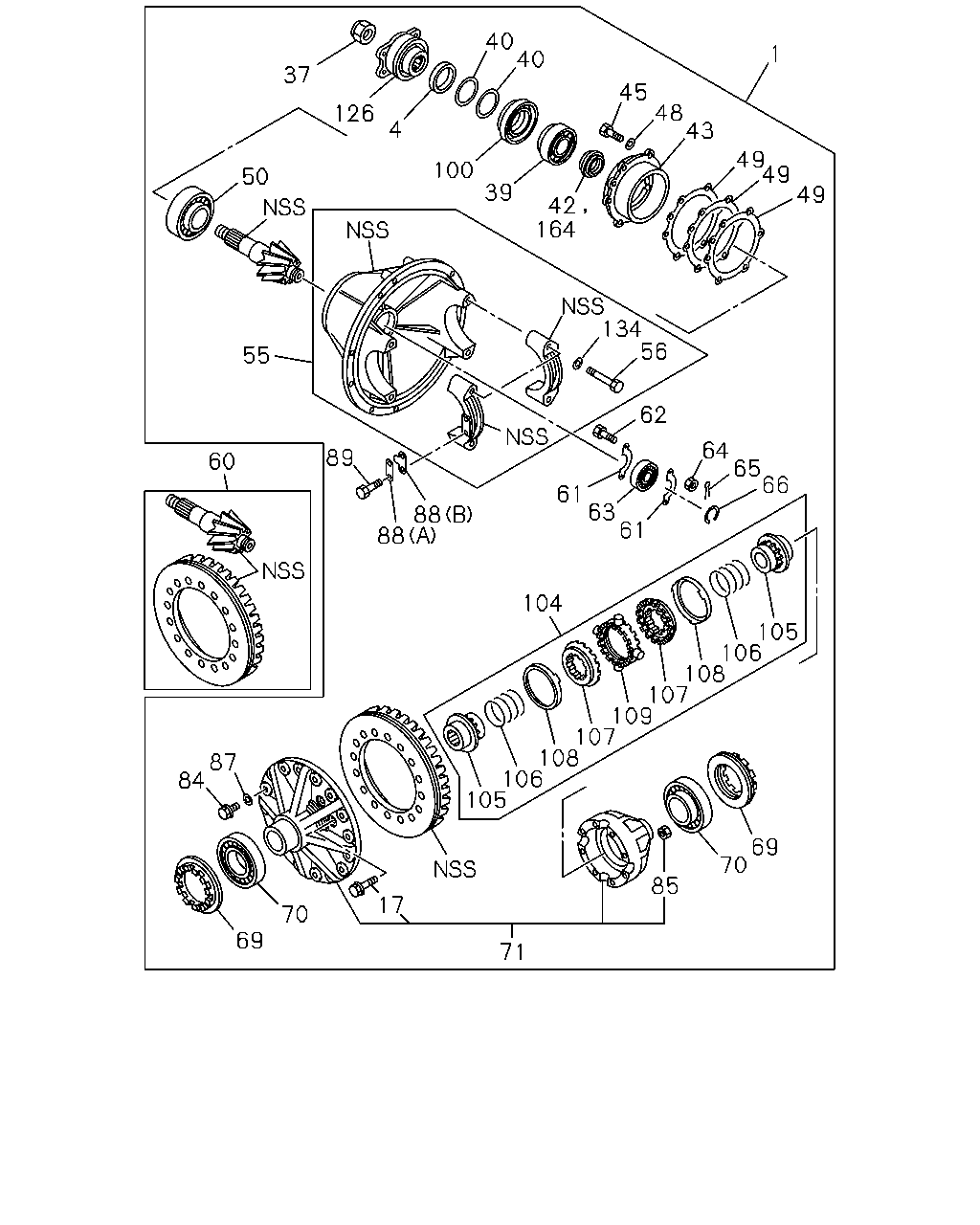

4-25 — REAR FINAL DRIVE (#65306) — 319 parça

40 40 1 37 45 48 43 126 4 49 49 49 100 50 39 42 164 134 56 55 62 64 65 66 89 60 61 63 61 88 88 104 105 106 108 107 109 107 108 106 105 87 84 69 70 85 17 70 69 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> 39/7	1-41000-922-0	01	1	9806-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> 39/7	1-41000-620-0	01	1	9806-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> 39/6	1-41001-340-0	01	1	9806-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> 39/6	1-41001-311-0	01	1	9806-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> 39/7	1-41001-338-0	01	1	9806-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> 39/7	1-41001-276-0	01	1	9806-			●
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	9806-	●
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	9806-0208		●	●
4	GASKET; FLANGE,FINAL PINION ID=42	9-09921-116-0	01	1	0209-		●	●
17	BOLT; DIFF CAGE SETTING M14X121 FLANGE	1-09044-006-0	04	1	9806-	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	9806-	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	9806-		●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-058-2	01	1	9806-0804	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-083-0	01	1	0805-	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	9806-		●	●
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1001-	●
39	BEARING; FINAL PINION NSK	1-09812-026-0	01	1	9806-1001	●
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1002-	●
39	BEARING; FINAL PINION JTEKT	1-09812-218-0	01	1	9806-		●	●
40	SHIM; FINAL PINION T=1.60	1-41229-179-0	AR	1	9806-	●
40	SHIM; FINAL PINION T=1.61	1-41229-180-0	AR	1	9806-	●
40	SHIM; FINAL PINION T=1.62	1-41229-181-0	AR	1	9806-	●
40	SHIM; FINAL PINION T=1.63	1-41229-182-0	AR	1	9806-	●
40	SHIM; FINAL PINION T=1.64	1-41229-183-0	AR	1	9806-	●
40	SHIM; FINAL PINION T=1.65	1-41229-184-0	AR	1	9806-	●
40	SHIM; FINAL PINION T=1.66	1-41229-185-0	AR	1	9806-	●
40	SHIM; FINAL PINION T=1.67	1-41229-186-0	AR	1	9806-	●
40	SHIM; FINAL PINION T=1.68	1-41229-187-0	AR	1	9806-	●
40	SHIM; FINAL PINION T=1.69	1-41229-188-0	AR	1	9806-	●
40	SHIM; FINAL PINION T=1.70	1-41229-189-0	AR	1	9806-	●
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	9806-		●	●
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	9806-		●	●
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	9806-		●	●
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	9806-		●	●
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	9806-		●	●
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	9806-		●	●
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	9806-		●	●
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	9806-		●	●
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	9806-		●	●
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	9806-		●	●
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	9806-		●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	9806-		●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	9806-		●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	9806-		●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	9806-		●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	9806-		●	●
43	CAGE; FINAL PINION	1-41151-027-0	01	1	9806-	●
43	CAGE; FINAL PINION	1-41151-028-1	01	1	9806-		●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	9806-	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	9806-		●	●
48	WASHER; LK,FINAL PINION ID=12.2	9-09150-512-0	06	1	9806-0603	●
48	WASHER; LK,FINAL PINION ID=12.2	0-91510-512-0	06	1	0604-	●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	9806-0603		●	●
48	WASHER; LK,FINAL PINION ID=14.2	0-91510-514-0	08	1	0604-		●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	9806-	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	9806-	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	9806-	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	9806-	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	9806-		●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	9806-		●	●
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	9806-		●	●
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	9806-		●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0612-	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	9806-	●	●	●
55	CARRIER; DIFF	1-41110-048-1	01	1	9806-1006	●
55	CARRIER; DIFF	1-41110-129-0	01	1	1007-	●
55	CARRIER; DIFF	1-41110-052-0	01	1	9806-		●	●
56	BOLT; BRG CAP M16X100	9-91661-600-0	04	1	9806-0104	●
56	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	0105-	●
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	9806-		●	●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-391-2	01	1	9806-	●
60	GEAR SET; FINAL DRIVE,RR 39/6	1-41210-276-3	01	1	9806-		●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-280-3	01	1	9806-			●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	9806-	●	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-034-0	02	1	9806-0804	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-046-0	02	1	0805-	●
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	9806-		●	●
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	9806-	●
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	9806-	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	9806-		●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	9806-		●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	9806-0512	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9806-0805	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	0806-	●	●	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-066-1	01	1	9806-1109	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-214-0	01	1	1110-	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	9806-		●	●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	9806-	●
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	9806-	●
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	9806-		●	●
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	9806-		●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	9806-	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	9806-	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	9911-	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-063-1	01	1	9911-0704	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	0705-	●
70	BEARING; DIFF CAGE NACHI ID=80 OD=140 T=35.3	1-09812-144-0	02	1	9806-0911		●	●
70	BEARING; DIFF CAGE NACHI	1-09812-151-0	02	1	0912-		●	●
70	BEARING; DIFF CAGE JTEKT ID=80 OD=140 T=35.3	1-09812-145-0	02	1	9806-0911		●	●
70	BEARING; DIFF CAGE NSK ID=80 OD=140 T=35.3	1-09812-146-0	02	1	9806-1002		●	●
70	BEARING; DIFF CAGE NSK	1-09812-150-0	02	1	1003-		●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-112-0	01	1	9806-1006	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-343-0	01	1	1007-	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	9806-		●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	9806-	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	9806-		●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	9806-	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	9806-		●	●
87	WASHER; LK ID=16.2	9-09150-516-0	04	1	9806-0104		●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	9-41124-015-0	02	1	9806-	●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	9806-	●	●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	9806-		●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9806-0512	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0601-	●	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-432-0	01	1	9806-9908	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	9909-	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	9806-	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	9806-		●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2<G86>	1-41530-020-1	01	1	9806-	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2<G86>	1-41530-032-0	01	1	9806-		●	●
105	GEAR; SIDE LIMITED SLIP DIFF VAR2<G86>	1-41539-019-1	02	1	9806-	●
105	GEAR; SIDE LIMITED SLIP DIFF VAR2<G86>	1-41561-083-0	02	1	9806-		●	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2<G86>	1-41539-006-0	02	1	9806-	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2<G86>	1-09580-314-0	02	1	9806-		●	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2<G86>	1-41539-003-0	02	1	9806-	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2<G86>	1-41532-003-0	02	1	9806-		●	●
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86>	1-41539-004-0	02	1	9806-	●
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86>	1-41539-032-0	02	1	9806-		●	●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86>	1-41539-014-0	01	1	9806-	●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86>	1-41521-034-0	01	1	9806-		●	●
126	COUPLING; DRIVING PINION	1-37245-069-6	01	1	9806-	●
126	COUPLING; DRIVING PINION	1-37245-215-3	01	1	9806-0208		●	●
126	COUPLING; DRIVING PINION	1-37245-388-0	01	1	0209-		●	●
134	WASHER; LK,BRG CAP ID=16.2	9-09150-516-0	04	1	9806-0104	●
134	WASHER; LK,BRG CAP ID=18.2	9-09150-518-0	04	1	9806-0603		●	●
134	WASHER; LK,BRG CAP ID=18.2	0-91510-518-0	04	1	0604-		●	●
164	COLLAR; DIST,PINION T=10.7	1-36355-031-0	01	1	9806-	●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	9806-	●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	9806-	●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	9806-	●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	9806-	●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	9806-	●
164	COLLAR; DIST,PINION T=11.9	1-36355-043-0	01	1	9806-	●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	9806-	●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	9806-	●

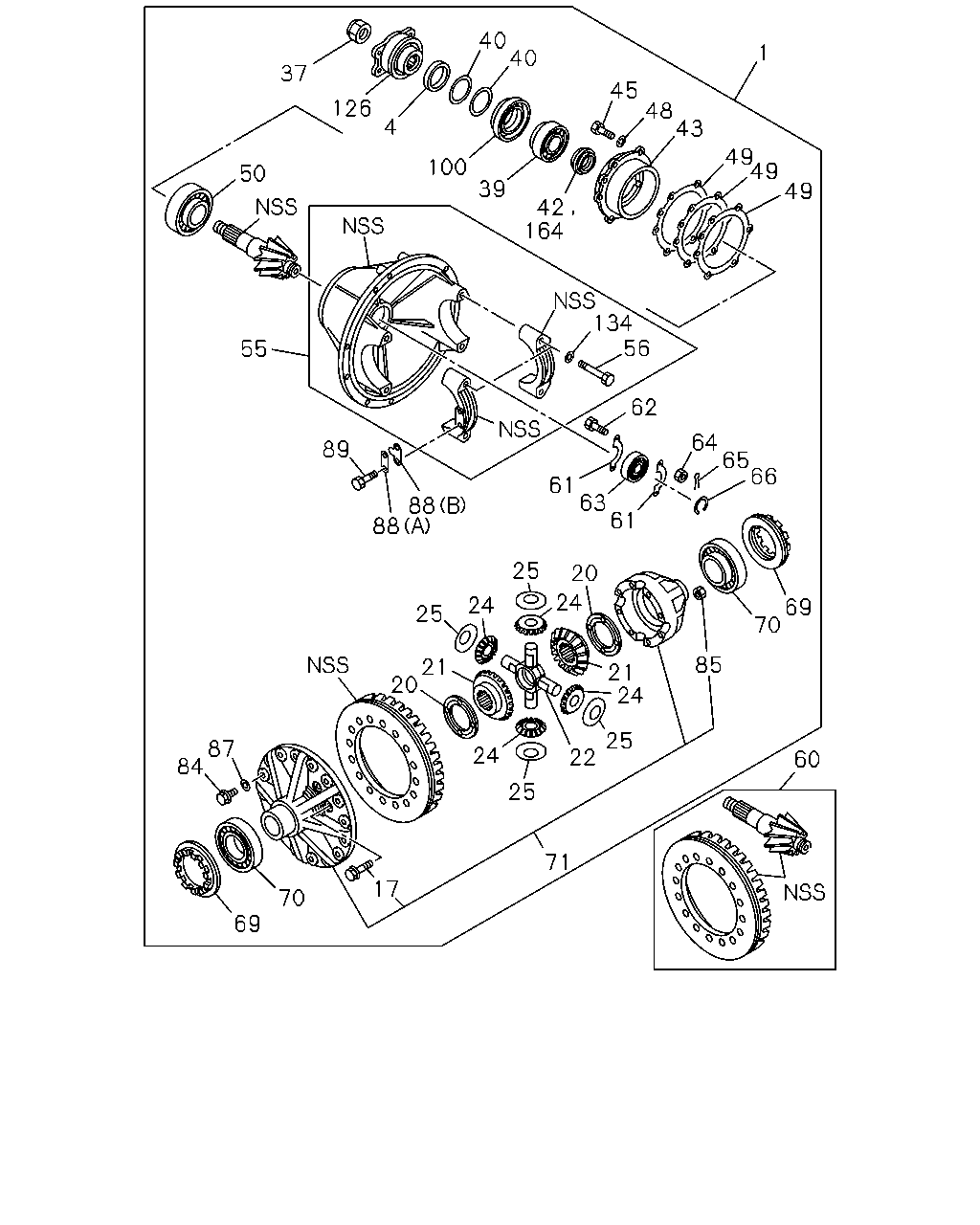

40 40 1 37 45 48 43 126 4 49 4 49 100 50 39 42 164 134 56 55 62 64 65 66 89 61 63 61 88 88 25 20 24 24 69 70 25 85 21 20 21 24 25 22 87 84 24 60 25 71 17 70 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> 39/7	1-41000-922-0	01	1	9806-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> 39/7	1-41000-620-0	01	1	9806-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> 39/6	1-41001-340-0	01	1	9806-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> 39/6	1-41001-311-0	01	1	9806-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> 39/7	1-41001-338-0	01	1	9806-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> 39/7	1-41001-276-0	01	1	9806-			●
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	9806-	●
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	9806-0208		●	●
4	GASKET; FLANGE,FINAL PINION ID=42	9-09921-116-0	01	1	0209-		●	●
17	BOLT; DIFF CAGE SETTING M14X121 FLANGE	1-09044-006-0	04	1	9806-	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	9806-	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	9806-		●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.80	1-41562-061-0	AR	1	9806-	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.00	1-41562-062-0	AR	1	9806-	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.20	1-41562-063-0	AR	1	9806-	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.40	1-41562-064-0	AR	1	9806-	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.90	1-41562-080-0	AR	1	9806-	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.10	1-41562-081-0	AR	1	9806-	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.30	1-41562-082-0	AR	1	9806-	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.75	1-41562-139-0	AR	1	9806-		●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.80	1-41562-140-0	AR	1	9806-		●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.85	1-41562-141-0	AR	1	9806-		●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.90	1-41562-142-0	AR	1	9806-		●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.95	1-41562-143-0	AR	1	9806-		●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.00	1-41562-144-0	AR	1	9806-		●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.05	1-41562-145-0	AR	1	9806-		●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.10	1-41562-146-0	AR	1	9806-		●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.15	1-41562-147-0	AR	1	9806-		●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.20	1-41562-148-0	AR	1	9806-		●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.25	1-41562-149-0	AR	1	9806-		●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.30	1-41562-150-0	AR	1	9806-		●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.35	1-41562-151-0	AR	1	9806-		●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.40	1-41562-152-0	AR	1	9806-		●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.45	1-41562-153-0	AR	1	9806-		●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> Z=16	1-41561-115-0	02	1	9806-0407	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> Z=16	1-41561-144-0	02	1	0408-0905	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> Z=16	1-41561-158-0	02	1	0906-	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> Z=16	1-41561-075-0	02	1	9806-0407		●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> Z=16	1-41561-127-0	02	1	0408-0903		●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> Z=16	1-41561-160-0	02	1	0904-		●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR2<G86>	1-41521-050-2	01	1	9806-	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR2<G86> OD=30	1-41521-014-1	01	1	9806-0408		●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR2<G86>	1-41521-061-0	01	1	0409-		●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> Z=10	1-41551-032-0	04	1	9806-0407	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> Z=10	1-41551-042-0	04	1	0408-0905	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> Z=10	1-41551-049-0	04	1	0906-	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> Z=10	1-41551-010-2	04	1	9806-0407		●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> Z=10	1-41551-041-0	04	1	0408-0903		●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> Z=10	1-41551-051-0	04	1	0904-		●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR2<G86> ID=29 OD=60	1-41562-119-0	04	1	9806-	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR2<G86>	1-41552-012-0	04	1	9806-		●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-058-2	01	1	9806-0804	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-083-0	01	1	0805-	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	9806-		●	●
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1001-	●
39	BEARING; FINAL PINION NSK	1-09812-026-0	01	1	9806-1001	●
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1002-	●
39	BEARING; FINAL PINION JTEKT	1-09812-218-0	01	1	9806-		●	●
40	SHIM; FINAL PINION T=1.60	1-41229-179-0	AR	1	9806-	●
40	SHIM; FINAL PINION T=1.61	1-41229-180-0	AR	1	9806-	●
40	SHIM; FINAL PINION T=1.62	1-41229-181-0	AR	1	9806-	●
40	SHIM; FINAL PINION T=1.63	1-41229-182-0	AR	1	9806-	●
40	SHIM; FINAL PINION T=1.64	1-41229-183-0	AR	1	9806-	●
40	SHIM; FINAL PINION T=1.65	1-41229-184-0	AR	1	9806-	●
40	SHIM; FINAL PINION T=1.66	1-41229-185-0	AR	1	9806-	●
40	SHIM; FINAL PINION T=1.67	1-41229-186-0	AR	1	9806-	●
40	SHIM; FINAL PINION T=1.68	1-41229-187-0	AR	1	9806-	●
40	SHIM; FINAL PINION T=1.69	1-41229-188-0	AR	1	9806-	●
40	SHIM; FINAL PINION T=1.70	1-41229-189-0	AR	1	9806-	●
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	9806-		●	●
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	9806-		●	●
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	9806-		●	●
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	9806-		●	●
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	9806-		●	●
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	9806-		●	●
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	9806-		●	●
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	9806-		●	●
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	9806-		●	●
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	9806-		●	●
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	9806-		●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	9806-		●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	9806-		●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	9806-		●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	9806-		●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	9806-		●	●
43	CAGE; FINAL PINION	1-41151-027-0	01	1	9806-	●
43	CAGE; FINAL PINION	1-41151-028-1	01	1	9806-		●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	9806-	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	9806-		●	●
48	WASHER; LK,FINAL PINION ID=12.2	9-09150-512-0	06	1	9806-0603	●
48	WASHER; LK,FINAL PINION ID=12.2	0-91510-512-0	06	1	0604-	●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	9806-0603		●	●
48	WASHER; LK,FINAL PINION ID=14.2	0-91510-514-0	08	1	0604-		●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	9806-	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	9806-	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	9806-	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	9806-	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	9806-		●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	9806-		●	●
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	9806-		●	●
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	9806-		●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0612-	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	9806-	●	●	●
55	CARRIER; DIFF	1-41110-048-1	01	1	9806-1006	●
55	CARRIER; DIFF	1-41110-129-0	01	1	1007-	●
55	CARRIER; DIFF	1-41110-052-0	01	1	9806-		●	●
56	BOLT; BRG CAP M16X100	9-91661-600-0	04	1	9806-0104	●
56	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	0105-	●
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	9806-		●	●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-391-2	01	1	9806-	●
60	GEAR SET; FINAL DRIVE,RR 39/6	1-41210-276-3	01	1	9806-		●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-280-3	01	1	9806-			●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	9806-	●	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-034-0	02	1	9806-0804	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-046-0	02	1	0805-	●
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	9806-		●	●
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	9806-	●
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	9806-	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	9806-		●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	9806-		●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	9806-0512	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9806-0805	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	0806-	●	●	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-066-1	01	1	9806-1109	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-214-0	01	1	1110-	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	9806-		●	●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	9806-	●
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	9806-	●
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	9806-		●	●
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	9806-		●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	9806-	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	9806-	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	9911-	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-063-1	01	1	9911-0704	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	0705-	●
70	BEARING; DIFF CAGE NACHI ID=80 OD=140 T=35.3	1-09812-144-0	02	1	9806-0911		●	●
70	BEARING; DIFF CAGE NACHI	1-09812-151-0	02	1	0912-		●	●
70	BEARING; DIFF CAGE JTEKT ID=80 OD=140 T=35.3	1-09812-145-0	02	1	9806-0911		●	●
70	BEARING; DIFF CAGE NSK ID=80 OD=140 T=35.3	1-09812-146-0	02	1	9806-1002		●	●
70	BEARING; DIFF CAGE NSK	1-09812-150-0	02	1	1003-		●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-112-0	01	1	9806-1006	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-343-0	01	1	1007-	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	9806-		●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	9806-	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	9806-		●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	9806-	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	9806-		●	●
87	WASHER; LK ID=16.2	9-09150-516-0	04	1	9806-0104		●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	9-41124-015-0	02	1	9806-	●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	9806-	●	●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	9806-		●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9806-0512	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0601-	●	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-432-0	01	1	9806-9908	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	9909-	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	9806-	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	9806-		●	●
126	COUPLING; DRIVING PINION	1-37245-069-6	01	1	9806-	●
126	COUPLING; DRIVING PINION	1-37245-215-3	01	1	9806-0208		●	●
126	COUPLING; DRIVING PINION	1-37245-388-0	01	1	0209-		●	●
134	WASHER; LK,BRG CAP ID=16.2	9-09150-516-0	04	1	9806-0104	●
134	WASHER; LK,BRG CAP ID=18.2	9-09150-518-0	04	1	9806-0603		●	●
134	WASHER; LK,BRG CAP ID=18.2	0-91510-518-0	04	1	0604-		●	●
164	COLLAR; DIST,PINION T=10.7	1-36355-031-0	01	1	9806-	●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	9806-	●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	9806-	●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	9806-	●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	9806-	●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	9806-	●
164	COLLAR; DIST,PINION T=11.9	1-36355-043-0	01	1	9806-	●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	9806-	●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	9806-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
