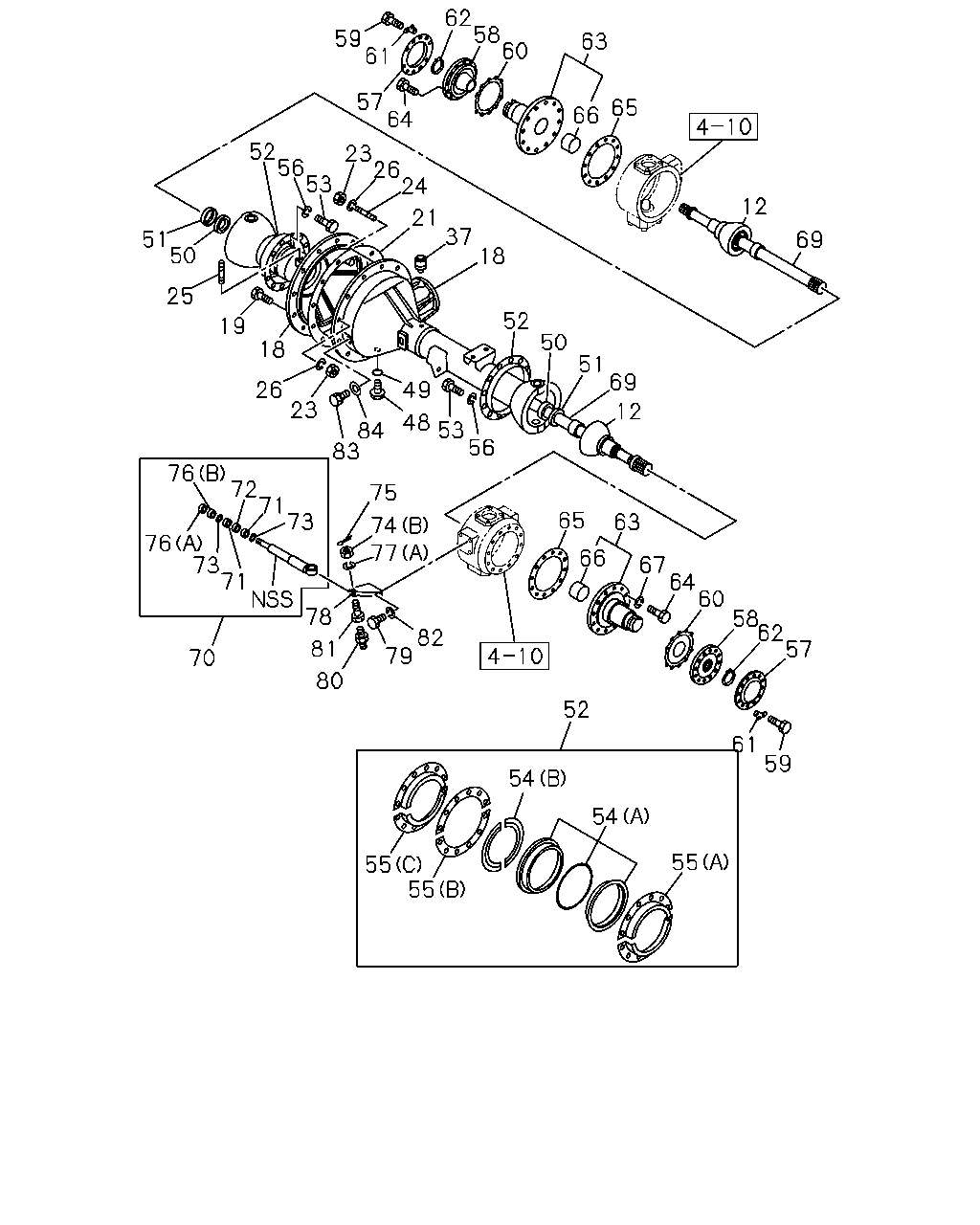

4-12 — FRONT DRIVE SHAFT (#65302) — 166 parça

62 58 60 59 61 63 57 64 65 66 52 56 53 23 26 24 12 21 37 18 51 50 69 25 52 19 50 18 51 69 49 26 23 12 48 53 56 84 83 76 72 71 73 75 65 63 74 77 76 73 71 66 67 64 60 58 62 57 78 82 79 81 70 80 52 61 59 54 54 55 55 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	JOINT ASM LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-012-0	02	1	9806-	●	●	●
12	JOINT ASM EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-018-0	02	1	9806-	●	●	●
18	CASE; FRT AXLE	1-43210-107-1	01	1	9806-	●
18	CASE; FRT AXLE	1-43210-104-0	01	1	9806-	●
18	CASE; FRT AXLE	1-43210-102-4	01	1	9806-1109		●	●
18	CASE; FRT AXLE	8-98200-699-0	01	1	1110-		●	●
19	BOLT; FRT AXLE M12X45	9-91066-245-0	12	1	9806-0805	●
19	BOLT; FRT AXLE M12X45	8-98036-382-0	12	1	0806-	●
21	GASKET; CASE,FRT AXLE	1-43213-002-0	01	1	9806-	●
23	NUT; FRT AXLE M12	9-99110-512-0	13	1	9806-0512	●
23	NUT; FRT AXLE M12	0-91110-512-0	13	1	0601-	●
24	STUD; CASE,FRT AXLE M12X28 L=46	9-94411-228-0	01	1	9806-	●
25	STUD; AXLE CASE TO SPRING SEAT M16X149 L=173	1-09302-116-0	04	1	9806-	●
26	WASHER; LK,CASE,FRT AXLE ID=12.2	9-09150-612-0	13	1	9806-0603	●
26	WASHER; LK,CASE,FRT AXLE ID=12.2	0-91510-612-0	13	1	0604-	●
37	BREATHER; FRT AXLE CASE	9-36122-001-0	01	1	9806-	●
37	BREATHER; FRT AXLE CASE	9-36122-015-1	01	1	9806-		●	●
48	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	9806-	●	●	●
49	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	9806-	●	●	●
50	SEAL; OIL,SHAFT,FRT AXLE	1-09625-192-0	02	1	9806-	●	●	●
51	GUIDE; OIL,FRT AXLE	9-43339-003-0	02	1	9806-	●	●	●
52	SEAL; OIL,KNUCKLE	1-09625-004-0	02	1	9806-	●	●	●
53	BOLT; OIL SEAL M8X16	0-20800-816-0	24	1	9806-0512	●	●	●
53	BOLT; OIL SEAL M8X16	0-20850-816-0	24	1	0601-	●	●	●
54	GASKET; OIL SEAL (A)	1-09625-241-0	02	1	9806-	●	●	●
54	GASKET; OIL SEAL (B)	1-09625-242-0	02	1	9806-	●	●	●
55	RING; OIL SEAL (A)	1-09625-243-0	04	1	9806-	●	●	●
55	RING; OIL SEAL (B)	1-09625-244-0	04	1	9806-	●	●	●
55	RING; OIL SEAL (C)	1-09625-245-0	04	1	9806-	●	●	●
56	WASHER; LK,OIL SEAL ID=8.2	9-09150-508-0	24	1	9806-0603	●	●	●
56	WASHER; LK,OIL SEAL ID=8.2	0-91510-508-0	24	1	0604-	●	●	●
57	COVER; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	9-42313-116-0	02	1	9806-	●	●	●
58	FLANGE; AXLE SHAFT,FRT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42312-028-0	02	1	9806-	●	●	●
59	BOLT; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12) M12X45	9-09804-239-1	20	1	9806-	●	●	●
60	GASKET; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42175-001-0	02	1	9806-	●	●	●
61	PLATE; LK,FLANGE EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43319-005-0	08	1	9806-	●	●	●
62	RING; SNAP,AXLE SHAFT ID=38.5 T=2.00	9-09952-253-0	02	1	9806-	●	●	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-028-1	02	1	9806-0902	●	●	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-061-0	02	1	0903-	●	●	●
64	BOLT; SPINDLE M12X35	9-92061-235-0	08	1	9806-0512	●	●	●
64	BOLT; SPINDLE M12X35	0-20951-235-0	08	1	0601-	●	●	●
64	BOLT; SPINDLE M12X45	9-92061-245-0	16	1	9806-	●	●	●
65	GASKET; KNUCKLE TO SPINDLE	9-43254-005-0	02	1	9806-	●	●	●
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-008-0	02	1	9806-0902	●	●	●
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-011-0	02	1	0903-	●	●	●
67	WASHER; LK,SPINDLE ID=12.2	9-09150-512-0	24	1	9806-0603	●	●	●
67	WASHER; LK,SPINDLE ID=12.2	0-91510-512-0	24	1	0604-	●	●	●
69	SHAFT; AXLE,FRT INNER	1-43311-024-0	01	1	9806-	●
69	SHAFT; AXLE,FRT INNER	1-43311-023-0	01	1	9806-	●
69	SHAFT; AXLE,FRT INNER	1-43311-038-0	01	1	9806-		●	●
69	SHAFT; AXLE,FRT INNER	1-43311-037-0	01	1	9806-		●	●
70	ABSORBER ASM; SHOCK,SHIMMY	1-51600-176-0	01	1	9806-	●
70	ABSORBER ASM; SHOCK,SHIMMY	1-51630-207-0	01	1	9806-		●	●
71	BUSHING; RUB,LWR,FRT S/ABS OD=25.4	9-51631-602-0	02	1	9806-	●
71	BUSHING; RUB,LWR,FRT S/ABS	9-51631-037-0	02	1	9806-		●	●
72	WASHER; CENTER,LWR,FRT S/ABS ID=15.0 OD=32	9-51631-049-0	01	1	9806-	●
73	WASHER; LWR,FRT S/ABS ID=10.5 OD=32	9-51631-048-0	02	1	9806-	●
73	WASHER; LWR,FRT S/ABS (A)	9-51679-010-0	01	1	9806-		●	●
73	WASHER; LWR,FRT S/ABS (B)	9-51679-011-0	01	1	9806-		●	●
74	NUT; S/ABS (B) M12	9-99116-412-0	01	1	9806-0805	●	●	●
74	NUT; S/ABS (B) M12	0-91116-512-0	01	1	0806-	●	●	●
74	NUT; S/ABS (A) M16	9-99110-416-0	01	1	9806-0512		●	●
74	NUT; S/ABS (A) M16	0-91110-516-0	01	1	0601-		●	●
75	PIN; SPLIT,S/ABS OD=2.8 L=20	9-08113-020-0	01	1	9806-0606	●	●	●
75	PIN; SPLIT,S/ABS OD=2.8 L=20	0-81123-020-0	01	1	0607-	●	●	●
76	NUT; LWR,FRT S/ABS (A) M10	9-09110-410-0	01	1	9806-	●
76	NUT; LWR,FRT S/ABS (B) M10	9-09111-410-0	01	1	9806-	●
76	NUT; LWR,FRT S/ABS	9-51631-083-0	01	1	9806-		●	●
77	WASHER; LK,S/ABS (A) ID=12.2	9-09150-512-0	01	1	9806-0603	●	●	●
77	WASHER; LK,S/ABS (A) ID=12.2	0-91510-512-0	01	1	0604-	●	●	●
77	WASHER; LK,S/ABS (B) ID=16.2	9-09150-516-0	01	1	9806-0603		●	●
77	WASHER; LK,S/ABS (B) ID=16.2	0-91510-516-0	01	1	0604-		●	●
78	BRACKET; SHIMMY DAMPER	1-43219-017-0	01	1	9806-	●	●	●
79	BOLT; BRKT M12X20	0-20801-220-0	02	1	9806-	●	●	●
79	BOLT; BRKT M12X25	0-20801-225-0	02	1	9806-	●	●	●
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9806-0512	●	●	●
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-	●	●	●
81	PIN; SHIMMY DAMPER	1-43219-018-0	01	1	9806-	●	●	●
82	WASHER; LK,BRKT ID=12.2	9-09150-512-0	04	1	9806-0603	●	●	●
82	WASHER; LK,BRKT ID=12.2	0-91510-512-0	04	1	0604-	●	●	●
83	PLUG; OIL FILLER M24X17 FLANGE	1-09604-022-0	01	1	9806-	●	●	●
84	GASKET; PLUG,OIL FILLER ID=26.8	9-09920-605-0	01	1	9806-	●	●	●

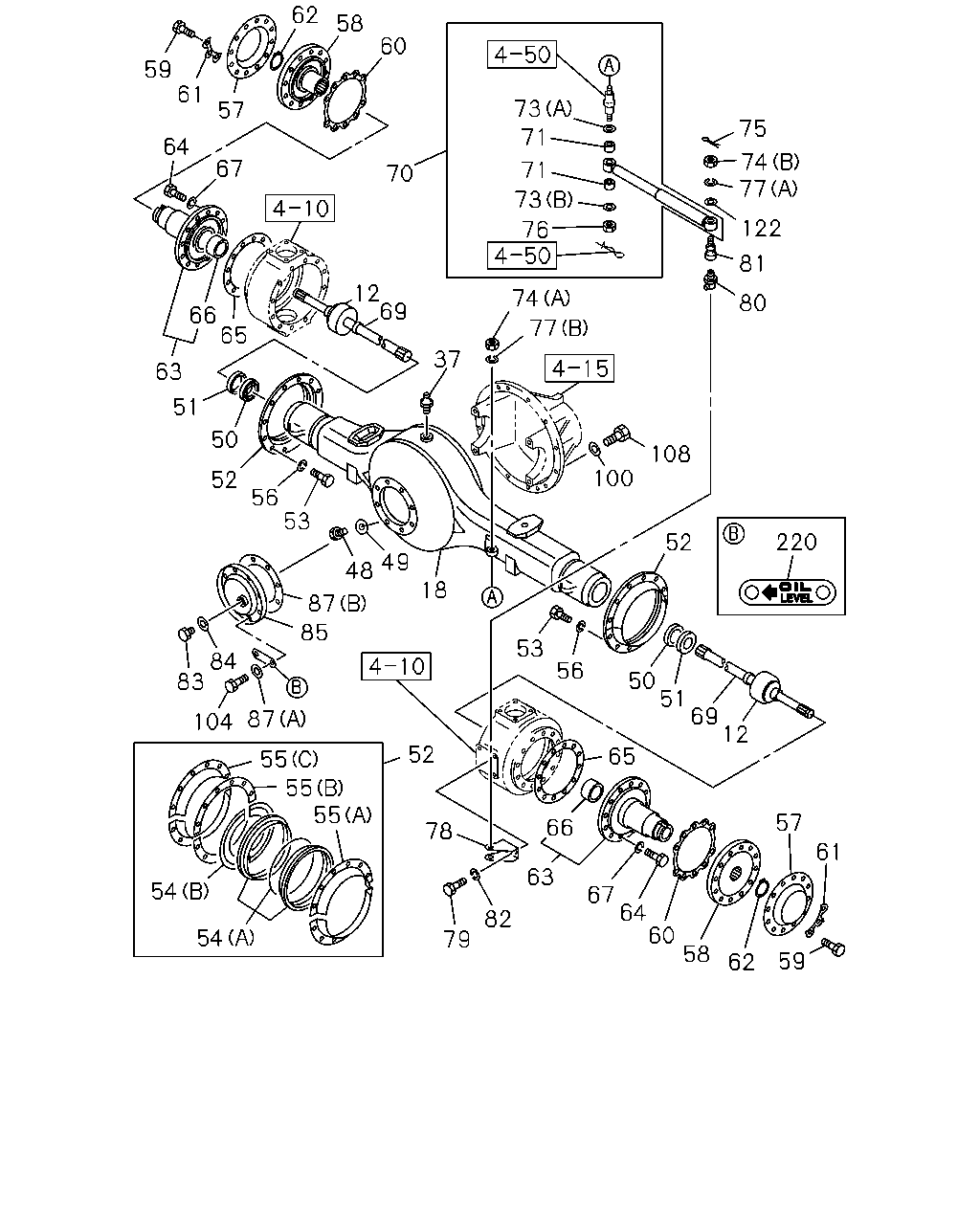

62 58 60 59 61 73 71 57 75 64 67 74 77 71 70 73 122 76 81 12 69 74 80 66 65 77 37 63 51 50 108 100 52 56 53 220 52 49 48 18 87 85 53 84 83 56 50 51 69 12 87 104 52 65 55 55 55 57 66 78 61 63 54 67 64 60 58 82 54 79 59 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	JOINT ASM LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-012-0	02	1	9806-	●	●	●
12	JOINT ASM EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-018-0	02	1	9806-	●	●	●
18	CASE; FRT AXLE	1-43210-107-1	01	1	9806-	●
18	CASE; FRT AXLE	1-43210-104-0	01	1	9806-	●
18	CASE; FRT AXLE	1-43210-102-4	01	1	9806-1109		●	●
18	CASE; FRT AXLE	8-98200-699-0	01	1	1110-		●	●
37	BREATHER; FRT AXLE CASE	9-36122-001-0	01	1	9806-	●
37	BREATHER; FRT AXLE CASE	9-36122-015-1	01	1	9806-		●	●
48	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	9806-	●	●	●
49	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	9806-	●	●	●
50	SEAL; OIL,SHAFT,FRT AXLE	1-09625-192-0	02	1	9806-	●	●	●
51	GUIDE; OIL,FRT AXLE	9-43339-003-0	02	1	9806-	●	●	●
52	SEAL; OIL,KNUCKLE	1-09625-004-0	02	1	9806-	●	●	●
53	BOLT; OIL SEAL M8X16	0-20800-816-0	24	1	9806-0512	●	●	●
53	BOLT; OIL SEAL M8X16	0-20850-816-0	24	1	0601-	●	●	●
54	GASKET; OIL SEAL (A)	1-09625-241-0	02	1	9806-	●	●	●
54	GASKET; OIL SEAL (B)	1-09625-242-0	02	1	9806-	●	●	●
55	RING; OIL SEAL (A)	1-09625-243-0	04	1	9806-	●	●	●
55	RING; OIL SEAL (B)	1-09625-244-0	04	1	9806-	●	●	●
55	RING; OIL SEAL (C)	1-09625-245-0	04	1	9806-	●	●	●
56	WASHER; LK,OIL SEAL ID=8.2	9-09150-508-0	24	1	9806-0603	●	●	●
56	WASHER; LK,OIL SEAL ID=8.2	0-91510-508-0	24	1	0604-	●	●	●
57	COVER; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	9-42313-116-0	02	1	9806-	●	●	●
58	FLANGE; AXLE SHAFT,FRT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42312-028-0	02	1	9806-	●	●	●
59	BOLT; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12) M12X45	9-09804-239-1	20	1	9806-	●	●	●
60	GASKET; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42175-001-0	02	1	9806-	●	●	●
61	PLATE; LK,FLANGE EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43319-005-0	08	1	9806-	●	●	●
62	RING; SNAP,AXLE SHAFT ID=38.5 T=2.00	9-09952-253-0	02	1	9806-	●	●	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-028-1	02	1	9806-0902	●	●	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-061-0	02	1	0903-	●	●	●
64	BOLT; SPINDLE M12X35	9-92061-235-0	08	1	9806-0512	●	●	●
64	BOLT; SPINDLE M12X35	0-20951-235-0	08	1	0601-	●	●	●
64	BOLT; SPINDLE M12X45	9-92061-245-0	16	1	9806-	●	●	●
65	GASKET; KNUCKLE TO SPINDLE	9-43254-005-0	02	1	9806-	●	●	●
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-008-0	02	1	9806-0902	●	●	●
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-011-0	02	1	0903-	●	●	●
67	WASHER; LK,SPINDLE ID=12.2	9-09150-512-0	24	1	9806-0603	●	●	●
67	WASHER; LK,SPINDLE ID=12.2	0-91510-512-0	24	1	0604-	●	●	●
69	SHAFT; AXLE,FRT INNER	1-43311-024-0	01	1	9806-	●
69	SHAFT; AXLE,FRT INNER	1-43311-023-0	01	1	9806-	●
69	SHAFT; AXLE,FRT INNER	1-43311-038-0	01	1	9806-		●	●
69	SHAFT; AXLE,FRT INNER	1-43311-037-0	01	1	9806-		●	●
70	ABSORBER ASM; SHOCK,SHIMMY	1-51600-176-0	01	1	9806-	●
70	ABSORBER ASM; SHOCK,SHIMMY	1-51630-207-0	01	1	9806-		●	●
71	BUSHING; RUB,LWR,FRT S/ABS OD=25.4	9-51631-602-0	02	1	9806-	●
71	BUSHING; RUB,LWR,FRT S/ABS	9-51631-037-0	02	1	9806-		●	●
73	WASHER; LWR,FRT S/ABS ID=10.5 OD=32	9-51631-048-0	02	1	9806-	●
73	WASHER; LWR,FRT S/ABS (A)	9-51679-010-0	01	1	9806-		●	●
73	WASHER; LWR,FRT S/ABS (B)	9-51679-011-0	01	1	9806-		●	●
74	NUT; S/ABS (B) M12	9-99116-412-0	01	1	9806-0805	●	●	●
74	NUT; S/ABS (B) M12	0-91116-512-0	01	1	0806-	●	●	●
74	NUT; S/ABS (A) M16	9-99110-416-0	01	1	9806-0512		●	●
74	NUT; S/ABS (A) M16	0-91110-516-0	01	1	0601-		●	●
75	PIN; SPLIT,S/ABS OD=2.8 L=20	9-08113-020-0	01	1	9806-0606	●	●	●
75	PIN; SPLIT,S/ABS OD=2.8 L=20	0-81123-020-0	01	1	0607-	●	●	●
76	NUT; LWR,FRT S/ABS (A) M10	9-09110-410-0	01	1	9806-	●
76	NUT; LWR,FRT S/ABS (B) M10	9-09111-410-0	01	1	9806-	●
76	NUT; LWR,FRT S/ABS	9-51631-083-0	01	1	9806-		●	●
77	WASHER; LK,S/ABS (A) ID=12.2	9-09150-512-0	01	1	9806-0603	●	●	●
77	WASHER; LK,S/ABS (A) ID=12.2	0-91510-512-0	01	1	0604-	●	●	●
77	WASHER; LK,S/ABS (B) ID=16.2	9-09150-516-0	01	1	9806-0603		●	●
77	WASHER; LK,S/ABS (B) ID=16.2	0-91510-516-0	01	1	0604-		●	●
78	BRACKET; SHIMMY DAMPER	1-43219-017-0	01	1	9806-	●	●	●
79	BOLT; BRKT M12X20	0-20801-220-0	02	1	9806-	●	●	●
79	BOLT; BRKT M12X25	0-20801-225-0	02	1	9806-	●	●	●
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9806-0512	●	●	●
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-	●	●	●
81	PIN; SHIMMY DAMPER	1-43219-018-0	01	1	9806-	●	●	●
82	WASHER; LK,BRKT ID=12.2	9-09150-512-0	04	1	9806-0603	●	●	●
82	WASHER; LK,BRKT ID=12.2	0-91510-512-0	04	1	0604-	●	●	●
83	PLUG; OIL FILLER M24X17 FLANGE	1-09604-022-0	01	1	9806-	●	●	●
84	GASKET; PLUG,OIL FILLER ID=26.8	9-09920-605-0	01	1	9806-	●	●	●
85	COVER; AXLE CASE	9-42141-059-0	01	1	9806-1109		●	●
87	GASKET; COVER,AXLE CASE (A) ID=10.2 OD=19	9-09572-010-0	08	1	9806-1109		●	●
87	GASKET; COVER,AXLE CASE (B)	9-42142-026-2	01	1	9806-1109		●	●
100	WASHER; LK,FRT FINAL DRIVE ID=12.2	9-09150-812-0	12	1	9806-0603		●	●
100	WASHER; LK,FRT FINAL DRIVE ID=12.2	0-91510-812-0	12	1	0604-		●	●
104	BOLT; COVER,AXLE CASE M10X16	9-09800-874-0	08	1	9806-1109		●	●
108	BOLT; FRT FINAL DRIVE M12X35	9-92061-235-0	08	1	9806-0512		●	●
108	BOLT; FRT FINAL DRIVE M12X35	0-20951-235-0	08	1	0601-		●	●
108	BOLT; FRT FINAL DRIVE M12X45	9-92061-245-0	04	1	9806-		●	●
122	WASHER; S/ABS ID=17	9-09160-516-0	01	1	9806-0605		●	●
122	WASHER; S/ABS ID=17 OD=30	0-91610-516-0	01	1	0606-		●	●
220	PLATE	9-83996-444-1	01	1	9806-1109		●	●
