Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#653) — 293 parça

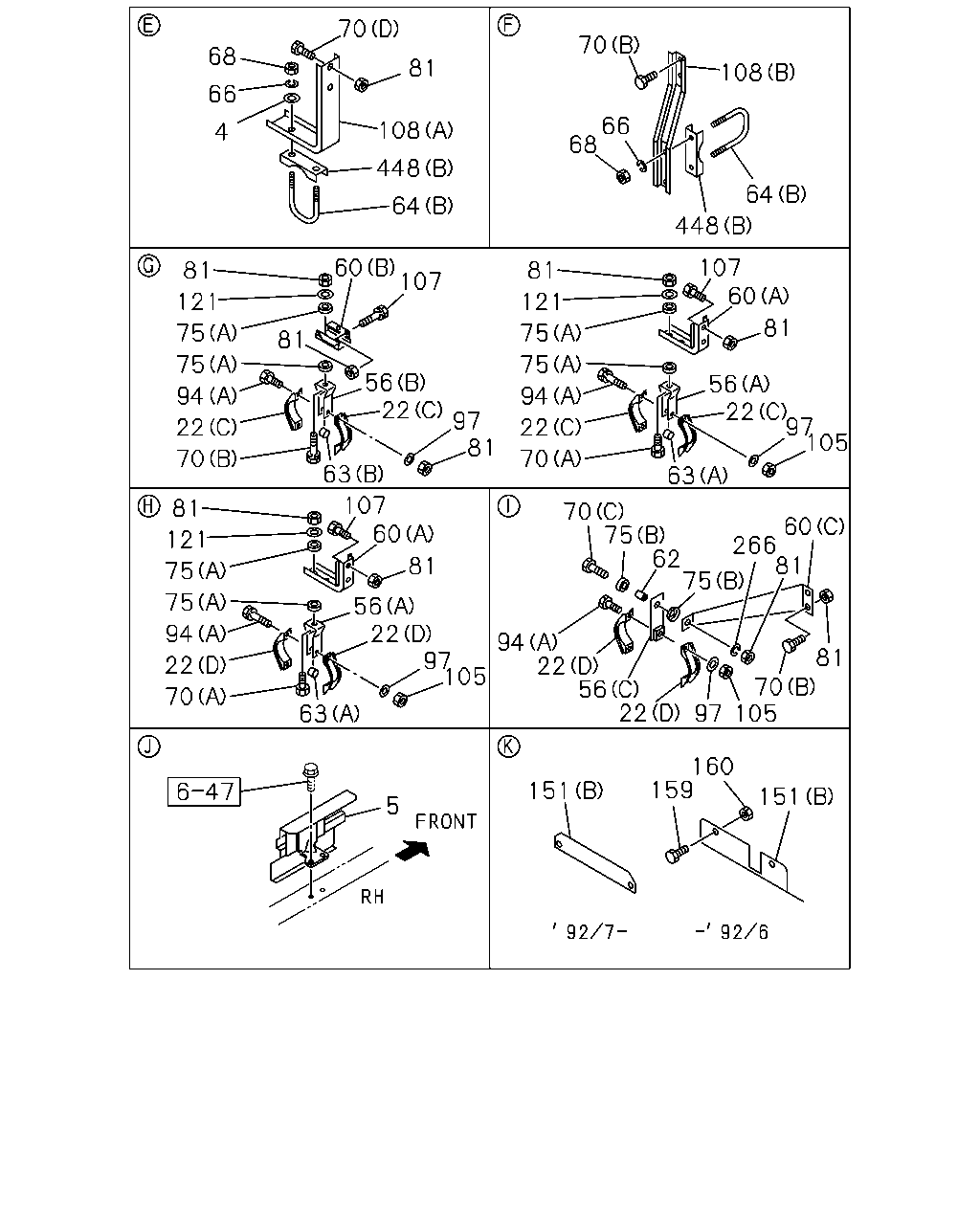

70 70 68 81 108 66 66 68 108 4 448 64 64 448 107 60 60 107 81 81 121 121 81 75 75 81 75 75 56 22 97 81 56 22 97 105 94 94 22 22 70 70 63 63 107 60 81 70 75 62 75 60 266 81 121 81 75 56 22 97 105 75 94 94 22 56 22 81 70 105 22 70 97 63 160 159 151 151 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	WASHER; PL,U BOLT STD CAB(FS*M) VERTICAL TAIL PIPE<NC4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=8.4	9-09160-508-0	06	1	9202-	●
4	WASHER; PL,U BOLT VERTICAL TAIL PIPE<NC4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=8.4	9-09160-508-0	06	1	9202-		●
4	WASHER; PL,U BOLT VERTICAL TAIL PIPE<NC4> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=8.4	9-09160-508-0	04	1	9202-	●	●
5	PROTECTOR; HEAT	1-33659-167-1	01	1	9202-	●	●
22	CLAMP; EXH PIPE VERTICAL TAIL PIPE<NC4> (A)	1-22133-178-1	01	1	9202-	●
22	CLAMP; EXH PIPE VERTICAL TAIL PIPE<NC4> (B)	1-22133-228-0	02	1	9202-	●
22	CLAMP; EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> (C)	1-22133-231-0	02	1	9202-	●	●
22	CLAMP; EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> (D)	1-22133-232-0	04	1	9202-	●	●
56	BRACKET; CLAMP,EXH PIPE VERTICAL TAIL PIPE<NC4> (D) H=100	1-22139-052-0	02	1	9202-	●
56	BRACKET; CLAMP,EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> (C)	1-22131-584-0	01	1	9202-	●	●
56	BRACKET; CLAMP,EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> (A) H=100	1-22139-052-0	01	1	9202-9205	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. VERTICAL TAIL PIPE<NC4> (A) H=100	1-22139-052-0	01	1	9202-9205	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) HEAVY DUTY PACKAGE TRUCK<RD2> (A) H=100	1-22139-052-0	01	1	9202-9205	●	●
56	BRACKET; CLAMP,EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> (A) H=100	1-22139-052-0	01	1	9206-	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. VERTICAL TAIL PIPE<NC4> (A) H=100	1-22139-052-0	01	1	9206-	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3700MM(37W) EXC. VERTICAL TAIL PIPE<NC4>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-22139-044-0	01	1	9202-9205	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3700MM(37W) EXC. VERTICAL TAIL PIPE<NC4> (B)	1-22139-044-0	01	1	9206-	●	●
60	BRACKET; FRAME TO BRKT VERTICAL TAIL PIPE<NC4> (D)	1-22151-627-0	02	1	9202-	●
60	BRACKET; FRAME TO BRKT EXC. VERTICAL TAIL PIPE<NC4> (C)	1-22131-639-1	01	1	9202-	●	●
60	BRACKET; FRAME TO BRKT EXC. VERTICAL TAIL PIPE<NC4> (A)	1-22151-512-2	01	1	9202-9205	●	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. VERTICAL TAIL PIPE<NC4> (A)	1-22151-512-2	01	1	9202-9205	●	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-22151-512-2	01	1	9202-9205	●	●
60	BRACKET; FRAME TO BRKT EXC. VERTICAL TAIL PIPE<NC4> (A)	1-22151-512-2	01	1	9206-	●	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. VERTICAL TAIL PIPE<NC4> (A)	1-22151-512-2	01	1	9206-	●	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 3700MM(37W) EXC. VERTICAL TAIL PIPE<NC4>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-22151-534-2	01	1	9202-9205	●	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 3700MM(37W) EXC. VERTICAL TAIL PIPE<NC4> (B)	1-22151-534-3	01	1	9206-	●	●
62	TUBE; DIST,BRKT EXC. VERTICAL TAIL PIPE<NC4> L=22	9-22159-024-0	01	1	9202-	●	●
63	TUBE; DIST,BRKT EXC. VERTICAL TAIL PIPE<NC4> (A) L=11	1-22139-026-0	01	1	9202-9205	●	●
63	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. VERTICAL TAIL PIPE<NC4> (A) L=11	1-22139-026-0	01	1	9202-9205	●	●
63	TUBE; DIST,BRKT WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=11	1-22139-026-0	01	1	9202-9205	●	●
63	TUBE; DIST,BRKT EXC. VERTICAL TAIL PIPE<NC4> (A) L=11	1-22139-026-0	01	1	9206-	●	●
63	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. VERTICAL TAIL PIPE<NC4> (A) L=11	1-22139-026-0	01	1	9206-	●	●
63	TUBE; DIST,BRKT WHEEL BASE 3700MM(37W) EXC. VERTICAL TAIL PIPE<NC4>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=8.5	1-22139-057-0	01	1	9202-9205	●	●
63	TUBE; DIST,BRKT WHEEL BASE 3700MM(37W) EXC. VERTICAL TAIL PIPE<NC4> (B) L=8.5	1-22139-057-0	01	1	9206-	●	●
64	U-BOLT; EXH PIPE,RR STD CAB(FS*M) VERTICAL TAIL PIPE<NC4> (B)	1-22139-033-1	01	1	9202-	●
64	U-BOLT; EXH PIPE,RR VERTICAL TAIL PIPE<NC4> (B)	1-22139-033-1	01	1	9202-		●
64	U-BOLT; EXH PIPE,RR VERTICAL TAIL PIPE<NC4> (A)	1-22139-053-0	02	1	9202-9502	●	●
64	U-BOLT; EXH PIPE,RR VERTICAL TAIL PIPE<NC4> (A) L=140	1-22113-030-1	02	1	9503-	●
66	WASHER; LK,U BOLT STD CAB(FS*M) VERTICAL TAIL PIPE<NC4> ID=8.2	9-09150-508-0	02	1	9202-	●
66	WASHER; LK,U BOLT VERTICAL TAIL PIPE<NC4> ID=8.2	9-09150-508-0	02	1	9202-		●
68	NUT; U BOLT STD CAB(FS*M) VERTICAL TAIL PIPE<NC4> M8	9-09110-408-0	10	1	9202-	●
68	NUT; U BOLT VERTICAL TAIL PIPE<NC4> M8	9-09110-408-0	10	1	9202-		●
68	NUT; U BOLT DOUBLE CAB(FS*W) VERTICAL TAIL PIPE<NC4> M8	9-09110-408-0	08	1	9202-	●
70	BOLT; BRKT VERTICAL TAIL PIPE<NC4> (B) M10X50	0-10806-050-0	02	1	9202-	●
70	BOLT; BRKT VERTICAL TAIL PIPE<NC4> (D) M8X30 FLANGE	0-28080-830-0	02	1	9202-	●
70	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (B) M10X50	0-10806-050-0	01	1	9202-9205	●	●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. VERTICAL TAIL PIPE<NC4> (B) M10X50	0-10806-050-0	01	1	9202-9205	●	●
70	BOLT; BRKT WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) HEAVY DUTY PACKAGE TRUCK<RD2> (B) M10X50	0-10806-050-0	01	1	9202-9205	●	●
70	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (B) M10X50	0-10806-050-0	01	1	9206-	●	●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. VERTICAL TAIL PIPE<NC4> (B) M10X50	0-10806-050-0	01	1	9206-	●	●
70	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (B) M10X55	0-10806-055-0	01	1	9202-	●	●
70	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (C) M10X30 W/LK WASHER	0-50041-030-0	02	1	9202-9307	●	●
70	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (C) M10X30 FLANGE	0-28081-030-0	02	1	9308-	●	●
70	BOLT; BRKT WHEEL BASE 3700MM(37W) EXC. VERTICAL TAIL PIPE<NC4>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M10X45	0-10806-045-0	01	1	9202-9205	●	●
70	BOLT; BRKT WHEEL BASE 3700MM(37W) EXC. VERTICAL TAIL PIPE<NC4> (A) M10X45	0-10806-045-0	01	1	9206-	●	●
75	RUBBER; SUPPORT,BRKT VERTICAL TAIL PIPE<NC4> (C) OD=30	1-22159-106-1	04	1	9202-	●
75	RUBBER; SUPPORT,BRKT EXC. VERTICAL TAIL PIPE<NC4> (A) OD=30	1-22159-106-1	04	1	9202-	●	●
75	RUBBER; SUPPORT,BRKT EXC. VERTICAL TAIL PIPE<NC4> (B) OD=35	9-22159-008-0	02	1	9202-9207	●	●
75	RUBBER; SUPPORT,BRKT EXC. VERTICAL TAIL PIPE<NC4> (B)	1-22159-119-0	02	1	9208-	●	●
81	NUT; BRKT VERTICAL TAIL PIPE<NC4> M8	9-09110-408-0	02	1	9202-	●
81	NUT; BRKT VERTICAL TAIL PIPE<NC4> M10 LOCK NUT	9-09131-510-0	02	1	9202-	●
81	NUT; BRKT M10	9-09110-410-0	02	1	9202-9205	●	●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> M10	9-09110-410-0	02	1	9202-9205	●	●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> M10	9-09110-510-0	01	1	9202-	●	●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> M10 LOCK NUT	9-09131-510-0	02	1	9202-	●	●
81	NUT; BRKT WHEEL BASE 3700MM(37W) EXC. VERTICAL TAIL PIPE<NC4> M10	9-09110-510-0	03	1	9206-	●	●
81	NUT; BRKT WHEEL BASE 3700MM(37W) EXC. VERTICAL TAIL PIPE<NC4>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10	9-09110-410-0	03	1	9202-9205	●	●
81	NUT; BRKT M10	9-09110-410-0	02	1	9206-9211	●	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. VERTICAL TAIL PIPE<NC4> M10	9-09110-410-0	02	1	9206-9211	●	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. VERTICAL TAIL PIPE<NC4> M10	9-09110-510-0	02	1	9212-	●	●
81	NUT; BRKT VERTICAL TAIL PIPE<NC4> M10	9-09110-510-0	02	1	9212-	●
94	BOLT; CLAMP VERTICAL TAIL PIPE<NC4> (B) M10X40 W/LK&PL WASHER	0-50141-040-0	02	1	9202-	●
94	BOLT; CLAMP (A) M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9202-	●	●
94	BOLT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> (A) M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	9202-	●	●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	04	1	9202-	●	●
97	WASHER; PL,CLAMP EXC. VERTICAL TAIL PIPE<NC4> ID=10.5	9-09164-510-0	02	1	9202-	●	●
105	NUT; CLAMP VERTICAL TAIL PIPE<NC4> M10	9-09110-510-0	02	1	9308-9407	●
105	NUT; CLAMP M10	9-09110-510-0	04	1	9408-	●	●
105	NUT; CLAMP M10	9-09110-410-0	04	1	9202-9307	●	●
105	NUT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> M10	9-09110-410-0	02	1	9202-9307	●	●
105	NUT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> M10	9-09110-410-0	04	1	9308-9407	●	●
105	NUT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> M10	9-09110-510-0	02	1	9308-	●	●
107	BOLT; BRKT VERTICAL TAIL PIPE<NC4> M10X35 W/LK WASHER	0-50041-035-0	04	1	9202-9307	●
107	BOLT; BRKT VERTICAL TAIL PIPE<NC4> M10X35 FLANGE	0-28081-035-0	04	1	9308-	●
107	BOLT; BRKT WHEEL BASE 3700MM(37W) VERTICAL TAIL PIPE<NC4> HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X35 W/LK WASHER	0-50041-035-0	01	1	9211-9307	●
107	BOLT; BRKT WHEEL BASE 3700MM(37W) VERTICAL TAIL PIPE<NC4> HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X35 FLANGE	0-28081-035-0	01	1	9308-	●
107	BOLT; BRKT WHEEL BASE 3700MM(37W) VERTICAL TAIL PIPE<NC4> HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X40 W/LK WASHER	0-50041-040-0	01	1	9211-9307	●
107	BOLT; BRKT WHEEL BASE 3700MM(37W) VERTICAL TAIL PIPE<NC4> HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X40 FLANGE	0-28081-040-0	01	1	9308-	●
107	BOLT; BRKT WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) HEAVY DUTY PACKAGE TRUCK<RD2> EXC. VERTICAL TAIL PIPE<NC4> M10X30 W/LK WASHER	0-50041-030-0	02	1	9202-9205	●	●
107	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> M10X30 W/LK WASHER	0-50041-030-0	02	1	9206-9307	●	●
107	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. VERTICAL TAIL PIPE<NC4> M10X30 W/LK WASHER	0-50041-030-0	02	1	9206-9307	●	●
107	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> M10X30 FLANGE	0-28081-030-0	02	1	9308-	●	●
107	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. VERTICAL TAIL PIPE<NC4> M10X30 FLANGE	0-28081-030-0	02	1	9308-	●	●
107	BOLT; BRKT WHEEL BASE 3700MM(37W) EXC. VERTICAL TAIL PIPE<NC4>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X25 W/LK WASHER	0-50041-025-0	03	1	9202-9205	●	●
107	BOLT; BRKT WHEEL BASE 3700MM(37W) EXC. VERTICAL TAIL PIPE<NC4> M10X25 W/LK WASHER	0-50041-025-0	03	1	9206-9307	●	●
107	BOLT; BRKT WHEEL BASE 3700MM(37W) EXC. VERTICAL TAIL PIPE<NC4> M10X25 FLANGE	0-28081-025-0	03	1	9308-	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR STD CAB(FS*M) VERTICAL TAIL PIPE<NC4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-22131-426-0	01	1	9202-	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR VERTICAL TAIL PIPE<NC4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-22131-426-0	01	1	9202-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR STD CAB(FS*M) VERTICAL TAIL PIPE<NC4> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-22131-459-0	01	1	9202-	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR VERTICAL TAIL PIPE<NC4> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-22131-459-0	01	1	9202-		●
121	WASHER; PL,BRKT VERTICAL TAIL PIPE<NC4> ID=10.5 OD=32	9-09164-810-0	02	1	9202-	●
121	WASHER; PL,BRKT EXC. VERTICAL TAIL PIPE<NC4> ID=10.5 OD=32	9-09164-810-0	02	1	9202-	●	●
151	PROTECTOR; HEAT,EXH PIPE STD CAB(FS*M) WHEEL BASE 4200MM(42W) VERTICAL TAIL PIPE<NC4> (C)	1-22159-204-1	01	1	9202-	●
151	PROTECTOR; HEAT,EXH PIPE DOUBLE CAB(FS*W) WHEEL BASE 4800MM(48W) VERTICAL TAIL PIPE<NC4> (C)	1-22159-204-1	01	1	9202-	●
151	PROTECTOR; HEAT,EXH PIPE WHEEL BASE 4200MM(42W) VERTICAL TAIL PIPE<NC4> (C)	1-22159-204-1	01	1	9202-		●
151	PROTECTOR; HEAT,EXH PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-53619-081-1	01	1	9202-9206	●	●
151	PROTECTOR; HEAT,EXH PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-53319-018-0	01	1	9207-	●	●
151	PROTECTOR; HEAT,EXH PIPE VERTICAL TAIL PIPE<NC4> (A)	1-22159-169-3	01	1	9202-	●	●
159	BOLT; HEAT PROTECTOR STD CAB(FS*M) WHEEL BASE 4200MM(42W) VERTICAL TAIL PIPE<NC4> M8X14	9-01960-814-0	04	1	9202-9204	●
159	BOLT; HEAT PROTECTOR DOUBLE CAB(FS*W) WHEEL BASE 4800MM(48W) VERTICAL TAIL PIPE<NC4> M8X14	9-01960-814-0	04	1	9202-9204	●
159	BOLT; HEAT PROTECTOR WHEEL BASE 4200MM(42W) VERTICAL TAIL PIPE<NC4> M8X14	9-01960-814-0	04	1	9202-9204		●
159	BOLT; HEAT PROTECTOR STD CAB(FS*M) WHEEL BASE 4200MM(42W) VERTICAL TAIL PIPE<NC4> M8X14	0-50140-814-0	04	1	9205-	●
159	BOLT; HEAT PROTECTOR DOUBLE CAB(FS*W) WHEEL BASE 4800MM(48W) VERTICAL TAIL PIPE<NC4> M8X14	0-50140-814-0	04	1	9205-	●
159	BOLT; HEAT PROTECTOR WHEEL BASE 4200MM(42W) VERTICAL TAIL PIPE<NC4> M8X14	0-50140-814-0	04	1	9205-		●
159	BOLT; HEAT PROTECTOR BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●	●
159	BOLT; HEAT PROTECTOR BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	02	1	9205-	●	●
159	BOLT; HEAT PROTECTOR VERTICAL TAIL PIPE<NC4> M8X22	9-01900-822-0	10	1	9202-9204	●	●
159	BOLT; HEAT PROTECTOR VERTICAL TAIL PIPE<NC4> M8X22 W/LK WASHER	0-50040-822-0	10	1	9205-	●	●
160	NUT; HEAT PROTECTOR BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	02	1	9202-9205	●	●
266	WASHER; LK,BRKT EXC. VERTICAL TAIL PIPE<NC4> ID=10.2	9-09150-510-0	01	1	9202-	●	●
448	PIECE; DIST,U-BOLT STD CAB(FS*M) VERTICAL TAIL PIPE<NC4> (B)	1-22119-214-0	01	1	9202-	●
448	PIECE; DIST,U-BOLT VERTICAL TAIL PIPE<NC4> (B)	1-22119-214-0	01	1	9202-		●
448	PIECE; DIST,U-BOLT VERTICAL TAIL PIPE<NC4> (A)	1-22113-074-0	02	1	9202-	●	●

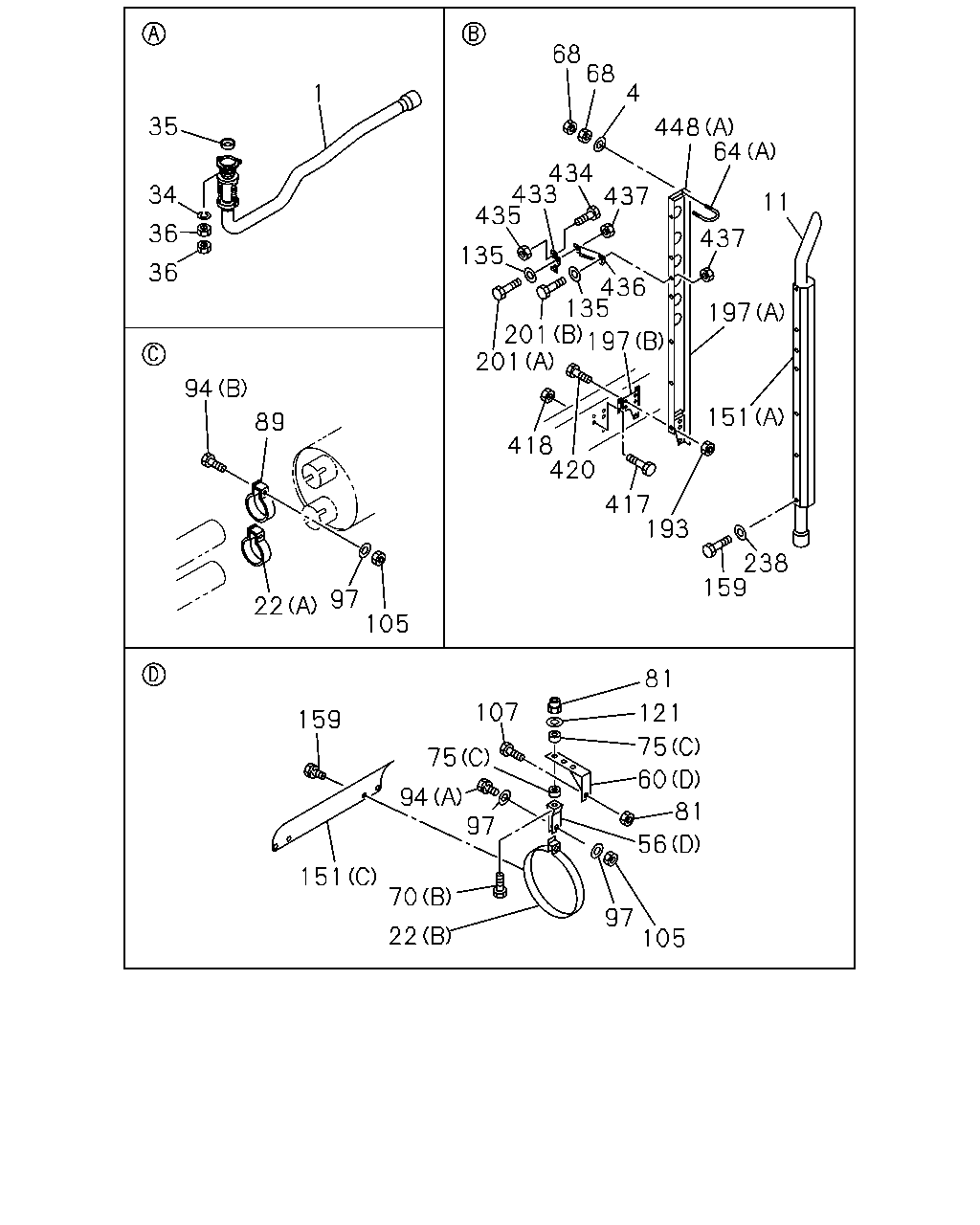

68 68 4 1 35 448 64 434 433 437 435 34 11 36 437 135 36 436 135 201 197 201 197 94 151 89 418 420 417 193 238 159 97 105 22 81 107 121 159 75 75 60 94 97 81 56 151 70 97 105 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH ANTI NOISE EQUIPMENT VAR2<TAK> EXC. VERTICAL TAIL PIPE<NC4>	1-22122-368-0	01	1	9411-9412	●
1	PIPE; EXH STD CAB(FS*M) WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) VERTICAL TAIL PIPE<NC4>	1-22122-165-1	01	1	9202-	●
1	PIPE; EXH WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) VERTICAL TAIL PIPE<NC4>	1-22122-165-1	01	1	9202-		●
1	PIPE; EXH DOUBLE CAB(FS*W) VERTICAL TAIL PIPE<NC4>	1-22122-254-1	01	1	9202-	●
1	PIPE; EXH EXC. VERTICAL TAIL PIPE<NC4>	1-22122-252-2	01	1	9202-9410	●	●
1	PIPE; EXH EXC. VERTICAL TAIL PIPE<NC4>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-22122-252-2	01	1	9411-9412	●	●
1	PIPE; EXH EXC. VERTICAL TAIL PIPE<NC4>	1-22122-252-2	01	1	9501-	●	●
1	PIPE; EXH WHEEL BASE 3700MM(37W) VERTICAL TAIL PIPE<NC4>	1-22122-253-1	01	1	9202-	●	●
4	WASHER; PL,U BOLT STD CAB(FS*M) VERTICAL TAIL PIPE<NC4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=8.4	9-09160-508-0	06	1	9202-	●
4	WASHER; PL,U BOLT VERTICAL TAIL PIPE<NC4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=8.4	9-09160-508-0	06	1	9202-		●
4	WASHER; PL,U BOLT VERTICAL TAIL PIPE<NC4> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=8.4	9-09160-508-0	04	1	9202-	●	●
11	PIPE; EXH,RR VERTICAL TAIL PIPE<NC4>	1-22112-968-1	01	1	9202-	●
22	CLAMP; EXH PIPE VERTICAL TAIL PIPE<NC4> (A)	1-22133-178-1	01	1	9202-	●
22	CLAMP; EXH PIPE VERTICAL TAIL PIPE<NC4> (B)	1-22133-228-0	02	1	9202-	●
22	CLAMP; EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> (C)	1-22133-231-0	02	1	9202-	●	●
22	CLAMP; EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> (D)	1-22133-232-0	04	1	9202-	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9202-	●	●
35	GASKET; EXH PIPE TO MANIF EXC. EXHAUST BRAKE<NF8>	1-22116-024-0	01	1	9202-	●	●
36	NUT; EXH PIPE M12	1-09400-010-0	06	1	9202-	●	●
56	BRACKET; CLAMP,EXH PIPE VERTICAL TAIL PIPE<NC4> (D) H=100	1-22139-052-0	02	1	9202-	●
56	BRACKET; CLAMP,EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> (C)	1-22131-584-0	01	1	9202-	●	●
56	BRACKET; CLAMP,EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> (A) H=100	1-22139-052-0	01	1	9202-9205	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. VERTICAL TAIL PIPE<NC4> (A) H=100	1-22139-052-0	01	1	9202-9205	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) HEAVY DUTY PACKAGE TRUCK<RD2> (A) H=100	1-22139-052-0	01	1	9202-9205	●	●
56	BRACKET; CLAMP,EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> (A) H=100	1-22139-052-0	01	1	9206-	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. VERTICAL TAIL PIPE<NC4> (A) H=100	1-22139-052-0	01	1	9206-	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3700MM(37W) EXC. VERTICAL TAIL PIPE<NC4>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-22139-044-0	01	1	9202-9205	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3700MM(37W) EXC. VERTICAL TAIL PIPE<NC4> (B)	1-22139-044-0	01	1	9206-	●	●
60	BRACKET; FRAME TO BRKT VERTICAL TAIL PIPE<NC4> (D)	1-22151-627-0	02	1	9202-	●
60	BRACKET; FRAME TO BRKT EXC. VERTICAL TAIL PIPE<NC4> (C)	1-22131-639-1	01	1	9202-	●	●
60	BRACKET; FRAME TO BRKT EXC. VERTICAL TAIL PIPE<NC4> (A)	1-22151-512-2	01	1	9202-9205	●	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. VERTICAL TAIL PIPE<NC4> (A)	1-22151-512-2	01	1	9202-9205	●	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-22151-512-2	01	1	9202-9205	●	●
60	BRACKET; FRAME TO BRKT EXC. VERTICAL TAIL PIPE<NC4> (A)	1-22151-512-2	01	1	9206-	●	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. VERTICAL TAIL PIPE<NC4> (A)	1-22151-512-2	01	1	9206-	●	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 3700MM(37W) EXC. VERTICAL TAIL PIPE<NC4>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-22151-534-2	01	1	9202-9205	●	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 3700MM(37W) EXC. VERTICAL TAIL PIPE<NC4> (B)	1-22151-534-3	01	1	9206-	●	●
64	U-BOLT; EXH PIPE,RR STD CAB(FS*M) VERTICAL TAIL PIPE<NC4> (B)	1-22139-033-1	01	1	9202-	●
64	U-BOLT; EXH PIPE,RR VERTICAL TAIL PIPE<NC4> (B)	1-22139-033-1	01	1	9202-		●
64	U-BOLT; EXH PIPE,RR VERTICAL TAIL PIPE<NC4> (A)	1-22139-053-0	02	1	9202-9502	●	●
64	U-BOLT; EXH PIPE,RR VERTICAL TAIL PIPE<NC4> (A) L=140	1-22113-030-1	02	1	9503-	●
68	NUT; U BOLT STD CAB(FS*M) VERTICAL TAIL PIPE<NC4> M8	9-09110-408-0	10	1	9202-	●
68	NUT; U BOLT VERTICAL TAIL PIPE<NC4> M8	9-09110-408-0	10	1	9202-		●
68	NUT; U BOLT DOUBLE CAB(FS*W) VERTICAL TAIL PIPE<NC4> M8	9-09110-408-0	08	1	9202-	●
70	BOLT; BRKT VERTICAL TAIL PIPE<NC4> (B) M10X50	0-10806-050-0	02	1	9202-	●
70	BOLT; BRKT VERTICAL TAIL PIPE<NC4> (D) M8X30 FLANGE	0-28080-830-0	02	1	9202-	●
70	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (B) M10X50	0-10806-050-0	01	1	9202-9205	●	●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. VERTICAL TAIL PIPE<NC4> (B) M10X50	0-10806-050-0	01	1	9202-9205	●	●
70	BOLT; BRKT WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) HEAVY DUTY PACKAGE TRUCK<RD2> (B) M10X50	0-10806-050-0	01	1	9202-9205	●	●
70	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (B) M10X50	0-10806-050-0	01	1	9206-	●	●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. VERTICAL TAIL PIPE<NC4> (B) M10X50	0-10806-050-0	01	1	9206-	●	●
70	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (B) M10X55	0-10806-055-0	01	1	9202-	●	●
70	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (C) M10X30 W/LK WASHER	0-50041-030-0	02	1	9202-9307	●	●
70	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (C) M10X30 FLANGE	0-28081-030-0	02	1	9308-	●	●
70	BOLT; BRKT WHEEL BASE 3700MM(37W) EXC. VERTICAL TAIL PIPE<NC4>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M10X45	0-10806-045-0	01	1	9202-9205	●	●
70	BOLT; BRKT WHEEL BASE 3700MM(37W) EXC. VERTICAL TAIL PIPE<NC4> (A) M10X45	0-10806-045-0	01	1	9206-	●	●
75	RUBBER; SUPPORT,BRKT VERTICAL TAIL PIPE<NC4> (C) OD=30	1-22159-106-1	04	1	9202-	●
75	RUBBER; SUPPORT,BRKT EXC. VERTICAL TAIL PIPE<NC4> (A) OD=30	1-22159-106-1	04	1	9202-	●	●
75	RUBBER; SUPPORT,BRKT EXC. VERTICAL TAIL PIPE<NC4> (B) OD=35	9-22159-008-0	02	1	9202-9207	●	●
75	RUBBER; SUPPORT,BRKT EXC. VERTICAL TAIL PIPE<NC4> (B)	1-22159-119-0	02	1	9208-	●	●
81	NUT; BRKT VERTICAL TAIL PIPE<NC4> M8	9-09110-408-0	02	1	9202-	●
81	NUT; BRKT VERTICAL TAIL PIPE<NC4> M10 LOCK NUT	9-09131-510-0	02	1	9202-	●
81	NUT; BRKT M10	9-09110-410-0	02	1	9202-9205	●	●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> M10	9-09110-410-0	02	1	9202-9205	●	●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> M10	9-09110-510-0	01	1	9202-	●	●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> M10 LOCK NUT	9-09131-510-0	02	1	9202-	●	●
81	NUT; BRKT WHEEL BASE 3700MM(37W) EXC. VERTICAL TAIL PIPE<NC4> M10	9-09110-510-0	03	1	9206-	●	●
81	NUT; BRKT WHEEL BASE 3700MM(37W) EXC. VERTICAL TAIL PIPE<NC4>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10	9-09110-410-0	03	1	9202-9205	●	●
81	NUT; BRKT M10	9-09110-410-0	02	1	9206-9211	●	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. VERTICAL TAIL PIPE<NC4> M10	9-09110-410-0	02	1	9206-9211	●	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. VERTICAL TAIL PIPE<NC4> M10	9-09110-510-0	02	1	9212-	●	●
81	NUT; BRKT VERTICAL TAIL PIPE<NC4> M10	9-09110-510-0	02	1	9212-	●
89	CLAMP; EXH SILENCER,RR VERTICAL TAIL PIPE<NC4> ID=83.5	1-22133-178-1	01	1	9202-	●
94	BOLT; CLAMP VERTICAL TAIL PIPE<NC4> (B) M10X40 W/LK&PL WASHER	0-50141-040-0	02	1	9202-	●
94	BOLT; CLAMP (A) M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9202-	●	●
94	BOLT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> (A) M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	9202-	●	●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	04	1	9202-	●	●
97	WASHER; PL,CLAMP EXC. VERTICAL TAIL PIPE<NC4> ID=10.5	9-09164-510-0	02	1	9202-	●	●
105	NUT; CLAMP VERTICAL TAIL PIPE<NC4> M10	9-09110-510-0	02	1	9308-9407	●
105	NUT; CLAMP M10	9-09110-510-0	04	1	9408-	●	●
105	NUT; CLAMP M10	9-09110-410-0	04	1	9202-9307	●	●
105	NUT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> M10	9-09110-410-0	02	1	9202-9307	●	●
105	NUT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> M10	9-09110-410-0	04	1	9308-9407	●	●
105	NUT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> M10	9-09110-510-0	02	1	9308-	●	●
107	BOLT; BRKT VERTICAL TAIL PIPE<NC4> M10X35 W/LK WASHER	0-50041-035-0	04	1	9202-9307	●
107	BOLT; BRKT VERTICAL TAIL PIPE<NC4> M10X35 FLANGE	0-28081-035-0	04	1	9308-	●
107	BOLT; BRKT WHEEL BASE 3700MM(37W) VERTICAL TAIL PIPE<NC4> HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X35 W/LK WASHER	0-50041-035-0	01	1	9211-9307	●
107	BOLT; BRKT WHEEL BASE 3700MM(37W) VERTICAL TAIL PIPE<NC4> HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X35 FLANGE	0-28081-035-0	01	1	9308-	●
107	BOLT; BRKT WHEEL BASE 3700MM(37W) VERTICAL TAIL PIPE<NC4> HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X40 W/LK WASHER	0-50041-040-0	01	1	9211-9307	●
107	BOLT; BRKT WHEEL BASE 3700MM(37W) VERTICAL TAIL PIPE<NC4> HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X40 FLANGE	0-28081-040-0	01	1	9308-	●
107	BOLT; BRKT WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) HEAVY DUTY PACKAGE TRUCK<RD2> EXC. VERTICAL TAIL PIPE<NC4> M10X30 W/LK WASHER	0-50041-030-0	02	1	9202-9205	●	●
107	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> M10X30 W/LK WASHER	0-50041-030-0	02	1	9206-9307	●	●
107	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. VERTICAL TAIL PIPE<NC4> M10X30 W/LK WASHER	0-50041-030-0	02	1	9206-9307	●	●
107	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> M10X30 FLANGE	0-28081-030-0	02	1	9308-	●	●
107	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. VERTICAL TAIL PIPE<NC4> M10X30 FLANGE	0-28081-030-0	02	1	9308-	●	●
107	BOLT; BRKT WHEEL BASE 3700MM(37W) EXC. VERTICAL TAIL PIPE<NC4>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X25 W/LK WASHER	0-50041-025-0	03	1	9202-9205	●	●
107	BOLT; BRKT WHEEL BASE 3700MM(37W) EXC. VERTICAL TAIL PIPE<NC4> M10X25 W/LK WASHER	0-50041-025-0	03	1	9206-9307	●	●
107	BOLT; BRKT WHEEL BASE 3700MM(37W) EXC. VERTICAL TAIL PIPE<NC4> M10X25 FLANGE	0-28081-025-0	03	1	9308-	●	●
121	WASHER; PL,BRKT VERTICAL TAIL PIPE<NC4> ID=10.5 OD=32	9-09164-810-0	02	1	9202-	●
121	WASHER; PL,BRKT EXC. VERTICAL TAIL PIPE<NC4> ID=10.5 OD=32	9-09164-810-0	02	1	9202-	●	●
135	WASHER; PL,STAY VERTICAL TAIL PIPE<NC4> ID=10.5 OD=22	9-09160-610-0	01	1	9202-	●	●
151	PROTECTOR; HEAT,EXH PIPE STD CAB(FS*M) WHEEL BASE 4200MM(42W) VERTICAL TAIL PIPE<NC4> (C)	1-22159-204-1	01	1	9202-	●
151	PROTECTOR; HEAT,EXH PIPE DOUBLE CAB(FS*W) WHEEL BASE 4800MM(48W) VERTICAL TAIL PIPE<NC4> (C)	1-22159-204-1	01	1	9202-	●
151	PROTECTOR; HEAT,EXH PIPE WHEEL BASE 4200MM(42W) VERTICAL TAIL PIPE<NC4> (C)	1-22159-204-1	01	1	9202-		●
151	PROTECTOR; HEAT,EXH PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-53619-081-1	01	1	9202-9206	●	●
151	PROTECTOR; HEAT,EXH PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-53319-018-0	01	1	9207-	●	●
151	PROTECTOR; HEAT,EXH PIPE VERTICAL TAIL PIPE<NC4> (A)	1-22159-169-3	01	1	9202-	●	●
159	BOLT; HEAT PROTECTOR STD CAB(FS*M) WHEEL BASE 4200MM(42W) VERTICAL TAIL PIPE<NC4> M8X14	9-01960-814-0	04	1	9202-9204	●
159	BOLT; HEAT PROTECTOR DOUBLE CAB(FS*W) WHEEL BASE 4800MM(48W) VERTICAL TAIL PIPE<NC4> M8X14	9-01960-814-0	04	1	9202-9204	●
159	BOLT; HEAT PROTECTOR WHEEL BASE 4200MM(42W) VERTICAL TAIL PIPE<NC4> M8X14	9-01960-814-0	04	1	9202-9204		●
159	BOLT; HEAT PROTECTOR STD CAB(FS*M) WHEEL BASE 4200MM(42W) VERTICAL TAIL PIPE<NC4> M8X14	0-50140-814-0	04	1	9205-	●
159	BOLT; HEAT PROTECTOR DOUBLE CAB(FS*W) WHEEL BASE 4800MM(48W) VERTICAL TAIL PIPE<NC4> M8X14	0-50140-814-0	04	1	9205-	●
159	BOLT; HEAT PROTECTOR WHEEL BASE 4200MM(42W) VERTICAL TAIL PIPE<NC4> M8X14	0-50140-814-0	04	1	9205-		●
159	BOLT; HEAT PROTECTOR BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●	●
159	BOLT; HEAT PROTECTOR BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	02	1	9205-	●	●
159	BOLT; HEAT PROTECTOR VERTICAL TAIL PIPE<NC4> M8X22	9-01900-822-0	10	1	9202-9204	●	●
159	BOLT; HEAT PROTECTOR VERTICAL TAIL PIPE<NC4> M8X22 W/LK WASHER	0-50040-822-0	10	1	9205-	●	●
193	NUT; BRKT,VERTICAL PIPE STD CAB(FS*M) VERTICAL TAIL PIPE<NC4> M10	9-09110-510-0	05	1	9202-	●
193	NUT; BRKT,VERTICAL PIPE VERTICAL TAIL PIPE<NC4> M10	9-09110-510-0	05	1	9202-		●
197	BRACKET; EXH PIPE,VERTICAL STD CAB(FS*M) VERTICAL TAIL PIPE<NC4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-22131-605-2	01	1	9202-	●
197	BRACKET; EXH PIPE,VERTICAL DOUBLE CAB(FS*W) VERTICAL TAIL PIPE<NC4> (A)	1-22131-605-2	01	1	9202-	●
197	BRACKET; EXH PIPE,VERTICAL VERTICAL TAIL PIPE<NC4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-22131-605-2	01	1	9202-		●
197	BRACKET; EXH PIPE,VERTICAL STD CAB(FS*M) VERTICAL TAIL PIPE<NC4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-22131-640-0	01	1	9202-	●
197	BRACKET; EXH PIPE,VERTICAL VERTICAL TAIL PIPE<NC4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-22131-640-0	01	1	9202-		●
197	BRACKET; EXH PIPE,VERTICAL STD CAB(FS*M) VERTICAL TAIL PIPE<NC4> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-22131-607-2	01	1	9202-	●
197	BRACKET; EXH PIPE,VERTICAL VERTICAL TAIL PIPE<NC4> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-22131-607-2	01	1	9202-		●
197	BRACKET; EXH PIPE,VERTICAL STD CAB(FS*M) VERTICAL TAIL PIPE<NC4> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-22131-619-0	01	1	9202-	●
197	BRACKET; EXH PIPE,VERTICAL VERTICAL TAIL PIPE<NC4> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-22131-619-0	01	1	9202-		●
201	BOLT; STAY VERTICAL TAIL PIPE<NC4> (A) M10X25 W/LK WASHER	0-50041-025-0	01	1	9202-	●	●
201	BOLT; STAY VERTICAL TAIL PIPE<NC4> (B) M10X30 W/LK WASHER	0-50041-030-0	01	1	9202-	●	●
238	WASHER; LK,HEAT PROTECTOR VERTICAL TAIL PIPE<NC4> ID=8.4 OD=22	9-09160-708-0	10	1	9202-	●	●
417	BOLT; BRKT VERTICAL TAIL PIPE<NC4> FRONT FENDER WIDE<SA4> M10X30 W/LK WASHER	0-50041-030-0	04	1	9202-9307	●	●
417	BOLT; BRKT VERTICAL TAIL PIPE<NC4> FRONT FENDER WIDE<SA4> M10X30 FLANGE	0-28081-030-0	04	1	9308-	●	●
417	BOLT; BRKT VERTICAL TAIL PIPE<NC4> FRONT FENDER WIDE<SA4> M10X35 W/LK WASHER	0-50041-035-0	01	1	9202-9307	●	●
417	BOLT; BRKT VERTICAL TAIL PIPE<NC4> FRONT FENDER WIDE<SA4> M10X35 FLANGE	0-28081-035-0	01	1	9308-	●	●
417	BOLT; BRKT VERTICAL TAIL PIPE<NC4> EXC. FRONT FENDER WIDE<SA4> M10X30 W/LK WASHER	0-50041-030-0	05	1	9202-9307	●	●
417	BOLT; BRKT VERTICAL TAIL PIPE<NC4> EXC. FRONT FENDER WIDE<SA4> M10X30 FLANGE	0-28081-030-0	05	1	9308-	●	●
418	NUT; BRKT VERTICAL TAIL PIPE<NC4> M10	9-09110-510-0	05	1	9202-	●
420	BOLT; BRKT,VERTICAL PIPE STD CAB(FS*M) VERTICAL TAIL PIPE<NC4> M10X25 W/LK WASHER	0-50041-025-0	05	1	9202-	●
420	BOLT; BRKT,VERTICAL PIPE VERTICAL TAIL PIPE<NC4> M10X25 W/LK WASHER	0-50041-025-0	05	1	9202-		●
433	BRACKET; STAY,EXH PIPE VERTICAL TAIL PIPE<NC4>	1-22131-501-1	01	1	9202-	●	●
434	BOLT; BRKT VERTICAL TAIL PIPE<NC4> M8X20 W/LK WASHER	0-50040-820-0	02	1	9202-	●
435	NUT; BRKT VERTICAL TAIL PIPE<NC4> M8	9-09110-408-0	02	1	9202-	●
436	STAY; SUPPORT,EXH VERTICAL TAIL PIPE<NC4>	1-22131-659-0	01	1	9202-	●	●
437	NUT; STAY VERTICAL TAIL PIPE<NC4> M10	9-09110-510-0	01	1	9202-	●
448	PIECE; DIST,U-BOLT STD CAB(FS*M) VERTICAL TAIL PIPE<NC4> (B)	1-22119-214-0	01	1	9202-	●
448	PIECE; DIST,U-BOLT VERTICAL TAIL PIPE<NC4> (B)	1-22119-214-0	01	1	9202-		●
448	PIECE; DIST,U-BOLT VERTICAL TAIL PIPE<NC4> (A)	1-22113-074-0	02	1	9202-	●	●

128 1 12 1 12 128 128 1 12 126 1 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH ANTI NOISE EQUIPMENT VAR2<TAK> EXC. VERTICAL TAIL PIPE<NC4>	1-22122-368-0	01	1	9411-9412	●
1	PIPE; EXH STD CAB(FS*M) WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) VERTICAL TAIL PIPE<NC4>	1-22122-165-1	01	1	9202-	●
1	PIPE; EXH WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) VERTICAL TAIL PIPE<NC4>	1-22122-165-1	01	1	9202-		●
1	PIPE; EXH DOUBLE CAB(FS*W) VERTICAL TAIL PIPE<NC4>	1-22122-254-1	01	1	9202-	●
1	PIPE; EXH EXC. VERTICAL TAIL PIPE<NC4>	1-22122-252-2	01	1	9202-9410	●	●
1	PIPE; EXH EXC. VERTICAL TAIL PIPE<NC4>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-22122-252-2	01	1	9411-9412	●	●
1	PIPE; EXH EXC. VERTICAL TAIL PIPE<NC4>	1-22122-252-2	01	1	9501-	●	●
1	PIPE; EXH WHEEL BASE 3700MM(37W) VERTICAL TAIL PIPE<NC4>	1-22122-253-1	01	1	9202-	●	●
12	SILENCER ASM; EXH VERTICAL TAIL PIPE<NC4>	1-22140-735-0	01	1	9202-	●
12	SILENCER ASM; EXH EXC. VERTICAL TAIL PIPE<NC4>	1-22140-715-2	01	1	9202-	●	●
126	PIPE; EXH,RR EXC. VERTICAL TAIL PIPE<NC4>	1-22126-024-1	01	1	9202-9207	●	●
126	PIPE; EXH,RR WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. VERTICAL TAIL PIPE<NC4>,HEAVY DUTY PACKAGE TRUCK<RD2>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-22126-024-2	01	1	9208-	●	●
126	PIPE; EXH,RR WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) HEAVY DUTY PACKAGE TRUCK<RD2> EXC. VERTICAL TAIL PIPE<NC4>	1-22126-072-0	01	1	9208-	●	●
126	PIPE; EXH,RR WHEEL BASE 3700MM(37W) EXC. VERTICAL TAIL PIPE<NC4>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-22126-071-0	01	1	9208-	●	●
126	PIPE; EXH,RR WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. VERTICAL TAIL PIPE<NC4>	1-22126-073-0	01	1	9208-	●	●
128	PIPE; EXH,RR STD CAB(FS*M) WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) VERTICAL TAIL PIPE<NC4> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-22112-987-1	01	1	9202-	●
128	PIPE; EXH,RR WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) VERTICAL TAIL PIPE<NC4> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-22112-987-1	01	1	9202-		●
128	PIPE; EXH,RR STD CAB(FS*M) WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) VERTICAL TAIL PIPE<NC4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-22126-020-1	01	1	9202-	●
128	PIPE; EXH,RR WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) VERTICAL TAIL PIPE<NC4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-22126-020-1	01	1	9202-		●
128	PIPE; EXH,RR DOUBLE CAB(FS*W) VERTICAL TAIL PIPE<NC4>	1-22126-018-1	01	1	9202-	●
128	PIPE; EXH,RR WHEEL BASE 3700MM(37W) VERTICAL TAIL PIPE<NC4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-22126-019-1	01	1	9202-	●	●
128	PIPE; EXH,RR WHEEL BASE 3700MM(37W) VERTICAL TAIL PIPE<NC4> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-22126-017-1	01	1	9202-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
