4-01 — PROPELLER SHAFT (#65299) — 219 parça

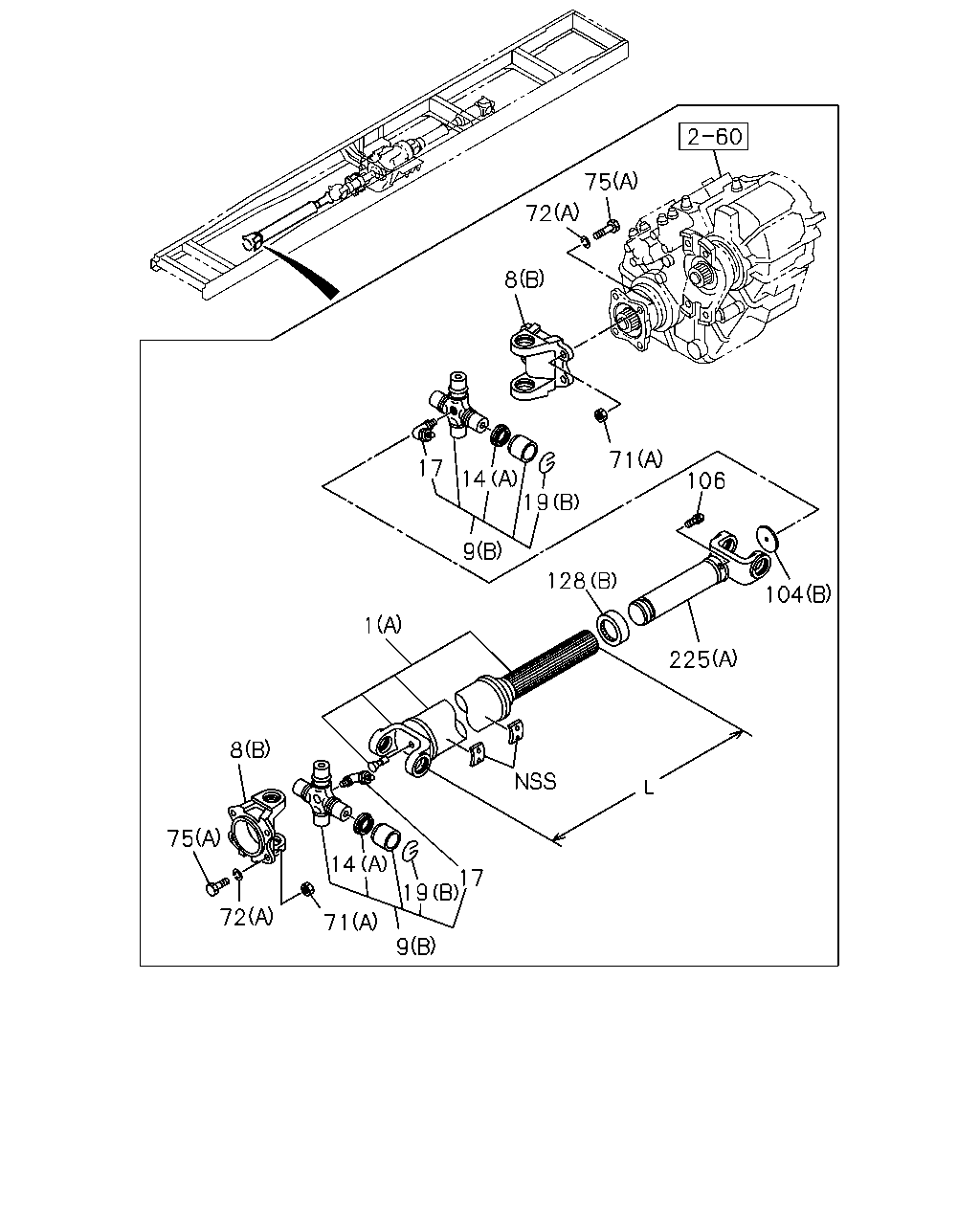

çizim 122600
75 72 8 71 17 14 19 106 9 128 104 1 225 8 75 14 17 19 72 71 9
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(B) L=516 		1-37124-034-1 01 1 9806- ●
1 SHAFT; PROP
(A) L=1527 		1-37124-073-1 01 1 9806- ● ●
1 SHAFT; PROP
(A) L=1477 		1-37123-668-1 01 1 9806- ●
1 SHAFT; PROP
(B) L=686 		1-37123-943-1 01 1 9806- ●
1 SHAFT; PROP
(B) L=1136 		1-37123-631-1 01 1 9806- ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 9806- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 9806- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 9806- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-069-0 AR 1 9806-9809 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 9810-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1506- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-089-0 AR 1 9806-9809 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-0 AR 1 9810-0004 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98020-789-1 02 1 1107- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-1 AR 1 0005-1106 ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37319-006-0 AR 1 9806-9809 ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37319-011-0 AR 1 9810-1106 ● ● ●
14 COVER; DUST,SPIDER
(A) 		8-98020-791-0 AR 1 1107- ● ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-012-0 AR 1 9810-1505 ● ● ●
14 COVER; DUST,SPIDER
(B) 		8-98020-800-0 AR 1 1506- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 9806-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 AR 1 9806- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 AR 1 9806- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 AR 1 9806- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 9806- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 9806- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 9806- ● ● ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 08 1 0404-0512 ● ● ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 0601- ● ● ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 08 1 9806-0004 ● ● ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 04 1 0005-0512 ● ● ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 04 1 0005-0512 ● ● ●
71 NUT; YOKE
(A) M12 		0-91110-512-0 04 1 0601- ● ● ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 12 1 9806-0403 ● ● ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 04 1 0404-0512 ● ● ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 08 1 0601- ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 08 1 0404-0603 ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 0604- ● ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 08 1 9806-0004 ● ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 04 1 0005-0603 ● ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 04 1 0005-0603 ● ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		0-91510-612-0 04 1 0604- ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 12 1 9806-0403 ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 04 1 0404-0603 ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 08 1 0604- ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 08 1 9806-0004 ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0005- ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0005- ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(B) M14X37 		1-09000-121-0 08 1 9806- ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(C) M14X40 		1-09000-187-0 04 1 9806-9807 ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 9806- ● ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 9806- ● ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 9806- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9806-0512 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9806-0512 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9806-0512 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ● ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 9806- ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-015-0 01 1 9806-9809 ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-015-0 01 1 9806-9809 ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 9810- ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 9810- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=228 		1-37241-098-2 01 1 9806- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(B),(C) L=271 		1-37241-099-1 01 1 9806-9809 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(B),(C) L=271 		1-37241-099-1 01 1 9806-9809 ● ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 9810-9902 ● ●
225 YOKE; SLEEVE,PROP SHAFT
(B),(C) L=271 		1-37241-099-2 01 1 9903- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(B),(C) L=271 		1-37241-099-2 01 1 9903- ● ●
225 YOKE; SLEEVE,PROP SHAFT
(C) L=271 		1-37241-129-0 01 1 9810-9902 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=229 		1-37241-086-2 01 1 9806- ●

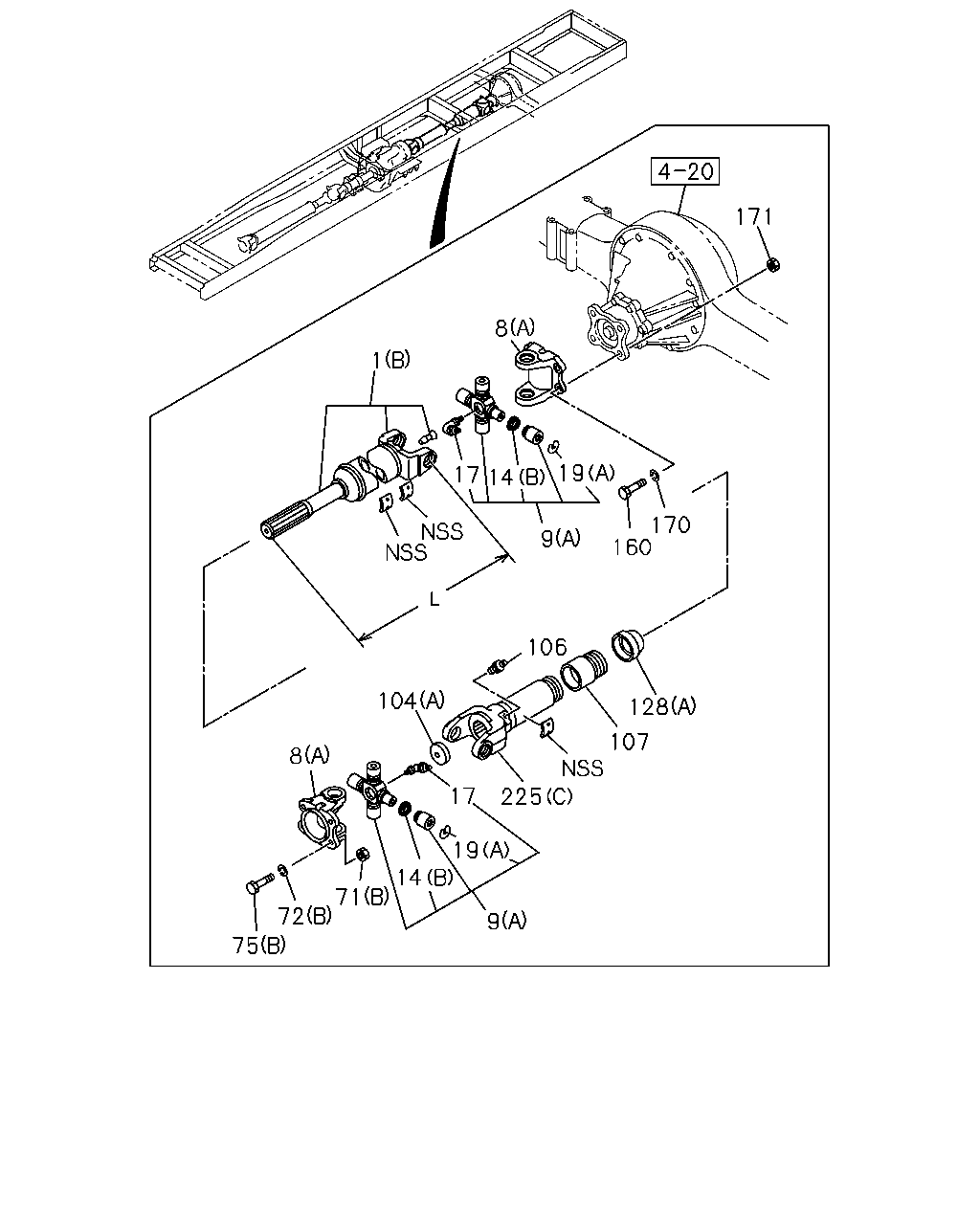

çizim 122605
171 8 1 19 17 14 170 160 9 106 104 128 107 225 8 17 19 14 71 72 9 75
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(B) L=516 		1-37124-034-1 01 1 9806- ●
1 SHAFT; PROP
(A) L=1527 		1-37124-073-1 01 1 9806- ● ●
1 SHAFT; PROP
(A) L=1477 		1-37123-668-1 01 1 9806- ●
1 SHAFT; PROP
(B) L=686 		1-37123-943-1 01 1 9806- ●
1 SHAFT; PROP
(B) L=1136 		1-37123-631-1 01 1 9806- ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 9806- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 9806- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 9806- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-069-0 AR 1 9806-9809 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 9810-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1506- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-089-0 AR 1 9806-9809 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-0 AR 1 9810-0004 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98020-789-1 02 1 1107- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-1 AR 1 0005-1106 ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37319-006-0 AR 1 9806-9809 ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37319-011-0 AR 1 9810-1106 ● ● ●
14 COVER; DUST,SPIDER
(A) 		8-98020-791-0 AR 1 1107- ● ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-012-0 AR 1 9810-1505 ● ● ●
14 COVER; DUST,SPIDER
(B) 		8-98020-800-0 AR 1 1506- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 9806-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 AR 1 9806- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 AR 1 9806- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 AR 1 9806- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 9806- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 9806- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 9806- ● ● ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 08 1 0404-0512 ● ● ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 0601- ● ● ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 08 1 9806-0004 ● ● ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 04 1 0005-0512 ● ● ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 04 1 0005-0512 ● ● ●
71 NUT; YOKE
(A) M12 		0-91110-512-0 04 1 0601- ● ● ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 12 1 9806-0403 ● ● ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 04 1 0404-0512 ● ● ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 08 1 0601- ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 08 1 0404-0603 ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 0604- ● ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 08 1 9806-0004 ● ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 04 1 0005-0603 ● ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 04 1 0005-0603 ● ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		0-91510-612-0 04 1 0604- ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 12 1 9806-0403 ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 04 1 0404-0603 ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 08 1 0604- ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 08 1 9806-0004 ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0005- ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0005- ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(B) M14X37 		1-09000-121-0 08 1 9806- ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(C) M14X40 		1-09000-187-0 04 1 9806-9807 ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 9806- ● ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 9806- ● ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 9806- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9806-0512 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9806-0512 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9806-0512 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ● ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 9806- ● ● ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 9806- ● ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 9806- ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-015-0 01 1 9806-9809 ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-015-0 01 1 9806-9809 ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 9810- ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 9810- ● ● ●
160 BOLT; PROP SHAFT TO RR AXLE
M14X37 		1-09000-121-0 04 1 9806- ● ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=14.2 		9-09150-614-0 04 1 9806-0603 ● ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=14.2 		0-91510-614-0 04 1 0604- ● ● ●
171 NUT; YOKE,SLEEVE
M14 		9-99110-514-0 04 1 9806-0512 ● ● ●
171 NUT; YOKE,SLEEVE
M14 		0-91110-514-0 04 1 0601- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=228 		1-37241-098-2 01 1 9806- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(B),(C) L=271 		1-37241-099-1 01 1 9806-9809 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(B),(C) L=271 		1-37241-099-1 01 1 9806-9809 ● ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 9810-9902 ● ●
225 YOKE; SLEEVE,PROP SHAFT
(B),(C) L=271 		1-37241-099-2 01 1 9903- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(B),(C) L=271 		1-37241-099-2 01 1 9903- ● ●
225 YOKE; SLEEVE,PROP SHAFT
(C) L=271 		1-37241-129-0 01 1 9810-9902 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=229 		1-37241-086-2 01 1 9806- ●

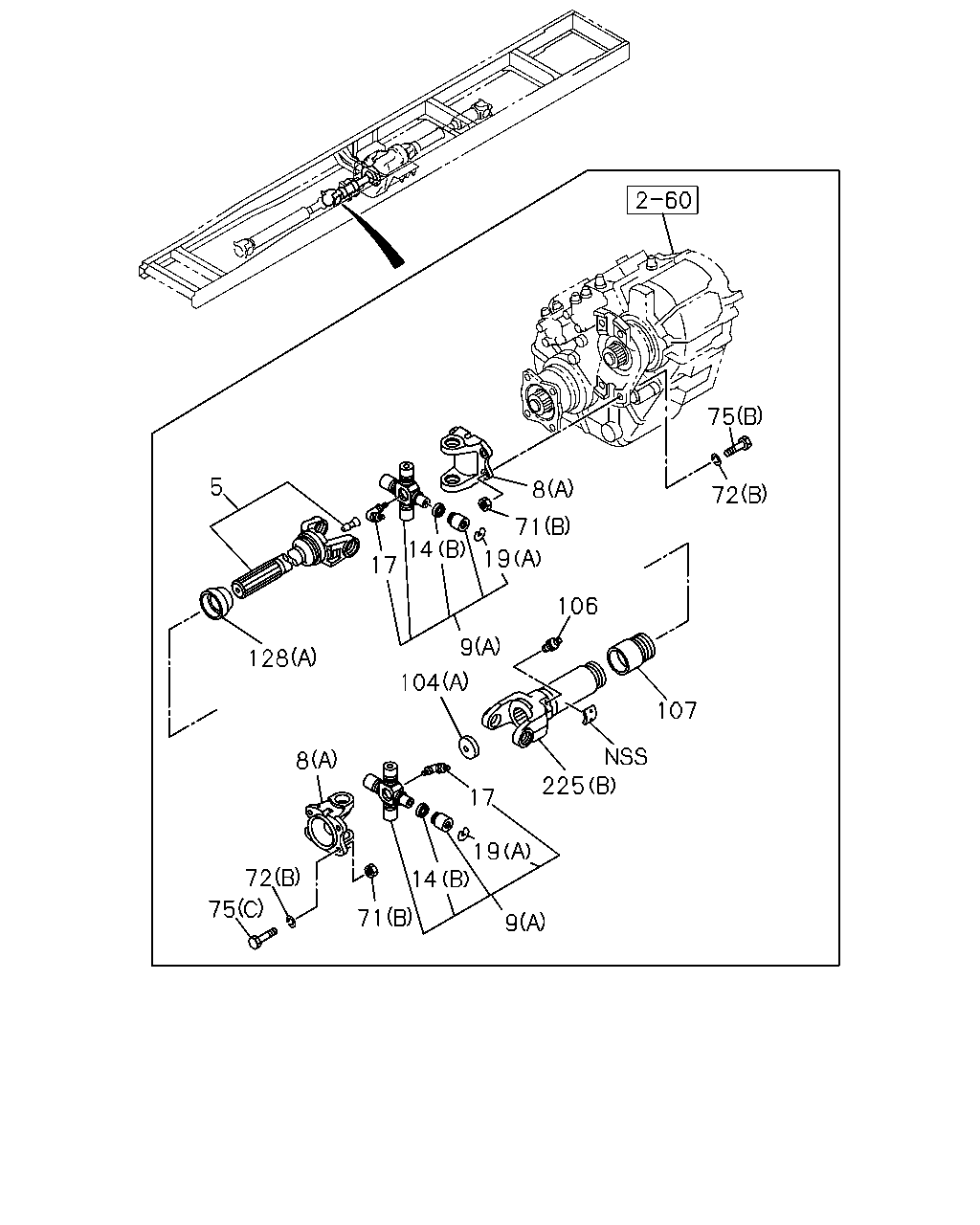

çizim 122889
75 5 8 72 71 14 19 17 106 9 128 104 107 225 8 17 19 14 72 75 71 9
BalonParca AdiParca NoAdetTipApplied Date A B C
5 YOKE; STUB,PROP SHAFT
L=387 		1-37171-086-1 01 1 9806- ● ●
5 YOKE; STUB,PROP SHAFT
L=302 		1-37171-092-1 01 1 9806- ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 9806- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 9806- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 9806- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-069-0 AR 1 9806-9809 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 9810-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1506- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-089-0 AR 1 9806-9809 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-0 AR 1 9810-0004 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98020-789-1 02 1 1107- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-1 AR 1 0005-1106 ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37319-006-0 AR 1 9806-9809 ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37319-011-0 AR 1 9810-1106 ● ● ●
14 COVER; DUST,SPIDER
(A) 		8-98020-791-0 AR 1 1107- ● ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-012-0 AR 1 9810-1505 ● ● ●
14 COVER; DUST,SPIDER
(B) 		8-98020-800-0 AR 1 1506- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 9806-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 AR 1 9806- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 AR 1 9806- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 AR 1 9806- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 9806- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 9806- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 9806- ● ● ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 08 1 0404-0512 ● ● ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 0601- ● ● ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 08 1 9806-0004 ● ● ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 04 1 0005-0512 ● ● ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 04 1 0005-0512 ● ● ●
71 NUT; YOKE
(A) M12 		0-91110-512-0 04 1 0601- ● ● ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 12 1 9806-0403 ● ● ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 04 1 0404-0512 ● ● ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 08 1 0601- ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 08 1 0404-0603 ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 0604- ● ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 08 1 9806-0004 ● ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 04 1 0005-0603 ● ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 04 1 0005-0603 ● ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		0-91510-612-0 04 1 0604- ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 12 1 9806-0403 ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 04 1 0404-0603 ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 08 1 0604- ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 08 1 9806-0004 ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0005- ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0005- ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(B) M14X37 		1-09000-121-0 08 1 9806- ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(C) M14X40 		1-09000-187-0 04 1 9806-9807 ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 9806- ● ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 9806- ● ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 9806- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9806-0512 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9806-0512 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9806-0512 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ● ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 9806- ● ● ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 9806- ● ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 9806- ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-015-0 01 1 9806-9809 ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-015-0 01 1 9806-9809 ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 9810- ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 9810- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=228 		1-37241-098-2 01 1 9806- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(B),(C) L=271 		1-37241-099-1 01 1 9806-9809 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(B),(C) L=271 		1-37241-099-1 01 1 9806-9809 ● ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 9810-9902 ● ●
225 YOKE; SLEEVE,PROP SHAFT
(B),(C) L=271 		1-37241-099-2 01 1 9903- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(B),(C) L=271 		1-37241-099-2 01 1 9903- ● ●
225 YOKE; SLEEVE,PROP SHAFT
(C) L=271 		1-37241-129-0 01 1 9810-9902 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=229 		1-37241-086-2 01 1 9806- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
