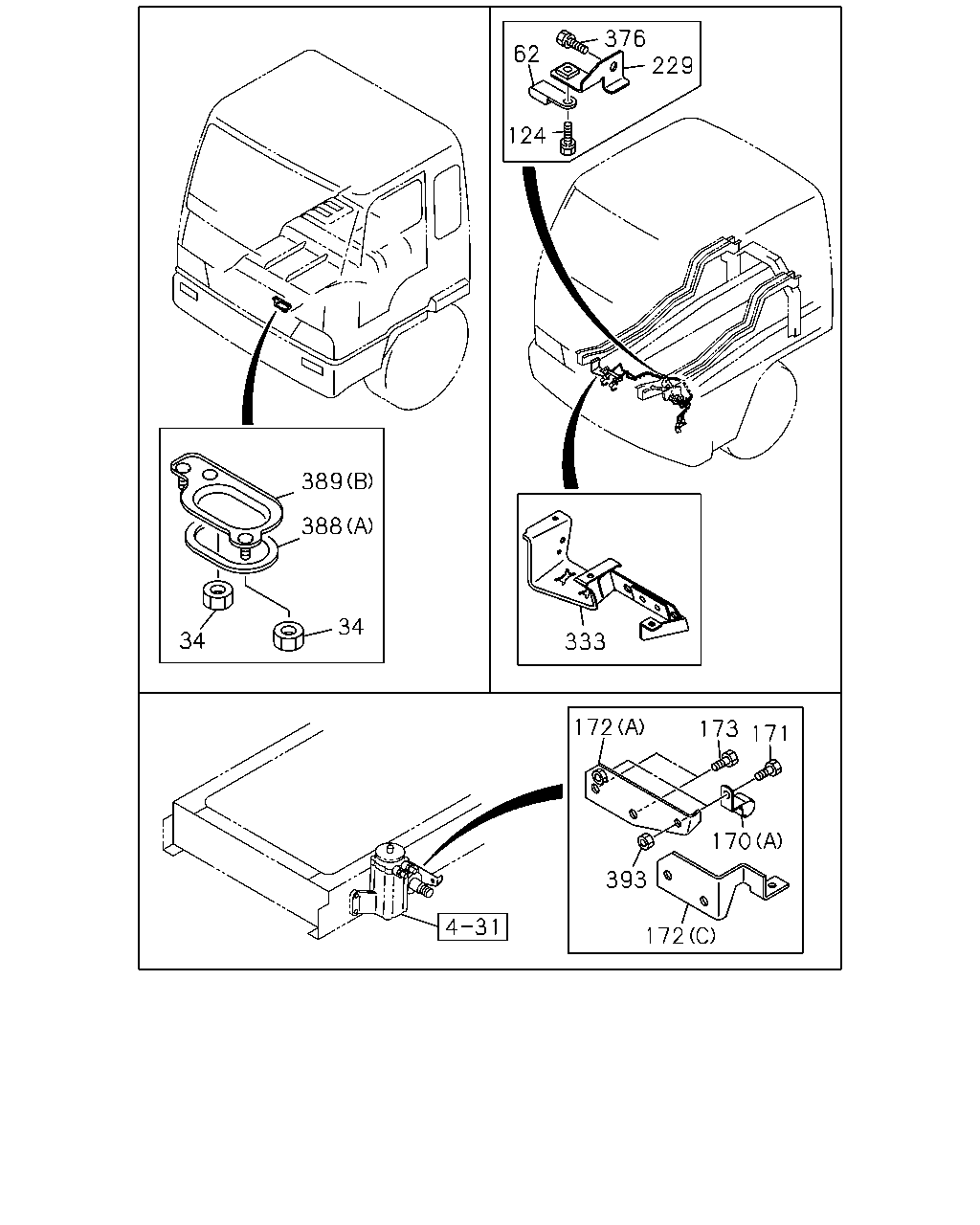

3-78 — FIXING PARTS; AIR PIPING (#65298) — 113 parça
çizim 121820
376 229 62 124 389 388 34 34 333 172 173 171 170 393 172
BalonParca AdiParca NoAdetTipApplied Date A B C
34 NUT; BRKT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 9806- ● ● ●
62 CLIP; AIR PIPE
ID=13X2 L=20 		9-09535-236-0 02 1 9806-0606 ● ● ●
62 CLIP; AIR PIPE
ID=13X2 L=20 		0-95325-236-0 02 1 0607- ● ● ●
124 BOLT; PIPE CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9806-0904 ● ● ●
124 BOLT; PIPE CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ● ● ●
170 CLIP; NYLON TUBE
(A) ID=24.5 H=35 L=25 		1-09700-990-0 02 1 9806-0704 ●
170 CLIP; NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 01 1 0705- ●
170 CLIP; NYLON TUBE
(A) ID=24.5 H=35 L=25 		1-09700-990-0 01 1 9806- ● ●
170 CLIP; NYLON TUBE
(B) ID=26 L=27 		1-09701-006-0 01 1 9806- ● ●
171 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0705- ● ●
171 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28080-816-0 02 1 9806-0402 ● ● ●
171 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0403-0512 ● ● ●
171 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0601-0704 ● ● ●
171 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0705- ●
172 BRACKET; TUBE CLIP
(A) 		1-47477-649-0 01 1 9806-0704 ●
172 BRACKET; TUBE CLIP
(C) 		1-47471-477-0 01 1 0705- ●
172 BRACKET; TUBE CLIP
(B) 		1-47477-650-0 01 1 9806- ● ●
173 BOLT; CLIP BRKT
M10X16 FLANGE 		0-28081-016-0 02 1 9806-9806 ● ● ●
173 BOLT; CLIP BRKT
M10X16 FLANGE 		0-28181-016-0 02 1 9807-0512 ● ● ●
173 BOLT; CLIP BRKT
M10X16 FLANGE 		0-28151-016-0 02 1 0601- ● ● ●
229 BRACKET; PIPE CLIP 1-79738-819-0 01 1 9806- ● ● ●
333 BRACKET; BRK AIR PIPE 1-79738-804-4 01 1 9806- ● ● ●
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9806- ● ● ●
376 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9806-0904 ● ● ●
376 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ● ●
388 SEAL
(A) L=280 		1-79738-793-1 01 1 9806- ● ● ●
388 SEAL
(B) L=215 		1-79738-794-1 01 1 9806- ● ● ●
389 BRACKET; UNION
(A) 		1-79738-795-1 01 1 9806- ● ● ●
389 BRACKET; UNION
(B) 		1-79738-811-1 01 1 9806- ● ● ●
393 NUT; UNION
M8 FLANGE 		0-91150-108-0 01 1 9806-0602 ● ● ●
393 NUT; UNION
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●

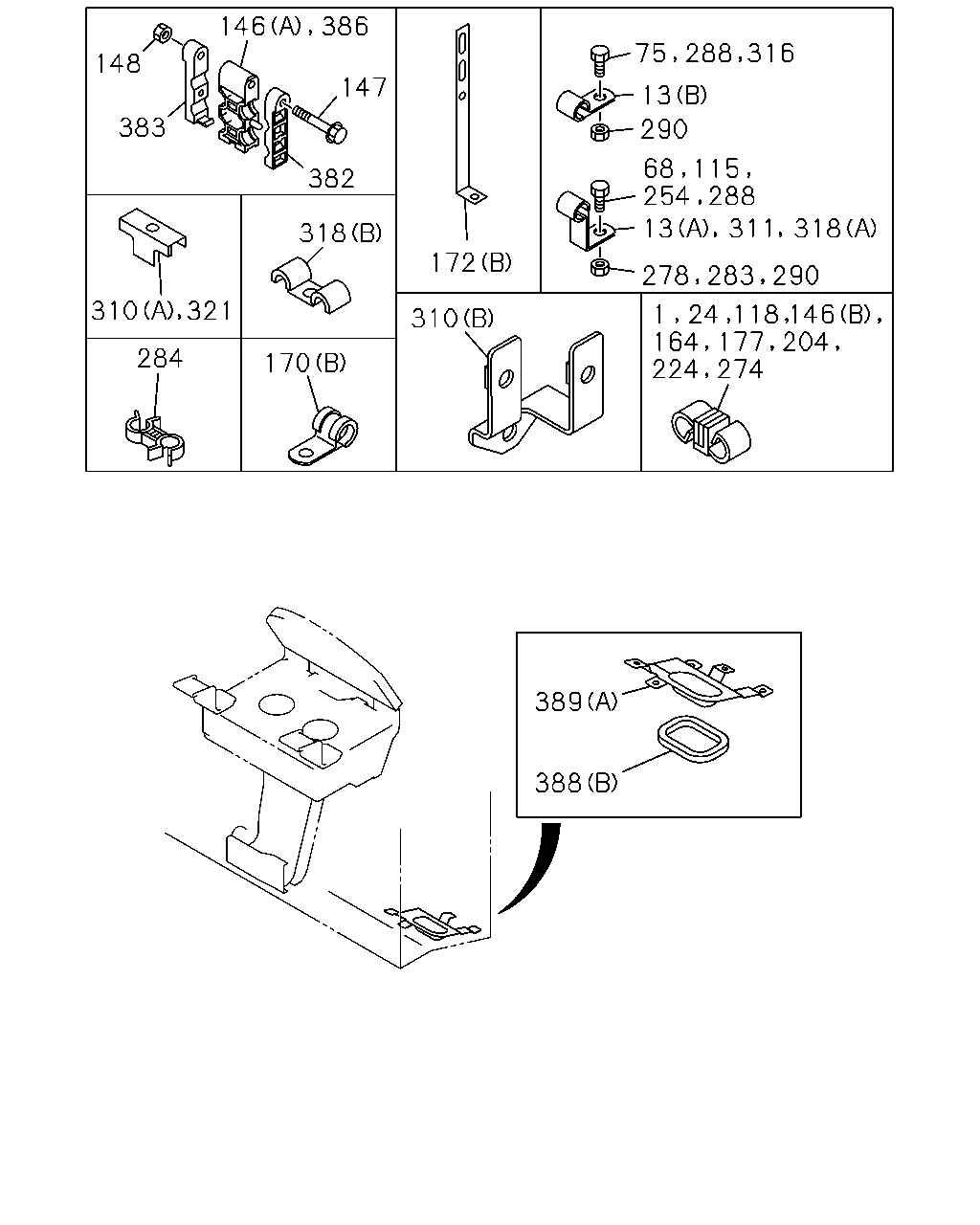

çizim 184858
146 386 148 147 383 382 318 172 310 321 310 284 170 389 388 75 288 316 290 13 68 115 254 288 318 311 13 290 283 278 24 1 118 146 164 177 204 224 274
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CLIP; AIR PIPE
ID=6.35 & 6.35 		1-09709-273-1 01 1 9806- ● ● ●
13 CLIP; AIR PIPE
(A) ID=7 L=38 H=21 		1-09700-916-0 01 1 9806- ● ● ●
13 CLIP; AIR PIPE
(B) ID=7 L=40 		9-09524-675-0 01 1 9806-0606 ● ● ●
13 CLIP; AIR PIPE
(B) ID=7 L=40 		0-95234-675-0 01 1 0607- ● ● ●
24 CLIP; PIPE
ID=6.35 & 15 		1-09709-276-1 01 1 9806- ● ● ●
68 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28080-850-0 02 1 9806-0512 ●
68 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28050-850-0 02 1 0601- ●
68 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28080-850-0 01 1 9806-0512 ● ●
68 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28050-850-0 01 1 0601- ● ●
75 BOLT; CLIP
M8X50 FLANGE 		0-28080-850-0 01 1 9806-0512 ●
75 BOLT; CLIP
M8X50 FLANGE 		0-28050-850-0 01 1 0601- ●
75 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 03 1 9806-9912 ●
75 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 03 1 0001-0512 ● ● ●
75 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 0601- ● ● ●
75 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 04 1 9806-9912 ● ●
115 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9806-0512 ● ● ●
115 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ●
118 CLIP; AIR PIPE
ID=6.35 & 10.0 		1-09709-274-1 01 1 9806- ● ● ●
118 CLIP; AIR PIPE
ID=6.35 & 10.0 		1-09709-274-1 01 1 9806- ● ●
118 CLIP; AIR PIPE
ID=6.35 & 15 		1-09709-276-1 01 1 9806- ● ●
146 CLIP; AIR PIPE
(A) ID=10 		1-09709-242-0 01 1 9806- ● ● ●
146 CLIP; AIR PIPE
(B) ID=10 & 10 		1-09709-277-1 01 1 0009- ● ●
147 BOLT; PIPE CLIP
M8X70 FLANGE 		0-28080-870-0 03 1 9806-0512 ● ● ●
147 BOLT; PIPE CLIP
M8X70 FLANGE 		0-28050-870-0 03 1 0601- ● ● ●
148 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 03 1 9806-0602 ● ● ●
148 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ● ●
164 CLIP; AIR PIPE
ID=10 & 12 		1-09709-278-1 01 1 9806- ●
164 CLIP; AIR PIPE
ID=10 & 10 		1-09709-277-1 01 1 9806- ● ●
170 CLIP; NYLON TUBE
(A) ID=24.5 H=35 L=25 		1-09700-990-0 02 1 9806-0704 ●
170 CLIP; NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 01 1 0705- ●
170 CLIP; NYLON TUBE
(A) ID=24.5 H=35 L=25 		1-09700-990-0 01 1 9806- ● ●
170 CLIP; NYLON TUBE
(B) ID=26 L=27 		1-09701-006-0 01 1 9806- ● ●
172 BRACKET; TUBE CLIP
(A) 		1-47477-649-0 01 1 9806-0704 ●
172 BRACKET; TUBE CLIP
(C) 		1-47471-477-0 01 1 0705- ●
172 BRACKET; TUBE CLIP
(B) 		1-47477-650-0 01 1 9806- ● ●
177 CLIP; AIR PIPE
ID=10 & 10 		1-09709-277-1 01 1 9806- ● ●
204 CLIP; AIR PIPE
ID=10 & 10 		1-09709-277-1 02 1 0009- ● ●
224 CLIP; AIR PIPE
ID=10 & 12 		1-09709-278-1 01 1 9806- ●
254 BOLT; PIPE CLIP
M8X40 FLANGE 		0-28680-840-0 01 1 9806-0512 ●
254 BOLT; PIPE CLIP
M8X40 FLANGE 		0-28650-840-0 01 1 0601- ●
274 CLIP; AIR PIPE
ID=6.35 & 6.35 		1-09709-273-1 01 1 9806- ● ●
274 CLIP; AIR PIPE
ID=6.35 & 10.0 		1-09709-274-1 01 1 9806- ● ●
278 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 02 1 9806-0602 ● ● ●
278 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 02 1 9806-0602 ●
278 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
278 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
278 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 01 1 9806-0602 ● ●
278 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
283 NUT; CLIP
M8 FLANGE 		0-91150-108-0 04 1 9806-0602 ●
283 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 0603- ●
283 NUT; CLIP
M8 FLANGE 		0-91150-108-0 06 1 9806-9912 ● ●
283 NUT; CLIP
M8 FLANGE 		0-91150-108-0 05 1 0001-0602 ● ●
283 NUT; CLIP
M8 FLANGE 		0-91180-108-0 05 1 0603- ● ●
284 CLIP; FLEX HOSE
ID=18 & 18 		8-94323-068-0 02 1 9806- ● ● ●
288 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28680-820-0 02 1 9806-0512 ● ● ●
288 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ●
290 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 02 1 9806-0602 ● ● ●
290 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
310 BRACKET; PIPE CLIP
(A) 		1-47475-427-1 01 1 9806- ● ●
310 BRACKET; PIPE CLIP
(B) M8 W/NUT 		1-47475-439-2 01 1 9806- ● ●
311 CLIP; AIR PIPE
ID=6 H=20 L=20 		1-09700-603-0 03 1 9806-9912 ●
311 CLIP; AIR PIPE
ID=6 H=20 L=20 		1-09700-603-0 03 1 0001- ● ● ●
311 CLIP; AIR PIPE
ID=6 H=20 L=20 		1-09700-603-0 04 1 9806-9912 ● ●
316 BOLT; CLIP
M8X40 FLANGE 		0-28680-840-0 01 1 9806-0512 ● ●
316 BOLT; CLIP
M8X40 FLANGE 		0-28650-840-0 01 1 0601- ● ●
318 CLIP; AIR PIPE
(B) ID=16 & 7 L=21 & 17 		1-09700-675-0 01 1 0212- ● ●
318 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 9806- ● ● ●
321 BRACKET; CLIP 1-47475-427-1 01 1 9806- ● ●
382 CLIP; UPR
ID=10 & 10 		1-09709-241-0 03 1 0005- ● ● ●
382 CLIP; UPR
ID=10 & 10 		1-09709-241-0 02 1 9806- ●
382 CLIP; UPR
ID=10 & 10 		1-09709-241-0 01 1 9806- ● ● ●
382 CLIP; UPR
ID=10 & 10 		1-09709-241-0 03 1 9806-0004 ● ● ●
383 CLIP; LWR
ID=10 & 10 		1-09709-241-0 03 1 0005- ● ● ●
383 CLIP; LWR
ID=6 & 6 		1-09709-244-0 02 1 9806- ●
383 CLIP; LWR
ID=10 & 10 		1-09709-241-0 03 1 9806-0004 ● ● ●
383 CLIP; LWR
ID=6 & 6 		1-09709-244-0 01 1 9806- ● ● ●
386 CLIP; CENTER
ID=10 		1-09709-242-0 03 1 0005- ● ● ●
386 CLIP; CENTER
ID=10 		1-09709-242-0 03 1 9806-0004 ● ● ●
388 SEAL
(A) L=280 		1-79738-793-1 01 1 9806- ● ● ●
388 SEAL
(B) L=215 		1-79738-794-1 01 1 9806- ● ● ●
389 BRACKET; UNION
(A) 		1-79738-795-1 01 1 9806- ● ● ●
389 BRACKET; UNION
(B) 		1-79738-811-1 01 1 9806- ● ● ●
