Isuzu WW
▶
TRUCKS
▶
FSS
▶
10717 - FSS/FTS-LHD
▶
3 - Brakes, Brake System
▶
3-77 - BRAKE PIPING; AIR,REAR
▶
3-77 — BRAKE PIPING; AIR,REAR
(#65297) — 35 parça
Tümü
A - FSS6MF
B - FTS6MC
C - FTS6MF
◀

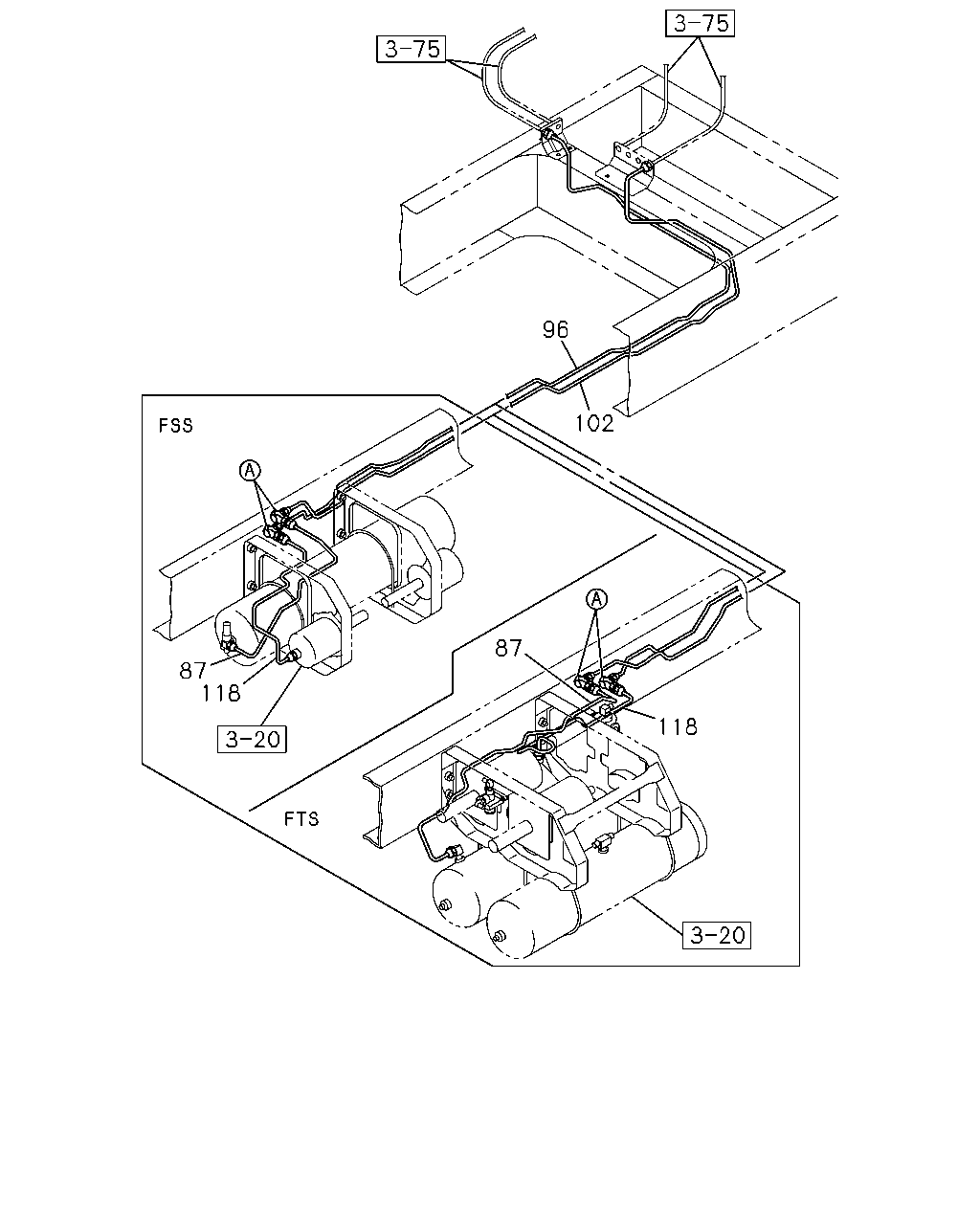

[377A] NO.1 (8 parça)
[377A] NO.3 (17 parça)
[377A] NO.2 (10 parça)
▶
96
102
87
87
118
118
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
87
PIPE; AIR,AIR TANK TO UNION
1-49115-908-0
01
1
9806-
●
87
PIPE; AIR,AIR TANK TO UNION
L=1232 SERVICED BY L=1250
1-47426-416-0
01
1
9806-
●
●
96
PIPE; AIR,UNION TO UNION
L=2873 SERVICED BY L=2900
1-47428-800-0
01
1
9806-
●
96
PIPE; AIR,UNION TO UNION
L=3028
1-49118-876-0
01
1
9806-
●
●
102
PIPE; AIR,UNION TO UNION
L=2595 SERVICED BY L=2600
1-47428-799-0
01
1
9806-
●
102
PIPE; AIR,UNION TO UNION
L=2733 SERVICED BY L=2900
1-47428-800-0
01
1
9806-
●
●
118
PIPE; AIR,UNION TO AIR MASTER
1-49118-391-0
01
1
9806-
●
118
PIPE; AIR,UNION TO AIR MASTER
1-49118-357-0
01
1
9806-
●
●
206
7
6
10
42
129
1
7
6
10
129
192
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
PIPE; AIR,FLEX HOSE TO BRK VLV
1-49116-436-1
01
1
9806-
●
●
●
6
WASHER; LK,FLEX HOSE
ID=16.2
9-09150-516-0
02
1
9806-0603
●
●
●
6
WASHER; LK,FLEX HOSE
ID=16.2
0-91510-516-0
02
1
0604-
●
●
●
7
NUT; FLEX HOSE
M16
9-99111-416-0
02
1
9806-0512
●
●
●
7
NUT; FLEX HOSE
M16
0-91111-516-0
02
1
0601-
●
●
●
10
CONNECTOR; FLEX HOSE
(B) M16 STRAIGHT
1-09654-380-0
01
1
9806-
●
●
●
10
CONNECTOR; FLEX HOSE
(A)
1-09656-700-0
01
1
9806-9811
●
●
●
10
CONNECTOR; FLEX HOSE
(A) M16X2 & PT1/4 3WAY
1-09656-329-1
01
1
9812-
●
●
●
42
GASKET; CONNECTOR
ID=11 OD=18
9-09572-510-0
01
1
9806-9811
●
●
●
129
CONNECTOR; NYLON TUBE
(B)
1-09660-728-1
01
1
9806-9811
●
●
●
129
CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT
1-09661-096-0
01
1
9812-0007
●
●
●
129
CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
9806-0004
●
●
●
129
CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0005-0007
●
●
●
129
CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
0008-
●
●
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87410-069-0
AR
1
0009-0010
●
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87410-069-0
AR
1
0011-
●
●
●
206
PIPE; AIR,BRK VLV TO FLEX HOSE
L=1145
1-49116-438-0
01
1
9806-
●
●
●
278
91
37
37
98
97
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
37
UNION; AIR PIPE
(B)
1-09660-807-2
01
1
9806-
●
●
●
37
UNION; AIR PIPE
(A) M16 ELBOW
9-09235-210-1
01
1
9806-0607
●
●
●
37
UNION; AIR PIPE
(A) M16 ELBOW
0-92135-210-0
01
1
0608-
●
●
●
91
NUT; PIPE UNION
M16
9-99111-416-0
01
1
9806-0512
●
●
●
91
NUT; PIPE UNION
M16
0-91111-516-0
01
1
0601-
●
●
●
97
UNION; AIR PIPE
1-09660-807-2
01
1
9806-
●
●
●
98
NUT; PIPE UNION
M16
9-99111-416-0
01
1
9806-0512
●
●
●
98
NUT; PIPE UNION
M16
0-91111-516-0
01
1
0601-
●
●
●
278
NUT; UNION
M16
9-99111-416-0
01
1
9806-0512
●
●
●
278
NUT; UNION
M16
0-91111-516-0
01
1
0601-
●
●
●
