3-75 — BRAKE PIPING; AIR,FRONT (#65296) — 45 parça

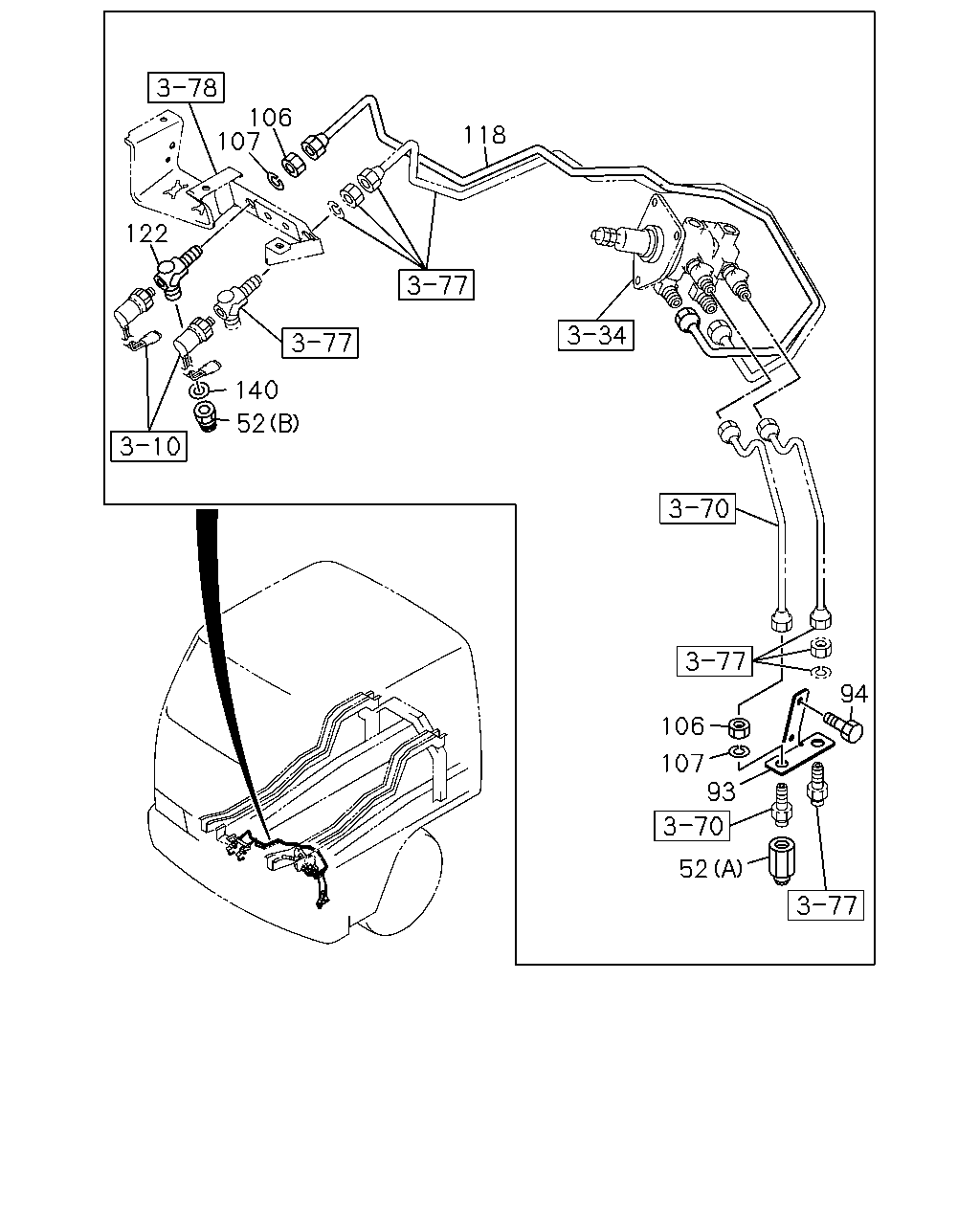

çizim 122278
106 107 118 122 140 52 94 106 107 93 52
BalonParca AdiParca NoAdetTipApplied Date A B C
52 CONNECTOR; NYLON TUBE
(B) 		1-09660-728-1 01 1 9806-9811 ● ● ●
52 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 9812-0007 ● ● ●
52 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 9806-0004 ● ● ●
52 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0005-0007 ● ● ●
52 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0008- ● ● ●
93 BRACKET; UNION,TUBE 1-71996-119-0 01 1 9806- ● ● ●
94 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9806-0904 ● ● ●
94 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ● ● ●
106 NUT; FLEX HOSE
M16 		9-99111-416-0 02 1 9806-0512 ● ● ●
106 NUT; FLEX HOSE
M16 		0-91111-516-0 02 1 0601- ● ● ●
107 WASHER; LK,FLEX HOSE
ID=16.2 		9-09150-516-0 02 1 9806-0603 ● ● ●
107 WASHER; LK,FLEX HOSE
ID=16.2 		0-91510-516-0 02 1 0604- ● ● ●
118 PIPE; AIR,BRK VLV TO FLEX HOSE
L=1303 		1-49116-437-0 01 1 9806- ● ● ●
122 CONNECTOR; FLEX HOSE 1-09656-700-0 01 1 9806-9811 ● ● ●
122 CONNECTOR; FLEX HOSE
M16X2 & PT1/4 3WAY 		1-09656-329-1 01 1 9812- ● ● ●
140 GASKET; CONNECTOR
ID=11 OD=18 		9-09572-510-0 01 1 9806-9811 ● ● ●
çizim 122309
66 48 68 75 75 2 2 36 120 3 77
BalonParca AdiParca NoAdetTipApplied Date A B C
2 UNION; AIR PIPE
(A) 		1-09660-807-2 01 1 9806- ● ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		9-09235-210-1 02 1 9806-0607 ● ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0608- ● ● ●
3 NUT; PIPE UNION
M16 		9-99111-416-0 01 1 9806-0512 ● ● ●
3 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0601- ● ● ●
36 NUT; HOSE BRKT
M8 FLANGE 		0-91150-108-0 02 1 9806-0602 ● ● ●
36 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
48 NUT; UNION BRKT
M16 		9-99111-416-0 01 1 9806-0512 ● ● ●
48 NUT; UNION BRKT
M16 		0-91111-516-0 01 1 0601- ● ● ●
66 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9806-0512 ● ● ●
66 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ●
68 NUT; UNION
M16 		9-99111-416-0 01 1 9806-0512 ● ● ●
68 NUT; UNION
M16 		0-91111-516-0 01 1 0601- ● ● ●
75 BRACKET; UNION
(A) 		1-47477-487-2 01 1 9806- ● ● ●
75 BRACKET; UNION
(B) 		1-47477-642-2 01 1 9806- ● ● ●
77 NUT; PIPE UNION
M16 		9-99111-416-0 01 1 9806-0512 ● ● ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0601- ● ● ●
120 UNION; AIR PIPE 1-09660-807-2 01 1 9806- ● ● ●

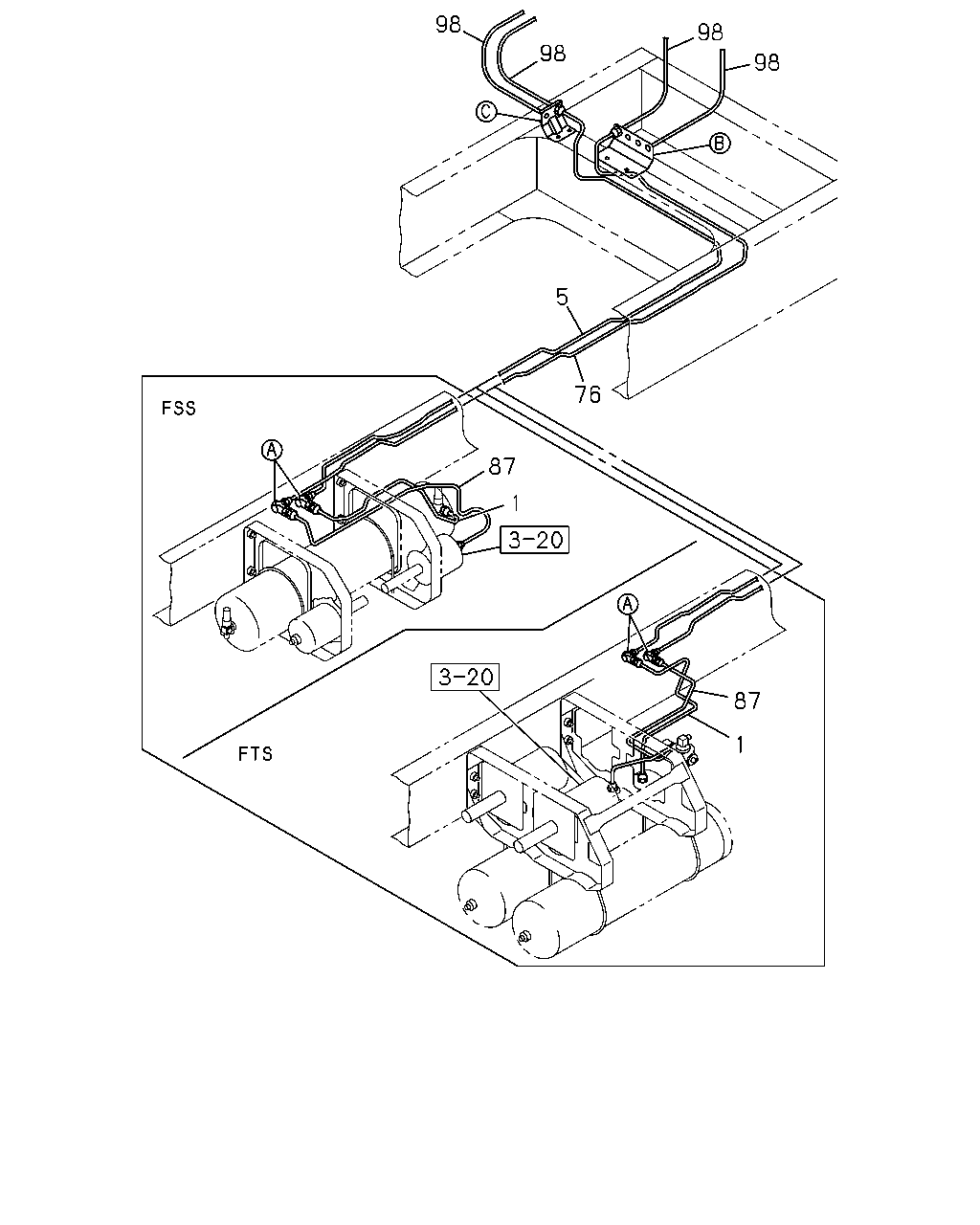

çizim 184863
98 98 98 98 5 76 87 1 87 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PIPE; AIR,AIR TANK TO UNION 1-49119-044-0 01 1 9806- ●
1 PIPE; AIR,AIR TANK TO UNION 1-49116-738-0 01 1 9806- ● ●
5 PIPE; AIR,UNION TO UNION
L=2593 SERVICED BY L=2600 		1-47428-884-0 01 1 9806- ●
5 PIPE; AIR,UNION TO UNION
L=2860 SERVICED BY L=2900 		1-47428-800-0 01 1 9806-0411 ● ●
5 PIPE; AIR,UNION TO UNION
L=2860 SERVICED BY L=2900 		1-47428-800-0 01 1 0412- ● ●
76 PIPE; AIR,UNION TO UNION
L=2524 SERVICED BY L=2600 		1-47428-799-0 01 1 9806- ●
76 PIPE; AIR,UNION TO UNION
L=2727 SERVICED BY L=2900 		1-47428-800-0 01 1 9806-0411 ● ●
76 PIPE; AIR,UNION TO UNION
L=2726 SERVICED BY L=2900 		1-47428-800-0 01 1 0412- ● ●
87 PIPE; AIR,UNION TO AIR MASTER 1-49118-390-0 01 1 9806- ●
87 PIPE; AIR,UNION TO AIR MASTER 1-49118-356-0 01 1 9806- ● ●
98 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 03 1 9806- ● ● ●
