3-70 — BRAKE PIPING; AIR,AIR MASTER (#65295) — 94 parça
çizim 121180
184 1 6 186 185 3 170 2 8 7 14 243 239 244 240 243 244 127 128
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,AIR TANK
L=350 		1-09363-558-0 01 1 9806- ●
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 9806- ● ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9806-0512 ● ● ●
2 NUT; FLEX HOSE,AIR TANK
M22 		0-91111-522-0 01 1 0601- ● ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9806-0603 ● ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		0-91510-522-0 01 1 0604- ● ● ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47477-264-2 01 1 9806-0304 ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-864-0 01 1 0305- ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47477-507-1 01 1 9806- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 9806-0512 ● ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91150-108-0 02 1 9806-0602 ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49114-923-0 01 1 9806- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49116-721-0 01 1 9806- ● ●
127 UNION; AIR PIPE
M12 		9-09228-306-1 01 1 9806-0607 ● ● ●
127 UNION; AIR PIPE
M12 		0-92138-306-0 01 1 0608- ● ● ●
128 NUT; PIPE UNION
M12 		9-99111-412-0 01 1 9806-0512 ● ● ●
128 NUT; PIPE UNION
M12 		0-91111-512-0 01 1 0601- ● ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49115-964-0 01 1 9806- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49116-723-0 01 1 9806- ● ●
184 HOSE; FLEX,AIR GOV
L=350 		1-09363-651-0 01 1 9806- ● ● ●
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 9806- ● ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 9806-0603 ● ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		0-91510-512-0 01 1 0604- ● ● ●
239 UNION; AIR PIPE
M12 		9-09228-306-1 01 1 9806-0607 ● ● ●
239 UNION; AIR PIPE
M12 		0-92138-306-0 01 1 0608- ● ● ●
240 NUT; UNION,AIR PIPE
M12 		9-99111-412-0 01 1 9806-0512 ● ● ●
240 NUT; UNION,AIR PIPE
M12 		0-91111-512-0 01 1 0601- ● ● ●
243 UNION; AIR PIPE
(A) 		1-09656-311-1 01 1 9806- ●
243 UNION; AIR PIPE
(B) M12 3WAY 		9-09228-906-1 01 1 9806-0607 ● ●
243 UNION; AIR PIPE
(B) M12 3WAY 		0-92138-906-0 01 1 0608- ● ●
244 NUT; UNION,AIR PIPE
M16 		9-99111-416-0 01 1 9806-0512 ●
244 NUT; UNION,AIR PIPE
M16 		0-91111-516-0 01 1 0601- ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 9806- ● ●

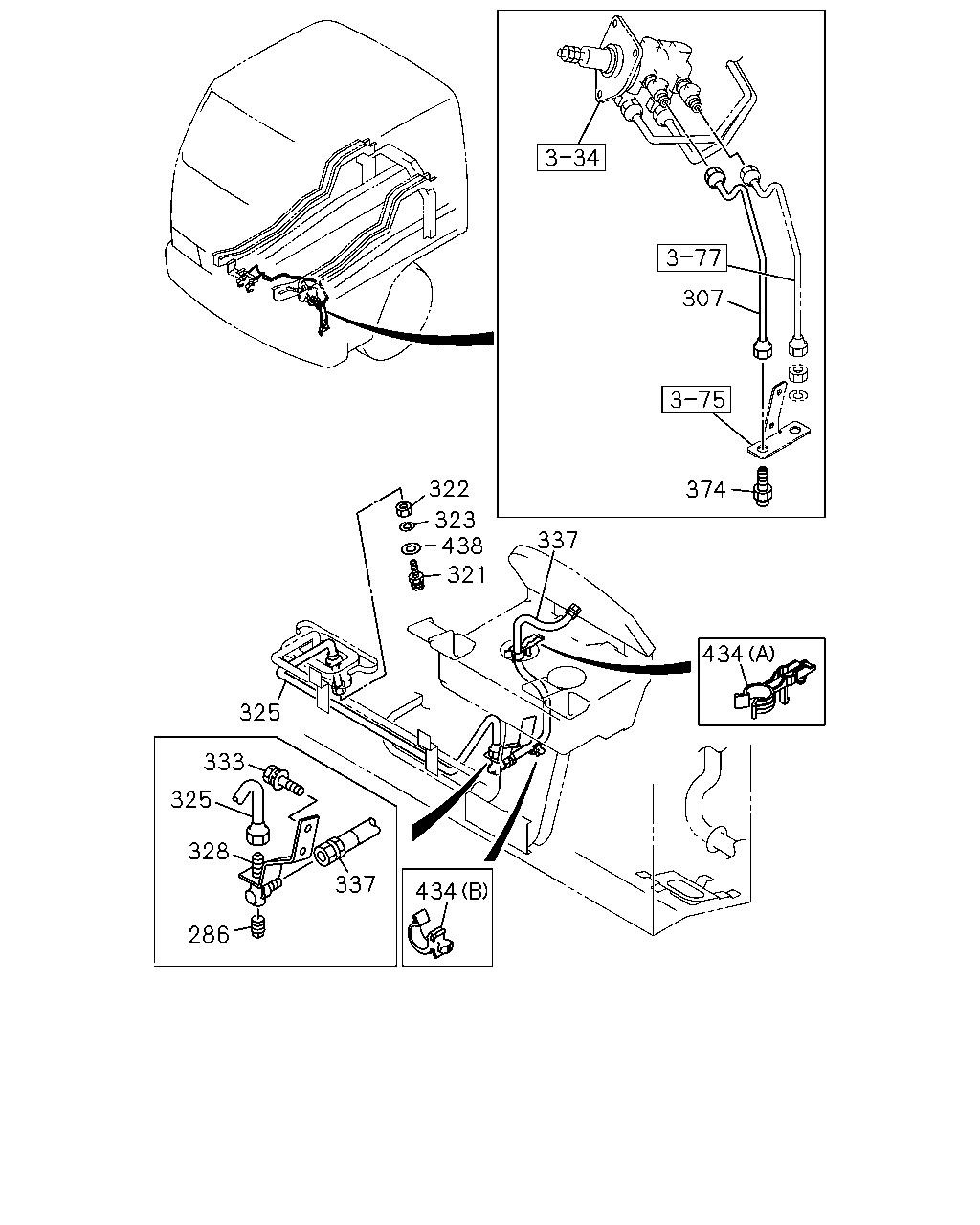

çizim 121183
307 322 374 323 438 337 321 434 325 333 325 328 337 434 286
BalonParca AdiParca NoAdetTipApplied Date A B C
286 PLUG; AIR PIPE 9-09204-510-0 01 1 9806- ● ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=434 		1-49116-435-1 01 1 9806- ● ● ●
321 JOINT; FLEX HOSE 1-09654-362-1 01 1 9806-9902 ● ● ●
321 JOINT; FLEX HOSE 1-09656-738-0 01 1 9903-9904 ● ● ●
321 JOINT; FLEX HOSE 1-09656-742-0 01 1 9905- ● ● ●
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 9806- ● ● ●
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 9806-0603 ● ● ●
323 WASHER; LK,JOINT
ID=10.2 		0-91510-510-0 01 1 0604- ● ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
L=791 		1-49116-077-0 01 1 9806- ● ● ●
328 UNION; AIR PIPE 1-47470-473-0 01 1 9806- ● ● ●
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9806- ● ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=810 		0-07210-810-0 01 1 9806-0605 ● ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=810 		0-57210-810-0 01 1 0606- ● ● ●
374 CONNECTOR
M16 STRAIGHT 		1-09654-380-0 01 1 9806- ● ● ●
434 CLIP
(A) ID=17 		1-09987-105-1 01 1 9806- ● ● ●
434 CLIP
(B) 		8-94297-486-0 02 1 9806- ● ● ●
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9806- ● ● ●
çizim 121322
250 138 139 140 155 170 155 137 154 287
BalonParca AdiParca NoAdetTipApplied Date A B C
137 HOSE; FLEX,AIR PRESSURE GAGE
L=450 		0-07120-450-0 01 1 9806-9902 ● ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
OD=12.7 L=450 		1-09363-631-0 01 1 9903-9906 ● ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
L=420 		1-09363-633-0 01 1 9907- ● ● ●
138 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 9806- ● ● ●
139 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 9806-0603 ● ● ●
139 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		0-91510-512-0 01 1 0604- ● ● ●
140 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 01 1 9806-9902 ● ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49114-967-0 01 1 9806- ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49114-881-0 01 1 9806- ● ●
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 9806- ● ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49115-964-0 01 1 9806- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49116-723-0 01 1 9806- ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
L=2644 SERVICED BY L=2900 		1-47426-364-0 01 1 9806- ●
250 PIPE; AIR,UNION TO FLEX HOSE
L=2895 SERVICED BY L=2900 		1-47426-364-0 01 1 9806-9912 ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
L=2892 SERVICED BY L=2900 		1-47428-828-0 01 1 0001- ● ●
287 PIPE; AIR,MAG VLV
L=207 		1-49113-918-0 01 1 9806- ● ● ●

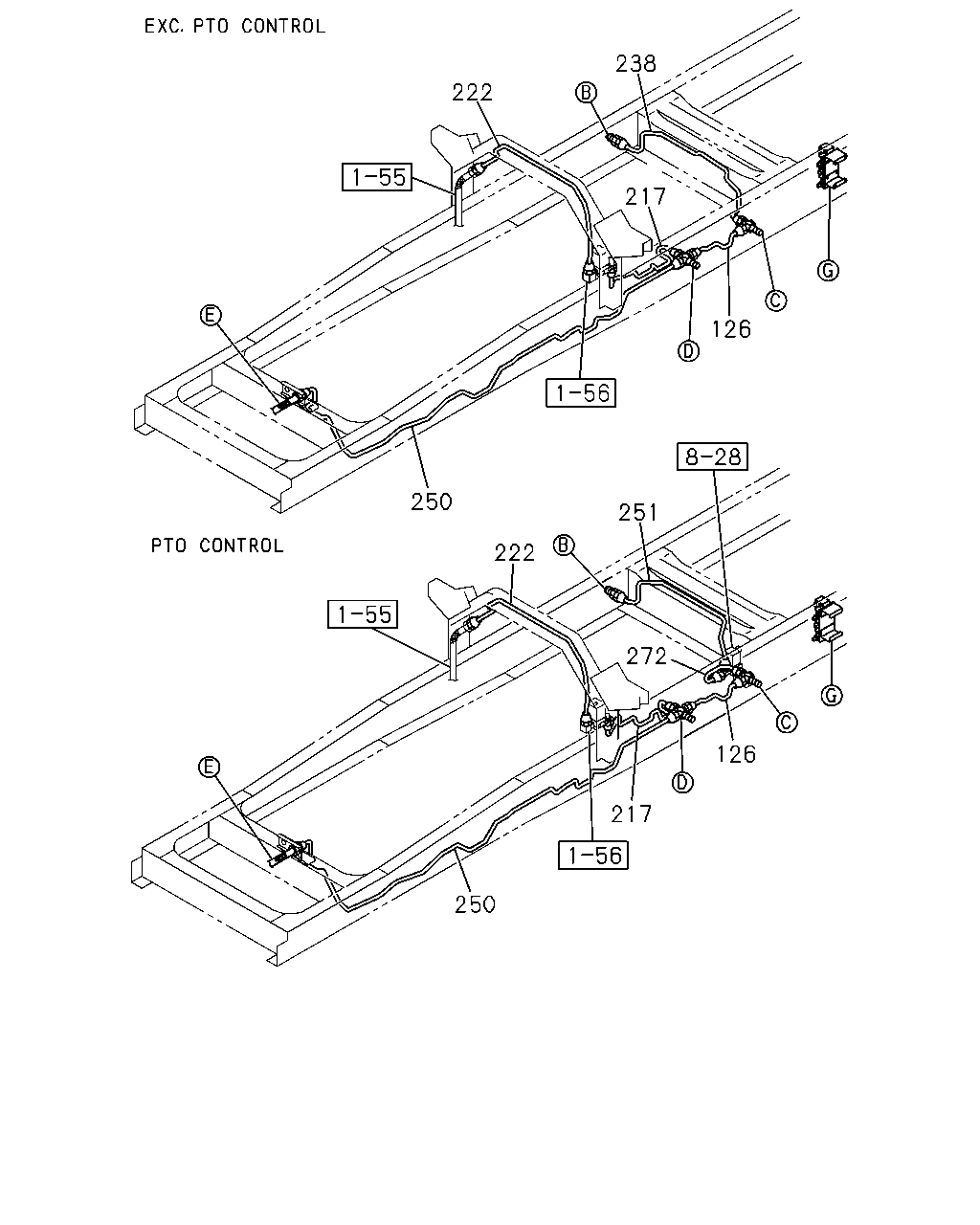

çizim 121560
238 222 217 126 250 251 222 272 126 217 250
BalonParca AdiParca NoAdetTipApplied Date A B C
126 PIPE; AIR,UNION TO UNION 1-49116-732-0 01 1 9806- ●
126 PIPE; AIR,UNION TO UNION 1-49116-710-0 01 1 9806- ● ●
217 PIPE; VAC,UNION TO MAG VLV 1-49116-582-0 01 1 9806- ●
217 PIPE; VAC,UNION TO MAG VLV 1-49116-716-0 01 1 9806- ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1035 SERVICED BY L=1100 		1-47426-351-0 01 1 9806-9907 ● ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1035 SERVICED BY L=1100 		1-47426-351-0 01 1 9908- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1105 SERVICED BY L=1250 		1-47434-389-0 01 1 9908-0004 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1103 SERVICED BY L=1100 		1-47428-815-0 01 1 0005- ● ●
238 PIPE; AIR,UNION TO UNION
EXC. PTO CONTROL<SV6> L=1023 SERVICED BY L=1100 		1-47426-351-0 01 1 9806- ●
238 PIPE; AIR,UNION TO UNION
EXC. PTO CONTROL<SV6> 		1-49116-743-0 01 1 9806- ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
L=2644 SERVICED BY L=2900 		1-47426-364-0 01 1 9806- ●
250 PIPE; AIR,UNION TO FLEX HOSE
L=2895 SERVICED BY L=2900 		1-47426-364-0 01 1 9806-9912 ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
L=2892 SERVICED BY L=2900 		1-47428-828-0 01 1 0001- ● ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> 		1-49116-733-0 01 1 9806- ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> 		1-49116-744-0 01 1 9806- ● ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> 		1-49116-734-0 01 1 9806- ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> 		1-49116-745-0 01 1 9806- ● ●

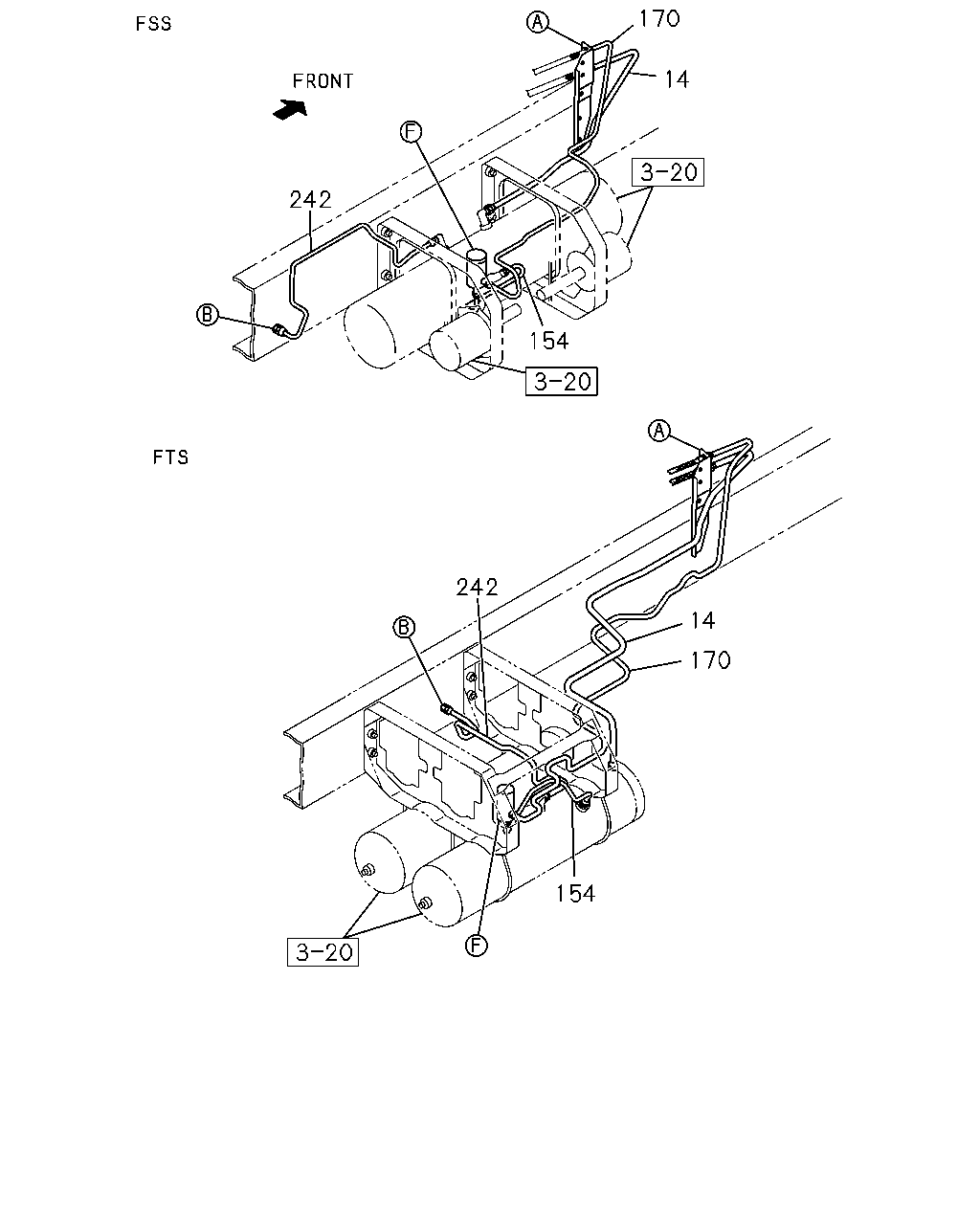

çizim 184857
170 14 242 154 242 14 170 154
BalonParca AdiParca NoAdetTipApplied Date A B C
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49114-923-0 01 1 9806- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49116-721-0 01 1 9806- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49114-967-0 01 1 9806- ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49114-881-0 01 1 9806- ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49115-964-0 01 1 9806- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49116-723-0 01 1 9806- ● ●
242 PIPE; AIR,AIR TANK TO UNION 1-49118-648-0 01 1 9806-9904 ●
242 PIPE; AIR,AIR TANK TO UNION 1-49121-641-0 01 1 9905- ●
242 PIPE; AIR,AIR TANK TO UNION 1-49116-742-0 01 1 9806- ● ●
