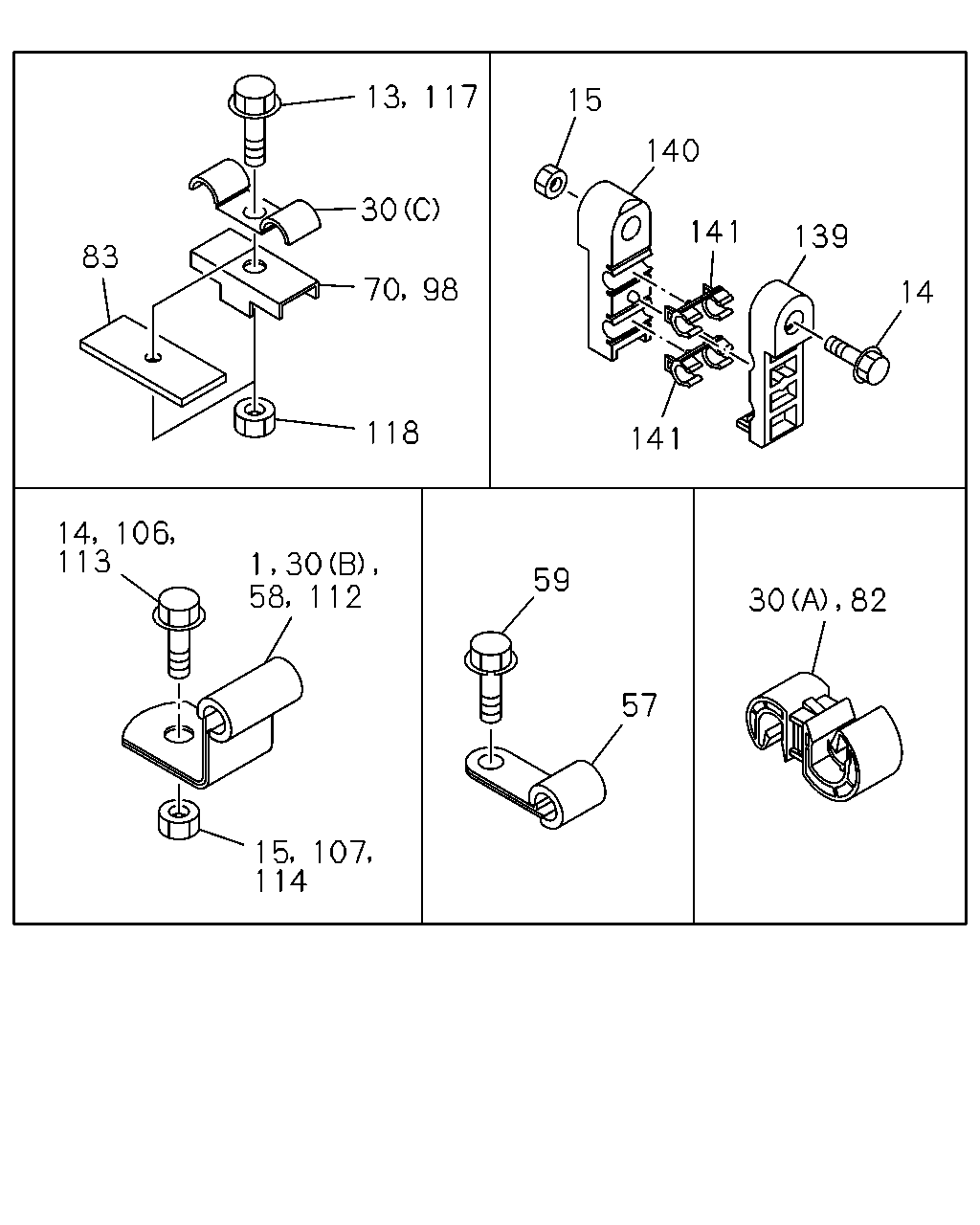

3-58 — FIXING PARTS; OIL PIPING (#65294) — 69 parça

13 117 15 140 30 141 139 83 98 70 14 118 141 113 30 59 30 82 57 114 14 106 1 58 112 15 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CLIP; OIL PIPE TO BODY ID=6 H=20 L=20	1-09700-603-0	02	1	9806-	●	●
13	BOLT; BRKT,OIL PIPE M8X40 FLANGE	0-28680-840-0	01	1	0001-0512	●	●
13	BOLT; BRKT,OIL PIPE M8X40 FLANGE	0-28650-840-0	01	1	0601-	●	●
14	BOLT; CLIP,OIL PIPE M8X50 FLANGE	0-28080-850-0	01	1	9806-0512	●	●	●
14	BOLT; CLIP,OIL PIPE M8X50 FLANGE	0-28050-850-0	01	1	0601-	●	●	●
14	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9806-0512	●	●
14	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
15	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	9806-0602			●
15	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0603-			●
15	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	9806-0602	●	●
15	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
30	CLIP; OIL PIPE (A) ID=6.35 & 6.35	1-09709-273-1	03	1	9806-			●
30	CLIP; OIL PIPE (B) ID=6 H=20 L=20	1-09700-603-0	02	1	9806-	●	●	●
30	CLIP; OIL PIPE (C) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9810-9912	●	●
30	CLIP; OIL PIPE (C) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0001-	●	●
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	0-95234-635-0	04	1	1510-	●	●
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	9-09524-635-0	03	1	9806-0606			●
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	0-95234-635-0	03	1	0607-			●
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	9-09524-635-0	04	1	9806-9907	●	●
58	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	04	1	9806-			●
58	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	03	1	9806-	●	●
59	BOLT; BRK PIPE,RR AXLE M8X10 FLANGE	0-28050-810-0	04	1	1510-	●	●
59	BOLT; BRK PIPE,RR AXLE M8X12 W/LK WASHER	0-50040-812-0	03	1	9806-9911			●
59	BOLT; BRK PIPE,RR AXLE M8X10 FLANGE	0-28080-810-0	03	1	9912-0512			●
59	BOLT; BRK PIPE,RR AXLE M8X10 FLANGE	0-28050-810-0	03	1	0601-			●
59	BOLT; BRK PIPE,RR AXLE M8X12 W/LK WASHER	0-50040-812-0	04	1	9806-9907	●	●
70	BRACKET; CLIP	1-47475-427-1	01	1	9806-			●
82	CLIP; OIL PIPE ID=6.35 & 12	1-09709-275-1	01	1	9806-			●
82	CLIP; OIL PIPE ID=6.35 & 10.0	1-09709-274-1	01	1	9806-	●	●	●
82	CLIP; OIL PIPE ID=6.35 & 10.0	1-09709-274-1	02	1	9806-9906	●	●
82	CLIP; OIL PIPE ID=6.35 & 10.0	1-09709-274-1	03	1	9907-	●	●
83	BRACKET; PIPE CLIP L=50	1-47475-299-2	01	1	9810-	●	●
98	BRACKET; OIL PIPE	1-47475-427-1	01	1	0001-	●	●
106	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9806-0512	●	●	●
106	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●
106	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	01	1	9810-9912	●	●
106	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	02	1	0001-0006	●	●
106	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	01	1	0007-0512	●	●
106	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9806-9912	●	●	●
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0001-0602	●	●	●
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0001-0602	●	●
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	9810-9912	●	●
112	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	04	1	9806-	●	●	●
113	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	04	1	9806-0512	●	●	●
113	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●	●
114	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	9806-0602	●	●	●
114	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
117	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	04	1	9806-0512			●
117	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	04	1	0601-			●
117	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	03	1	9806-0512	●	●
117	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	03	1	0601-	●	●
118	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	9806-0602			●
118	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	04	1	0603-			●
118	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	9806-0602	●	●
118	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
139	CLIP; UPR ID=10 & 10	1-09709-241-0	02	1	0005-	●	●	●
139	CLIP; UPR ID=10 & 10	1-09709-241-0	01	1	9806-0004	●	●	●
139	CLIP; UPR ID=10 & 10	1-09709-241-0	01	1	9806-0004			●
139	CLIP; UPR ID=10 & 10	1-09709-241-0	01	1	0005-			●
140	CLIP; LWR ID=10 & 10	1-09709-243-0	02	1	0005-	●	●	●
140	CLIP; LWR ID=6 & 6	1-09709-244-0	01	1	9806-			●
140	CLIP; LWR ID=10 & 10	1-09709-243-0	01	1	9806-0004	●	●	●
141	COLLAR ID=6	1-47459-010-0	02	1	0005-	●	●	●
141	COLLAR ID=8	1-47459-011-0	02	1	0005-	●	●	●
141	COLLAR ID=6	1-47459-010-0	01	1	9806-0004	●	●	●
141	COLLAR ID=8	1-47459-011-0	01	1	9806-0004	●	●	●
