3 - Brakes, Brake System
▶
3-52 - BRAKE PIPING; OIL,FRONT
▶
3-52 — BRAKE PIPING; OIL,FRONT
(#65292) — 37 parça
Tümü
A - FSS6MF
B - FTS6MC
C - FTS6MF
◀

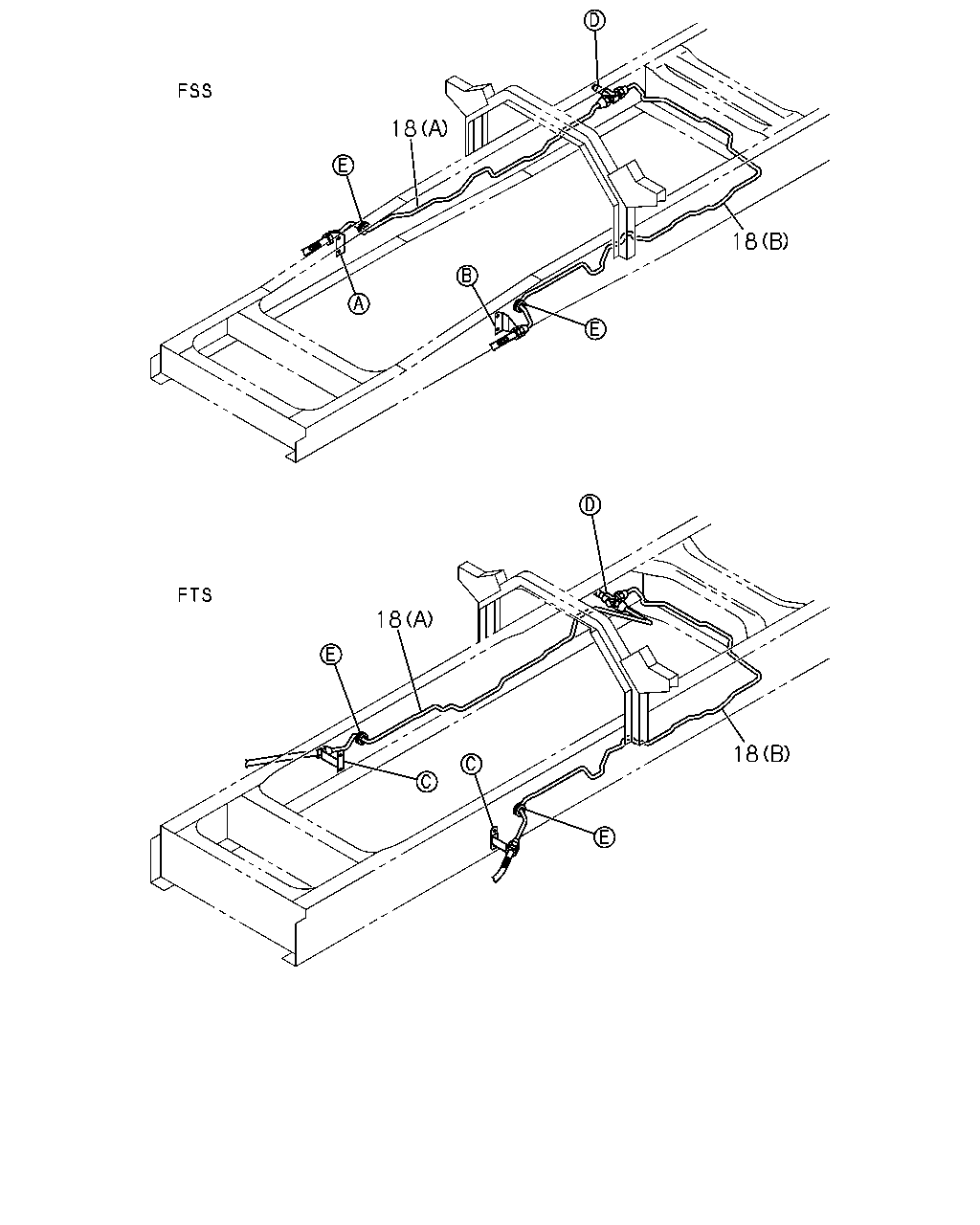

[352A] NO.3 (24 parça)
[352A] NO.2 (8 parça)
[352A] NO.1 (5 parça)
▶
18
6
7
1
8
3
2
3
3
18
18
18
6
6
7
7
2
2
1
8
1
8
24
24
71
19
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
HOSE; FLEX,FRT BRK
L=550
0-05312-550-0
02
1
9806-
●
1
HOSE; FLEX,FRT BRK
L=690
0-05312-690-0
02
1
9806-
●
●
2
BRACKET; FLEX HOSE,FRT BRK
(A)
1-47477-322-1
01
1
9806-
●
2
BRACKET; FLEX HOSE,FRT BRK
(A)
1-47477-323-1
01
1
9806-
●
2
BRACKET; FLEX HOSE,FRT BRK
(B)
1-47476-817-0
02
1
9806-
●
●
3
BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE
0-28680-825-0
02
1
9806-0512
●
●
●
3
BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE
0-28650-825-0
02
1
0601-
●
●
●
3
BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE
0-28080-825-0
02
1
9806-0512
●
●
●
3
BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE
0-28050-825-0
02
1
0601-
●
●
●
6
NUT; FLEX HOSE,FRT BRK
M12
9-09840-280-0
02
1
9806-
●
●
●
7
WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2
9-09150-512-0
02
1
9806-0603
●
●
●
7
WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2
0-91510-512-0
02
1
0604-
●
●
●
8
GASKET; FLEX HOSE,FRT BRK
ID=9 OD=17
9-09920-472-0
02
1
9806-
●
●
●
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1608 SERVICED BY L=1620
1-47426-356-0
01
1
9806-
●
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2663 SERVICED BY L=2900
1-47426-364-0
01
1
9806-
●
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1788 SERVICED BY L=1820
1-47426-358-0
01
1
9806-
●
●
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2772 SERVICED BY L=2900
1-47426-364-0
01
1
9806-9912
●
●
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2774 SERVICED BY L=2900
1-47426-364-0
01
1
0001-
●
●
19
UNION; OIL PIPE
(A) M12 3WAY
9-09228-606-1
01
1
9806-0607
●
19
UNION; OIL PIPE
(A) M12 3WAY
0-92138-606-0
01
1
0608-
●
19
UNION; OIL PIPE
(B) M12 3WAY
9-09228-906-1
01
1
9806-0607
●
●
19
UNION; OIL PIPE
(B) M12 3WAY
0-92138-906-0
01
1
0608-
●
●
24
NUT; UNION,OIL PIPE
M12
9-09840-280-0
01
1
9806-
●
●
●
71
GROMMET; OIL PIPE
ID=24 OD=30 T=17
9-09956-092-1
02
1
9806-
●
●
●
32
18
18
32
18
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1608 SERVICED BY L=1620
1-47426-356-0
01
1
9806-
●
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2663 SERVICED BY L=2900
1-47426-364-0
01
1
9806-
●
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1788 SERVICED BY L=1820
1-47426-358-0
01
1
9806-
●
●
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2772 SERVICED BY L=2900
1-47426-364-0
01
1
9806-9912
●
●
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2774 SERVICED BY L=2900
1-47426-364-0
01
1
0001-
●
●
32
PIPE; OIL,AIR MASTER TO UNION
L=953
1-47429-076-0
01
1
9806-9809
●
32
PIPE; OIL,AIR MASTER TO UNION
L=978
1-49161-959-0
01
1
9810-
●
32
PIPE; OIL,AIR MASTER TO UNION
L=1171 SERVICED BY L=1200
1-47426-352-0
01
1
9806-
●
●
18
18
18
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1608 SERVICED BY L=1620
1-47426-356-0
01
1
9806-
●
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2663 SERVICED BY L=2900
1-47426-364-0
01
1
9806-
●
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1788 SERVICED BY L=1820
1-47426-358-0
01
1
9806-
●
●
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2772 SERVICED BY L=2900
1-47426-364-0
01
1
9806-9912
●
●
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2774 SERVICED BY L=2900
1-47426-364-0
01
1
0001-
●
●
