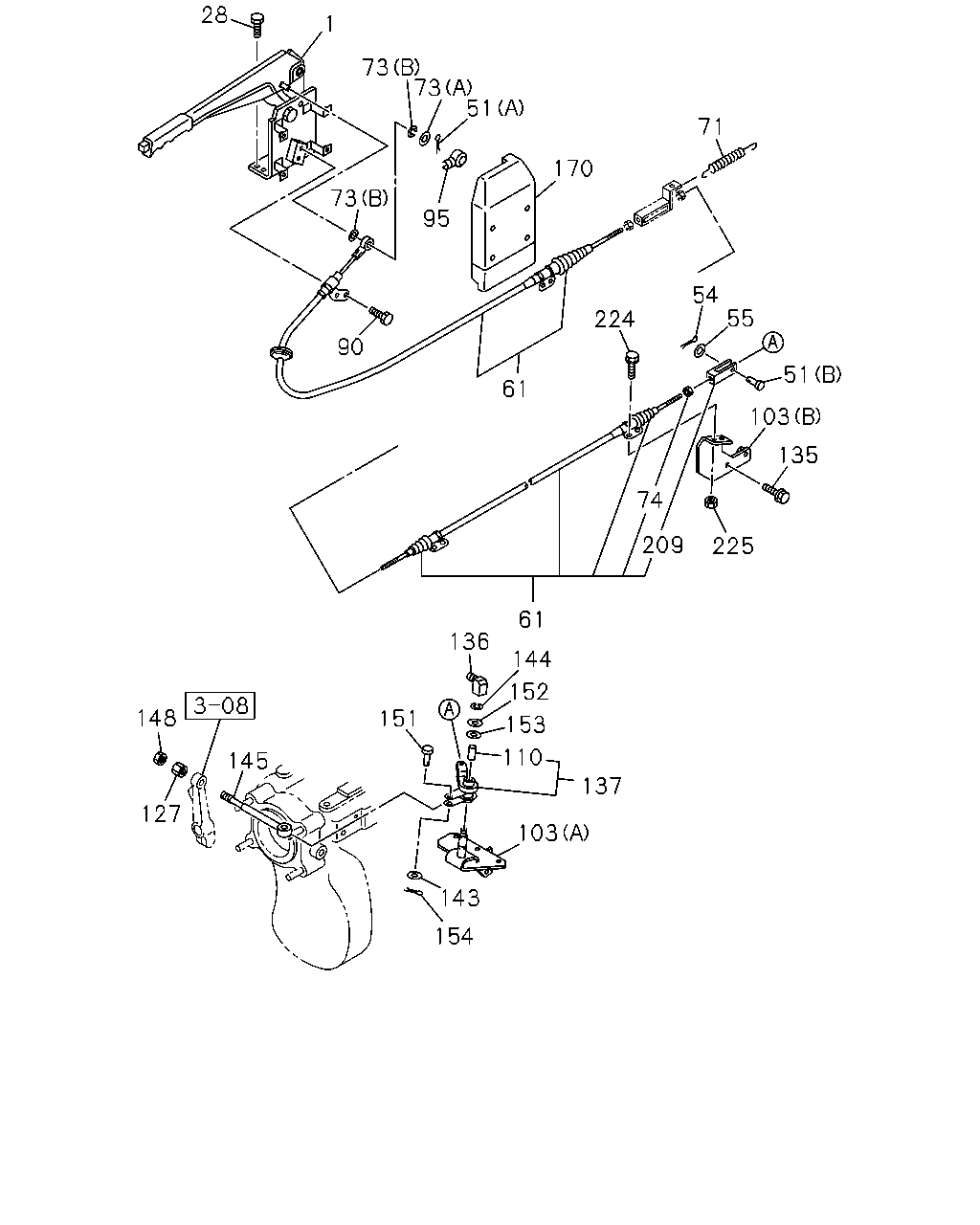

3-11 — PARKING BRAKE CONTROL (#6529) — 31 parça
çizim 7110
28 1 73 73 51 71 170 73 95 54 55 224 90 51 61 103 135 74 209 225 61 136 144 152 148 151 153 110 145 137 127 103 143 154
BalonParca AdiParca NoAdetTipApplied Date
1 STEM ASM; PARKING BRK 1-46120-101-0 01 1 9705-
28 BOLT; HAND BRK LEVER
M10X25 		0-28091-025-0 03 1 9705-
51 PIN; JOINT,RELAY LEVER
(A) OD=3.7 L=28 		9-08114-028-0 01 1 9705-
51 PIN; JOINT,RELAY LEVER
(B) OD=10 L=28 		9-08234-028-0 01 1 9705-
54 PIN; SNAP,CABLE TO LEVER
OD=2.8 L=18 		9-08113-018-0 01 1 9705-
55 WASHER; PL,PARK BRK CABLE
ID=10.5 OD=18 		9-09160-510-0 01 1 9705-
61 CABLE; PARKING BRK
L=3430 		1-46151-720-1 01 1 9705-
61 CABLE; PARKING BRK
L=5885 		1-46151-752-0 01 1 9705-
71 SPRING; RETURN,PARKING BRK TO BODY 9-09942-363-0 01 1 9705-
73 WASHER; PL,CABLE
(B) ID=19 		8-94206-429-1 02 1 9705-
73 WASHER; PL,CABLE
(A) ID=17 		9-09160-516-0 01 1 9705-
74 NUT; CONT WIRE
M8 		9-09110-408-0 01 1 9705-
90 BOLT; CABLE TO BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 9705-
95 CAP; CABLE,PARKING BRK 1-79997-140-2 01 1 9705-
110 BUSHING; CONT LEVER 9-46279-021-0 01 1 9705-
127 NUT; LINK 1-09445-001-0 01 1 9705-
135 BOLT; PARKING BRK BRKT
M10X40 FLANGE 		0-28081-040-0 02 1 9705-
136 NIPPLE; GREASE
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9705-
137 LEVER ASM; W/BUSHING 1-46279-002-0 01 1 9705-
143 WASHER; PL,BRKT,RELAY LEVER
ID=14.5 OD=30 		9-09851-946-0 01 1 9705-
144 RING; SNAP,E TYPE,BRKT
ID=12 		9-09185-412-0 01 1 9705-
145 LINK; PARKING BRK CONT 1-46142-054-0 01 1 9705-
148 NUT; LK,LINK
M10 		9-09110-410-0 01 1 9705-
151 PIN; LINK TO LEVER 9-08234-030-0 01 1 9705-
152 WASHER; PL,CONT LEVER
ID=10.5 OD=18 		9-09160-510-0 01 1 9705-
153 WASHER; WAVE,LINK 9-09855-192-0 01 1 9705-
154 PIN; SPLIT,LINK
OD=2.8 L=18 		9-08113-018-0 01 1 9705-
170 COVER; PARKING BRK LEVER 1-46119-059-0 01 1 9705-
209 JOINT; JAW,CONT WIRE 1-09768-088-0 01 1 9705-
224 BOLT; CABLE CLIP
M10X30 W/LK WASHER 		0-50041-030-0 02 1 9705-
225 NUT; CABLE CLIP
M10 		9-09110-510-0 02 1 9705-
