Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#65288) — 229 parça

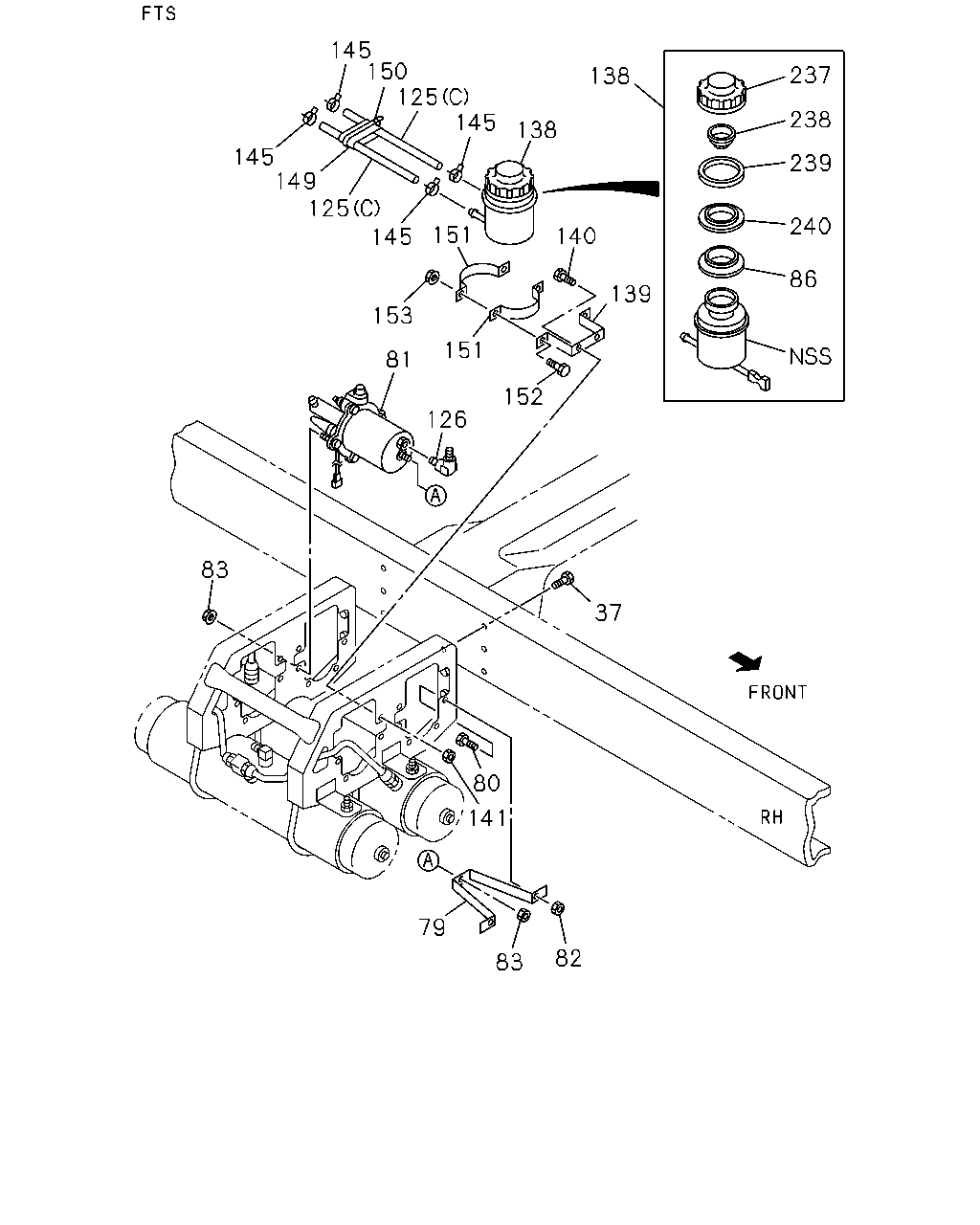

145 145 149 150 125 125 145 138 140 139 152 151 126 81 153 145 151 37 79 141 80 83 82 83 138 237 238 239 240 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
37	BOLT; AIR TANK M10X35 FLANGE	0-28681-035-0	04	1	9806-0512	●
37	BOLT; AIR TANK M10X35 FLANGE	0-28651-035-0	04	1	0601-	●
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	06	1	9806-0512		●	●
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	06	1	0601-		●	●
79	STAY; AIR MASTER TO BRKT	1-53318-347-0	02	1	9806-0805		●	●
79	STAY; AIR MASTER TO BRKT	8-98120-254-0	02	1	0806-		●	●
80	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	04	1	9806-0512		●	●
80	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	0601-		●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-656-2	02	1	9806-0202	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-789-0	02	1	0203-0901	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-827-0	02	1	0902-	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. PRIMARY	1-47800-663-1	01	1	9806-		●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. SECONDARY	1-47800-664-2	01	1	9806-		●	●
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91150-210-0	04	1	9806-0602		●	●
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91180-210-0	04	1	0603-		●	●
83	NUT; AIR MASTER M8 FLANGE	0-91150-108-0	08	1	9806-0602	●
83	NUT; AIR MASTER M8 FLANGE	0-91180-108-0	08	1	0603-	●
83	NUT; AIR MASTER M10 FLANGE	0-91150-210-0	10	1	9806-0602		●	●
83	NUT; AIR MASTER M10 FLANGE	0-91180-210-0	10	1	0603-		●	●
86	SEAL; DUST	1-47529-019-0	01	1	9806-	●	●	●
125	HOSE; OIL TANK TO AIR MASTER (B)	1-47469-127-1	01	1	9806-	●
125	HOSE; OIL TANK TO AIR MASTER (A)	1-47469-128-1	01	1	9806-	●
125	HOSE; OIL TANK TO AIR MASTER (C) L=270 SERVICED BY L=1800	1-09360-320-0	02	1	9806-		●	●
126	CONNECTOR; ELBOW TIRE INFLATOR DEVICE(SG4) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9806-	●
126	CONNECTOR; ELBOW M16 & PT3/8 ELBOW	1-09650-438-0	02	1	9806-		●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-170-1	01	1	9806-0011	●	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-184-0	01	1	0012-0206	●	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	0207-	●	●	●
139	BRACKET; OIL TANK	1-47537-123-1	01	1	9806-	●
139	BRACKET; OIL TANK	1-47537-081-2	01	1	9806-		●	●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28681-020-0	02	1	9806-0512	●	●	●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28651-020-0	02	1	0601-	●	●	●
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91150-210-0	02	1	9806-0602	●	●	●
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	9806-	●	●	●
149	SLEEVE; RUBBER,HOSE ID=23 OD=27 L=40	1-09337-015-0	01	1	9806-		●	●
150	CLIP; BAND,RUBBER SLEEVE L=140	5-09707-031-1	01	1	9806-		●	●
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	9806-	●	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28680-820-0	02	1	9806-0512	●	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91150-108-0	02	1	9806-0602	●	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
237	CAP; OIL TANK	1-47525-019-2	01	1	9806-0004	●	●	●
237	CAP; OIL TANK	1-47525-024-0	01	1	0005-0011	●	●	●
237	CAP; OIL TANK	1-47525-030-0	01	1	0012-	●	●	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	9806-	●	●	●
239	FILTER; DUST	1-47529-017-0	01	1	9806-	●	●	●
240	HOLDER; FILTER	1-47529-018-0	01	1	9806-	●	●	●

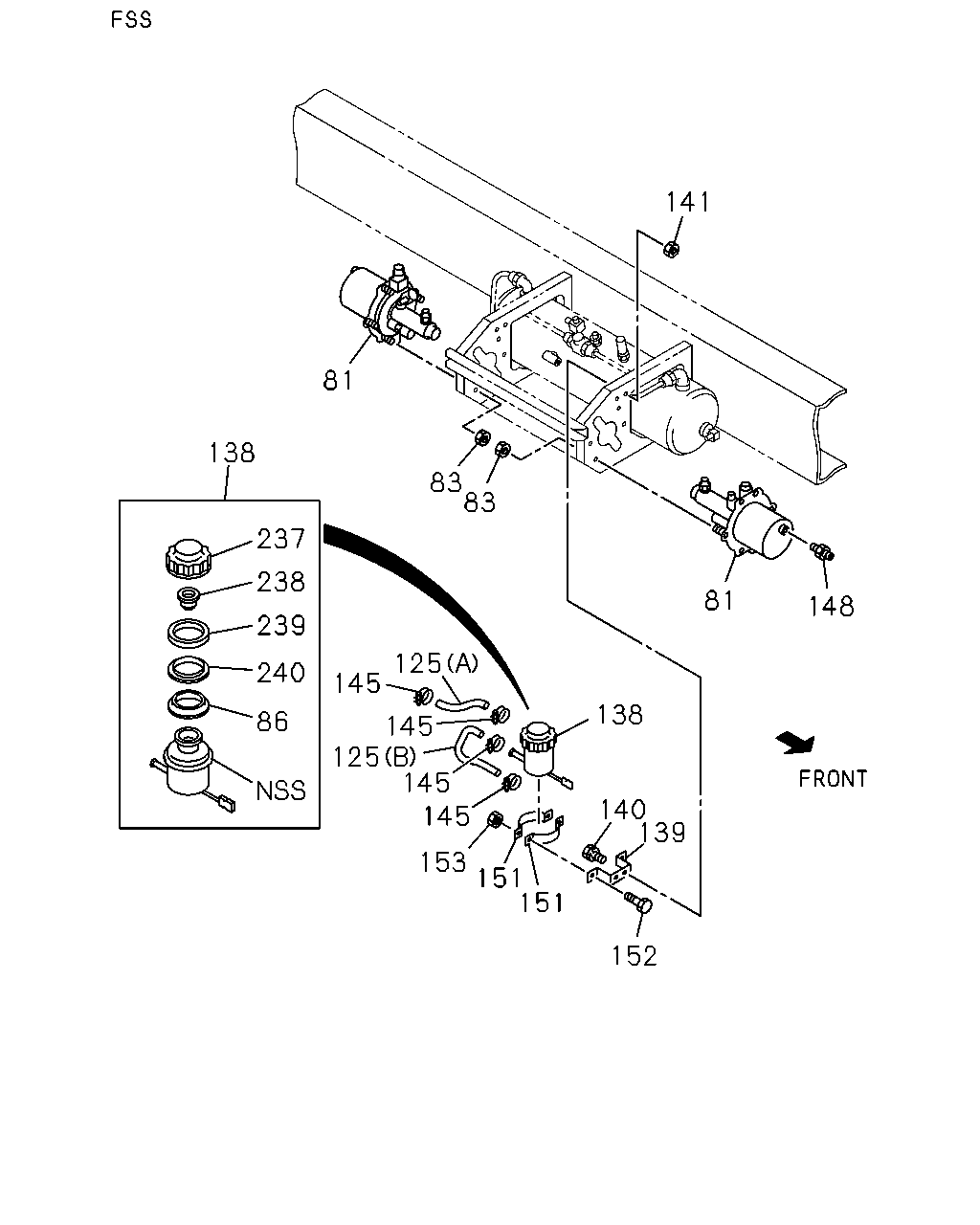

141 81 138 83 83 237 238 81 148 239 125 240 145 138 86 145 125 145 145 140 139 153 151 151 152

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-656-2	02	1	9806-0202	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-789-0	02	1	0203-0901	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-827-0	02	1	0902-	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. PRIMARY	1-47800-663-1	01	1	9806-		●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. SECONDARY	1-47800-664-2	01	1	9806-		●	●
83	NUT; AIR MASTER M8 FLANGE	0-91150-108-0	08	1	9806-0602	●
83	NUT; AIR MASTER M8 FLANGE	0-91180-108-0	08	1	0603-	●
83	NUT; AIR MASTER M10 FLANGE	0-91150-210-0	10	1	9806-0602		●	●
83	NUT; AIR MASTER M10 FLANGE	0-91180-210-0	10	1	0603-		●	●
86	SEAL; DUST	1-47529-019-0	01	1	9806-	●	●	●
125	HOSE; OIL TANK TO AIR MASTER (B)	1-47469-127-1	01	1	9806-	●
125	HOSE; OIL TANK TO AIR MASTER (A)	1-47469-128-1	01	1	9806-	●
125	HOSE; OIL TANK TO AIR MASTER (C) L=270 SERVICED BY L=1800	1-09360-320-0	02	1	9806-		●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-170-1	01	1	9806-0011	●	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-184-0	01	1	0012-0206	●	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	0207-	●	●	●
139	BRACKET; OIL TANK	1-47537-123-1	01	1	9806-	●
139	BRACKET; OIL TANK	1-47537-081-2	01	1	9806-		●	●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28681-020-0	02	1	9806-0512	●	●	●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28651-020-0	02	1	0601-	●	●	●
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91150-210-0	02	1	9806-0602	●	●	●
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	9806-	●	●	●
148	CONNECTOR; AIR MASTER M16 & PT3/8 STRAIGHT	1-09650-179-1	02	1	9806-	●
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	9806-	●	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28680-820-0	02	1	9806-0512	●	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91150-108-0	02	1	9806-0602	●	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
237	CAP; OIL TANK	1-47525-019-2	01	1	9806-0004	●	●	●
237	CAP; OIL TANK	1-47525-024-0	01	1	0005-0011	●	●	●
237	CAP; OIL TANK	1-47525-030-0	01	1	0012-	●	●	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	9806-	●	●	●
239	FILTER; DUST	1-47529-017-0	01	1	9806-	●	●	●
240	HOLDER; FILTER	1-47529-018-0	01	1	9806-	●	●	●

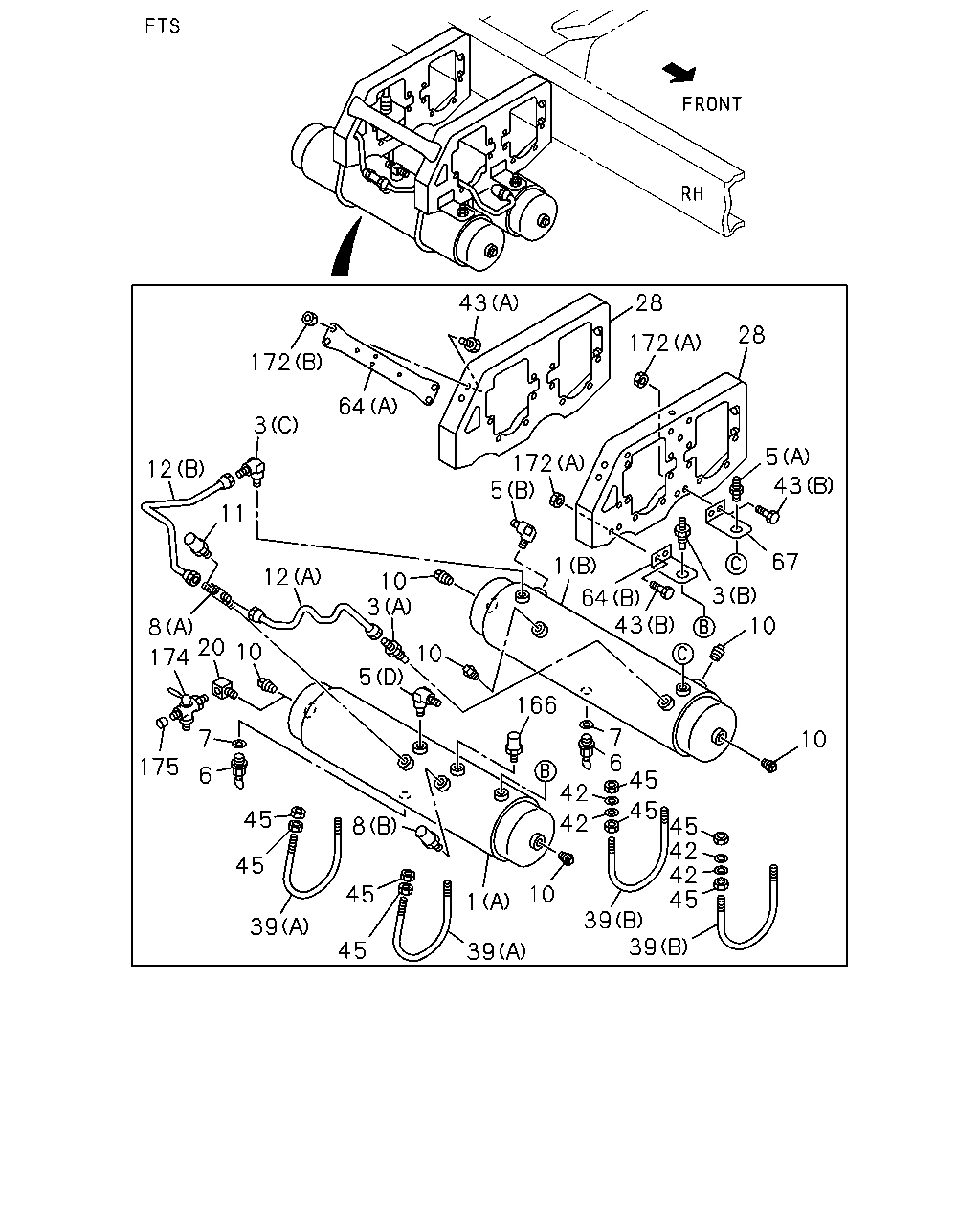

28 43 172 28 172 64 3 5 43 172 5 12 11 67 1 12 10 3 3 64 43 10 8 20 174 10 10 5 166 7 6 45 7 10 175 42 6 45 45 42 8 45 42 42 45 45 10 45 1 39 39 39 45 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK ASM; AIR (C)	1-48330-686-1	01	1	9806-	●
1	TANK ASM; AIR (A)	1-48330-598-0	01	1	9806-0004		●	●
1	TANK ASM; AIR (A)	1-48330-598-0	01	1	0005-		●	●
1	TANK ASM; AIR (B)	1-48370-299-0	01	1	9806-		●	●
3	VALVE; CHECK,AIR TANK (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	9806-	●
3	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9806-	●
3	VALVE; CHECK,AIR TANK (B) M22 & PT3/4	1-48410-136-3	01	1	9806-		●	●
3	VALVE; CHECK,AIR TANK (A)	1-48410-182-3	01	1	9806-		●	●
3	VALVE; CHECK,AIR TANK (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9806-		●	●
5	UNION; AIR TANK EXC. TIRE INFLATOR DEVICE(SG4) (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9806-	●
5	UNION; AIR TANK (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9806-		●	●
5	UNION; AIR TANK EXC. TIRE INFLATOR DEVICE(SG4) (C) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9806-0607	●
5	UNION; AIR TANK EXC. TIRE INFLATOR DEVICE(SG4) (C) M16 & PT1/4 ELBOW	0-92134-310-0	02	1	0608-	●
5	UNION; AIR TANK EXC. TIRE INFLATOR DEVICE(SG4) (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9806-	●
5	UNION; AIR TANK (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9806-		●	●
5	UNION; AIR TANK (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	9806-		●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	9806-	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	9806-		●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	9806-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	9806-		●	●
8	CONNECTOR; AIR TANK EXC. TIRE INFLATOR DEVICE(SG4) (A)	1-09656-699-0	01	1	9806-	●
8	CONNECTOR; AIR TANK (A)	1-09656-699-0	01	1	9806-		●	●
8	CONNECTOR; AIR TANK (B)	1-09650-283-1	01	1	9806-		●	●
10	PLUG; AIR TANK PT1/4	9-99204-513-0	02	1	9806-	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE(SG4) PT3/8	9-09204-517-0	01	1	9806-	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE(SG4) PT1/4	9-99204-513-0	05	1	9806-		●	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE(SG4) PT1/4	9-99204-513-0	06	1	9806-		●	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	9806-	●	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A)	1-47497-008-0	01	1	9806-	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B)	1-47497-009-0	01	1	9806-	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B)	1-47497-011-0	01	1	9806-		●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A)	1-47497-012-0	01	1	9806-		●	●
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE(SG4) PT1/4 2WAY	1-09660-693-0	01	1	9806-		●	●
28	BRACKET; AIR TANK EXC. TIRE INFLATOR DEVICE(SG4)	1-48317-709-4	02	1	9806-	●
28	BRACKET; AIR TANK	1-53318-338-6	02	1	9806-		●	●
39	U-BOLT; AIR TANK EXC. TIRE INFLATOR DEVICE(SG4) (C) L=250	1-48317-308-0	02	1	9806-	●
39	U-BOLT; AIR TANK (A) L=97.5	1-48317-323-1	02	1	9806-		●	●
39	U-BOLT; AIR TANK (B) L=195	1-48317-367-2	02	1	9806-		●	●
42	WASHER; PL ID=8.4 OD=18	9-09160-608-0	04	1	9806-0605		●	●
42	WASHER; PL ID=8.4 OD=18	0-91610-608-0	04	1	0606-		●	●
43	BOLT; STAY,AIR TANK,MAIN (C) M8X20 FLANGE	0-28680-820-0	02	1	9806-0512	●
43	BOLT; STAY,AIR TANK,MAIN (C) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE	0-28680-820-0	04	1	9806-0512		●	●
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE	0-28650-820-0	04	1	0601-		●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M10X25 FLANGE	0-28681-025-0	04	1	9806-0512		●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M10X25 FLANGE	0-28651-025-0	04	1	0601-		●	●
45	NUT; AIR TANK,MAIN M8	9-09110-408-0	16	1	9806-0512		●	●
45	NUT; AIR TANK,MAIN M8	0-91110-508-0	16	1	0601-		●	●
64	STAY; AIR TANK,MAIN EXC. TIRE INFLATOR DEVICE(SG4) (C)	1-48317-307-2	01	1	9806-	●
64	STAY; AIR TANK,MAIN (A)	1-53318-293-1	01	1	9806-		●	●
64	STAY; AIR TANK,MAIN (B)	8-94301-490-0	01	1	9806-		●	●
67	STAY; SUB TANK	1-48317-349-0	01	1	9806-		●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EXC. TIRE INFLATOR DEVICE(SG4) 530KPA	1-48340-054-1	01	1	9806-	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	01	1	9806-		●	●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91150-108-0	02	1	9806-0602	●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91150-108-0	04	1	9806-0602		●	●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91180-108-0	04	1	0603-		●	●
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91150-210-0	04	1	9806-0602		●	●
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91180-210-0	04	1	0603-		●	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE(SG4)	1-09680-036-0	01	1	9806-0009	●	●	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE(SG4)	1-09680-099-0	01	1	0010-	●	●	●
175	CAP; AIR COCK TIRE INFLATOR DEVICE(SG4)	9-48319-102-0	01	1	9806-	●	●	●

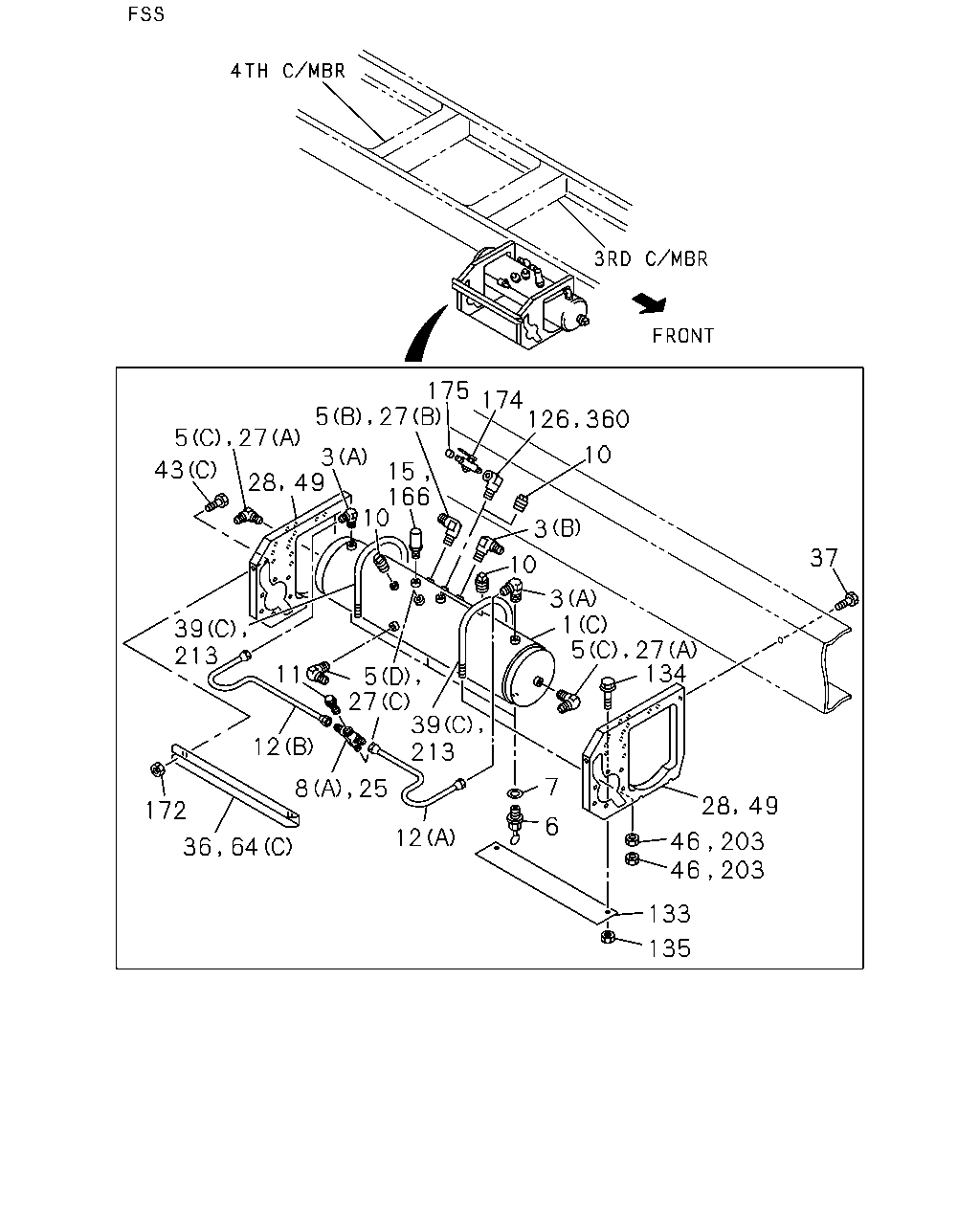

360 126 174 175 27 5 27 5 43 28 49 3 15 166 10 11 39 213 12 172 36 64 10 3 37 27 134 5 1 3 10 28 49 203 203 46 46 133 135 12 25 8 5 27 39 213 7 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK ASM; AIR (C)	1-48330-686-1	01	1	9806-	●
1	TANK ASM; AIR (A)	1-48330-598-0	01	1	9806-0004		●	●
1	TANK ASM; AIR (A)	1-48330-598-0	01	1	0005-		●	●
1	TANK ASM; AIR (B)	1-48370-299-0	01	1	9806-		●	●
3	VALVE; CHECK,AIR TANK (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	9806-	●
3	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9806-	●
3	VALVE; CHECK,AIR TANK (B) M22 & PT3/4	1-48410-136-3	01	1	9806-		●	●
3	VALVE; CHECK,AIR TANK (A)	1-48410-182-3	01	1	9806-		●	●
3	VALVE; CHECK,AIR TANK (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9806-		●	●
5	UNION; AIR TANK EXC. TIRE INFLATOR DEVICE(SG4) (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9806-	●
5	UNION; AIR TANK (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9806-		●	●
5	UNION; AIR TANK EXC. TIRE INFLATOR DEVICE(SG4) (C) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9806-0607	●
5	UNION; AIR TANK EXC. TIRE INFLATOR DEVICE(SG4) (C) M16 & PT1/4 ELBOW	0-92134-310-0	02	1	0608-	●
5	UNION; AIR TANK EXC. TIRE INFLATOR DEVICE(SG4) (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9806-	●
5	UNION; AIR TANK (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9806-		●	●
5	UNION; AIR TANK (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	9806-		●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	9806-	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	9806-		●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	9806-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	9806-		●	●
8	CONNECTOR; AIR TANK EXC. TIRE INFLATOR DEVICE(SG4) (A)	1-09656-699-0	01	1	9806-	●
8	CONNECTOR; AIR TANK (A)	1-09656-699-0	01	1	9806-		●	●
8	CONNECTOR; AIR TANK (B)	1-09650-283-1	01	1	9806-		●	●
10	PLUG; AIR TANK PT1/4	9-99204-513-0	02	1	9806-	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE(SG4) PT3/8	9-09204-517-0	01	1	9806-	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE(SG4) PT1/4	9-99204-513-0	05	1	9806-		●	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE(SG4) PT1/4	9-99204-513-0	06	1	9806-		●	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	9806-	●	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A)	1-47497-008-0	01	1	9806-	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B)	1-47497-009-0	01	1	9806-	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B)	1-47497-011-0	01	1	9806-		●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A)	1-47497-012-0	01	1	9806-		●	●
15	SWITCH; LOW PRESS,AIR TANK TIRE INFLATOR DEVICE(SG4) 530KPA	1-48340-054-1	01	1	9806-	●
25	UNION; 4 WAY TIRE INFLATOR DEVICE(SG4)	1-09656-699-0	01	1	9806-	●
27	UNION; ELBOW,AIR TANK TIRE INFLATOR DEVICE(SG4) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9806-	●
27	UNION; ELBOW,AIR TANK TIRE INFLATOR DEVICE(SG4) (A) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9806-0607	●
27	UNION; ELBOW,AIR TANK TIRE INFLATOR DEVICE(SG4) (A) M16 & PT1/4 ELBOW	0-92134-310-0	02	1	0608-	●
27	UNION; ELBOW,AIR TANK TIRE INFLATOR DEVICE(SG4) (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9806-	●
28	BRACKET; AIR TANK EXC. TIRE INFLATOR DEVICE(SG4)	1-48317-709-4	02	1	9806-	●
28	BRACKET; AIR TANK	1-53318-338-6	02	1	9806-		●	●
36	STAY; MAIN TANK TIRE INFLATOR DEVICE(SG4)	1-48317-307-2	01	1	9806-	●
37	BOLT; AIR TANK M10X35 FLANGE	0-28681-035-0	04	1	9806-0512	●
37	BOLT; AIR TANK M10X35 FLANGE	0-28651-035-0	04	1	0601-	●
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	06	1	9806-0512		●	●
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	06	1	0601-		●	●
39	U-BOLT; AIR TANK EXC. TIRE INFLATOR DEVICE(SG4) (C) L=250	1-48317-308-0	02	1	9806-	●
39	U-BOLT; AIR TANK (A) L=97.5	1-48317-323-1	02	1	9806-		●	●
39	U-BOLT; AIR TANK (B) L=195	1-48317-367-2	02	1	9806-		●	●
43	BOLT; STAY,AIR TANK,MAIN (C) M8X20 FLANGE	0-28680-820-0	02	1	9806-0512	●
43	BOLT; STAY,AIR TANK,MAIN (C) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE	0-28680-820-0	04	1	9806-0512		●	●
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE	0-28650-820-0	04	1	0601-		●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M10X25 FLANGE	0-28681-025-0	04	1	9806-0512		●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M10X25 FLANGE	0-28651-025-0	04	1	0601-		●	●
46	NUT; U-BOLT EXC. TIRE INFLATOR DEVICE(SG4) M8	9-09110-408-0	08	1	9806-0512	●
46	NUT; U-BOLT EXC. TIRE INFLATOR DEVICE(SG4) M8	0-91110-508-0	08	1	0601-	●
49	BRACKET; AIR TANK TIRE INFLATOR DEVICE(SG4)	1-48317-709-4	02	1	9806-	●
64	STAY; AIR TANK,MAIN EXC. TIRE INFLATOR DEVICE(SG4) (C)	1-48317-307-2	01	1	9806-	●
64	STAY; AIR TANK,MAIN (A)	1-53318-293-1	01	1	9806-		●	●
64	STAY; AIR TANK,MAIN (B)	8-94301-490-0	01	1	9806-		●	●
126	CONNECTOR; ELBOW TIRE INFLATOR DEVICE(SG4) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9806-	●
126	CONNECTOR; ELBOW M16 & PT3/8 ELBOW	1-09650-438-0	02	1	9806-		●	●
133	COVER; AIR MASTER	1-48317-641-1	01	1	9806-	●
134	BOLT; COVER FIX M8X20 FLANGE	0-28680-820-0	04	1	9806-0512	●
134	BOLT; COVER FIX M8X20 FLANGE	0-28650-820-0	04	1	0601-	●
135	NUT; COVER M8 FLANGE	0-91150-108-0	04	1	9806-0602	●
135	NUT; COVER M8 FLANGE	0-91180-108-0	04	1	0603-	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EXC. TIRE INFLATOR DEVICE(SG4) 530KPA	1-48340-054-1	01	1	9806-	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	01	1	9806-		●	●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91150-108-0	02	1	9806-0602	●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91150-108-0	04	1	9806-0602		●	●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91180-108-0	04	1	0603-		●	●
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91150-210-0	04	1	9806-0602		●	●
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91180-210-0	04	1	0603-		●	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE(SG4)	1-09680-036-0	01	1	9806-0009	●	●	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE(SG4)	1-09680-099-0	01	1	0010-	●	●	●
175	CAP; AIR COCK TIRE INFLATOR DEVICE(SG4)	9-48319-102-0	01	1	9806-	●	●	●
203	NUT TIRE INFLATOR DEVICE(SG4) M8	9-09110-408-0	08	1	9806-0512	●
203	NUT TIRE INFLATOR DEVICE(SG4) M8	0-91110-508-0	08	1	0601-	●
213	BOLT; U AIR TANK TIRE INFLATOR DEVICE(SG4) L=250	1-48317-308-0	02	1	9806-	●
360	ADAPTER; INFLATOR TIRE INFLATOR DEVICE(SG4) PT3/8	1-48319-058-0	01	1	9806-	●

246

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	246	GROMMET; VINYL PIPE OD=35	8-94122-971-0	01	1	9806-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
