3-11 — PARKING BRAKE CONTROL (#65287) — 100 parça

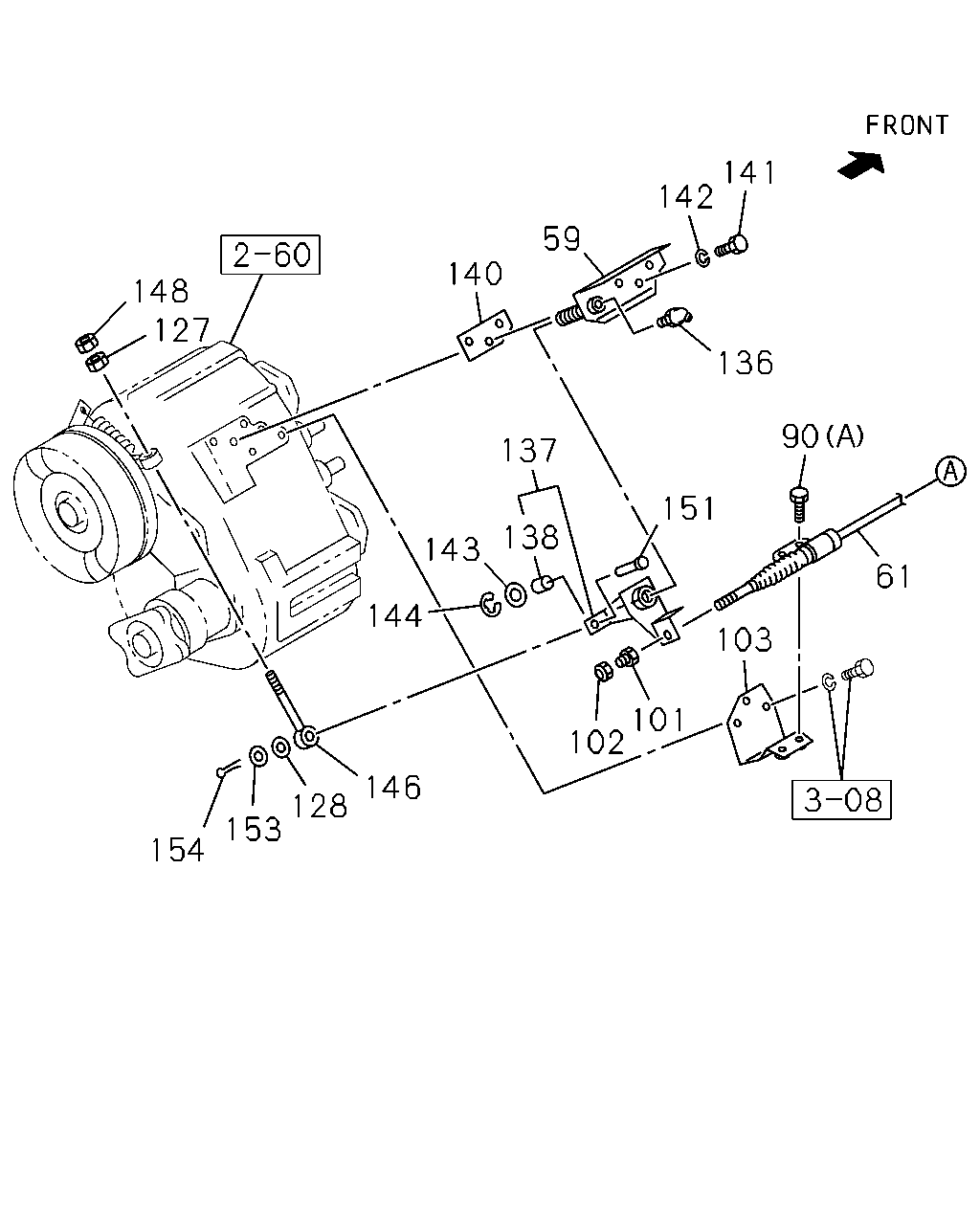

çizim 115467
141 142 59 140 148 127 136 90 137 151 138 143 61 144 103 101 102 146 128 153 154
BalonParca AdiParca NoAdetTipApplied Date A B C
59 BRACKET; RELAY LEVER 1-46276-030-1 01 1 9806- ● ● ●
61 CABLE; PARKING BRK
L=5344 		1-79996-350-2 01 1 9806-9909 ●
61 CABLE; PARKING BRK
L=5194 		1-79996-465-3 01 1 9910- ●
61 CABLE; PARKING BRK
L=5055 		1-79996-406-0 01 1 9806-9909 ● ●
61 CABLE; PARKING BRK
L=5344 		1-79996-467-4 01 1 9910- ● ●
90 BOLT; CABLE TO BRKT
(A) M10X25 FLANGE 		0-28681-025-0 02 1 9806-0009 ● ● ●
90 BOLT; CABLE TO BRKT
(A) M10X30 FLANGE 		0-28681-030-0 02 1 0010-0512 ● ● ●
90 BOLT; CABLE TO BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0601- ● ● ●
90 BOLT; CABLE TO BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9806-0904 ● ● ●
90 BOLT; CABLE TO BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ● ● ●
90 BOLT; CABLE TO BRKT
(C) M8X16 FLANGE 		0-28080-816-0 01 1 9806-0512 ● ●
90 BOLT; CABLE TO BRKT
(C) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
101 NUT; CABLE TO LEVER 1-46259-007-0 01 1 9806- ● ● ●
102 NUT; LK,CABLE TO LEVER
M8 FLANGE 		0-91150-108-0 01 1 9806-0602 ● ● ●
102 NUT; LK,CABLE TO LEVER
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●
103 BRACKET; PARKING BRK CONT 1-46147-052-1 01 1 9806- ● ● ●
127 NUT; LINK 1-09445-001-0 01 1 9806- ● ● ●
128 WASHER; PL,LINK
ID=10.5 OD=18 		9-09160-510-0 01 1 9806-0605 ● ● ●
128 WASHER; PL,LINK
ID=10.5 		0-91610-510-0 01 1 0606- ● ● ●
136 NIPPLE; GREASE
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9806-0512 ● ● ●
136 NIPPLE; GREASE
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ● ● ●
137 LEVER ASM; W/BUSHING 1-46140-098-1 01 1 9806-1001 ● ● ●
137 LEVER ASM; W/BUSHING 1-46140-119-0 01 1 1002- ● ● ●
138 BUSHING; LEVER 1-46149-003-0 01 1 9806-1001 ● ● ●
138 BUSHING; LEVER 1-46149-031-0 01 1 1002- ● ● ●
140 PLATE; DIST PARKING BRK 1-46149-016-0 01 1 9806- ● ● ●
141 BOLT; BRKT,RELAY LEVER
M12X38 		0-23801-238-0 03 1 9806- ● ● ●
142 WASHER; LK,BRKT,RELAY LEVER
ID=12.2 		9-09150-512-0 03 1 9806-0603 ● ● ●
142 WASHER; LK,BRKT,RELAY LEVER
ID=12.2 		0-91510-512-0 03 1 0604- ● ● ●
143 WASHER; PL,BRKT,RELAY LEVER
ID=19 		9-09160-518-0 01 1 9806- ● ● ●
144 RING; SNAP,E TYPE,BRKT
ID=15 		9-09185-015-0 01 1 9806- ● ● ●
146 ROD; LINK,PARKING BRK 1-46142-048-0 01 1 9806- ● ● ●
148 NUT; LK,LINK
M10 		9-09110-410-0 01 1 9806-0512 ● ● ●
148 NUT; LK,LINK
M10 		0-91110-510-0 01 1 0601- ● ● ●
151 PIN; LINK TO LEVER
OD=10 L=31 		9-08234-031-0 01 1 9806- ● ● ●
153 WASHER; WAVE,LINK 9-09855-192-0 01 1 9806- ● ● ●
154 PIN; SPLIT,LINK
OD=2.8 L=18 		9-08113-018-0 01 1 9806-0606 ● ● ●
154 PIN; SPLIT,LINK
OD=2.8 L=18 		0-81123-018-0 01 1 0607- ● ● ●
çizim 184851
61 46 45 324 218 46 45
BalonParca AdiParca NoAdetTipApplied Date A B C
45 BOLT; CABLE TO FLOOR
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9806-9812 ● ● ●
45 BOLT; CABLE TO FLOOR
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9901- ● ● ●
46 CLIP; FRT CABLE TO FLOOR
ID=16 L=20 		9-09525-535-0 02 1 9806-0004 ● ● ●
46 CLIP; FRT CABLE TO FLOOR
ID=16 L=20 		9-09525-535-0 03 1 0005-0606 ● ● ●
46 CLIP; FRT CABLE TO FLOOR
ID=16 L=20 		0-95235-535-0 03 1 0607- ● ● ●
61 CABLE; PARKING BRK
L=5344 		1-79996-350-2 01 1 9806-9909 ●
61 CABLE; PARKING BRK
L=5194 		1-79996-465-3 01 1 9910- ●
61 CABLE; PARKING BRK
L=5055 		1-79996-406-0 01 1 9806-9909 ● ●
61 CABLE; PARKING BRK
L=5344 		1-79996-467-4 01 1 9910- ● ●
218 NUT; BRKT,PARKING BRK CABLE
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 9806- ● ● ●
324 BRACKET 1-79996-260-2 01 1 9806- ● ● ●

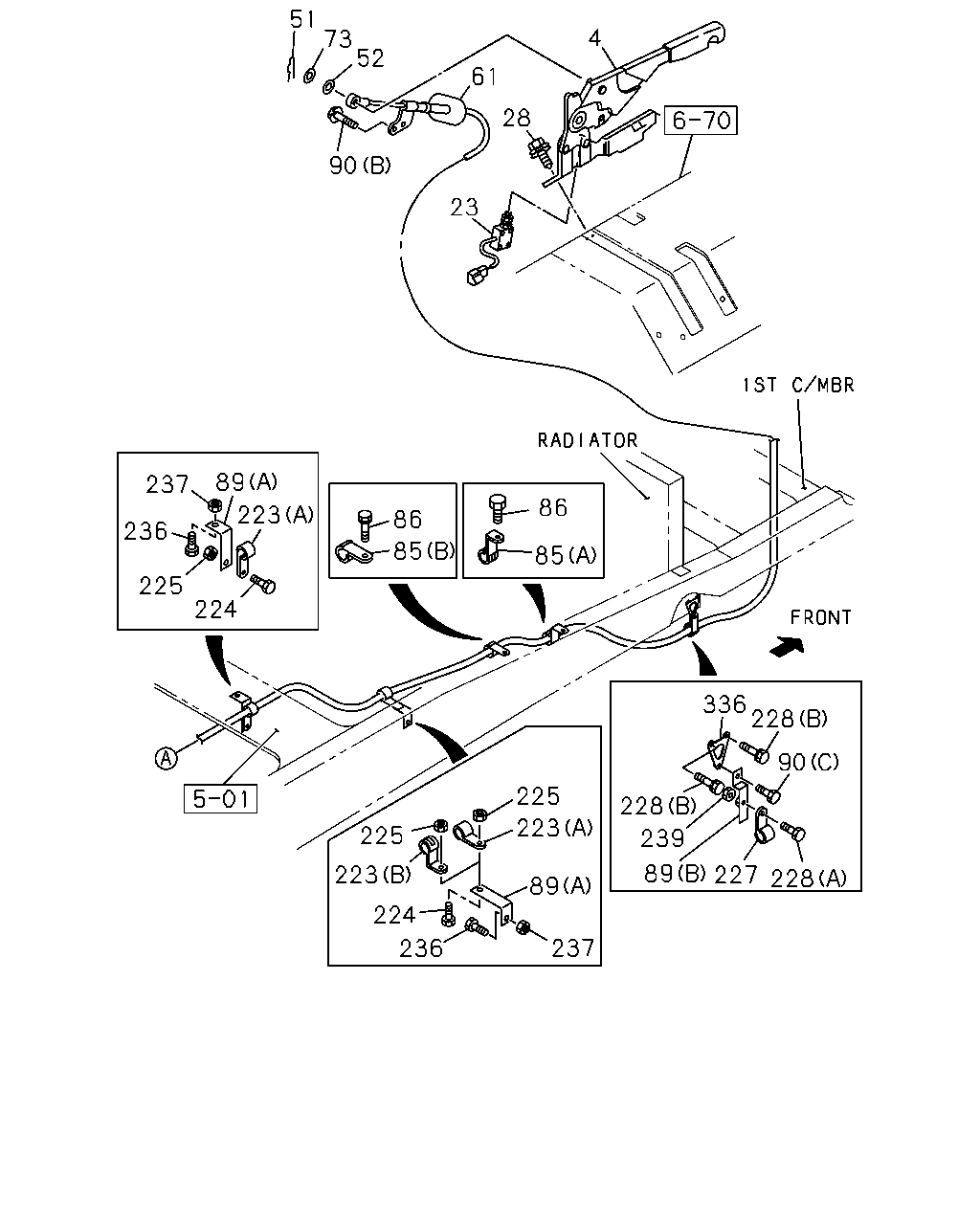

çizim 184854
51 4 73 52 61 28 90 23 89 237 86 223 86 236 85 85 225 224 336 228 90 225 228 223 225 239 223 228 89 224 237 236 89 227
BalonParca AdiParca NoAdetTipApplied Date A B C
4 STEM; PARKING BRK 1-79996-295-0 01 1 9806-9809 ● ● ●
4 STEM; PARKING BRK 1-79996-423-0 01 1 9810-9908 ● ● ●
4 STEM; PARKING BRK 1-79996-485-0 01 1 9909-9911 ● ● ●
4 STEM; PARKING BRK 1-79996-505-0 01 1 9912-0010 ● ● ●
4 STEM; PARKING BRK 1-79996-565-0 01 1 0011- ● ● ●
23 SWITCH; PARKING BRK 1-82440-100-0 01 1 9806- ● ● ●
28 BOLT; HAND BRK LEVER
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9806-0904 ● ● ●
28 BOLT; HAND BRK LEVER
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ● ● ●
51 PIN; JOINT,RELAY LEVER 1-09987-243-1 01 1 9806- ● ● ●
52 WASHER; CURVED RELAY LEVER
ID=19 		8-94206-429-1 02 1 9806- ● ● ●
61 CABLE; PARKING BRK
L=5344 		1-79996-350-2 01 1 9806-9909 ●
61 CABLE; PARKING BRK
L=5194 		1-79996-465-3 01 1 9910- ●
61 CABLE; PARKING BRK
L=5055 		1-79996-406-0 01 1 9806-9909 ● ●
61 CABLE; PARKING BRK
L=5344 		1-79996-467-4 01 1 9910- ● ●
73 WASHER; PL,CABLE
ID=17 		9-09160-516-0 01 1 9806-0605 ● ● ●
73 WASHER; PL,CABLE
ID=17 OD=30 		0-91610-516-0 01 1 0606- ● ● ●
85 CLIP; BRKT
(A) ID=16 H=30 L=30 		1-09701-080-0 01 1 9806- ● ● ●
85 CLIP; BRKT
(B) ID=24 L=40 		1-09701-139-0 01 1 9806-1101 ● ● ●
85 CLIP; BRKT
(B) ID=14.5 L=40 		1-09701-014-0 01 1 1102- ● ● ●
86 BOLT
M8X25 FLANGE 		0-28680-825-0 02 1 9806-0512 ● ● ●
86 BOLT
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ●
89 BRACKET; CLIP
(A) 		1-34656-009-0 02 1 9806- ● ● ●
89 BRACKET; CLIP
(B) 		1-47477-261-0 01 1 9806- ● ●
90 BOLT; CABLE TO BRKT
(A) M10X25 FLANGE 		0-28681-025-0 02 1 9806-0009 ● ● ●
90 BOLT; CABLE TO BRKT
(A) M10X30 FLANGE 		0-28681-030-0 02 1 0010-0512 ● ● ●
90 BOLT; CABLE TO BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0601- ● ● ●
90 BOLT; CABLE TO BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9806-0904 ● ● ●
90 BOLT; CABLE TO BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ● ● ●
90 BOLT; CABLE TO BRKT
(C) M8X16 FLANGE 		0-28080-816-0 01 1 9806-0512 ● ●
90 BOLT; CABLE TO BRKT
(C) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
223 CLIP; PARKING BRK CABLE
(A) ID=14.5 L=28 		1-09701-013-0 02 1 9806-9909 ● ● ●
223 CLIP; PARKING BRK CABLE
(A) ID=14.5 L=28 		1-09701-013-0 02 1 9910- ●
223 CLIP; PARKING BRK CABLE
(A) ID=14.5 L=28 		1-09701-013-0 01 1 9910- ● ●
223 CLIP; PARKING BRK CABLE
(B) ID=15 L=22 H=30 		1-09701-215-1 01 1 9910- ● ●
224 BOLT; CABLE CLIP
M8X25 FLANGE 		0-28680-825-0 02 1 9806-0512 ● ● ●
224 BOLT; CABLE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ●
225 NUT; CABLE CLIP
M8 FLANGE 		0-91150-108-0 02 1 9806-0602 ● ● ●
225 NUT; CABLE CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
227 CLIP; RAD
ID=13 L=20 		9-09525-235-0 01 1 9806-0606 ● ● ●
227 CLIP; RAD
ID=13 L=20 		0-95235-235-0 01 1 0607- ● ● ●
228 BOLT; CLIP RAD MTG
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9806-0512 ● ● ●
228 BOLT; CLIP RAD MTG
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ●
228 BOLT; CLIP RAD MTG
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9806- ● ● ●
236 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28680-830-0 02 1 9806-9810 ● ● ●
236 BOLT; BRKT TO FRAME
M8X25 FLANGE 		0-28680-825-0 02 1 9811-0512 ● ● ●
236 BOLT; BRKT TO FRAME
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ●
237 NUT; BRKT TO FRAME
M8 FLANGE 		0-91150-108-0 02 1 9806-0602 ● ● ●
237 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
239 NUT; CLIP TO BRKT
M8 FLANGE 		0-91150-108-0 01 1 9806-0602 ● ●
239 NUT; CLIP TO BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
336 BRACKET; RADIATOR 1-36183-162-1 01 1 9806- ● ● ●
