3-05 — REAR WHEEL BRAKE (#65284) — 145 parça

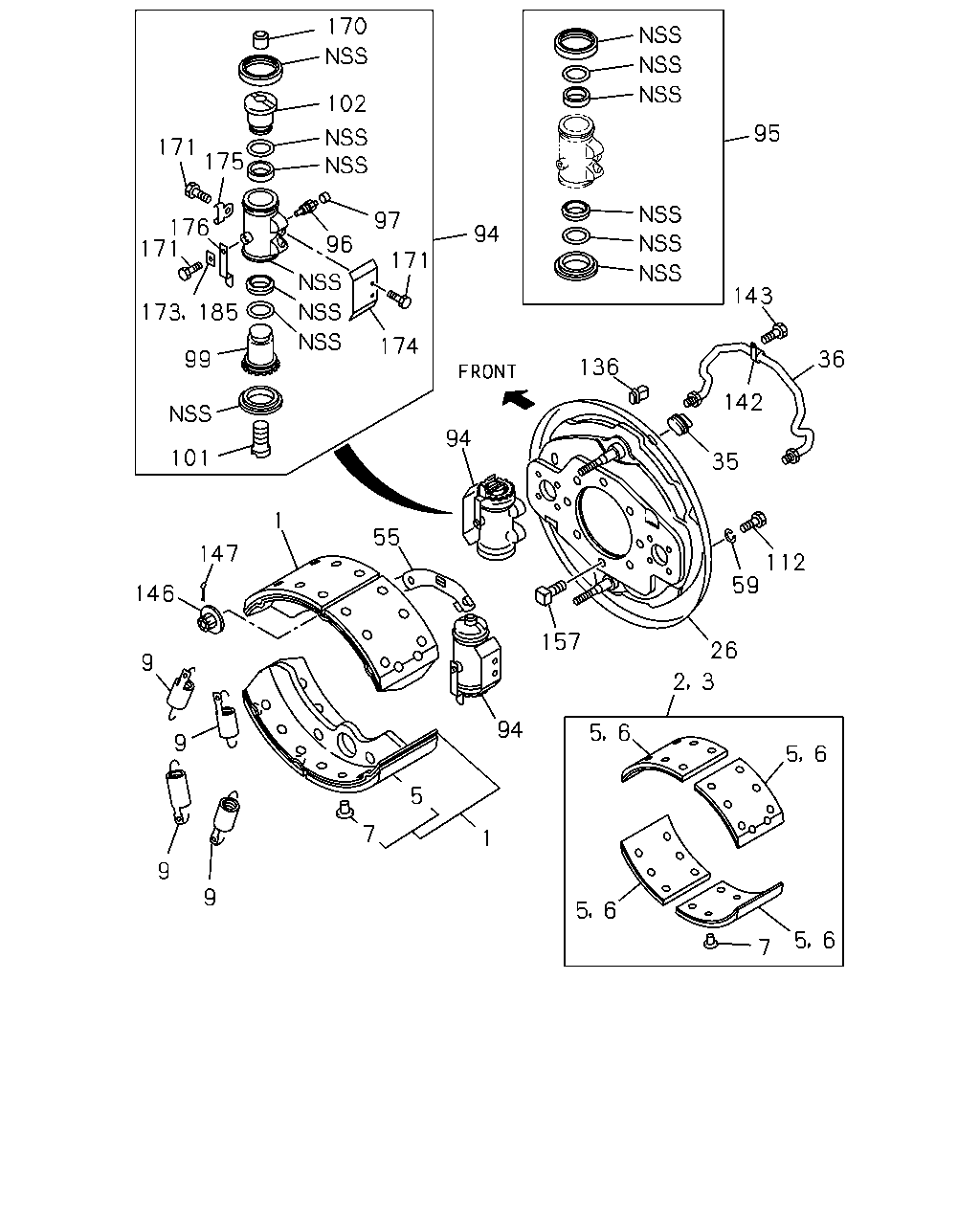

170 102 95 171 175 97 176 171 94 96 171 143 173 185 174 36 99 136 142 94 101 35 55 147 112 59 146 157 26 9 2 3 94 5 6 9 5 6 5 7 1 9 9 5 6 5 6 7 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHOE; BRK,RR	1-47120-629-0	04	1	9806-	●
1	SHOE; BRK,RR	1-47120-632-0	04	1	9806-		●	●
2	LINING SET; RR BRK,STANDARD	1-88310-525-0	01	1	9806-	●
2	LINING SET; RR BRK,STANDARD	1-88310-527-0	02	1	9806-		●	●
2	LINING SET; RR BRK,STANDARD BEST VALUE PARTS	1-87610-130-0	01	1	9806-	●
3	LINING SET; RR BRK,OVER SIZE	1-88310-526-0	01	1	9806-	●
3	LINING SET; RR BRK,OVER SIZE	1-88310-528-0	02	1	9806-		●	●
5	LINING; RR BRK SHOE,STANDARD	1-47125-807-0	04	1	9806-	●
5	LINING; RR BRK SHOE,STANDARD	1-47125-809-0	08	1	9806-		●	●
6	LINING; RR BRK SHOE,OVER SIZE	1-47125-808-0	04	1	9806-	●
6	LINING; RR BRK SHOE,OVER SIZE	1-47125-810-0	08	1	9806-		●	●
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	80	1	9806-	●
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	96	1	9806-		●	●
9	SPRING; RETURN,BRK SHOE	1-09583-167-0	08	1	9806-	●	●	●
26	PLATE; BACK,RR BRK	1-47150-443-0	01	1	9806-	●
26	PLATE; BACK,RR BRK	1-47150-442-0	01	1	9806-	●
26	PLATE; BACK,RR BRK	1-47150-457-0	01	1	9806-		●	●
26	PLATE; BACK,RR BRK	1-47150-456-0	01	1	9806-		●	●
35	GROMMET; CHECK HOLE	1-09333-066-1	04	1	9806-	●	●	●
36	PIPE; OIL,RR BRK	1-47416-356-0	02	1	9806-	●	●	●
55	PLATE; LK,RR WHEEL CYL	1-47139-068-0	04	1	9806-	●	●	●
59	WASHER; LK,RR WHEEL CYL ID=14.2	9-09150-614-0	16	1	9806-0603	●	●	●
59	WASHER; LK,RR WHEEL CYL ID=14.2	0-91510-614-0	16	1	0604-	●	●	●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-589-1	01	1	9806-	●
94	CYLINDER; WHEEL,RR BRK FORWARD	1-47600-590-1	01	1	9806-	●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-587-1	01	1	9806-	●
94	CYLINDER; WHEEL,RR BRK FORWARD	1-47600-588-1	01	1	9806-	●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-430-2	01	1	9806-0104		●	●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47601-129-0	01	1	0105-		●	●
94	CYLINDER; WHEEL,RR BRK FORWARD	1-47600-604-1	01	1	9806-0104		●	●
94	CYLINDER; WHEEL,RR BRK FORWARD	1-47601-133-0	01	1	0105-		●	●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-429-2	01	1	9806-0104		●	●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47601-128-0	01	1	0105-		●	●
94	CYLINDER; WHEEL,RR BRK FORWARD	1-47600-603-1	01	1	9806-0104		●	●
94	CYLINDER; WHEEL,RR BRK FORWARD	1-47601-132-0	01	1	0105-		●	●
95	CUP SET; RR WHEEL CYL	1-87830-581-0	04	1	9806-	●
95	CUP SET; RR WHEEL CYL	1-87830-552-0	04	1	9806-		●	●
96	SCREW; BLEEDER,RR BRK L=44	1-47615-007-0	02	1	9806-	●	●	●
97	CAP; BLEEDER,RR WHEEL CYL OD=9.5	9-47619-005-0	02	1	9806-	●	●	●
99	PISTON; RR WHEEL CYL	1-47624-223-0	02	1	9806-	●
99	PISTON; RR WHEEL CYL	1-47624-222-0	02	1	9806-	●
99	PISTON; RR WHEEL CYL	1-47624-157-0	02	1	9806-		●	●
99	PISTON; RR WHEEL CYL	1-47624-156-0	02	1	9806-		●	●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-029-0	02	1	9806-	●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-028-0	02	1	9806-	●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-023-0	02	1	9806-		●	●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-022-0	02	1	9806-		●	●
102	PISTON; REAR WHEEL CYL	1-47624-224-0	04	1	9806-	●
102	PISTON; REAR WHEEL CYL	1-47624-158-0	04	1	9806-		●	●
112	BOLT; WHEEL CYL SETTING	9-92361-435-0	16	1	9806-	●	●	●
136	GROMMET	1-09333-065-2	04	1	9806-	●	●	●
142	CLAMP; OIL PIPE	1-09700-454-0	02	1	9806-	●	●	●
143	BOLT; CLAMP,OIL PIPE M6X10	9-01900-610-0	02	1	9806-	●	●	●
146	NUT; HOLDER	1-09440-009-0	04	1	9806-		●	●
147	PIN; HOLDER OD=1.8 L=20	9-08112-020-0	02	1	9806-0606	●
147	PIN; HOLDER OD=1.8 L=20	0-81122-020-0	02	1	0607-	●
147	PIN; HOLDER OD=1.8 L=20	9-08112-020-0	04	1	9806-0606		●	●
147	PIN; HOLDER OD=1.8 L=20	0-81122-020-0	04	1	0607-		●	●
157	BOLT; RR BRK SET M14X56	1-09060-004-0	12	1	9806-	●	●	●
170	PIECE; ANCHOR,RR WHEEL CYL	1-47619-039-0	04	1	9806-	●
170	PIECE; ANCHOR,RR WHEEL CYL	1-47619-019-0	04	1	9806-		●	●
171	BOLT; RR WHEEL CYL M6X10	9-01900-610-0	12	1	9806-	●
171	BOLT; RR WHEEL CYL M6X8	0-20800-608-0	04	1	9806-	●	●	●
171	BOLT; RR WHEEL CYL M8X18 W/LK WASHER	0-50040-818-0	08	1	9806-0906	●	●	●
171	BOLT; RR WHEEL CYL M8X18 W/LK WASHER	0-50540-818-0	08	1	0907-	●	●	●
171	BOLT; RR WHEEL CYL M6X10	9-01900-610-0	08	1	9806-		●	●
173	PLATE; LK,RR WHEEL CYL	1-47169-009-0	02	1	9806-	●	●	●
174	COVER; CYL,RR WHEEL CYL	1-47619-016-0	04	1	9806-	●	●	●
175	HANGER; RR WHEEL BRK	1-47118-084-0	08	1	9806-	●	●	●
176	STOPPER; RR WHEEL CYL	1-47169-008-0	04	1	9806-	●	●	●
185	PLATE; LK,RR WHEEL CYL	1-47169-009-0	02	1	9806-	●	●	●

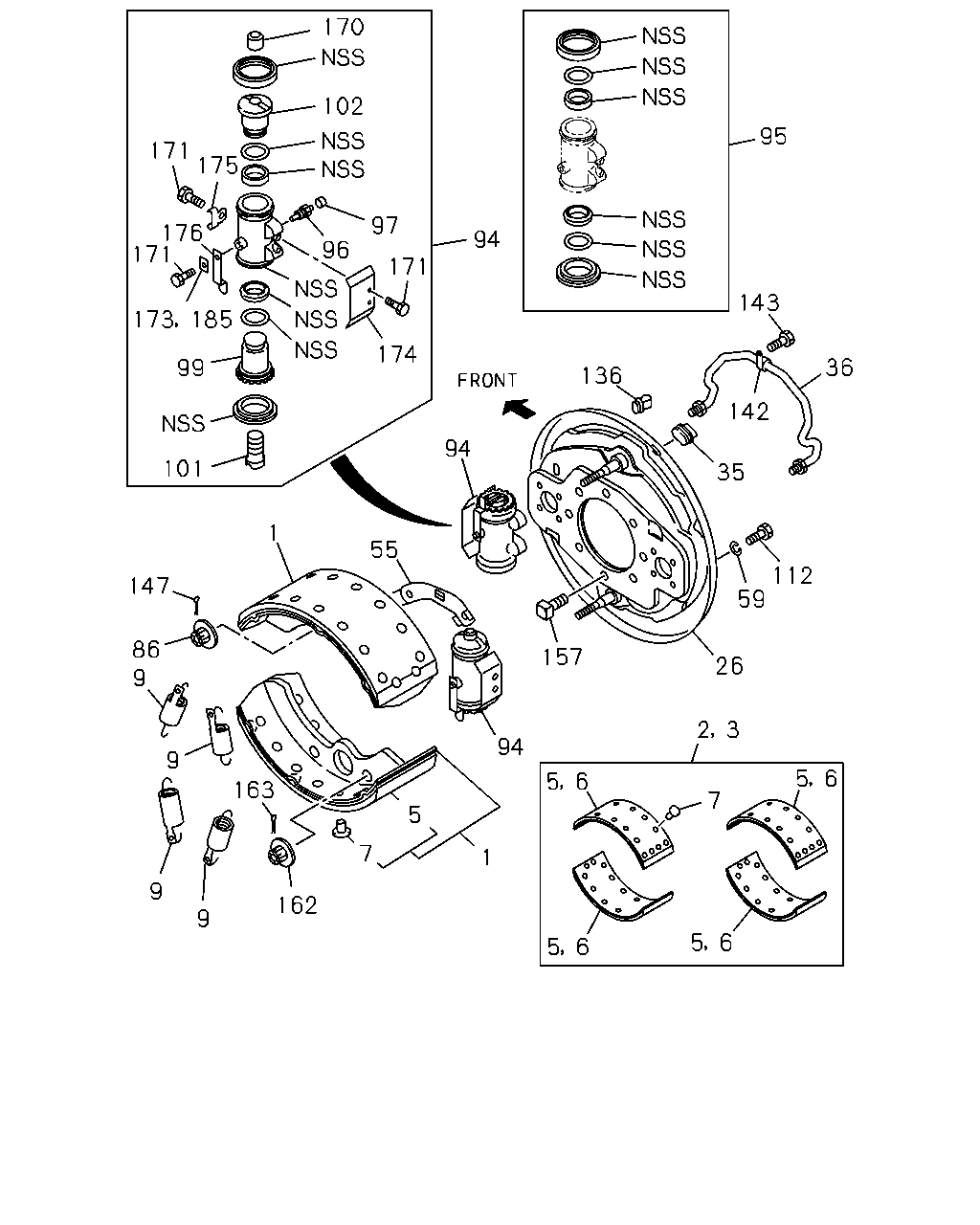

170 102 95 171 175 97 176 171 94 96 171 143 173 185 174 36 99 136 142 94 101 35 55 112 59 147 86 9 157 26 2 3 94 9 5 6 5 6 163 7 5 7 1 9 162 9 5 6 5 6 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHOE; BRK,RR	1-47120-629-0	04	1	9806-	●
1	SHOE; BRK,RR	1-47120-632-0	04	1	9806-		●	●
2	LINING SET; RR BRK,STANDARD	1-88310-525-0	01	1	9806-	●
2	LINING SET; RR BRK,STANDARD	1-88310-527-0	02	1	9806-		●	●
2	LINING SET; RR BRK,STANDARD BEST VALUE PARTS	1-87610-130-0	01	1	9806-	●
3	LINING SET; RR BRK,OVER SIZE	1-88310-526-0	01	1	9806-	●
3	LINING SET; RR BRK,OVER SIZE	1-88310-528-0	02	1	9806-		●	●
5	LINING; RR BRK SHOE,STANDARD	1-47125-807-0	04	1	9806-	●
5	LINING; RR BRK SHOE,STANDARD	1-47125-809-0	08	1	9806-		●	●
6	LINING; RR BRK SHOE,OVER SIZE	1-47125-808-0	04	1	9806-	●
6	LINING; RR BRK SHOE,OVER SIZE	1-47125-810-0	08	1	9806-		●	●
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	80	1	9806-	●
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	96	1	9806-		●	●
9	SPRING; RETURN,BRK SHOE	1-09583-167-0	08	1	9806-	●	●	●
26	PLATE; BACK,RR BRK	1-47150-443-0	01	1	9806-	●
26	PLATE; BACK,RR BRK	1-47150-442-0	01	1	9806-	●
26	PLATE; BACK,RR BRK	1-47150-457-0	01	1	9806-		●	●
26	PLATE; BACK,RR BRK	1-47150-456-0	01	1	9806-		●	●
35	GROMMET; CHECK HOLE	1-09333-066-1	04	1	9806-	●	●	●
36	PIPE; OIL,RR BRK	1-47416-356-0	02	1	9806-	●	●	●
55	PLATE; LK,RR WHEEL CYL	1-47139-068-0	04	1	9806-	●	●	●
59	WASHER; LK,RR WHEEL CYL ID=14.2	9-09150-614-0	16	1	9806-0603	●	●	●
59	WASHER; LK,RR WHEEL CYL ID=14.2	0-91510-614-0	16	1	0604-	●	●	●
86	NUT; FLANGE	1-09440-009-0	02	1	9806-	●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-589-1	01	1	9806-	●
94	CYLINDER; WHEEL,RR BRK FORWARD	1-47600-590-1	01	1	9806-	●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-587-1	01	1	9806-	●
94	CYLINDER; WHEEL,RR BRK FORWARD	1-47600-588-1	01	1	9806-	●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-430-2	01	1	9806-0104		●	●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47601-129-0	01	1	0105-		●	●
94	CYLINDER; WHEEL,RR BRK FORWARD	1-47600-604-1	01	1	9806-0104		●	●
94	CYLINDER; WHEEL,RR BRK FORWARD	1-47601-133-0	01	1	0105-		●	●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-429-2	01	1	9806-0104		●	●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47601-128-0	01	1	0105-		●	●
94	CYLINDER; WHEEL,RR BRK FORWARD	1-47600-603-1	01	1	9806-0104		●	●
94	CYLINDER; WHEEL,RR BRK FORWARD	1-47601-132-0	01	1	0105-		●	●
95	CUP SET; RR WHEEL CYL	1-87830-581-0	04	1	9806-	●
95	CUP SET; RR WHEEL CYL	1-87830-552-0	04	1	9806-		●	●
96	SCREW; BLEEDER,RR BRK L=44	1-47615-007-0	02	1	9806-	●	●	●
97	CAP; BLEEDER,RR WHEEL CYL OD=9.5	9-47619-005-0	02	1	9806-	●	●	●
99	PISTON; RR WHEEL CYL	1-47624-223-0	02	1	9806-	●
99	PISTON; RR WHEEL CYL	1-47624-222-0	02	1	9806-	●
99	PISTON; RR WHEEL CYL	1-47624-157-0	02	1	9806-		●	●
99	PISTON; RR WHEEL CYL	1-47624-156-0	02	1	9806-		●	●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-029-0	02	1	9806-	●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-028-0	02	1	9806-	●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-023-0	02	1	9806-		●	●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-022-0	02	1	9806-		●	●
102	PISTON; REAR WHEEL CYL	1-47624-224-0	04	1	9806-	●
102	PISTON; REAR WHEEL CYL	1-47624-158-0	04	1	9806-		●	●
112	BOLT; WHEEL CYL SETTING	9-92361-435-0	16	1	9806-	●	●	●
136	GROMMET	1-09333-065-2	04	1	9806-	●	●	●
142	CLAMP; OIL PIPE	1-09700-454-0	02	1	9806-	●	●	●
143	BOLT; CLAMP,OIL PIPE M6X10	9-01900-610-0	02	1	9806-	●	●	●
147	PIN; HOLDER OD=1.8 L=20	9-08112-020-0	02	1	9806-0606	●
147	PIN; HOLDER OD=1.8 L=20	0-81122-020-0	02	1	0607-	●
147	PIN; HOLDER OD=1.8 L=20	9-08112-020-0	04	1	9806-0606		●	●
147	PIN; HOLDER OD=1.8 L=20	0-81122-020-0	04	1	0607-		●	●
157	BOLT; RR BRK SET M14X56	1-09060-004-0	12	1	9806-	●	●	●
162	NUT; SHOE HOLD DOWN	1-09440-009-0	02	1	9806-	●
163	PIN; SPLIT,SHOE HOLD OD=1.8 L=20	9-08112-020-0	02	1	9806-0606	●
163	PIN; SPLIT,SHOE HOLD OD=1.8 L=20	0-81122-020-0	02	1	0607-	●
170	PIECE; ANCHOR,RR WHEEL CYL	1-47619-039-0	04	1	9806-	●
170	PIECE; ANCHOR,RR WHEEL CYL	1-47619-019-0	04	1	9806-		●	●
171	BOLT; RR WHEEL CYL M6X10	9-01900-610-0	12	1	9806-	●
171	BOLT; RR WHEEL CYL M6X8	0-20800-608-0	04	1	9806-	●	●	●
171	BOLT; RR WHEEL CYL M8X18 W/LK WASHER	0-50040-818-0	08	1	9806-0906	●	●	●
171	BOLT; RR WHEEL CYL M8X18 W/LK WASHER	0-50540-818-0	08	1	0907-	●	●	●
171	BOLT; RR WHEEL CYL M6X10	9-01900-610-0	08	1	9806-		●	●
173	PLATE; LK,RR WHEEL CYL	1-47169-009-0	02	1	9806-	●	●	●
174	COVER; CYL,RR WHEEL CYL	1-47619-016-0	04	1	9806-	●	●	●
175	HANGER; RR WHEEL BRK	1-47118-084-0	08	1	9806-	●	●	●
176	STOPPER; RR WHEEL CYL	1-47169-008-0	04	1	9806-	●	●	●
185	PLATE; LK,RR WHEEL CYL	1-47169-009-0	02	1	9806-	●	●	●
