◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10717 - FSS/FTS-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-76 - AUTOMATIC TRANSFER CONTROL VALVE ▶
2-76 — AUTOMATIC TRANSFER CONTROL VALVE (#65280) — 11 parça
çizim 184844
60 81
BalonParca AdiParca NoAdetTipApplied Date
60 SENSOR; SPD,TRANSFER 1-83127-254-3 01 1 9806-0004
60 SENSOR; SPD,TRANSFER 1-80240-001-1 01 1 0005-0202
60 SENSOR; SPD,TRANSFER
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0203-
81 PROTECTOR; SENSOR 8-97168-308-0 01 1 0005-0808
81 PROTECTOR; SENSOR 8-98119-901-0 01 1 0809-

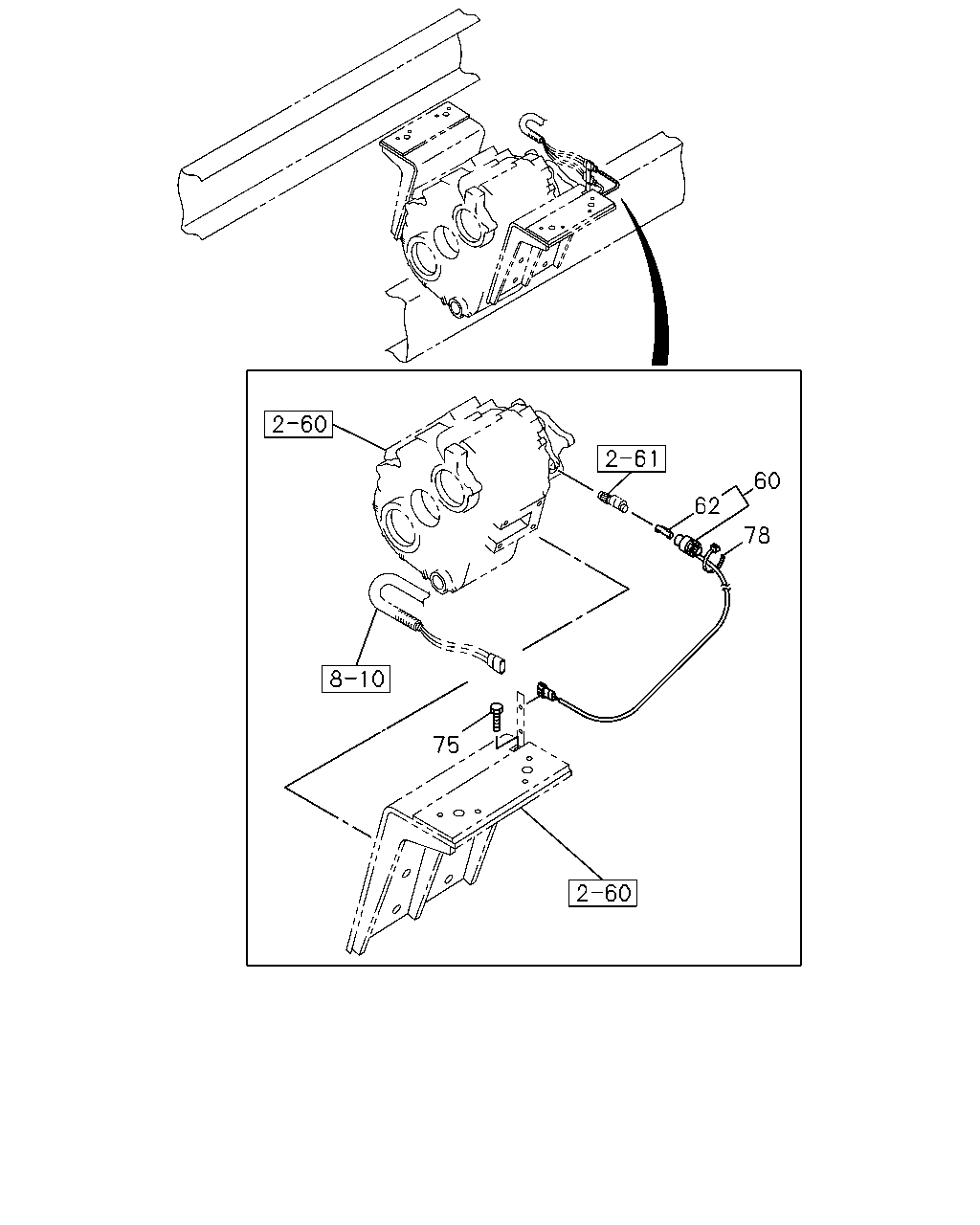

çizim 184846
60 62 78 75
BalonParca AdiParca NoAdetTipApplied Date
60 SENSOR; SPD,TRANSFER 1-83127-254-3 01 1 9806-0004
60 SENSOR; SPD,TRANSFER 1-80240-001-1 01 1 0005-0202
60 SENSOR; SPD,TRANSFER
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0203-
62 KEY; SPD SENSOR ROTOR,TRANSFER 1-83129-125-0 01 1 9806-0004
75 BOLT; SPD SENSOR
M8X18 FLANGE 		0-28080-818-0 01 1 9806-0004
78 CLIP; SPD SENSOR
L=140 		5-09707-031-1 01 1 9806-0004
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
