2-75 — TRANSFER CONTROL (#65279) — 104 parça

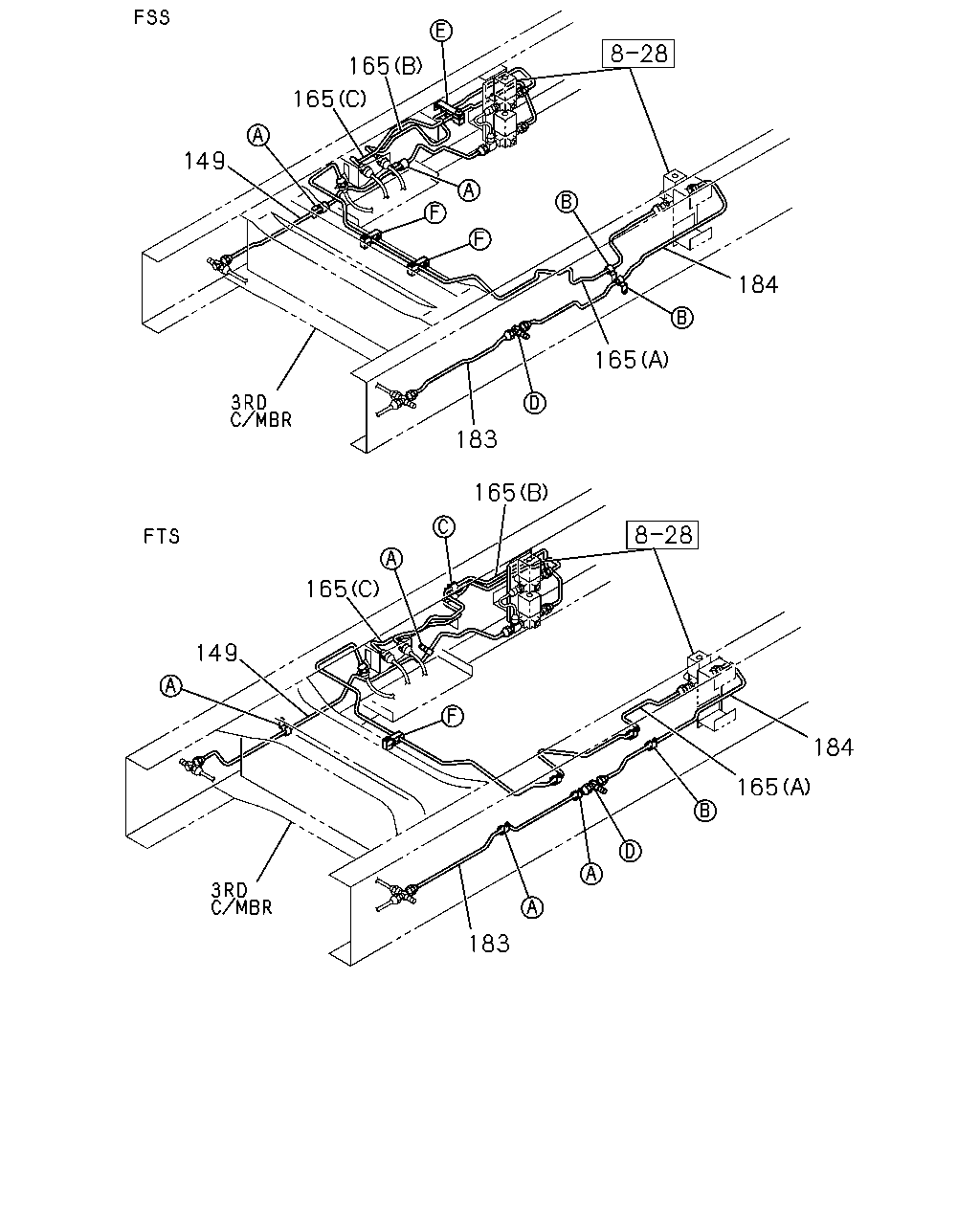

çizim 114445
165 165 149 184 165 183 165 165 149 184 165 183
BalonParca AdiParca NoAdetTipApplied Date A B C
149 PIPE; AIR,MAG VLV TO UNION 1-49113-915-0 01 1 9806- ●
149 PIPE; AIR,MAG VLV TO UNION
L=1125 SERVICED BY L=1200 		1-47426-352-0 01 1 9806- ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=1725 SERVICED BY L=1820 		1-47426-358-0 01 1 9806- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(C) L=843 		1-49113-917-3 01 1 9806- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) 		1-49119-379-0 01 1 9806- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=1859 SERVICED BY L=2000 		1-47426-359-0 01 1 9806- ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) 		1-49115-609-0 01 1 9806- ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(C) 		1-49115-610-0 01 1 9806- ● ●
183 PIPE; AIR,UNION TO UNION 1-49116-737-0 01 1 9806- ●
183 PIPE; AIR,UNION TO UNION 1-49116-712-0 01 1 9806- ● ●
184 PIPE; AIR,UNION TO MAG VALVE 1-49118-718-0 01 1 9806- ●
184 PIPE; AIR,UNION TO MAG VALVE 1-49116-713-0 01 1 9806- ● ●
çizim 114530
147 148 136 148 147 167 150 122 166 136 182 197 167 122 167 166 205 167 207 207 206 148 167
BalonParca AdiParca NoAdetTipApplied Date A B C
122 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 9806-0602 ● ● ●
122 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●
136 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 02 1 9806- ● ● ●
136 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 02 1 9806- ● ●
136 CLIP; AIR PIPE
(B) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 9806- ● ●
147 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 9806-0512 ● ● ●
147 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ●
147 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 02 1 9806-0512 ● ●
147 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9806-0602 ● ● ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9806-0602 ● ● ●
148 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
148 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9806-0602 ● ● ●
148 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 9806-0602 ● ●
148 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
150 UNION; AIR PIPE
M12 2WAY 		1-09654-234-2 01 1 9806- ● ● ●
150 UNION; AIR PIPE
M12 2WAY 		1-09654-234-2 01 1 9806- ● ●
166 BRACKET; CLIP,AIR PIPE
(A) 		1-23335-352-0 01 1 9806- ●
166 BRACKET; CLIP,AIR PIPE
(B) 		1-47475-427-1 01 1 9806- ● ●
167 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28080-850-0 03 1 9806-0512 ●
167 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28050-850-0 03 1 0601- ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 01 1 9806-0512 ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 9806-0512 ● ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 9806-0512 ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
167 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28080-850-0 01 1 9806-0512 ● ●
167 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28050-850-0 01 1 0601- ● ●
167 BOLT; CLIP,AIR PIPE
M8X40 FLANGE 		0-28680-840-0 01 1 9806-0512 ● ●
167 BOLT; CLIP,AIR PIPE
M8X40 FLANGE 		0-28650-840-0 01 1 0601- ● ●
182 NUT
M12 FLANGE 		0-91150-212-0 01 1 9806-0602 ● ● ●
182 NUT
M12 FLANGE 		0-91180-212-0 01 1 0603- ● ● ●
197 NUT; UNION
M12 		9-99111-412-0 01 1 9806-0512 ● ●
197 NUT; UNION
M12 		0-91111-512-0 01 1 0601- ● ●
205 CLIP; UPR
ID=10 & 10 		1-09709-241-0 04 1 0005- ●
205 CLIP; UPR
ID=10 & 10 		1-09709-241-0 02 1 9806-0004 ●
205 CLIP; UPR
ID=10 & 10 		1-09709-241-0 02 1 0005- ● ●
205 CLIP; UPR
ID=10 & 10 		1-09709-241-0 01 1 9806-0004 ● ●
206 CLIP; LWR
ID=10 & 10 		1-09709-243-0 04 1 0005- ●
206 CLIP; LWR
ID=10 & 10 		1-09709-243-0 02 1 9806-0004 ●
206 CLIP; LWR
ID=10 & 10 		1-09709-243-0 02 1 0005- ● ●
206 CLIP; LWR
ID=10 & 10 		1-09709-243-0 01 1 9806-0004 ● ●
207 COLLAR
ID=6 		1-47459-010-0 04 1 0005- ●
207 COLLAR
ID=8 		1-47459-011-0 04 1 0005- ●
207 COLLAR
ID=6 		1-47459-010-0 02 1 9806-0004 ●
207 COLLAR
ID=6 		1-47459-010-0 02 1 0005- ● ●
207 COLLAR
ID=8 		1-47459-011-0 02 1 9806-0004 ●
207 COLLAR
ID=8 		1-47459-011-0 02 1 0005- ● ●
207 COLLAR
ID=6 		1-47459-010-0 01 1 9806-0004 ● ●
207 COLLAR
ID=8 		1-47459-011-0 01 1 9806-0004 ● ●

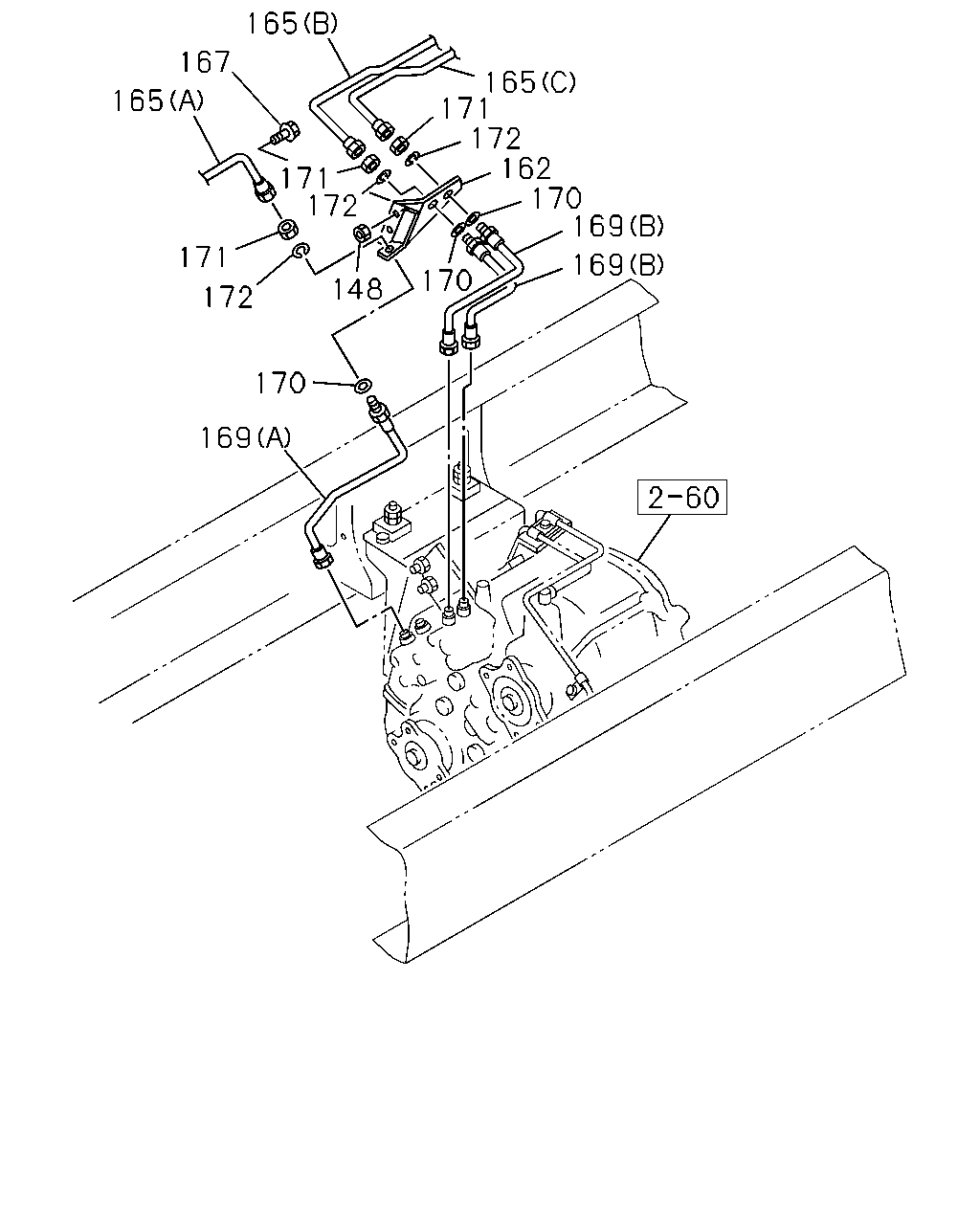

çizim 114645
165 167 165 171 172 162 170 169 165 171 172 171 169 170 148 172 170 169
BalonParca AdiParca NoAdetTipApplied Date A B C
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9806-0602 ● ● ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9806-0602 ● ● ●
148 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
148 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9806-0602 ● ● ●
148 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 9806-0602 ● ●
148 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
162 BRACKET; FLEX HOSE,TRANSFER 1-47476-553-1 01 1 9806- ● ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=1725 SERVICED BY L=1820 		1-47426-358-0 01 1 9806- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(C) L=843 		1-49113-917-3 01 1 9806- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) 		1-49119-379-0 01 1 9806- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=1859 SERVICED BY L=2000 		1-47426-359-0 01 1 9806- ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) 		1-49115-609-0 01 1 9806- ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(C) 		1-49115-610-0 01 1 9806- ● ●
167 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28080-850-0 03 1 9806-0512 ●
167 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28050-850-0 03 1 0601- ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 01 1 9806-0512 ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 9806-0512 ● ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 9806-0512 ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
167 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28080-850-0 01 1 9806-0512 ● ●
167 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28050-850-0 01 1 0601- ● ●
167 BOLT; CLIP,AIR PIPE
M8X40 FLANGE 		0-28680-840-0 01 1 9806-0512 ● ●
167 BOLT; CLIP,AIR PIPE
M8X40 FLANGE 		0-28650-840-0 01 1 0601- ● ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=260 		0-07120-260-0 01 1 9806-0204 ●
169 HOSE; FLEX,TRANSFER CONT
(B) L=300 		1-09363-608-0 02 1 0205- ●
169 HOSE; FLEX,TRANSFER CONT
(B) L=300 		0-07120-300-0 02 1 9806-0204 ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=260 		1-09363-609-0 01 1 0205- ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=300 		0-07120-300-0 01 1 9806-0204 ● ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=300 		1-09363-608-0 01 1 0205- ● ●
169 HOSE; FLEX,TRANSFER CONT
(B) L=340 		0-07120-340-0 02 1 9806-0204 ● ●
169 HOSE; FLEX,TRANSFER CONT
(B) L=340 		1-09363-622-0 02 1 0205- ● ●
170 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 03 1 9806-0204 ● ● ●
171 NUT; FLEX HOSE
M12 		9-09840-280-0 03 1 9806- ● ● ●
172 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 03 1 9806-0603 ● ● ●
172 WASHER; LK,FLEX HOSE
ID=12.2 		0-91510-512-0 03 1 0604- ● ● ●
