Isuzu WW
▶
TRUCKS
▶
FSS
▶
10717 - FSS/FTS-LHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-65 - MANUAL TRANSFER GEAR; INPUT AND IDLE
▶

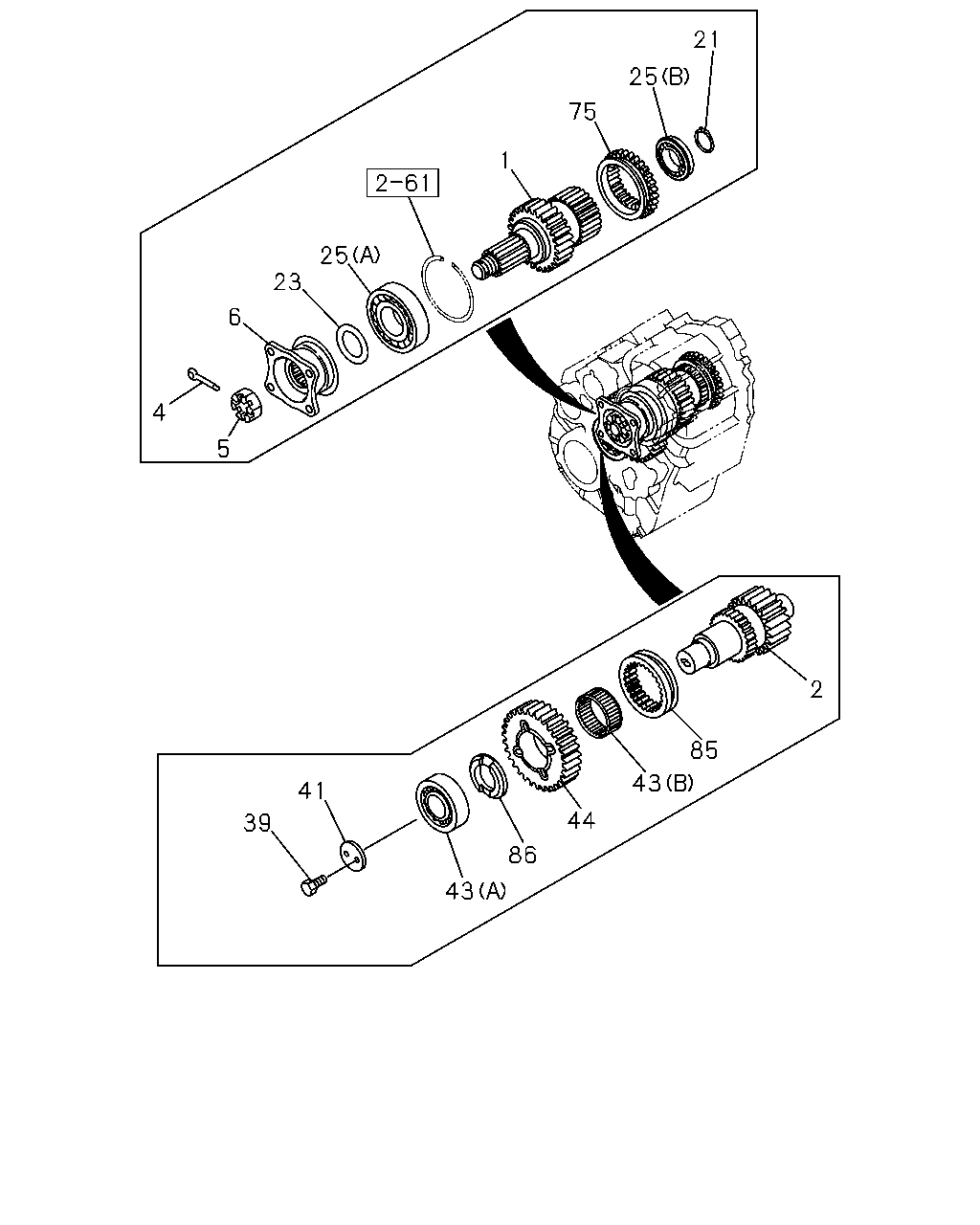

2-65 — MANUAL TRANSFER GEAR; INPUT AND IDLE
(#65277) — 19 parça
Tümü
A - FSS6MF
B - FTS6MC
C - FTS6MF
21
25
75
1
25
23
6
4
5
2
85
43
41
44
39
86
43
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
SHAFT; GEAR,INPUT
1-36211-025-0
01
1
9806-
●
●
●
2
SHAFT; GEAR,IDLE
1-36251-022-0
01
1
9806-
●
●
●
4
PIN; SPLIT
9-08116-045-0
01
1
9806-
●
●
●
5
NUT; YOKE,TRANSFER,INPUT
M30
1-09440-018-0
01
1
9806-
●
●
●
6
FLANGE; INPUT
W/COVER:DUST
1-37240-079-1
01
1
9806-
●
●
●
21
RING; SNAP,PILOT BRG
1-09588-157-0
01
1
9806-
●
●
●
23
COLLAR; DIST,INPUT SHAFT
9-36215-006-1
01
1
9806-
●
●
●
25
BEARING; BALL,INPUT SHAFT
(A) NSK
1-09800-055-0
01
1
9806-
●
●
●
25
BEARING; BALL,INPUT SHAFT
(A) NTN
1-09800-064-0
01
1
9806-
●
●
●
25
BEARING; BALL,INPUT SHAFT
(B) NSK
1-09810-087-0
01
1
9806-
●
●
●
39
BOLT; LK PLATE
M8X20
1-09050-005-1
02
1
9806-
●
●
●
41
PLATE; LK,IDLE SHAFT
1-33313-002-0
01
1
9806-
●
●
●
43
BEARING; ROLLER,IDLE SHAFT
(A) NSK
1-09812-038-0
02
1
9806-
●
●
●
43
BEARING; ROLLER,IDLE SHAFT
(A) NACHI
1-09812-039-0
02
1
9806-
●
●
●
43
BEARING; ROLLER,IDLE SHAFT
(B) JTEKT
9-00096-240-1
02
1
9806-
●
●
●
44
GEAR; IDLE,LOW RANGE
1-36271-045-0
01
1
9806-
●
●
●
75
SLEEVE; HIGH,INPUT
1-36262-021-0
01
1
9806-
●
●
●
85
SLEEVE; LOW,IDLE
1-36262-020-0
01
1
9806-
●
●
●
86
WASHER; THRUST,IDLE
1-36255-006-0
01
1
9806-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
