Isuzu WW
▶
TRUCKS
▶
FSS
▶
10717 - FSS/FTS-LHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE
▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE
(#65273) — 27 parça
◀

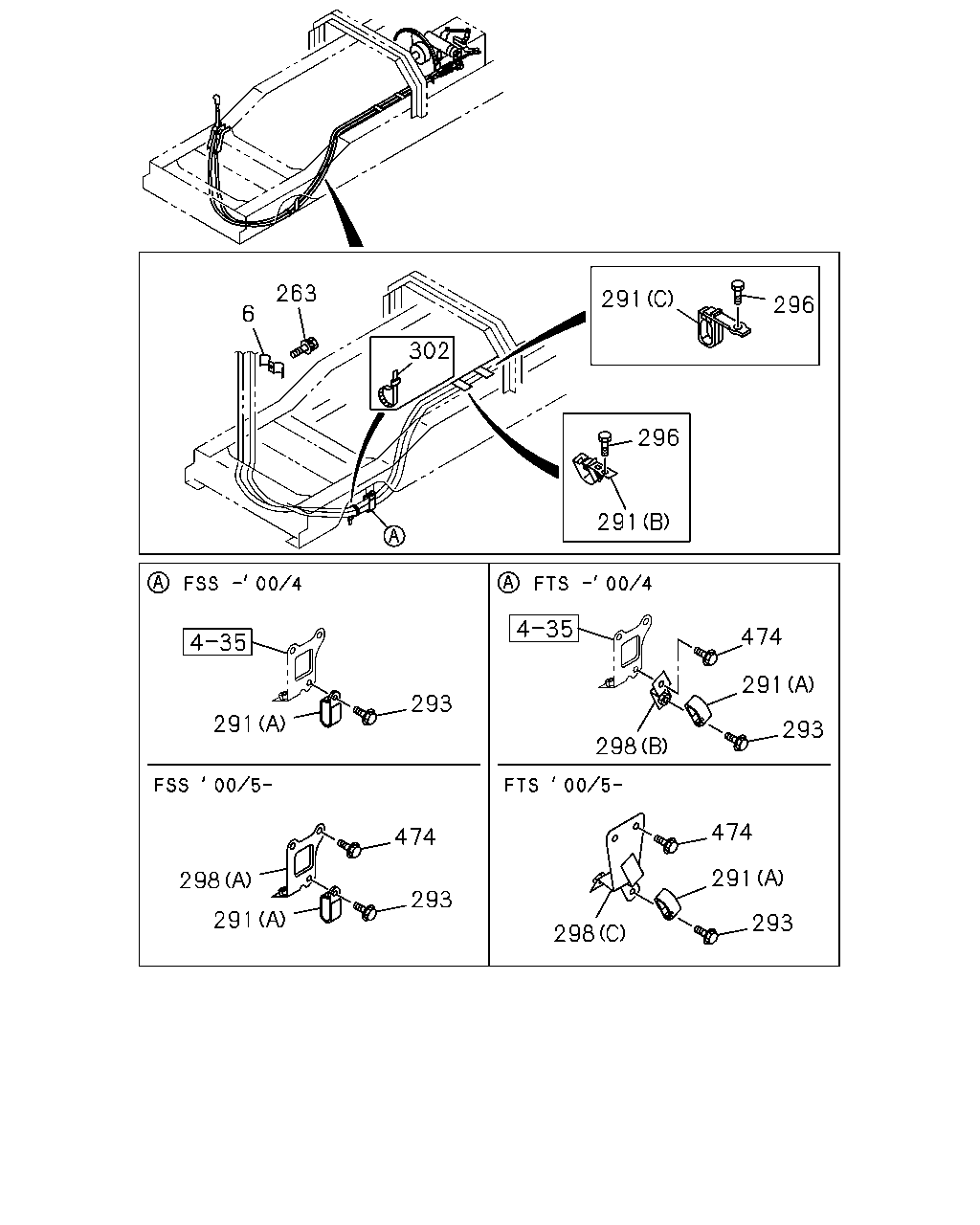

[236A] NO.2 (18 parça)
[236A] NO.1 (9 parça)
▶
263
291
296
6
302
296
291
474
291
293
291
293
298
474
474
291
298
293
291
293
298
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5
1-09700-739-0
01
1
9806-
263
BOLT; CLIP,TRANS CONT WIRE
M8X24.5 W/LK&PL WASHER
8-94279-208-0
01
1
9806-9812
263
BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER
8-94279-207-0
01
1
9901-
291
CLIP; SHIFT TO SELECT,FRAME
(C) ID=10 & 10 M8
1-09701-220-0
01
1
9806-
291
CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32
1-09701-245-0
01
1
9806-0506
291
CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32
1-09701-312-0
01
1
0507-
291
CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16
9-09535-026-0
01
1
9806-0606
291
CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16
0-95325-026-0
01
1
0607-
293
BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE
0-28080-816-0
01
1
9806-0512
293
BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE
0-28050-816-0
01
1
0601-
296
BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE
0-28080-820-0
02
1
9806-0512
296
BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE
0-28050-820-0
02
1
0601-
298
BRACKET
FSS(FS****) (A)
1-82659-149-0
01
1
0005-
298
BRACKET
FTS(FT****) (B)
1-47477-261-0
01
1
9806-0004
298
BRACKET
FTS(FT****) (C)
1-36183-220-0
01
1
0005-
302
CLIP; BAND
L=300
1-09707-001-1
01
1
9806-
474
BOLT; BRKT
FTS(FT****) M8X16 FLANGE
0-28080-816-0
01
1
9806-0004
474
BOLT; BRKT
M8X16 W/LK&PL WASHER
1-09980-498-0
02
1
0005-
221
393
3
386
1
386
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; SHIFT,TRANS CONT
L=3328
1-33671-259-0
01
1
9806-
3
CABLE; SELECT,TRANS CONT
L=3410
1-33671-260-0
01
1
9806-
52
NUT; BRKT
M10 FLANGE
0-91150-210-0
02
1
9806-0602
52
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
0603-
221
NUT; SHIFT WIRE TO LEVER
M8 FLANGE
1-09440-049-0
01
1
9806-1011
221
NUT; SHIFT WIRE TO LEVER
M8 FLANGE
1-09440-062-1
01
1
1012-
386
CLIP; CONT CABLE & TUBE
1-09700-966-1
02
1
9806-
393
NUT; SELECT CABLE,CAB
M8 FLANGE
1-09440-049-0
01
1
9806-1011
393
NUT; SELECT CABLE,CAB
M8 FLANGE
1-09440-062-1
01
1
1012-
