Isuzu WW
▶
BUSES
▶
LV
▶
10772 - LV280(THAI)
▶
3 - Brakes, Brake System
▶
3-08 - PARKING BRAKE
▶

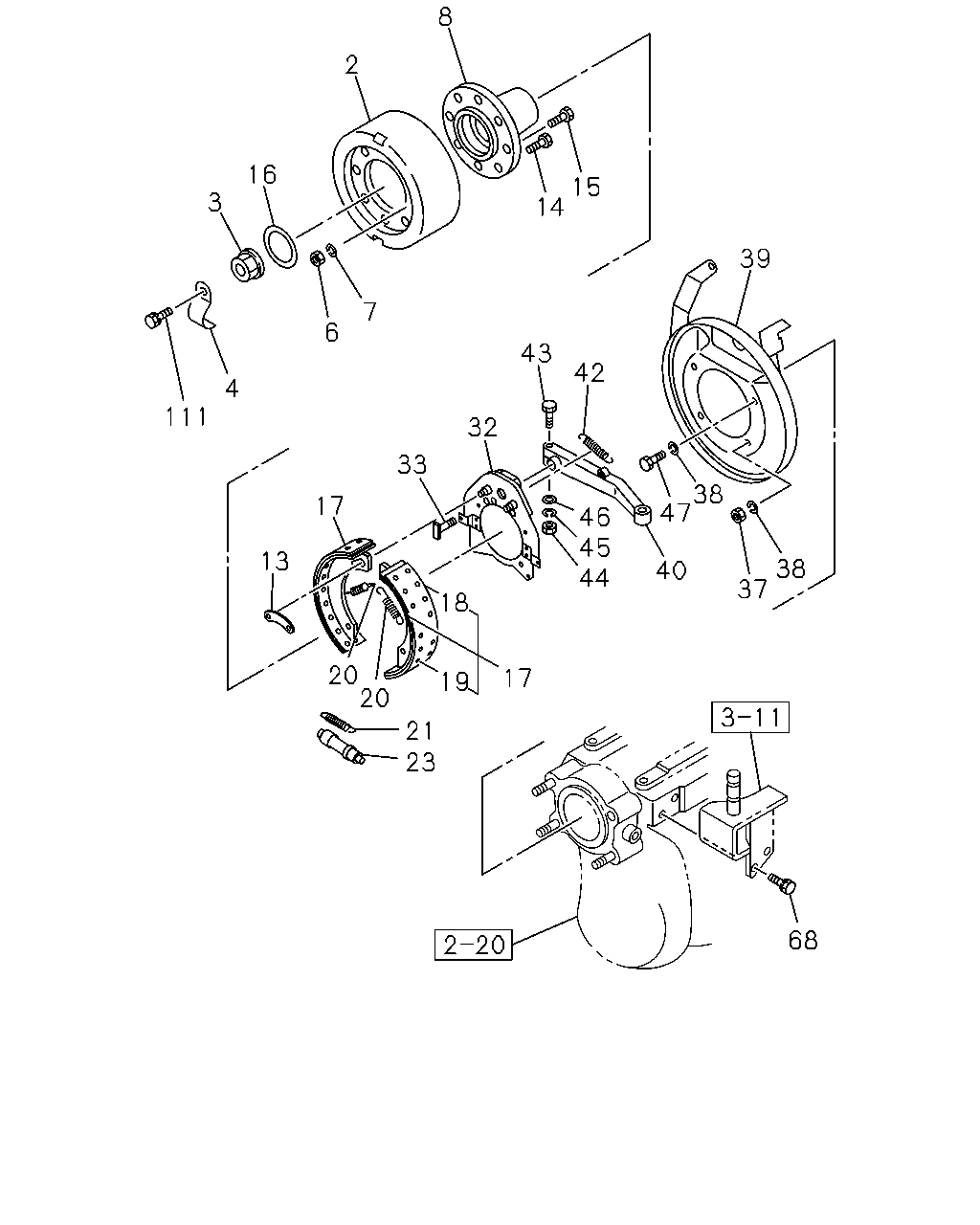

3-08 — PARKING BRAKE
(#6527) — 35 parça
8
2
16
15
14
3
39
7
6
43
42
4
111
32
33
38
47
17
46
45
44
13
38
37
40
18
20
20
17
19
21
23
68
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
DRUM; PARKING BRK
1-46211-047-0
01
1
9705-
3
NUT; LK
M42
1-09449-061-0
01
1
9705-9908
3
NUT; LK
M44
1-09449-076-0
01
1
9909-
4
COVER; ADJ HOLE
1-46219-019-0
02
1
9705-
6
NUT; FLANGE
M16
9-99110-516-0
02
1
9705-
7
WASHER; LK,FLANGE
ID=16.2
9-09150-516-0
02
1
9705-
8
FLANGE; PARKING BRK
1-37243-213-0
01
1
9705-
13
BRACE; PARKING BRK
9-46239-002-0
01
1
9705-
14
BOLT; DRUM TO FLANGE
M16X38
1-46219-010-0
02
1
9705-
15
BOLT; FLANGE
M16X55
1-46219-039-0
04
1
9705-
16
GASKET; FLANGE
ALSO INCLUDED IN GASKET SET(M/T).
9-09920-607-0
01
1
9705-
17
SHOE; PARKING BRK
1-46220-022-0
02
1
9705-
18
LINING; BRK,PARKING
1-46225-023-0
02
1
9705-
19
RIVET; LINING,PARKING BRK
1-09732-012-0
32
1
9705-
20
SPRING; RETURN,SECONDARY,PARKING BRK
9-09942-434-0
02
1
9705-
21
SPRING; RETURN,PARKING BRK SHOE
9-09942-516-0
01
1
9705-
23
SCREW; ADJ,PARKING BRK SHOE
1-46240-003-0
01
1
9705-
32
PLATE; SUPPORT,PARKING BRK
1-46213-033-0
01
1
9705-
33
SHAFT; CAM,PARKING BRK
9-46251-069-0
01
1
9705-
37
NUT; SUPPORT PLATE
M16
9-99110-516-0
01
1
9705-
38
WASHER; LK,SUPPORT PLATE
ID=16.2
9-09150-516-0
04
1
9705-
39
COVER; DUST,PARKING BRK
1-46213-072-0
01
1
9705-
40
LEVER; CM/SHF,PARKING BRK
1-46252-014-0
01
1
9705-
42
SPRING; RETURN,LEVER
1-09583-128-0
01
1
9705-
43
BOLT; LEVER TO CM/SHF
0-10811-045-0
01
1
9705-
44
NUT; LEVER TO CM/SHF
M10
9-09111-410-0
01
1
9705-
45
WASHER; LK,LEVER TO CM/SHF
ID=10.2
9-09150-510-0
01
1
9705-
46
WASHER; LEVER
9-09855-362-0
01
1
9705-
47
BOLT; SUPPORT PLATE
M16X40
9-09804-155-0
03
1
9705-
68
BOLT; BRKT,PARKING BRK CONT
M10X16 FLANGE
0-28181-016-0
03
1
9705-
68
BOLT; BRKT,PARKING BRK CONT
M10X28 FLANGE
0-28181-028-0
01
1
9705-
89
BRACKET; PARKING BRK CONT
1-46147-154-0
01
1
9705-
89
BRACKET; PARKING BRK CONT
1-46147-181-0
01
1
9705-9806
89
BRACKET; PARKING BRK CONT
1-46147-289-0
01
1
9807-
111
BOLT; COVER,CHECK HOLE
M8X20 W/LK WASHER
0-50040-820-0
02
1
9705-
