Isuzu WW
▶
TRUCKS
▶
FSS
▶
10717 - FSS/FTS-LHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-03 - CLUTCH PEDAL AND CONTROL
▶

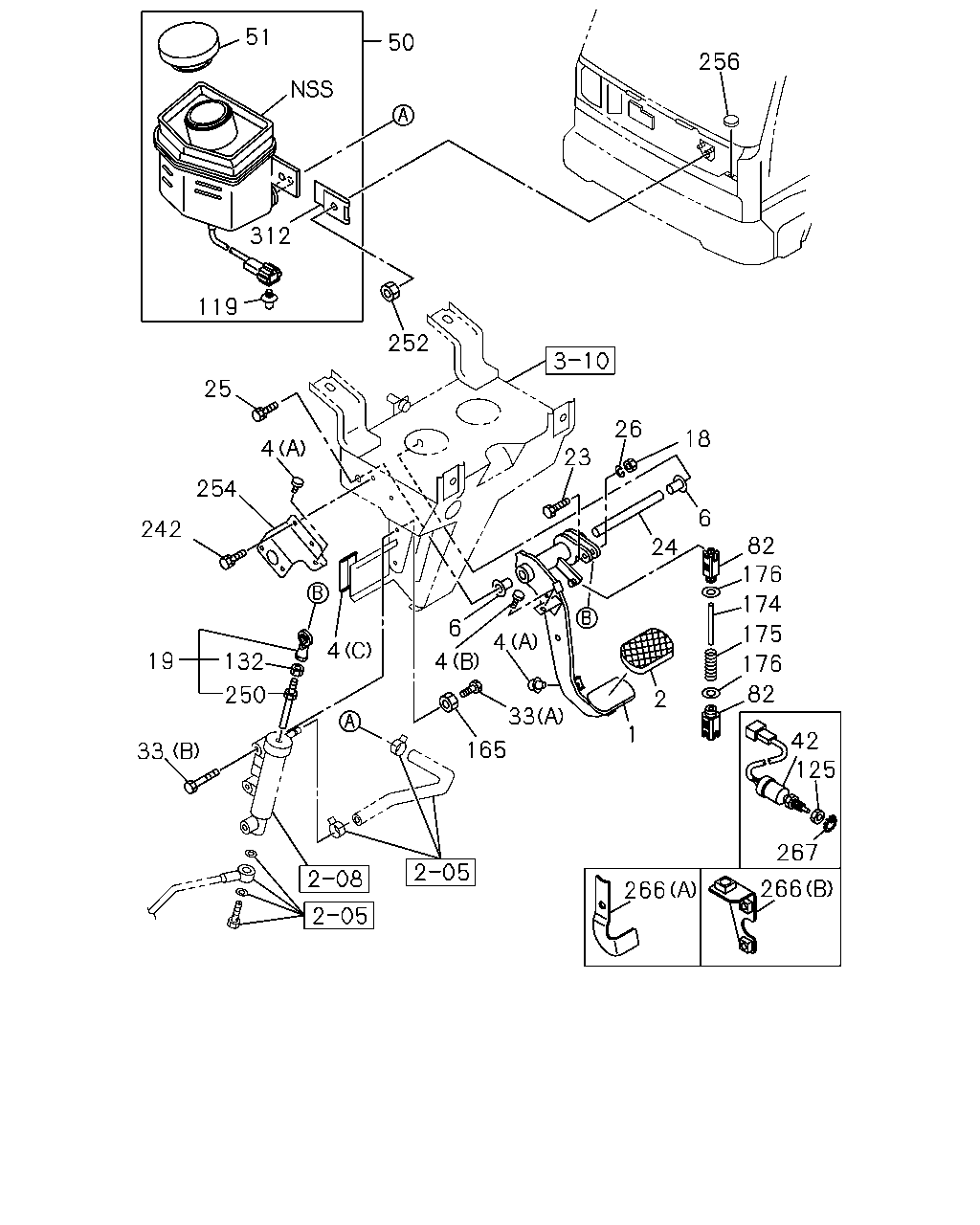

2-03 — CLUTCH PEDAL AND CONTROL
(#65263) — 37 parça
Tümü
A - FSS6MF
B - FTS6MC
C - FTS6MF
51
50
256
312
119
252
25
26
18
4
23
254
6
242
82
176
174
175
176
82
24
6
4
4
4
19
132
250
2
33
165
1
42
125
33
267
266
266
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
PEDAL; CLU
1-73908-342-2
01
1
9806-
●
●
●
2
COVER; CLU PEDAL
8-94204-810-0
01
1
9806-0103
●
●
●
2
COVER; CLU PEDAL
8-97893-618-1
01
1
0104-
●
●
●
4
STOPPER; CLU PEDAL
(A)
1-47319-014-1
02
1
9806-
●
●
●
4
STOPPER; CLU PEDAL
(B)
5-31419-003-0
01
1
9806-9904
●
●
●
4
STOPPER; CLU PEDAL
(C)
1-73908-088-1
01
1
0104-
●
●
●
6
BUSHING; CLU PEDAL
1-09330-045-0
02
1
9806-
●
●
●
18
NUT; PUSH ROD
M8
9-09110-508-0
01
1
9806-
●
●
●
19
ROD ASM; PUSH,CLU
1-73908-332-0
01
1
9806-
●
●
●
23
BOLT; PUSH ROD
M8X43.7
1-73908-333-0
01
1
9806-
●
●
●
24
SHAFT; CLU PEDAL
1-73998-936-1
01
1
9806-
●
●
●
25
BOLT; PEDAL
M10X25 W/LK WASHER
0-50051-025-0
02
1
9806-
●
●
●
26
WASHER; LK,PUSH ROD
ID=8.2
9-09150-608-0
01
1
9806-
●
●
●
33
BOLT; CLU M/CYL TO BRKT
(B) M10X60 FLANGE
0-28081-060-0
02
1
9806-0512
●
●
●
33
BOLT; CLU M/CYL TO BRKT
(B) M10X60 FLANGE
0-28051-060-0
02
1
0601-
●
●
●
33
BOLT; CLU M/CYL TO BRKT
(A) M10X65
5-09030-024-1
02
1
9806-
●
●
●
42
SWITCH; CLU
1-82440-094-0
01
1
0104-
●
●
●
50
TANK; OIL,CLU
1-47530-182-0
01
1
9806-
●
●
●
51
CAP; OIL TANK,CLU
8-94136-483-1
01
1
9806-
●
●
●
82
CLEVIS; HELPER,CLU PEDAL
1-73998-472-1
02
1
9806-
●
●
●
119
CLIP; CONNECTOR
OD=7 H=1.2
8-94364-750-0
01
1
9903-
●
●
●
125
NUT; CLU SWITCH
M10
9-09110-510-0
01
1
0104-
●
●
●
132
NUT; LK,PUSH ROD
M8
9-09110-408-0
01
1
9806-
●
●
●
165
NUT; CLU M/CYL
M10 FLANGE
0-91150-210-0
02
1
9806-0602
●
●
●
165
NUT; CLU M/CYL
M10 FLANGE
0-91180-210-0
02
1
0603-
●
●
●
174
PIN; STRAIGHT,CLU PEDAL
1-73998-474-0
01
1
9806-
●
●
●
175
SPRING; HELPER
1-73908-052-0
01
1
9806-
●
●
●
176
SEAT; SPRING
1-09503-114-0
02
1
0104-
●
●
●
242
BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER
0-50040-616-0
04
1
9806-
●
●
●
250
ROD; PUSH,CLU
1-73996-219-0
01
1
9806-
●
●
●
252
NUT; OIL TANK
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
9806-
●
●
●
254
BRACKET; CLU SENSOR
1-73998-979-5
01
1
9806-
●
●
●
256
SEAL; HOLE
OD=25 BLACK
1-76798-019-0
01
1
9806-
●
●
●
266
BRACKET; CLU SWITCH
(A)
1-73907-395-1
01
1
0104-
●
●
●
266
BRACKET; CLU SWITCH
(B)
1-73908-354-0
01
1
0104-
●
●
●
267
WASHER; LK,CLU SWITCH
ID=10.2
9-09150-510-0
01
1
0104-
●
●
●
312
PLATE; OIL TANK,CLU
1-21249-007-1
01
1
9806-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
