1-50 — EXHAUST PIPE AND SILENCER (#65259) — 240 parça

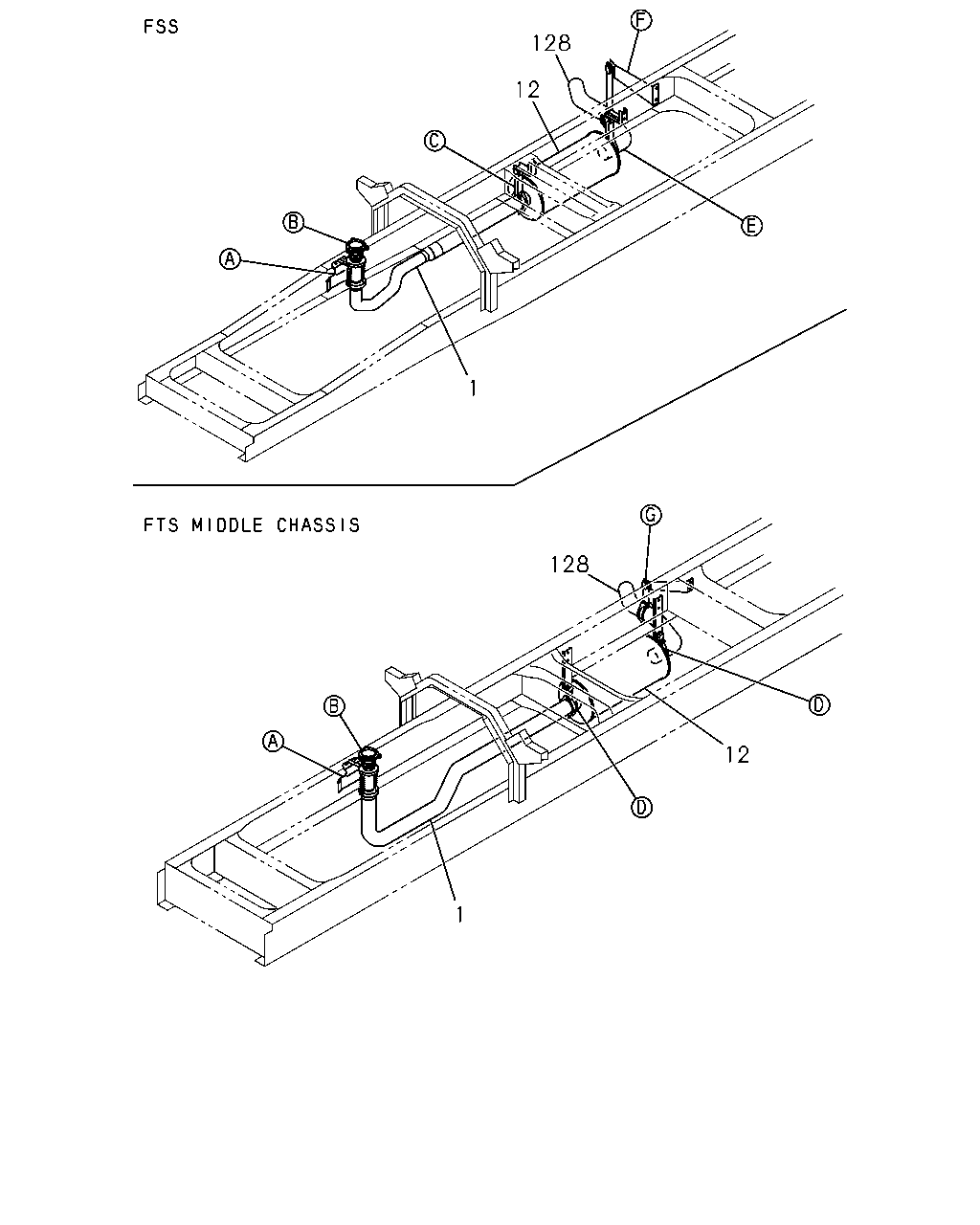

çizim 96472
128 12 1 128 12 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH 1-22122-839-0 01 1 9806-0004 ●
1 PIPE; EXH 1-22122-839-1 01 1 0005- ●
1 PIPE; EXH 1-22122-401-2 01 1 9806- ●
12 SILENCER ASM; EXH 1-22140-752-0 01 1 9806-9807 ● ●
12 SILENCER ASM; EXH 1-22140-873-0 01 1 9808-0205 ● ●
12 SILENCER ASM; EXH 1-22140-880-0 01 1 0206- ● ●
128 PIPE; EXH,RR
FTS MIDDLE CHASSIS(FT***F) 		1-22126-175-0 01 1 9806- ●
128 PIPE; EXH,RR 1-22126-175-0 01 1 9806- ●

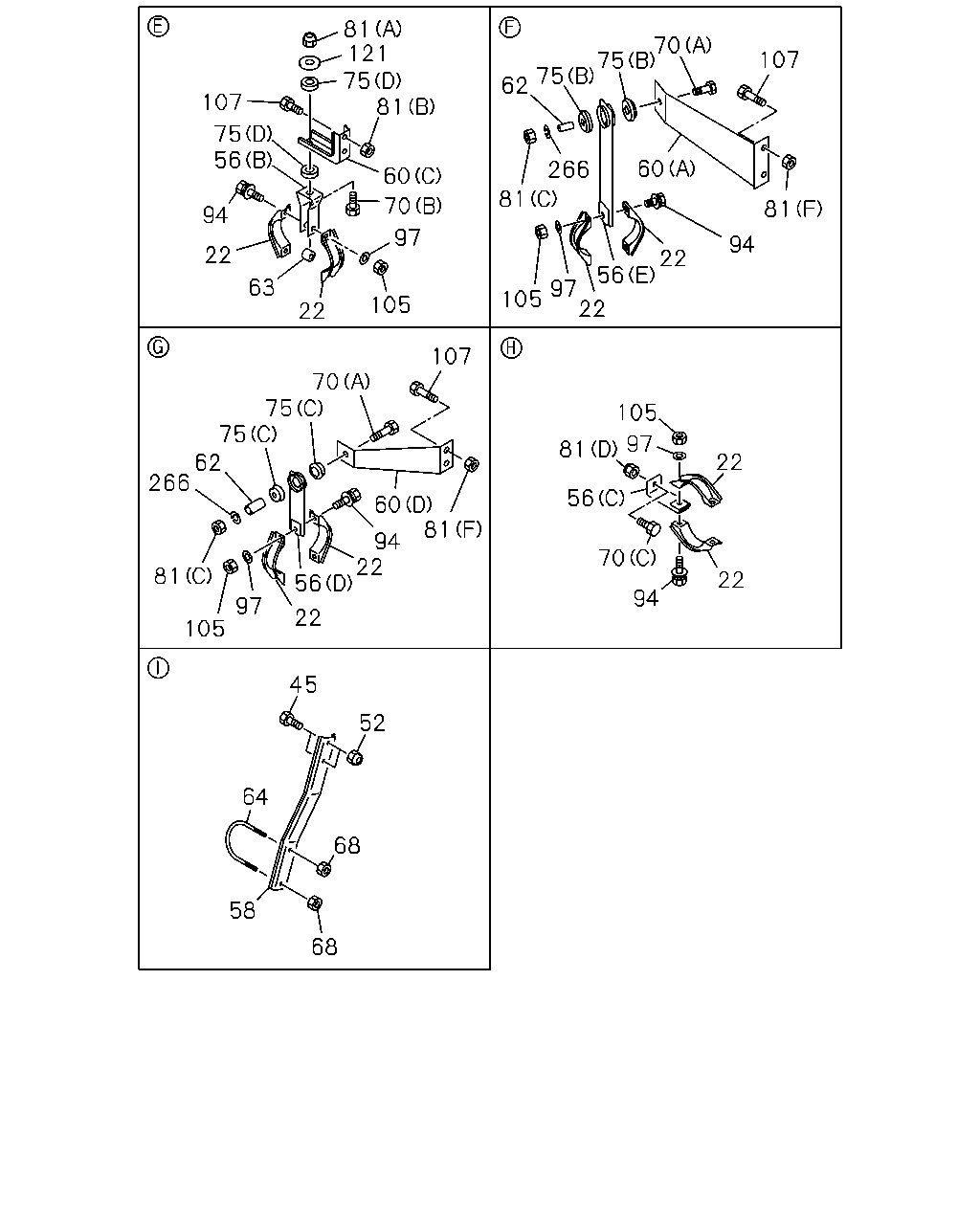

çizim 97230
81 121 75 81 70 75 75 62 107 107 75 56 60 266 60 81 70 81 94 97 94 22 22 56 63 97 22 105 22 107 70 75 75 62 266 105 97 81 22 56 60 81 94 22 56 70 81 22 94 97 22 105 45 52 64 68 58 68
BalonParca AdiParca NoAdetTipApplied Date A B
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 04 1 9806- ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 9806- ● ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 9806- ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 9806- ●
45 BOLT; BRKT
FTS SHORT CHASSIS(FT***C) M8X30 FLANGE 		0-28680-830-0 02 1 9806-0512 ●
45 BOLT; BRKT
FTS SHORT CHASSIS(FT***C) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
52 NUT; BRKT
FTS SHORT CHASSIS(FT***C) M8 FLANGE 		0-91150-108-0 02 1 9806-0602 ●
52 NUT; BRKT
FTS SHORT CHASSIS(FT***C) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
56 BRACKET; CLAMP,EXH PIPE
(A) L=94 		1-22131-575-0 02 1 9806- ●
56 BRACKET; CLAMP,EXH PIPE
FTS SHORT CHASSIS(FT***C) (C) 		1-22131-695-0 01 1 9806- ●
56 BRACKET; CLAMP,EXH PIPE
FTS MIDDLE CHASSIS(FT***F) (D) L=204 		1-22131-520-1 01 1 9806- ●
56 BRACKET; CLAMP,EXH PIPE
(E) L=254 		1-22131-527-1 01 1 9806- ●
56 BRACKET; CLAMP,EXH PIPE
(B) H=163 		1-22139-049-0 01 1 9806- ●
56 BRACKET; CLAMP,EXH PIPE
(B) H=163 		1-22139-049-0 01 1 9806- ●
58 BRACKET; EXH PIPE,RR
FTS SHORT CHASSIS(FT***C) 		1-22131-663-2 01 1 9806-1309 ●
58 BRACKET; EXH PIPE,RR
FTS SHORT CHASSIS(FT***C) 		8-98245-519-0 01 1 1310- ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-689-0 02 1 9806- ●
60 BRACKET; FRAME TO BRKT
FTS MIDDLE CHASSIS(FT***F) (D) 		1-22131-741-0 01 1 9806- ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22131-756-0 01 1 9806- ●
60 BRACKET; FRAME TO BRKT
(C) 		1-22151-433-1 01 1 9806- ●
60 BRACKET; FRAME TO BRKT
(C) 		1-22151-433-1 01 1 9806- ●
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 02 1 9806- ●
62 TUBE; DIST,BRKT
FTS MIDDLE CHASSIS(FT***F) L=22 		9-22159-024-0 01 1 9806- ●
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 01 1 9806- ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 9806- ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 9806- ●
64 U-BOLT; EXH PIPE,RR
FTS SHORT CHASSIS(FT***C) 		1-22139-033-1 01 1 9806-1105 ●
64 U-BOLT; EXH PIPE,RR
FTS SHORT CHASSIS(FT***C) 		1-22113-101-0 01 1 1106- ●
68 NUT; U BOLT
FTS SHORT CHASSIS(FT***C) M8 FLANGE 		0-91150-108-0 02 1 9806-0602 ●
68 NUT; U BOLT
FTS SHORT CHASSIS(FT***C) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
70 BOLT; BRKT
(A) M10X55 		0-10806-055-0 02 1 9806-0204 ●
70 BOLT; BRKT
(A) M10X50 		0-10806-050-0 02 1 0205-0512 ●
70 BOLT; BRKT
(A) M10X50 		0-10856-050-0 02 1 0601- ●
70 BOLT; BRKT
FTS SHORT CHASSIS(FT***C) (C) M10X30 FLANGE 		0-28681-030-0 01 1 9806-0512 ●
70 BOLT; BRKT
FTS SHORT CHASSIS(FT***C) (C) M10X30 FLANGE 		0-28651-030-0 01 1 0601- ●
70 BOLT; BRKT
FTS MIDDLE CHASSIS(FT***F) (A) M10X55 		0-10806-055-0 01 1 9806-0204 ●
70 BOLT; BRKT
(A) M10X55 		0-10806-055-0 01 1 9806-0204 ●
70 BOLT; BRKT
(A) M10X55 		0-10806-055-0 01 1 0205- ● ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 9806-0204 ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 9806-0204 ●
70 BOLT; BRKT
FTS MIDDLE CHASSIS(FT***F) (B) M10X50 		0-10806-050-0 01 1 0205-0512 ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 0205-0512 ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 0205-0512 ●
70 BOLT; BRKT
FTS MIDDLE CHASSIS(FT***F) (B) M10X50 		0-10856-050-0 01 1 0601- ●
70 BOLT; BRKT
(B) M10X50 		0-10856-050-0 01 1 0601- ●
70 BOLT; BRKT
(B) M10X50 		0-10856-050-0 01 1 0601- ●
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-193-0 04 1 9806- ●
75 RUBBER; SUPPORT,BRKT
FTS MIDDLE CHASSIS(FT***F) (C) OD=40 		1-22159-094-0 02 1 9806- ●
75 RUBBER; SUPPORT,BRKT
(D) OD=30 		1-22159-106-1 02 1 9806- ●
75 RUBBER; SUPPORT,BRKT
(D) OD=30 		1-22159-106-1 02 1 9806- ●
75 RUBBER; SUPPORT,BRKT
(B) OD=40 		1-22159-193-0 02 1 9806- ●
81 NUT; BRKT
(F) M10 FLANGE 		0-91180-210-0 01 1 0610- ●
81 NUT; BRKT
(F) M10 FLANGE 		0-91150-210-0 02 1 9806-0204 ●
81 NUT; BRKT
(F) M10 FLANGE 		0-91150-210-0 01 1 0205-0602 ●
81 NUT; BRKT
(F) M10 FLANGE 		0-91180-210-0 01 1 0603-0608 ●
81 NUT; BRKT
(F) M10 FLANGE 		0-91180-210-0 01 1 0609-0609 ● ●
81 NUT; BRKT
FTS MIDDLE CHASSIS(FT***F) (F) M10 FLANGE 		0-91180-210-0 01 1 0609-0609 ●
81 NUT; BRKT
FTS MIDDLE CHASSIS(FT***F) (F) M10 FLANGE 		0-91180-210-0 02 1 0610- ●
81 NUT; BRKT
(F) M10 FLANGE 		0-91180-210-0 02 1 0610- ●
81 NUT; BRKT
(E) M10 		9-09110-510-0 02 1 9806-0204 ●
81 NUT; BRKT
(E) M10 FLANGE 		0-91150-210-0 04 1 0205-0602 ●
81 NUT; BRKT
(E) M10 FLANGE 		0-91180-210-0 04 1 0603- ●
81 NUT; BRKT
FTS SHORT CHASSIS(FT***C) (D) M10 FLANGE 		0-91150-210-0 01 1 9806-0204 ●
81 NUT; BRKT
FTS MIDDLE CHASSIS(FT***F) (C) M10 		9-09110-510-0 01 1 9806-0204 ●
81 NUT; BRKT
(C) M10 		9-09110-510-0 01 1 9806-0204 ●
81 NUT; BRKT
(C) M10 		9-09110-510-0 01 1 0205-0512 ● ●
81 NUT; BRKT
(C) M10 		0-91110-510-0 01 1 0601- ● ●
81 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 9806-0602 ●
81 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 9806-0603 ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 9806-0603 ●
81 NUT; BRKT
(A) M10 LOCK NUT 		0-91370-010-0 01 1 0604- ●
81 NUT; BRKT
(A) M10 LOCK NUT 		0-91370-010-0 01 1 0604- ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 9806-0805 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 04 1 0806- ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9806-0805 ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9806-0805 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9806-0805 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 04 1 9806- ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9806- ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9806- ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9806- ●
105 NUT; CLAMP
M10 		9-09110-510-0 04 1 9806-0512 ●
105 NUT; CLAMP
M10 		0-91110-510-0 04 1 0601- ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9806-0512 ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9806-0512 ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9806-0512 ●
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0601- ● ●
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0601- ●
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0601- ●
107 BOLT; BRKT
FTS MIDDLE CHASSIS(FT***F) M10X30 FLANGE 		0-28651-030-0 01 1 0609-0609 ●
107 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 0609-0609 ●
107 BOLT; BRKT
FTS MIDDLE CHASSIS(FT***F) M10X30 FLANGE 		0-28651-030-0 02 1 0610- ●
107 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0610- ●
107 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 9806-0512 ● ●
107 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 9806-0512 ●
107 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 02 1 0601- ● ●
107 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 02 1 0601- ●
107 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9806-0512 ●
107 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 9806-0605 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 9806-0605 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ●
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 02 1 9806-0204 ●
266 WASHER; LK,BRKT
FTS MIDDLE CHASSIS(FT***F) ID=10.2 		9-09150-510-0 01 1 9806-0204 ●
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 01 1 9806-0204 ●
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 01 1 0205-0603 ● ●
266 WASHER; LK,BRKT
ID=10.2 		0-91510-510-0 01 1 0604- ● ●

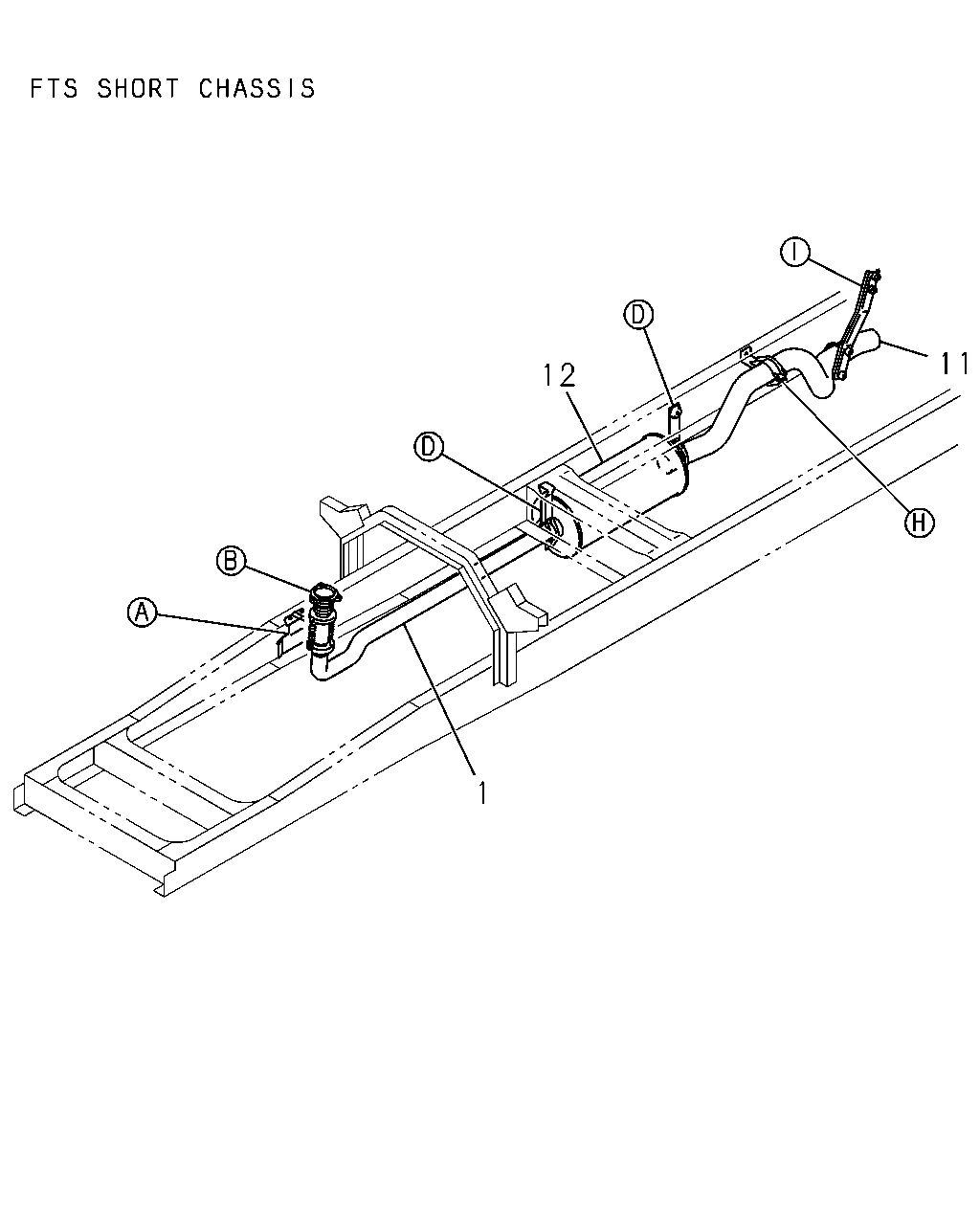

çizim 184832
11 12 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH 1-22122-839-0 01 1 9806-0004 ●
1 PIPE; EXH 1-22122-839-1 01 1 0005- ●
1 PIPE; EXH 1-22122-401-2 01 1 9806- ●
11 PIPE; EXH,RR
FTS SHORT CHASSIS(FT***C) 		1-22126-138-0 01 1 9806- ●
12 SILENCER ASM; EXH 1-22140-752-0 01 1 9806-9807 ● ●
12 SILENCER ASM; EXH 1-22140-873-0 01 1 9808-0205 ● ●
12 SILENCER ASM; EXH 1-22140-880-0 01 1 0206- ● ●

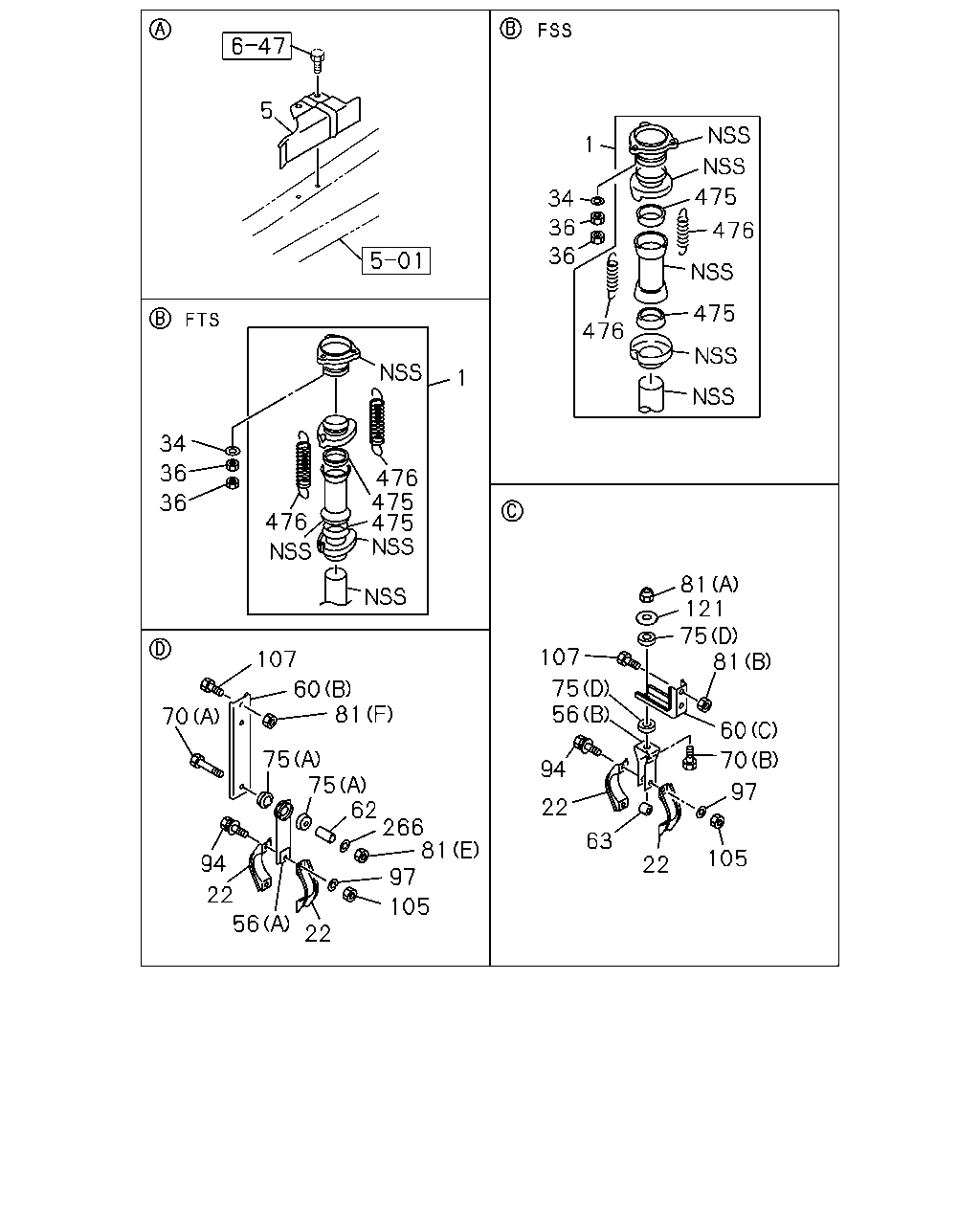

çizim 184835
5 1 475 34 36 476 36 475 476 1 34 36 476 475 475 36 476 81 121 75 81 107 107 75 56 60 81 70 60 75 75 62 266 81 97 70 94 97 22 63 105 94 22 22 105 56 22
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH 1-22122-839-0 01 1 9806-0004 ●
1 PIPE; EXH 1-22122-839-1 01 1 0005- ●
1 PIPE; EXH 1-22122-401-2 01 1 9806- ●
5 PROTECTOR; HEAT 1-33659-182-1 01 1 9806- ● ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 04 1 9806- ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 9806- ● ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 9806- ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 9806- ●
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 9806-0410 ● ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0411- ● ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 06 1 9806- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) L=94 		1-22131-575-0 02 1 9806- ●
56 BRACKET; CLAMP,EXH PIPE
FTS SHORT CHASSIS(FT***C) (C) 		1-22131-695-0 01 1 9806- ●
56 BRACKET; CLAMP,EXH PIPE
FTS MIDDLE CHASSIS(FT***F) (D) L=204 		1-22131-520-1 01 1 9806- ●
56 BRACKET; CLAMP,EXH PIPE
(E) L=254 		1-22131-527-1 01 1 9806- ●
56 BRACKET; CLAMP,EXH PIPE
(B) H=163 		1-22139-049-0 01 1 9806- ●
56 BRACKET; CLAMP,EXH PIPE
(B) H=163 		1-22139-049-0 01 1 9806- ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-689-0 02 1 9806- ●
60 BRACKET; FRAME TO BRKT
FTS MIDDLE CHASSIS(FT***F) (D) 		1-22131-741-0 01 1 9806- ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22131-756-0 01 1 9806- ●
60 BRACKET; FRAME TO BRKT
(C) 		1-22151-433-1 01 1 9806- ●
60 BRACKET; FRAME TO BRKT
(C) 		1-22151-433-1 01 1 9806- ●
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 02 1 9806- ●
62 TUBE; DIST,BRKT
FTS MIDDLE CHASSIS(FT***F) L=22 		9-22159-024-0 01 1 9806- ●
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 01 1 9806- ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 9806- ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 9806- ●
70 BOLT; BRKT
(A) M10X55 		0-10806-055-0 02 1 9806-0204 ●
70 BOLT; BRKT
(A) M10X50 		0-10806-050-0 02 1 0205-0512 ●
70 BOLT; BRKT
(A) M10X50 		0-10856-050-0 02 1 0601- ●
70 BOLT; BRKT
FTS SHORT CHASSIS(FT***C) (C) M10X30 FLANGE 		0-28681-030-0 01 1 9806-0512 ●
70 BOLT; BRKT
FTS SHORT CHASSIS(FT***C) (C) M10X30 FLANGE 		0-28651-030-0 01 1 0601- ●
70 BOLT; BRKT
FTS MIDDLE CHASSIS(FT***F) (A) M10X55 		0-10806-055-0 01 1 9806-0204 ●
70 BOLT; BRKT
(A) M10X55 		0-10806-055-0 01 1 9806-0204 ●
70 BOLT; BRKT
(A) M10X55 		0-10806-055-0 01 1 0205- ● ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 9806-0204 ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 9806-0204 ●
70 BOLT; BRKT
FTS MIDDLE CHASSIS(FT***F) (B) M10X50 		0-10806-050-0 01 1 0205-0512 ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 0205-0512 ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 0205-0512 ●
70 BOLT; BRKT
FTS MIDDLE CHASSIS(FT***F) (B) M10X50 		0-10856-050-0 01 1 0601- ●
70 BOLT; BRKT
(B) M10X50 		0-10856-050-0 01 1 0601- ●
70 BOLT; BRKT
(B) M10X50 		0-10856-050-0 01 1 0601- ●
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-193-0 04 1 9806- ●
75 RUBBER; SUPPORT,BRKT
FTS MIDDLE CHASSIS(FT***F) (C) OD=40 		1-22159-094-0 02 1 9806- ●
75 RUBBER; SUPPORT,BRKT
(D) OD=30 		1-22159-106-1 02 1 9806- ●
75 RUBBER; SUPPORT,BRKT
(D) OD=30 		1-22159-106-1 02 1 9806- ●
75 RUBBER; SUPPORT,BRKT
(B) OD=40 		1-22159-193-0 02 1 9806- ●
81 NUT; BRKT
(F) M10 FLANGE 		0-91180-210-0 01 1 0610- ●
81 NUT; BRKT
(F) M10 FLANGE 		0-91150-210-0 02 1 9806-0204 ●
81 NUT; BRKT
(F) M10 FLANGE 		0-91150-210-0 01 1 0205-0602 ●
81 NUT; BRKT
(F) M10 FLANGE 		0-91180-210-0 01 1 0603-0608 ●
81 NUT; BRKT
(F) M10 FLANGE 		0-91180-210-0 01 1 0609-0609 ● ●
81 NUT; BRKT
FTS MIDDLE CHASSIS(FT***F) (F) M10 FLANGE 		0-91180-210-0 01 1 0609-0609 ●
81 NUT; BRKT
FTS MIDDLE CHASSIS(FT***F) (F) M10 FLANGE 		0-91180-210-0 02 1 0610- ●
81 NUT; BRKT
(F) M10 FLANGE 		0-91180-210-0 02 1 0610- ●
81 NUT; BRKT
(E) M10 		9-09110-510-0 02 1 9806-0204 ●
81 NUT; BRKT
(E) M10 FLANGE 		0-91150-210-0 04 1 0205-0602 ●
81 NUT; BRKT
(E) M10 FLANGE 		0-91180-210-0 04 1 0603- ●
81 NUT; BRKT
FTS SHORT CHASSIS(FT***C) (D) M10 FLANGE 		0-91150-210-0 01 1 9806-0204 ●
81 NUT; BRKT
FTS MIDDLE CHASSIS(FT***F) (C) M10 		9-09110-510-0 01 1 9806-0204 ●
81 NUT; BRKT
(C) M10 		9-09110-510-0 01 1 9806-0204 ●
81 NUT; BRKT
(C) M10 		9-09110-510-0 01 1 0205-0512 ● ●
81 NUT; BRKT
(C) M10 		0-91110-510-0 01 1 0601- ● ●
81 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 9806-0602 ●
81 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 9806-0603 ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 9806-0603 ●
81 NUT; BRKT
(A) M10 LOCK NUT 		0-91370-010-0 01 1 0604- ●
81 NUT; BRKT
(A) M10 LOCK NUT 		0-91370-010-0 01 1 0604- ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 9806-0805 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 04 1 0806- ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9806-0805 ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9806-0805 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9806-0805 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 04 1 9806- ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9806- ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9806- ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9806- ●
105 NUT; CLAMP
M10 		9-09110-510-0 04 1 9806-0512 ●
105 NUT; CLAMP
M10 		0-91110-510-0 04 1 0601- ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9806-0512 ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9806-0512 ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9806-0512 ●
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0601- ● ●
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0601- ●
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0601- ●
107 BOLT; BRKT
FTS MIDDLE CHASSIS(FT***F) M10X30 FLANGE 		0-28651-030-0 01 1 0609-0609 ●
107 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 0609-0609 ●
107 BOLT; BRKT
FTS MIDDLE CHASSIS(FT***F) M10X30 FLANGE 		0-28651-030-0 02 1 0610- ●
107 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0610- ●
107 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 9806-0512 ● ●
107 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 9806-0512 ●
107 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 02 1 0601- ● ●
107 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 02 1 0601- ●
107 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9806-0512 ●
107 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 9806-0605 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 9806-0605 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ●
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 02 1 9806-0204 ●
266 WASHER; LK,BRKT
FTS MIDDLE CHASSIS(FT***F) ID=10.2 		9-09150-510-0 01 1 9806-0204 ●
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 01 1 9806-0204 ●
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 01 1 0205-0603 ● ●
266 WASHER; LK,BRKT
ID=10.2 		0-91510-510-0 01 1 0604- ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE 1-22119-277-0 02 1 9806-9910 ●
475 BEARING; SEAL,VIBNON,EXH PIPE 1-22119-277-1 02 1 9911- ● ●
476 SPRING; VIBNON,EXH PIPE 1-09583-298-0 02 1 9806-9910 ●
476 SPRING; VIBNON,EXH PIPE 1-09583-298-0 02 1 9911- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
