1-41 — FUEL PIPING; CHASSIS (#65257) — 62 parça

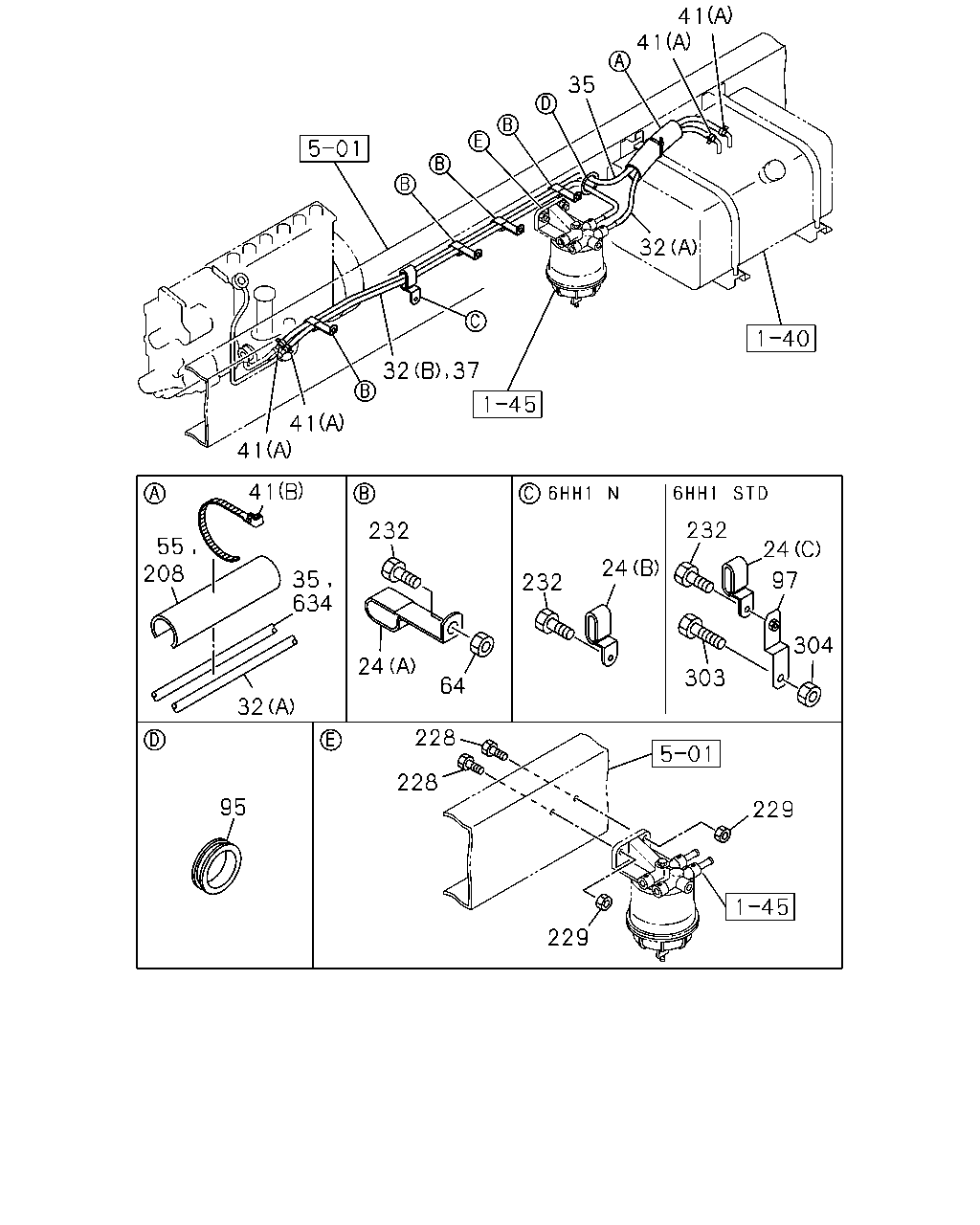

çizim 93249
41 41 32 37 32 41 35 41 41 55 232 35 208 32 634 232 232 24 97 303 304 24 64 95 228 228 229 229 24
BalonParca AdiParca NoAdetTipApplied Date A B
24 CLIP; FUEL HOSE
(C) ID=13 & 13 L=20 H=21.5 		1-09700-975-0 01 1 9806- ●
24 CLIP; FUEL HOSE
(A) ID=13X2 H=25 L=50 		1-09700-777-0 01 1 9806-9907 ● ●
24 CLIP; FUEL HOSE
(A) M13X2 H=20 L=60 		1-09701-280-0 01 1 9908- ● ●
24 CLIP; FUEL HOSE
(A) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 9806-0406 ● ●
24 CLIP; FUEL HOSE
(A) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 0407-0409 ● ●
24 CLIP; FUEL HOSE
(A) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 0407-0409 ●
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 9806-0409 ●
24 CLIP; FUEL HOSE
(A) ID=14X29 H=30 L=25 		1-09701-101-0 02 1 9806-0004 ●
24 CLIP; FUEL HOSE
(A) ID=14X29 H=30 L=25 		1-09701-101-0 03 1 0005-0406 ●
24 CLIP; FUEL HOSE
(A) ID=14X29 H=30 L=25 		1-09701-101-0 02 1 0407-0409 ●
24 CLIP; FUEL HOSE
(A) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 0410- ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=700 SERVICED BY L=3000 		0-01260-300-0 01 1 9806- ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=1250 SERVICED BY L=3000 		0-01260-300-0 01 1 9806- ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 9806- ●
35 PIPE; FUEL TANK,RETURN
L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 9806-0004 ●
35 PIPE; FUEL TANK,RETURN
L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 9806-0004 ●
37 HOSE; RUBBER DELIVERY
L=1150 SERVICED BY L=3000 		0-01260-300-0 01 1 9806- ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 06 1 9806-0409 ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 01 1 9806-0101 ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 02 1 0102-0212 ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 02 1 0301-0308 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 02 1 0309-0409 ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 03 1 0410- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 04 1 9806-0409 ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 06 1 0410- ● ●
55 COVER; PIPE,FUEL TANK
L=500 SERVICED BY L=1300 		1-09360-677-1 01 1 0309- ●
55 COVER; PIPE,FUEL TANK
L=150 		1-09360-677-1 01 1 0102-0212 ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0301-0308 ● ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0309- ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 0410-0602 ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0603- ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 05 1 9806-0403 ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9806-0004 ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 0005-0403 ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 0404-0409 ● ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0410-0602 ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 01 1 9806- ● ●
97 BRACKET; CLIP 1-53458-641-0 01 1 9806- ●
208 COVER; RUBBER
L=250 SERVICED BY L=1300 		1-09360-677-1 01 1 0604- ●
208 COVER; RUBBER
L=350 		1-09360-460-1 01 1 9806-0212 ●
208 COVER; RUBBER
L=350 		1-09360-460-1 01 1 0301-0308 ● ●
208 COVER; RUBBER
L=350 		1-09360-460-1 01 1 0309-0409 ●
208 COVER; RUBBER
L=350 		1-09360-460-1 01 1 0410-0603 ● ●
208 COVER; RUBBER
L=350 		1-09360-460-1 01 1 0604- ●
228 BOLT; BRKT,SEDIMENTER
M10X35 FLANGE 		0-28681-035-0 02 1 9806-0512 ● ●
228 BOLT; BRKT,SEDIMENTER
M10X35 FLANGE 		0-28651-035-0 02 1 0601- ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 9806-0602 ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
232 BOLT; CLIP,PIPE
M8X16 FLANGE 		0-28080-816-0 01 1 9806-0512 ●
232 BOLT; CLIP,PIPE
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
232 BOLT; CLIP,PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 9806-0409 ●
232 BOLT; CLIP,PIPE
M8X25 FLANGE 		0-28680-825-0 05 1 9806-0004 ●
232 BOLT; CLIP,PIPE
M8X25 FLANGE 		0-28680-825-0 06 1 0005-0409 ●
232 BOLT; CLIP,PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 0410-0512 ● ●
232 BOLT; CLIP,PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
303 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 9806-0512 ●
303 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
304 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 9806-0602 ●
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
634 HOSE; RUBBER RETURN
L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ●
634 HOSE; RUBBER RETURN
L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ●
